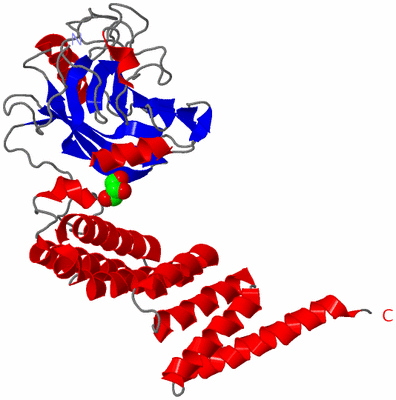

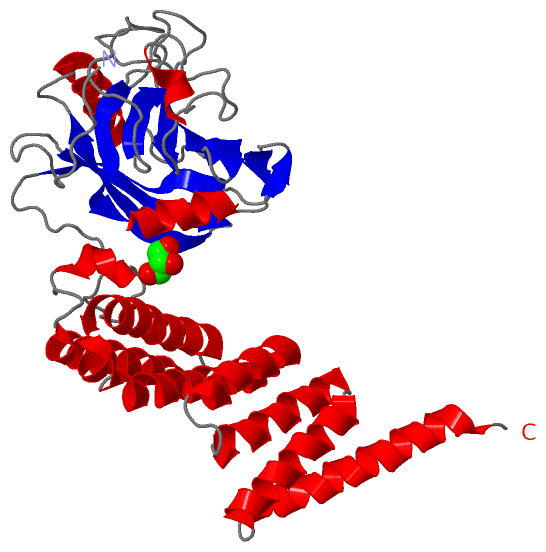

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

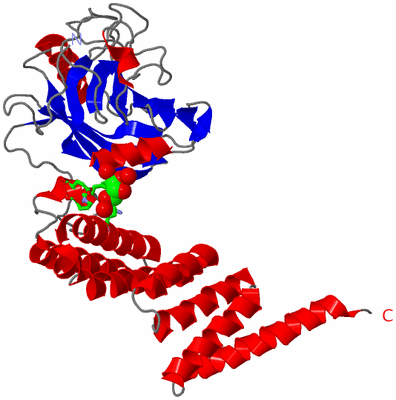

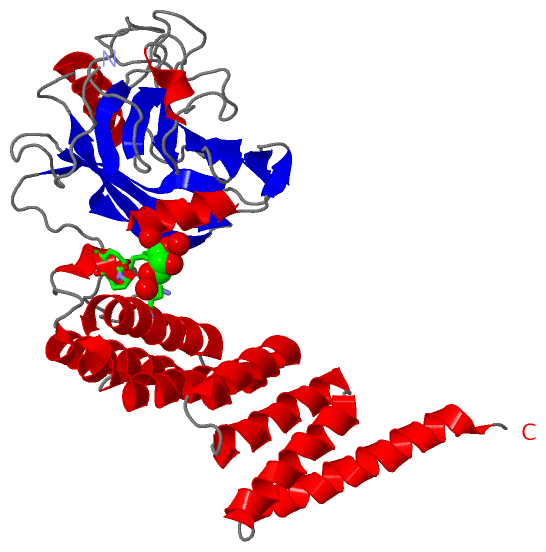

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  BOVINE CYCLOPHILIN 40, MONOCLINIC FORM

Authors :  P. Taylor, J. Dornan, A. Carrello, R. F. Minchin, T. Ratajczak, M. D. Wal
Date :  19 Apr 01  (Deposition) - 16 May 01  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  Ppiase Immunophilin Tetratricopeptide, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  P. Taylor, J. Dornan, A. Carrello, R. F. Minchin, T. Ratajczak, M. D. Walkinshaw
Two Structures Of Cyclophilin 40: Folding And Fidelity In The Tpr Domains.
Structure V. 9 431 2001
PubMed-ID: 11377203  |  Reference-DOI: 10.1016/S0969-2126(01)00603-7

(-) Compounds

Molecule 1 - CYCLOPHILIN 40
    ChainsA
    EC Number5.2.1.8
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21
    Expression System PlasmidPET11
    Expression System StrainBL21
    Expression System Taxid511693
    Expression System Vector TypePLASMID
    Organism CommonCATTLE
    Organism ScientificBOS TAURUS
    Organism Taxid9913
    Synonym40 KDA PEPTIDYL-PROLYL CIS-TRANS ISOMERASE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1GOL1Ligand/IonGLYCEROL

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPHE A:205 , PRO A:206 , GLU A:207 , ARG A:251 , HOH A:411 , HOH A:420 , HOH A:745 , HOH A:884BINDING SITE FOR RESIDUE GOL A 371

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1IHG)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Lys A:9 -Pro A:10

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1IHG)

(-) PROSITE Motifs  (4, 6)

Asymmetric/Biological Unit (4, 6)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CSA_PPIASE_2PS50072 Cyclophilin-type peptidyl-prolyl cis-trans isomerase domain profile.PPID_BOVIN19-183  1A:19-183
2CSA_PPIASE_1PS00170 Cyclophilin-type peptidyl-prolyl cis-trans isomerase signature.PPID_BOVIN68-85  1A:68-85
3TPRPS50005 TPR repeat profile.PPID_BOVIN223-256
273-306
307-340
  3A:223-256
A:273-306
A:307-340
4TPR_REGIONPS50293 TPR repeat region circular profile.PPID_BOVIN223-256
273-340
  2A:223-256
A:273-340

(-) Exons   (10, 10)

Asymmetric/Biological Unit (10, 10)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1ENSBTAT000000221801ENSBTAE00000181117chr17:42259030-42259188159PPID_BOVIN1-29291A:2-2928
1.2aENSBTAT000000221802aENSBTAE00000181118chr17:42261069-42261209141PPID_BOVIN29-76481A:29-7648
1.3bENSBTAT000000221803bENSBTAE00000181119chr17:42263497-42263603107PPID_BOVIN76-111361A:76-11136
1.4bENSBTAT000000221804bENSBTAE00000242082chr17:42265548-42265736189PPID_BOVIN112-174631A:112-17463
1.5ENSBTAT000000221805ENSBTAE00000242081chr17:42266538-42266660123PPID_BOVIN175-215411A:175-21541
1.6ENSBTAT000000221806ENSBTAE00000181122chr17:42267160-42267266107PPID_BOVIN216-251361A:216-25136
1.7ENSBTAT000000221807ENSBTAE00000181123chr17:42268938-42269079142PPID_BOVIN251-298481A:251-29848
1.8ENSBTAT000000221808ENSBTAE00000181124chr17:42270628-4227071487PPID_BOVIN299-327291A:299-32729
1.9ENSBTAT000000221809ENSBTAE00000181125chr17:42270815-4227085743PPID_BOVIN328-342151A:328-34215
1.10ENSBTAT0000002218010ENSBTAE00000355365chr17:42271568-42271947380PPID_BOVIN342-370291A:342-36524

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:364
 aligned with PPID_BOVIN | P26882 from UniProtKB/Swiss-Prot  Length:370

    Alignment length:364
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361
           PPID_BOVIN     2 SHPSPQAKPSNPSNPRVFFDVDIGGERVGRIVLELFADIVPKTAENFRALCTGEKGIGPTTGKPLHFKGCPFHRIIKKFMIQGGDFSNQNGTGGESIYGEKFEDENFHYKHDKEGLLSMANAGSNTNGSQFFITTVPTPHLDGKHVVFGQVIKGMGVAKILENVEVKGEKPAKLCVIAECGELKEGDDWGIFPKDGSGDSHPDFPEDADVDLKDVDKILLISEDLKNIGNTFFKSQNWEMAIKKYTKVLRYVEGSRAAAEDADGAKLQPVALSCVLNIGACKLKMSDWQGAVDSCLEALEIDPSNTKALYRRAQGWQGLKEYDQALADLKKAQEIAPEDKAIQAELLKVKQKIKAQKDKEKAAY 365
               SCOP domains d1ihga2 A:2-196 Cyclophilin 40 isomerase domain                                                                                                                                                    d1ihga1 A:197-365 Cyclophilin 40                                                                                                                                          SCOP domains
               CATH domains 1ihgA01 A:2-185 Cyclophilin                                                                                                                                                             -----------------------------------1ihgA02 A:221-365  [code=1.25.40.10, no name defined]                                                                                             CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...............eeeeeeee..eeeeeeeeee....hhhhhhhhhhhhhh..................eeeee...eeee................................eeee...........eeee...hhhhh....eeeeeeehhhhhhhhhh..ee..ee...eeeeeeeee....................hhhhh.....hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh....hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -----------------CSA_PPIASE_2  PDB: A:19-183 UniProt: 19-183                                                                                                                          ---------------------------------------TPR_REGION  PDB: A:223-256        ----------------TPR_REGION  PDB: A:273-340 UniProt: 273-340                         ------------------------- PROSITE (1)
                PROSITE (2) ------------------------------------------------------------------CSA_PPIASE_1      -----------------------------------------------------------------------------------------------------------------------------------------TPR  PDB: A:223-256               ----------------TPR  PDB: A:273-306               TPR  PDB: A:307-340               ------------------------- PROSITE (2)
           Transcript 1 (1) Exon 1.1  PDB: A:2-29       ----------------------------------------------Exon 1.3b  PDB: A:76-111            Exon 1.4b  PDB: A:112-174 UniProt: 112-174                     Exon 1.5  PDB: A:175-215 UniProt: 175-215Exon 1.6  PDB: A:216-251            -----------------------------------------------Exon 1.8  PDB: A:299-327     --------------Exon 1.10  PDB: A:342-36 Transcript 1 (1)
           Transcript 1 (2) ---------------------------Exon 1.2a  PDB: A:29-76 UniProt: 29-76          ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Exon 1.7  PDB: A:251-298 UniProt: 251-298       -----------------------------Exon 1.9       ----------------------- Transcript 1 (2)
                 1ihg A   2 SHPSPQAKPSNPSNPRVFFDVDIGGERVGRIVLELFADIVPKTAENFRALCTGEKGIGPTTGKPLHFKGCPFHRIIKKFMIQGGDFSNQNGTGGESIYGEKFEDENFHYKHDKEGLLSMANAGSNTNGSQFFITTVPTPHLDGKHVVFGQVIKGMGVAKILENVEVKGEKPAKLCVIAECGELKEGDDWGIFPKDGSGDSHPDFPEDADVDLKDVDKILLISEDLKNIGNTFFKSQNWEMAIKKYTKVLRYVEGSRAAAEDADGAKLQPVALSCVLNIGACKLKMSDWQGAVDSCLEALEIDPSNTKALYRRAQGWQGLKEYDQALADLKKAQEIAPEDKAIQAELLKVKQKIKAQKDKEKAAY 365
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1IHG)

(-) Gene Ontology  (27, 27)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (PPID_BOVIN | P26882)
molecular function
    GO:0030544    Hsp70 protein binding    Interacting selectively and non-covalently with Hsp70 proteins, any of a group of heat shock proteins around 70kDa in size.
    GO:0051879    Hsp90 protein binding    Interacting selectively and non-covalently with Hsp90 proteins, any of a group of heat shock proteins around 90kDa in size.
    GO:0030331    estrogen receptor binding    Interacting selectively and non-covalently with an estrogen receptor.
    GO:0031072    heat shock protein binding    Interacting selectively and non-covalently with a heat shock protein, any protein synthesized or activated in response to heat shock.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0042277    peptide binding    Interacting selectively and non-covalently with peptides, any of a group of organic compounds comprising two or more amino acids linked by peptide bonds.
    GO:0003755    peptidyl-prolyl cis-trans isomerase activity    Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0008134    transcription factor binding    Interacting selectively and non-covalently with a transcription factor, any protein required to initiate or regulate transcription.
biological process
    GO:0006915    apoptotic process    A programmed cell death process which begins when a cell receives an internal (e.g. DNA damage) or external signal (e.g. an extracellular death ligand), and proceeds through a series of biochemical events (signaling pathway phase) which trigger an execution phase. The execution phase is the last step of an apoptotic process, and is typically characterized by rounding-up of the cell, retraction of pseudopodes, reduction of cellular volume (pyknosis), chromatin condensation, nuclear fragmentation (karyorrhexis), plasma membrane blebbing and fragmentation of the cell into apoptotic bodies. When the execution phase is completed, the cell has died.
    GO:0071492    cellular response to UV-A    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a UV-A radiation stimulus. UV-A radiation (UV-A light) spans the wavelengths 315 to 400 nm.
    GO:0061077    chaperone-mediated protein folding    The process of inhibiting aggregation and assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure that is dependent on interaction with a chaperone.
    GO:0034389    lipid particle organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of a lipid particle.
    GO:0000122    negative regulation of transcription from RNA polymerase II promoter    Any process that stops, prevents, or reduces the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0043065    positive regulation of apoptotic process    Any process that activates or increases the frequency, rate or extent of cell death by apoptotic process.
    GO:0050714    positive regulation of protein secretion    Any process that activates or increases the frequency, rate or extent of the controlled release of a protein from a cell.
    GO:0045070    positive regulation of viral genome replication    Any process that activates or increases the frequency, rate or extent of viral genome replication.
    GO:0006461    protein complex assembly    The aggregation, arrangement and bonding together of a set of components to form a protein complex.
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0000413    protein peptidyl-prolyl isomerization    The modification of a protein by cis-trans isomerization of a proline residue.
    GO:0015031    protein transport    The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0042981    regulation of apoptotic process    Any process that modulates the occurrence or rate of cell death by apoptotic process.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005730    nucleolus    A small, dense body one or more of which are present in the nucleus of eukaryotic cells. It is rich in RNA and protein, is not bounded by a limiting membrane, and is not seen during mitosis. Its prime function is the transcription of the nucleolar DNA into 45S ribosomal-precursor RNA, the processing of this RNA into 5.8S, 18S, and 28S components of ribosomal RNA, and the association of these components with 5S RNA and proteins synthesized outside the nucleolus. This association results in the formation of ribonucleoprotein precursors; these pass into the cytoplasm and mature into the 40S and 60S subunits of the ribosome.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Lys A:9 - Pro A:10   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ihg
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PPID_BOVIN | P26882
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  5.2.1.8
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  PPID_BOVIN | P26882
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PPID_BOVIN | P268821iip

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1IHG)
