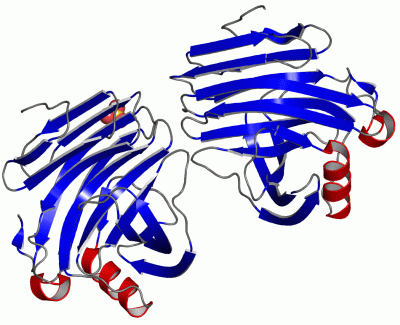

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

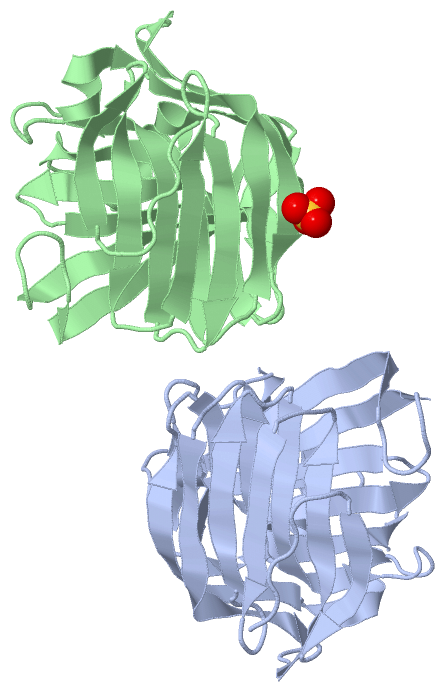

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

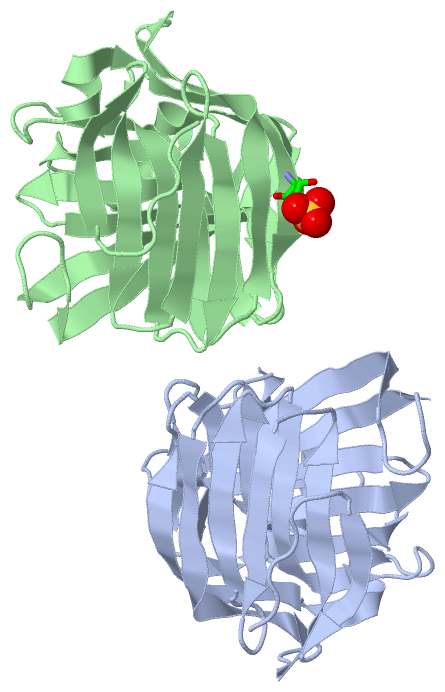

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

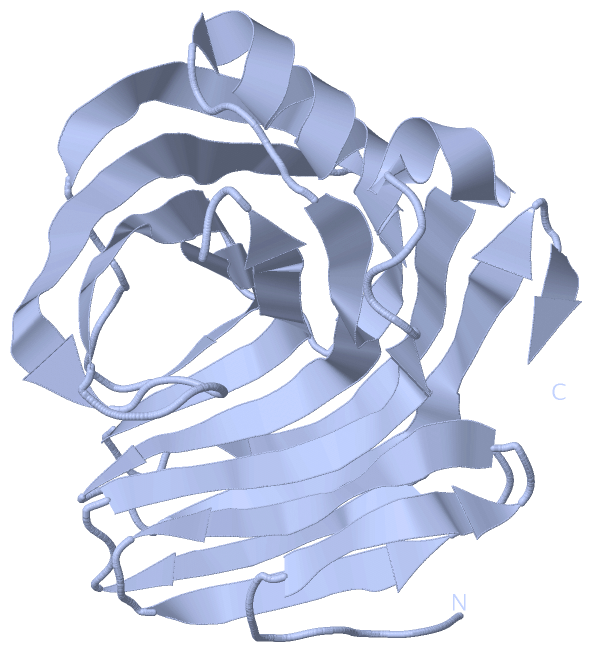

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

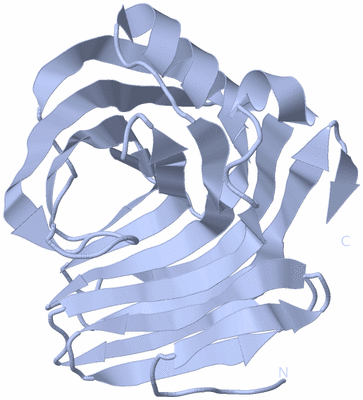

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

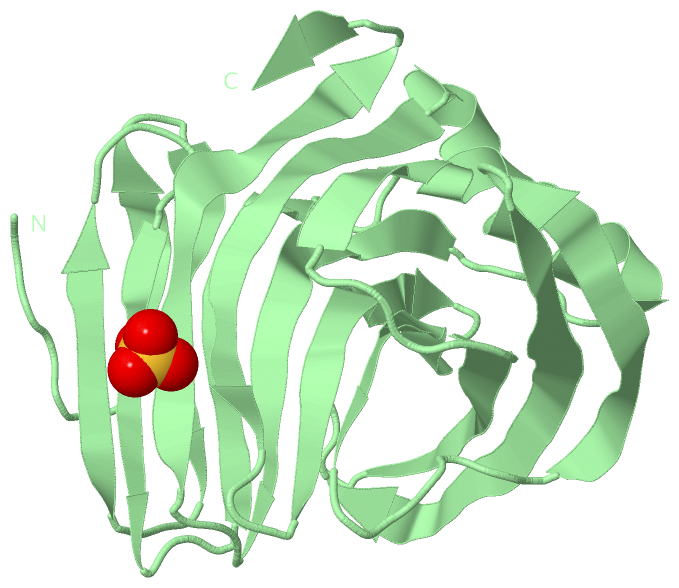

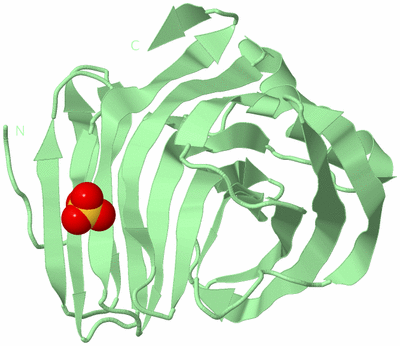

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  FAMILY 11 XYLANASE

Authors :  A. J. Oakley, C. Thomson, T. Heinrich, R. Dunlop, M. C. J. Wilce
Date :  18 Apr 01  (Deposition) - 18 Apr 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Xylanase, Endo-1, 4-Beta Xylanase, Family 11 Xylanase, Family G Xylanase, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. J. Oakley, T. Heinrich, C. A. Thompson, M. C. Wilce
Characterization Of A Family 11 Xylanase From Bacillus Subtillis B230 Used For Paper Bleaching.
Acta Crystallogr. , Sect. D V. 59 627 2003
PubMed-ID: 12657781  |  Reference-DOI: 10.1107/S0907444903001227
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - FAMILY 11 XYLANASE
    Chains: A, B
    EC Number: 3.2.1.8
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423
    Strain: B230
    Synonym: ENDO-1,4-BETA XYLANASE, FAMILY G XYLANASE

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1SO41Ligand/IonSULFATE ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1SO4-1Ligand/IonSULFATE ION
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
1SO41Ligand/IonSULFATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETHR B:73BINDING SITE FOR RESIDUE SO4 B 206

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1IGO)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Asp A:90 -Pro A:91
2Asp B:90 -Pro B:91

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1IGO)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1IGO)

(-) Exons   (0, 0)

(no "Exon" information available for 1IGO)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:205
 aligned with Q7SID8_BACIU | Q7SID8 from UniProtKB/TrEMBL  Length:205

    Alignment length:205
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
         Q7SID8_BACIU     1 ATTITSNQTGTHDGYDYELWKDSGNTSMTLNSGGAFSAQWSNIGNALFRKGKKFDSTKTHSQLGNISINYNATFNPGGNSYLCVYGWTKDPLTEYYIVDNWGTYRPTGTPKGTFTVDGGTYDIYETTRINQPSIIGIATFKQYWSVRQTKRTSGTVSVSEHFKKWESLGMPMGKMYETALTVEGYQSNGSANVTANVLTIGGKPL 205
               SCOP domains d1igoa_ A: Xylanase II                                                                                                                                                                                        SCOP domains
               CATH domains 1igoA00 A:2-205  [code=2.60.120.180, no name defined]                                                                                                                                                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeee..eeeeeee...eeeeee.....eeeeee...eeeeeeeee.....hhhhhh.eeeeeeeeee...eeeeeeeeeee...eeeeeeeee.......eeeeeeee..eeeeeeeeeeeee......eeeeeeeeee.....eeeehhhhhhhhhhhh.....eeeeeeeeeeee...eeeeeeeeeeee..ee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1igo A   2 ATTITSNQTGTHDGYDYELWKDSGNTSMTLNSGGAFSAQWSNIGNALFRKGKKFDSTKTHSQLGNISINYNATFNPGGNSYLCVYGWTKDPLTEYYIVDNWGTYRPTGTPKGTFTVDGGTYDIYETTRINQPSIIGIATFKQYWSVRQTKRTSGTVSVSEHFKKWESLGMPMGKMYETALTVEGYQSNGSANVTANVLTIGGKPL 205
                             |      10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
                             |
                            2B


Chain B from PDB  Type:PROTEIN  Length:205
 aligned with Q7SID8_BACIU | Q7SID8 from UniProtKB/TrEMBL  Length:205

    Alignment length:205
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
         Q7SID8_BACIU     1 ATTITSNQTGTHDGYDYELWKDSGNTSMTLNSGGAFSAQWSNIGNALFRKGKKFDSTKTHSQLGNISINYNATFNPGGNSYLCVYGWTKDPLTEYYIVDNWGTYRPTGTPKGTFTVDGGTYDIYETTRINQPSIIGIATFKQYWSVRQTKRTSGTVSVSEHFKKWESLGMPMGKMYETALTVEGYQSNGSANVTANVLTIGGKPL 205
               SCOP domains d1igob_ B: Xylanase II                                                                                                                                                                                        SCOP domains
               CATH domains 1igoB00 B:2-205  [code=2.60.120.180, no name defined]                                                                                                                                                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeee..eeeeeee...eeeeee.....eeeeee...eeeeeeeee.....hhhhhh.eeeeeeeeee...eeeeeeeeeee...eeeeeeeee.......eeeeeeee..eeeeeeeeeeeee......eeeeeeeeee.....eeeehhhhhhhhhhhh.....eeeeeeeeeeee...eeeeeeeeeeee..ee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1igo B   2 ATTITSNQTGTHDGYDYELWKDSGNTSMTLNSGGAFSAQWSNIGNALFRKGKKFDSTKTHSQLGNISINYNATFNPGGNSYLCVYGWTKDPLTEYYIVDNWGTYRPTGTPKGTFTVDGGTYDIYETTRINQPSIIGIATFKQYWSVRQTKRTSGTVSVSEHFKKWESLGMPMGKMYETALTVEGYQSNGSANVTANVLTIGGKPL 205
                             |      10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
                            2B
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1IGO)

(-) Gene Ontology  (8, 8)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q7SID8_BACIU | Q7SID8)
molecular function
    GO:0031176    endo-1,4-beta-xylanase activity    Catalysis of the endohydrolysis of (1->4)-beta-D-xylosidic linkages in xylans.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0000272    polysaccharide catabolic process    The chemical reactions and pathways resulting in the breakdown of a polysaccharide, a polymer of many (typically more than 10) monosaccharide residues linked glycosidically.
    GO:0045493    xylan catabolic process    The chemical reactions and pathways resulting in the breakdown of xylan, a polymer containing a beta-1,4-linked D-xylose backbone.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asp A:90 - Pro A:91   [ RasMol ]
    Asp B:90 - Pro B:91   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
