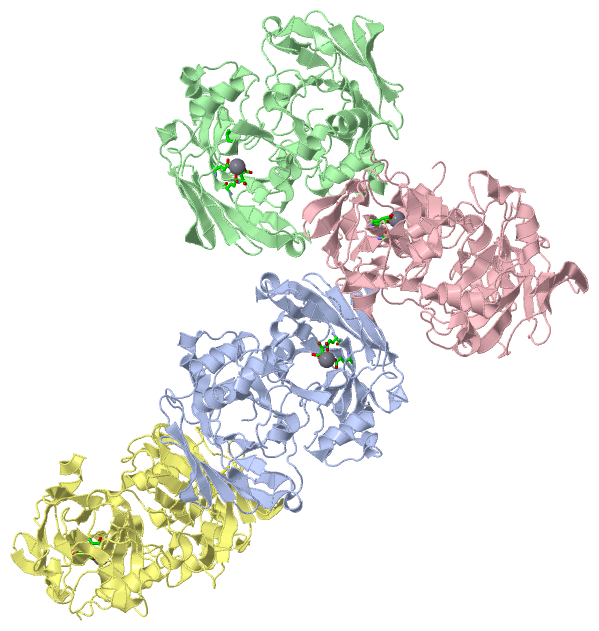

Asym. Unit - sites (Jmol Viewer)

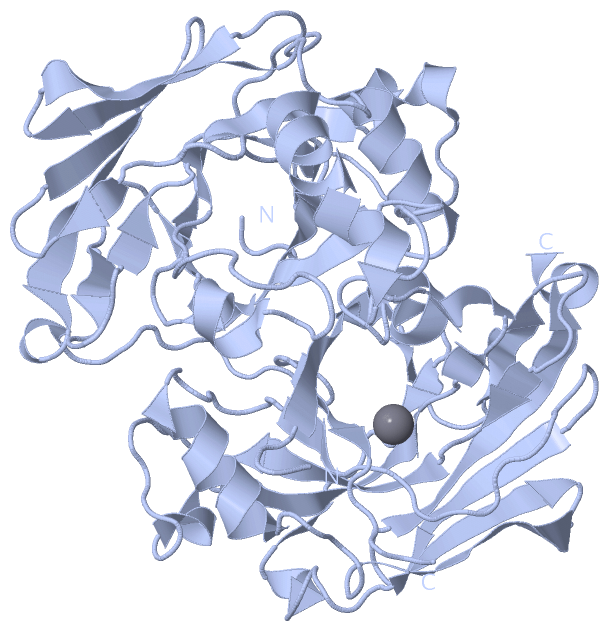

Biological Unit 1 (Jmol Viewer)

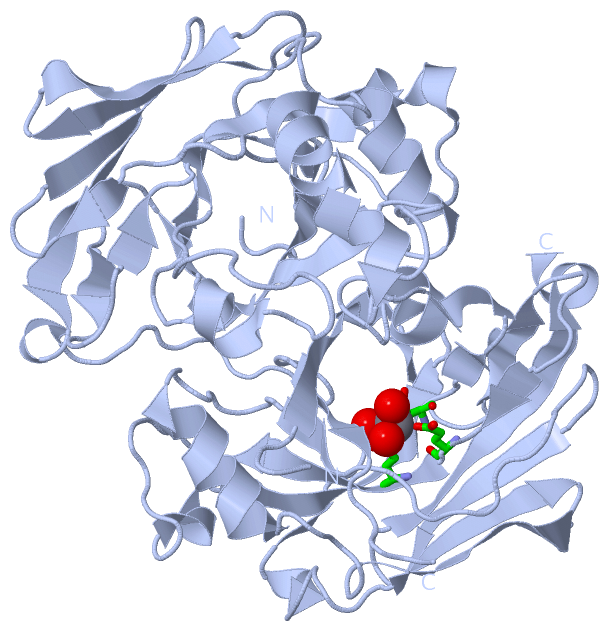

Biol. Unit 1 - sites (Jmol Viewer)

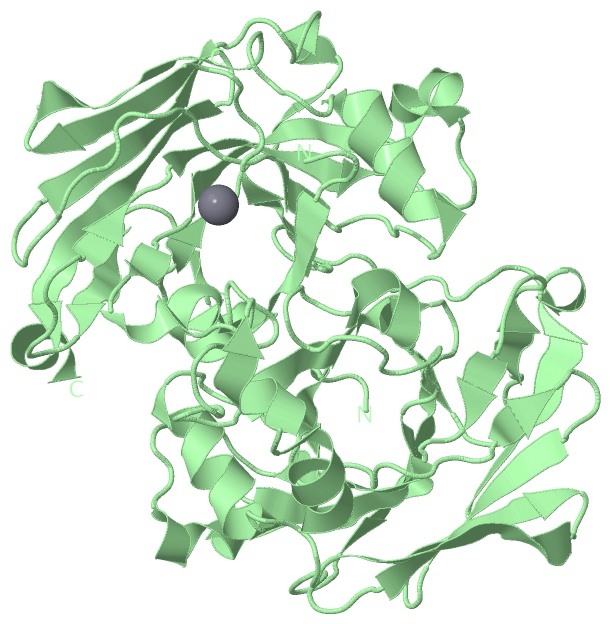

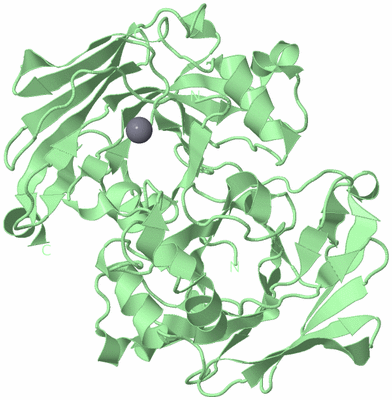

Biological Unit 2 (Jmol Viewer)

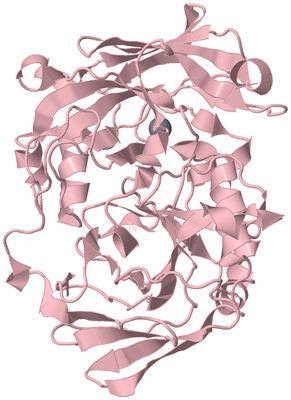

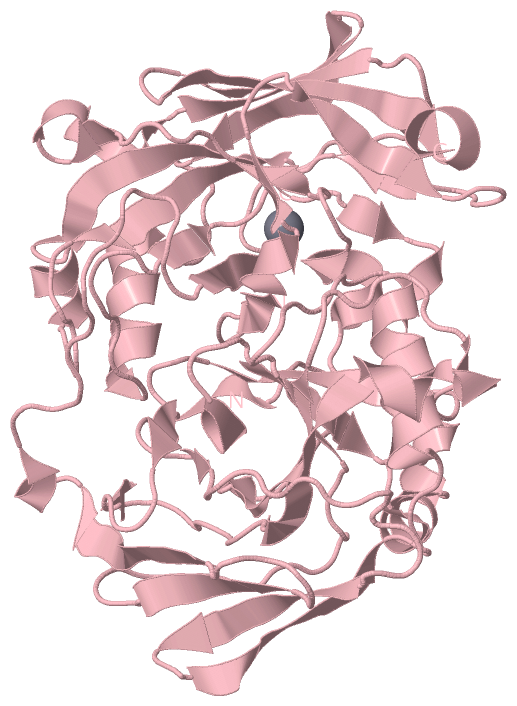

Biological Unit 3 (Jmol Viewer)

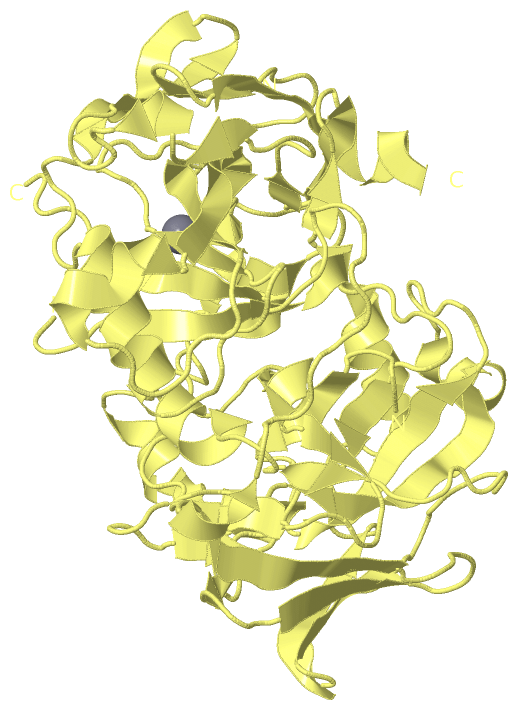

Biological Unit 4 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF HPCE

Authors :   J. R. H. Tame, K. Namba, E. J. Dodson, D. I. Roper

Date :   10 Mar 01 (Deposition) - 28 Mar 01 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.70

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: D  (1x)

Keywords :   Bifunctional Enzyme, Isomerase, Decarboxylase, Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. R. H. Tame, K. Namba, E. J. Dodson, D. I. Roper
The Crystal Structure Of Hpce, A Multi-Functional Enzyme Fold
To Be Published
PubMed: search
(for further references see the PDB file header)

Molecule 1 - 4-HYDROXYPHENYLACETATE DEGRADATION BIFUNCTIONAL ISOMERASE/DECARBOXYLASE
	Chains	:	A, B, C, D
	EC Number	:	5.3.3.10, 4.1.1.68
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (1x)	:				D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 4)

No.	Name	Count	Type	Full Name
1	CA	4	Ligand/Ion	CALCIUM ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	CA	-1	Ligand/Ion	CALCIUM ION

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	CA	-1	Ligand/Ion	CALCIUM ION

Biological Unit 3 (0, 0)

No.	Name	Count	Type	Full Name
1	CA	-1	Ligand/Ion	CALCIUM ION

Biological Unit 4 (0, 0)

No.	Name	Count	Type	Full Name
1	CA	-1	Ligand/Ion	CALCIUM ION

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	GLU A:276 , GLU A:278 , ASP A:307 , HOH A:1003 , HOH A:1005 , HOH A:1009	BINDING SITE FOR RESIDUE CA A 1001
2	AC2	SOFTWARE	LEU B:228 , GLU B:276 , GLU B:278 , ASP B:307 , HOH B:1005 , HOH B:1035 , HOH B:1048	BINDING SITE FOR RESIDUE CA B 1002
3	AC3	SOFTWARE	GLU C:276 , GLU C:278 , ASP C:307 , HOH C:1008 , HOH C:1010 , HOH C:1016	BINDING SITE FOR RESIDUE CA C 1003
4	AC4	SOFTWARE	GLU D:276 , GLU D:278 , ASP D:307 , HOH D:1013 , HOH D:1032 , HOH D:1041	BINDING SITE FOR RESIDUE CA D 1004

Asymmetric Unit

No.	Residues
1	A:48	-	D:48

Asymmetric Unit

No.	Residues
1	Ser A:26	-	Pro A:27
2	Gly A:57	-	Glu A:58
3	His A:220	-	Pro A:221
4	Arg A:319	-	Pro A:320
5	Ser B:26	-	Pro B:27
6	Gly B:57	-	Glu B:58
7	His B:220	-	Pro B:221
8	Arg B:319	-	Pro B:320
9	Ser C:26	-	Pro C:27
10	Gly C:57	-	Glu C:58
11	His C:220	-	Pro C:221
12	Arg C:319	-	Pro C:320
13	Ser D:26	-	Pro D:27
14	Gly D:57	-	Glu D:58
15	His D:220	-	Pro D:221
16	Arg D:319	-	Pro D:320

(no "SAP(SNP)/Variant" information available for 1I7O)

(no "PROSITE Motif" information available for 1I7O)

(no "Exon" information available for 1I7O)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:421
 aligned with HPCE_ECOLX | P37352 from UniProtKB/Swiss-Prot  Length:427

    Alignment length:429
                                                                                                                                                                                                                                                                                                                                                                                                                                              403
                                                                                                                                                                                                                                                                                                                                                                                                                                           402  |
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400 |  |  408       418
           HPCE_ECOLX     1 MKGTIFAVALNHRSQLDAWQEAFQQSPIKAPPKTAVWFIKPRNTVIGCGEPIPFPQGENLLSGATVALIVGKTATKVREEDAAEYIAGYALANDVSLPEESFYRPAIKAKCRDGFCPIGETVALSNVDNLTIYTEINGRPADHWNTSDLQRNAAQLLSALSEFATLNPGDAILLGTPQARVEIQPGDRVRVLAEGFPPLENPVVDEREVTTRKSFPTLPHPHGTLFALGLNYADHASELEFKPPEEPLVFLKAPNTLTGDNQTSVRPNNIEYMHYEAELVVVIGKQARNVSEADAMDYVAGYTVCNDYAIRDYLENYYRPNLRVKSRDGLTPMLSTIVPKEAIPDPHNLTLRTFVNGELRQQGTTADLIFSVPFLIAYLSEFMTLNPGDMIATGTPKGLSDV--GDEVVVEVEGVGRLVNRIVSEETAK 427
               SCOP domains d1i7oa1 A:1-213 4-hydroxyphenylacetate degradation bifunctional isomerase/decarboxylase HpcE                                                                                                                         d1i7oa2 A:214-429 4-hy        droxyphenylacetate degradation bifunctional isomerase/decarboxylase HpcE                                                                                                                   SCOP domains
               CATH domains 1i7oA01 A:1-211 Fumarylacetoacetate hydrolase, domain 2                                                                                                                                                            1i7oA02 A:212-429 Fumary        lacetoacetate hydrolase, domain 2                                                                                                                                                          CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee..hhhhhhhhhhhhhh..........eeeeehhh.ee.....eee.....ee..eeeeeee.......hhhhhhh.eeeeeeee............hhhhhh....ee.............eeeeee..eeeeeee......hhhhhhhhhhh........eee........ee....eeeee......eeeeeee.hhh...............eeeee......--------....eeeeehhh.ee...eeeee......ee..eeeeeee..........hhhh.eeeeeeee..ee.hhh......hhhhhh....ee.....ee.hhh......eeeeee..eeeeeee......hhhhhhhhhhh........eee..............eeeeee...eeeeeeeeehhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1i7o A   1 MKGTIFAVALNHRSQLDAWQEAFQQSPYKAPPKTAVWFIKPRNTVIGCGEPIPFPQGEKVLSGATVALIVGKTATKVREEDAAEYIAGYALANDVSLPEESFYRPAIKAKCRDGFCPIGETVALSNVDNLTIYTEINGRPADHWNTADLQRNAAQLLSALSEFATLNPGDAILLGTPQARVEIQPGDRVRVLAEGFPPLENPVVDEREVTTRKSFPTLPHPHGTLFALGLNYADH--------PEEPLVFLKAPNTLTGDNQTSVRPNNIEYMHYEAELVVVIGKQARNVSEADAMDYVAGYTVCNDYAIRDYLENYYRPNLRVKSRDGLTPMLSTIVPKEAIPDPHNLTLRTFVNGELRQQGTTADLIFSVPFLIAYLSEFMTLNPGDMIATGTPKGLSDVVPGDEVVVEVEGVGRLVNRIVSEETAK 429
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230    |    -   |   250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420
                                                                                                                                                                                                                                                                    235      244

Chain B from PDB  Type:PROTEIN  Length:421
 aligned with HPCE_ECOLX | P37352 from UniProtKB/Swiss-Prot  Length:427

    Alignment length:429
                                                                                                                                                                                                                                                                                                                                                                                                                                              403
                                                                                                                                                                                                                                                                                                                                                                                                                                           402  |
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400 |  |  408       418
           HPCE_ECOLX     1 MKGTIFAVALNHRSQLDAWQEAFQQSPIKAPPKTAVWFIKPRNTVIGCGEPIPFPQGENLLSGATVALIVGKTATKVREEDAAEYIAGYALANDVSLPEESFYRPAIKAKCRDGFCPIGETVALSNVDNLTIYTEINGRPADHWNTSDLQRNAAQLLSALSEFATLNPGDAILLGTPQARVEIQPGDRVRVLAEGFPPLENPVVDEREVTTRKSFPTLPHPHGTLFALGLNYADHASELEFKPPEEPLVFLKAPNTLTGDNQTSVRPNNIEYMHYEAELVVVIGKQARNVSEADAMDYVAGYTVCNDYAIRDYLENYYRPNLRVKSRDGLTPMLSTIVPKEAIPDPHNLTLRTFVNGELRQQGTTADLIFSVPFLIAYLSEFMTLNPGDMIATGTPKGLSDV--GDEVVVEVEGVGRLVNRIVSEETAK 427
               SCOP domains d1i7ob1 B:1-213 4-hydroxyphenylacetate degradation bifunctional isomerase/decarboxylase HpcE                                                                                                                         d1i7ob2 B:214-429 4-hy        droxyphenylacetate degradation bifunctional isomerase/decarboxylase HpcE                                                                                                                   SCOP domains
               CATH domains 1i7oB01 B:1-211 Fumarylacetoacetate hydrolase, domain 2                                                                                                                                                            1i7oB02 B:212-428 Fumary        lacetoacetate hydrolase, domain 2                                                                                                                                                        - CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee..hhhhhhhh.hhhhh..........eeeeehhh.ee.....eee.....ee..eeeeeee.......hhhhhhh.eeeeeeee............hhhhhh....eeeeeee........eeeeee..eeeeeee......hhhhhhhhhhh........eee........ee....eeeee......eeeeeee.hhh...............eeeee......--------....eeeeehhh.ee...eeeee......ee..eeeeeee.......hhhhhhh.eeeeeeee..ee.hhh......hhhhhh....ee.....ee.hhh......eeeeee..eeeeeee......hhhhhhhhhhh........eee..............eeeeee...eeeeeeeeehhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1i7o B   1 MKGTIFAVALNHRSQLDAWQEAFQQSPYKAPPKTAVWFIKPRNTVIGCGEPIPFPQGEKVLSGATVALIVGKTATKVREEDAAEYIAGYALANDVSLPEESFYRPAIKAKCRDGFCPIGETVALSNVDNLTIYTEINGRPADHWNTADLQRNAAQLLSALSEFATLNPGDAILLGTPQARVEIQPGDRVRVLAEGFPPLENPVVDEREVTTRKSFPTLPHPHGTLFALGLNYADH--------PEEPLVFLKAPNTLTGDNQTSVRPNNIEYMHYEAELVVVIGKQARNVSEADAMDYVAGYTVCNDYAIRDYLENYYRPNLRVKSRDGLTPMLSTIVPKEAIPDPHNLTLRTFVNGELRQQGTTADLIFSVPFLIAYLSEFMTLNPGDMIATGTPKGLSDVVPGDEVVVEVEGVGRLVNRIVSEETAK 429
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230    |    -   |   250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420
                                                                                                                                                                                                                                                                    235      244

Chain C from PDB  Type:PROTEIN  Length:421
 aligned with HPCE_ECOLX | P37352 from UniProtKB/Swiss-Prot  Length:427

    Alignment length:429
                                                                                                                                                                                                                                                                                                                                                                                                                                              403
                                                                                                                                                                                                                                                                                                                                                                                                                                           402  |
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400 |  |  408       418
           HPCE_ECOLX     1 MKGTIFAVALNHRSQLDAWQEAFQQSPIKAPPKTAVWFIKPRNTVIGCGEPIPFPQGENLLSGATVALIVGKTATKVREEDAAEYIAGYALANDVSLPEESFYRPAIKAKCRDGFCPIGETVALSNVDNLTIYTEINGRPADHWNTSDLQRNAAQLLSALSEFATLNPGDAILLGTPQARVEIQPGDRVRVLAEGFPPLENPVVDEREVTTRKSFPTLPHPHGTLFALGLNYADHASELEFKPPEEPLVFLKAPNTLTGDNQTSVRPNNIEYMHYEAELVVVIGKQARNVSEADAMDYVAGYTVCNDYAIRDYLENYYRPNLRVKSRDGLTPMLSTIVPKEAIPDPHNLTLRTFVNGELRQQGTTADLIFSVPFLIAYLSEFMTLNPGDMIATGTPKGLSDV--GDEVVVEVEGVGRLVNRIVSEETAK 427
               SCOP domains d1i7oc1 C:1-213 4-hydroxyphenylacetate degradation bifunctional isomerase/decarboxylase HpcE                                                                                                                         d1i7oc2 C:214-429 4-hy        droxyphenylacetate degradation bifunctional isomerase/decarboxylase HpcE                                                                                                                   SCOP domains
               CATH domains 1i7oC01 C:1-211 Fumarylacetoacetate hydrolase, domain 2                                                                                                                                                            1i7oC02 C:212-428 Fumary        lacetoacetate hydrolase, domain 2                                                                                                                                                        - CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee..hhhhhhhh.hhhhh..........eeeee....ee.....eee.........eeeeeee.......hhhhhhhheeeeeeee............hhhhhh....ee.............eeeeee..eeeeeee......hhhhhhhhhhh........eee..............eeeee......eeeeeee.hhh...............eeeee......--------....eeeeehhh.ee...eeeee......ee..eeeeeee.......hhhhhh..eeeeeeee..ee.hhh......hhhhhh....ee.....ee.hhh.hhhh.eeeeee..eeeeeee......hhhhhhhhhhh........eee..............eeeeee...eeeeeeeeehhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1i7o C   1 MKGTIFAVALNHRSQLDAWQEAFQQSPYKAPPKTAVWFIKPRNTVIGCGEPIPFPQGEKVLSGATVALIVGKTATKVREEDAAEYIAGYALANDVSLPEESFYRPAIKAKCRDGFCPIGETVALSNVDNLTIYTEINGRPADHWNTADLQRNAAQLLSALSEFATLNPGDAILLGTPQARVEIQPGDRVRVLAEGFPPLENPVVDEREVTTRKSFPTLPHPHGTLFALGLNYADH--------PEEPLVFLKAPNTLTGDNQTSVRPNNIEYMHYEAELVVVIGKQARNVSEADAMDYVAGYTVCNDYAIRDYLENYYRPNLRVKSRDGLTPMLSTIVPKEAIPDPHNLTLRTFVNGELRQQGTTADLIFSVPFLIAYLSEFMTLNPGDMIATGTPKGLSDVVPGDEVVVEVEGVGRLVNRIVSEETAK 429
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230    |    -   |   250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420
                                                                                                                                                                                                                                                                    235      244

Chain D from PDB  Type:PROTEIN  Length:421
 aligned with HPCE_ECOLX | P37352 from UniProtKB/Swiss-Prot  Length:427

    Alignment length:429
                                                                                                                                                                                                                                                                                                                                                                                                                                              403
                                                                                                                                                                                                                                                                                                                                                                                                                                           402  |
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400 |  |  408       418
           HPCE_ECOLX     1 MKGTIFAVALNHRSQLDAWQEAFQQSPIKAPPKTAVWFIKPRNTVIGCGEPIPFPQGENLLSGATVALIVGKTATKVREEDAAEYIAGYALANDVSLPEESFYRPAIKAKCRDGFCPIGETVALSNVDNLTIYTEINGRPADHWNTSDLQRNAAQLLSALSEFATLNPGDAILLGTPQARVEIQPGDRVRVLAEGFPPLENPVVDEREVTTRKSFPTLPHPHGTLFALGLNYADHASELEFKPPEEPLVFLKAPNTLTGDNQTSVRPNNIEYMHYEAELVVVIGKQARNVSEADAMDYVAGYTVCNDYAIRDYLENYYRPNLRVKSRDGLTPMLSTIVPKEAIPDPHNLTLRTFVNGELRQQGTTADLIFSVPFLIAYLSEFMTLNPGDMIATGTPKGLSDV--GDEVVVEVEGVGRLVNRIVSEETAK 427
               SCOP domains d1i7od1 D:1-213 4-hydroxyphenylacetate degradation bifunctional isomerase/decarboxylase HpcE                                                                                                                         d1i7od2 D:214-429 4-hy        droxyphenylacetate degradation bifunctional isomerase/decarboxylase HpcE                                                                                                                   SCOP domains
               CATH domains 1i7oD01 D:1-211 Fumarylacetoacetate hydrolase, domain 2                                                                                                                                                            1i7oD02 D:212-427 Fumary        lacetoacetate hydrolase, domain 2                                                                                                                                                       -- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee..hhhhhhhhhhhhhh..........eeeeehhh.ee.....eee.....ee..eeeeeee.......hhhhhhhheeeeeeee............hhhhhh....ee.............eeeeee..eeeeeee......hhhhhhhhhhh........eee........ee....eeeee......eeeeeee.hhh...............eeeee......--------....eeeeehhh.ee...eeeee......ee..eeeeeee.......hhhhhhh.eeeeeeee..ee.hhh......hhhhhh....ee.....ee.hhh......eeeeee..eeeeeee......hhhhhhhhhhh........eee................eeee...eeeeeeeeehhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1i7o D   1 MKGTIFAVALNHRSQLDAWQEAFQQSPYKAPPKTAVWFIKPRNTVIGCGEPIPFPQGEKVLSGATVALIVGKTATKVREEDAAEYIAGYALANDVSLPEESFYRPAIKAKCRDGFCPIGETVALSNVDNLTIYTEINGRPADHWNTADLQRNAAQLLSALSEFATLNPGDAILLGTPQARVEIQPGDRVRVLAEGFPPLENPVVDEREVTTRKSFPTLPHPHGTLFALGLNYADH--------PEEPLVFLKAPNTLTGDNQTSVRPNNIEYMHYEAELVVVIGKQARNVSEADAMDYVAGYTVCNDYAIRDYLENYYRPNLRVKSRDGLTPMLSTIVPKEAIPDPHNLTLRTFVNGELRQQGTTADLIFSVPFLIAYLSEFMTLNPGDMIATGTPKGLSDVVPGDEVVVEVEGVGRLVNRIVSEETAK 429
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230    |    -   |   250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420
                                                                                                                                                                                                                                                                    235      244

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: FAH (16)

Superfamily: FAH (16)

Family: FAH (13)

Protein domain: 4-hydroxyphenylacetate degradation bifunctional isomerase/decarboxylase HpcE (2)

Escherichia coli [TaxId: 562] (2)

1a	d1i7oa1	A:1-213
1b	d1i7ob1	B:1-213
1c	d1i7ob2	B:214-429
1d	d1i7oc1	C:1-213
1e	d1i7oc2	C:214-429
1f	d1i7od1	D:1-213
1g	d1i7od2	D:214-429
1h	d1i7oa2	A:214-429

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Alpha-Beta Complex (3881)

Topology: Fumarylacetoacetate hydrolase; domain 2 (15)

Homologous Superfamily: Fumarylacetoacetate hydrolase, domain 2 (15)

Escherichia coli. Organism_taxid: 562. (2)

1a	1i7oA01	A:1-211
1b	1i7oB02	B:212-428
1c	1i7oC02	C:212-428
1d	1i7oD02	D:212-427
1e	1i7oB01	B:1-211
1f	1i7oC01	C:1-211
1g	1i7oD01	D:1-211
1h	1i7oA02	A:212-429

(no "Pfam Domain" information available for 1I7O)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (HPCE_ECOLX | P37352)

molecular function
	GO:0008704	5-carboxymethyl-2-hydroxymuconate delta-isomerase activity	Catalysis of the reaction: 5-carboxymethyl-2-hydroxymuconate = 5-carboxy-2-oxohept-3-enedioate.
	GO:0018800	5-oxopent-3-ene-1,2,5-tricarboxylate decarboxylase activity	Catalysis of the reaction: 5-oxopent-3-ene-1,2,5-tricarboxylate = 2-oxohept-3-enedioate + CO2.
	GO:0003824	catalytic activity	Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
	GO:0016853	isomerase activity	Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
	GO:0016829	lyase activity	Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:1901023	4-hydroxyphenylacetate catabolic process	The chemical reactions and pathways resulting in the breakdown of 4-hydroxyphenylacetate.
	GO:0019439	aromatic compound catabolic process	The chemical reactions and pathways resulting in the breakdown of aromatic compounds, any substance containing an aromatic carbon ring.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
