1I1W - JenaLib

Title :   0.89A ULTRA HIGH RESOLUTION STRUCTURE OF A THERMOSTABLE XYLANASE FROM THERMOASCUS AURANTIACUS

Authors :   R. Natesh, S. Ramakumar, M. A. Viswamitra

Date :   04 Feb 01 (Deposition) - 07 Jan 03 (Release) - 04 Jun 14 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   0.89

Chains :   Asym./Biol. Unit : A

Keywords :   Xylan Degradation, Hydrolase, Glycosidase, Enzyme, Ultra High Resolution, Cryo Temperature, 1, 4-Beta-Xylan Xylanohydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   R. Natesh, K. Manikandan, P. Bhanumoorthy, M. A. Viswamitra, S. Ramakumar
Thermostable Xylanase From Thermoascus Aurantiacus At Ultrahigh Resolution (0. 89 A) At 100 K And Atomic Resolutio (1. 11 A) At 293 K Refined Anisotropically To Small-Molecule Accuracy.
Acta Crystallogr. , Sect. D V. 59 105 2003
PubMed-ID: 12499546 | Reference-DOI: 10.1107/S0907444902020164
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (5, 23)

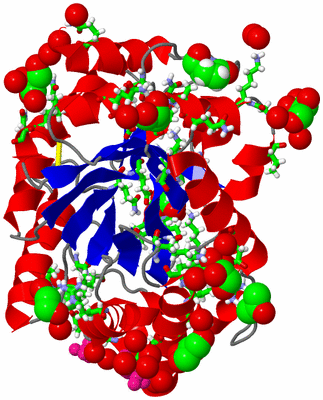

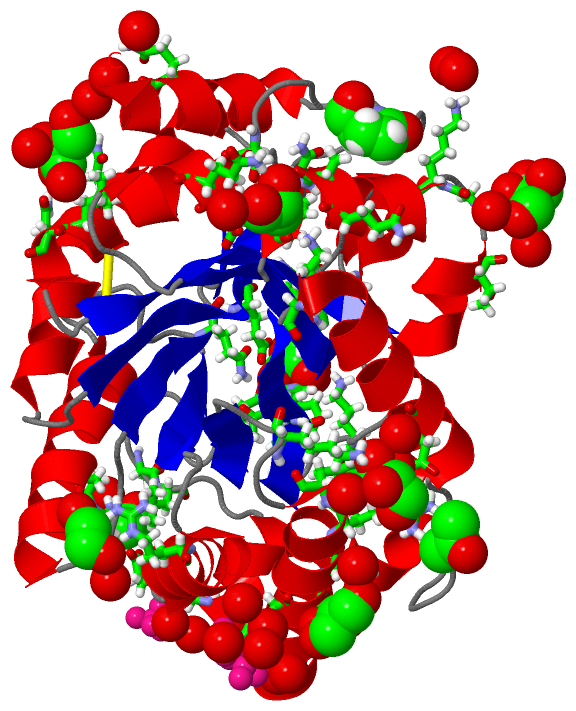

Sites (22, 22)

Asymmetric Unit (22, 22)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	UNX A:1407 , UNX A:1408 , UNX A:1409 , UNX A:1410	BINDING SITE FOR RESIDUE UNX A 1406
02	AC2	SOFTWARE	GLY A:149 , GLU A:150 , HOH A:836 , UNX A:1406 , UNX A:1408 , UNX A:1409 , UNX A:1410	BINDING SITE FOR RESIDUE UNX A 1407
03	AC3	SOFTWARE	HOH A:677 , UNX A:1406 , UNX A:1407 , UNX A:1409 , UNX A:1410	BINDING SITE FOR RESIDUE UNX A 1408
04	AC4	SOFTWARE	UNX A:1406 , UNX A:1407 , UNX A:1408 , UNX A:1410	BINDING SITE FOR RESIDUE UNX A 1409
05	AC5	SOFTWARE	HOH A:567 , UNX A:1406 , UNX A:1407 , UNX A:1408 , UNX A:1409	BINDING SITE FOR RESIDUE UNX A 1410
06	AC6	SOFTWARE	UNX A:1412 , UNX A:1413 , UNX A:1414 , UNX A:1415 , UNX A:1416 , UNX A:1417 , UNX A:1418	BINDING SITE FOR RESIDUE UNX A 1411
07	AC7	SOFTWARE	LYS A:31 , HOH A:827 , HOH A:877 , UNX A:1411 , UNX A:1414 , UNX A:1415 , UNX A:1416 , UNX A:1417 , UNX A:1418	BINDING SITE FOR RESIDUE UNX A 1412
08	AC8	SOFTWARE	HOH A:700 , UNX A:1411 , UNX A:1414 , UNX A:1415 , UNX A:1417 , UNX A:1418	BINDING SITE FOR RESIDUE UNX A 1413
09	AC9	SOFTWARE	LYS A:31 , UNX A:1411 , UNX A:1412 , UNX A:1413 , UNX A:1415 , UNX A:1417 , UNX A:1418	BINDING SITE FOR RESIDUE UNX A 1414
10	BC1	SOFTWARE	HOH A:536 , HOH A:740 , UNX A:1411 , UNX A:1412 , UNX A:1413 , UNX A:1414 , UNX A:1416 , UNX A:1417 , UNX A:1418	BINDING SITE FOR RESIDUE UNX A 1415
11	BC2	SOFTWARE	HOH A:507 , HOH A:565 , HOH A:877 , UNX A:1411 , UNX A:1412 , UNX A:1415 , UNX A:1417 , UNX A:1418	BINDING SITE FOR RESIDUE UNX A 1416
12	BC3	SOFTWARE	LYS A:31 , UNX A:1411 , UNX A:1412 , UNX A:1413 , UNX A:1414 , UNX A:1415 , UNX A:1416 , UNX A:1418	BINDING SITE FOR RESIDUE UNX A 1417
13	BC4	SOFTWARE	LYS A:31 , LYS A:109 , UNX A:1411 , UNX A:1412 , UNX A:1413 , UNX A:1414 , UNX A:1415 , UNX A:1416 , UNX A:1417	BINDING SITE FOR RESIDUE UNX A 1418
14	BC5	SOFTWARE	SER A:5 , ASP A:7 , GLN A:8 , GLN A:37 , ALA A:38 , ASN A:39 , PHE A:40 , LYS A:78 , HOH A:720	BINDING SITE FOR RESIDUE GOL A 401
15	BC6	SOFTWARE	ASP A:67 , ARG A:118 , TYR A:119 , LYS A:122 , HOH A:645 , HOH A:831	BINDING SITE FOR RESIDUE GOL A 402
16	BC7	SOFTWARE	LYS A:50 , HIS A:83 , TRP A:87 , ASN A:130 , GLU A:131 , GLN A:207 , GLU A:237 , TRP A:267 , TRP A:275 , HOH A:783 , HOH A:901	BINDING SITE FOR RESIDUE GOL A 403
17	BC8	SOFTWARE	THR A:28 , GLY A:30 , LEU A:256 , ASN A:257 , GOL A:405 , HOH A:651 , HOH A:731 , HOH A:734 , HOH A:806	BINDING SITE FOR RESIDUE GOL A 404
18	BC9	SOFTWARE	ASN A:253 , ASN A:257 , GOL A:404 , HOH A:650 , HOH A:655 , HOH A:700 , HOH A:734	BINDING SITE FOR RESIDUE GOL A 405
19	CC1	SOFTWARE	ARG A:161 , HOH A:723 , HOH A:888	BINDING SITE FOR RESIDUE EOH A 407
20	CC2	SOFTWARE	ASN A:110 , THR A:114 , GLN A:299 , HOH A:570 , HOH A:611 , HOH A:613 , HOH A:619	BINDING SITE FOR RESIDUE GOL A 408
21	CC3	SOFTWARE	ARG A:118	BINDING SITE FOR RESIDUE ACN A 409
22	CC4	SOFTWARE	SER A:138 , LEU A:139 , GLU A:150 , ARG A:190 , HOH A:835 , HOH A:856	BINDING SITE FOR RESIDUE EOH A 411

SS Bonds (1, 1)

Cis Peptide Bonds (1, 1)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 2)

Exons (0, 0)

Sequences/Alignments

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:303
 aligned with XYNA_THEAU | P23360 from UniProtKB/Swiss-Prot  Length:329

    Alignment length:303
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326
           XYNA_THEAU    27 QAAQSVDQLIKARGKVYFGVATDQNRLTTGKNAAIIQADFGQVTPENSMKWDATEPSQGNFNFAGADYLVNWAQQNGKLIRGHTLVWHSQLPSWVSSITDKNTLTNVMKNHITTLMTRYKGKIRAWDVVNEAFNEDGSLRQTVFLNVIGEDYIPIAFQTARAADPNAKLYINDYNLDSASYPKTQAIVNRVKQWRAAGVPIDGIGSQTHLSAGQGAGVLQALPLLASAGTPEVAITELDVAGASPTDYVNVVNACLNVQSCVGITVWGVADPDSWRASTTPLLFDGNFNPKPAYNAIVQDLQQ 329
               SCOP domains d1i1wa_ A: Xylanase A, catalytic core                                                                                                                                                                                                                                                                           SCOP domains
               CATH domains -1i1wA00 A:2-303 Glycosidases                                                                                                                                                                                                                                                                                   CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhh....eeeeeehhhhhh..hhhhhhhhhh.eeee....hhhhhh.......hhhhhhhhhhhhhhh.eeeeeeee.....hhhhhh..hhhhhhhhhhhhhhhhhhhh.....eeeeee...........hhhhhhh..hhhhhhhhhhhhhh...eeeeee.......hhhhhhhhhhhhhhhhh.....eeee..ee...hhhhhhhhhhhhhh....eeeeeeeee...hhhhhhhhhhhhhhh..eeeeee....hhhh.hhhhh..........hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --GH10_2  PDB: A:3-299 UniProt: 29-326                                                                                                                                                                                                                                                                      --- PROSITE (1)
                PROSITE (2) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GH10_1     --------------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1i1w A   1 xAAQSVDQLIKARGKVYFGVATDQNRLTTGKNAAIIQANFGQVTPENSMKWDATEPSQGNFNFAGADYLVNWAQQNGKLIRGHTLVWHSQLPSWVSSITDKNTLTNVMKNHITTLMTRYKGKIRAWDVVNEAFNEDGSLRQTVFLNVIGEDYIPIAFQTARAADPNAKLYINDYNLDSASYPKTQAIVNRVKKWRAAGVPIDGIGSQTHLSAGQGASVLQALPLLASAGTPEVAITELDVAGASSTDYVNVVNACLNVSSCVGITVWGVADPDSWRASTTPLLFDGNFNPKPAYNAIVQNLQQ 303
                            |       10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300
                            |
                            1-PCA

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (XYNA_THEAU | P23360)

molecular function
	GO:0031176	endo-1,4-beta-xylanase activity	Catalysis of the endohydrolysis of (1->4)-beta-D-xylosidic linkages in xylans.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0016798	hydrolase activity, acting on glycosyl bonds	Catalysis of the hydrolysis of any glycosyl bond.
	GO:0004553	hydrolase activity, hydrolyzing O-glycosyl compounds	Catalysis of the hydrolysis of any O-glycosyl bond.
biological process
	GO:0005975	carbohydrate metabolic process	The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
	GO:0000272	polysaccharide catabolic process	The chemical reactions and pathways resulting in the breakdown of a polysaccharide, a polymer of many (typically more than 10) monosaccharide residues linked glycosidically.
	GO:0045493	xylan catabolic process	The chemical reactions and pathways resulting in the breakdown of xylan, a polymer containing a beta-1,4-linked D-xylose backbone.

Visualization

Interactive Views

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ACN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		EOH	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		GOL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PCA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		UNX	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]
		BC8	[ RasMol ]	+environment [ RasMol ]
		BC9	[ RasMol ]	+environment [ RasMol ]
		CC1	[ RasMol ]	+environment [ RasMol ]
		CC2	[ RasMol ]	+environment [ RasMol ]
		CC3	[ RasMol ]	+environment [ RasMol ]
		CC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		His A:83 - Thr A:84	[ RasMol ]

Still Images

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1i1w
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	XYNA_THEAU \| P23360
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.2.1.8
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Description
