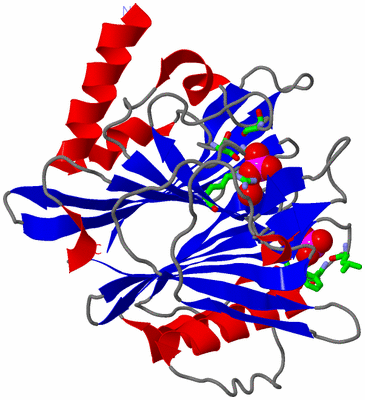

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE INACTIVE C866S MUTANT OF THE CATALYTIC DOMAIN OF E. COLI CYTOTOXIC NECROTIZING FACTOR 1

Authors :  L. Buetow, G. Flatau, K. Chiu, P. Boquet, P. Ghosh
Date :  24 Jan 01  (Deposition) - 04 Jul 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.86
Chains :  Asym./Biol. Unit :  A
Keywords :  Beta Sandwich, Rho Deamidase, Rho Transglutaminase, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Buetow, G. Flatau, K. Chiu, P. Boquet, P. Ghosh
Structure Of The Rho-Activating Domain Of Escherichia Coli Cytotoxic Necrotizing Factor 1.
Nat. Struct. Biol. V. 8 584 2001
PubMed-ID: 11427886  |  Reference-DOI: 10.1038/89610
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CYTOTOXIC NECROTIZING FACTOR 1
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET 28A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: CATALYTIC DOMAIN
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Strain: E-B35
    Synonym: CNF1

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1PO42Ligand/IonPHOSPHATE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHOH A:115 , SER A:747 , SER A:813 , ARG A:832 , GLY A:861 , ASN A:862BINDING SITE FOR RESIDUE PO4 A 301
2AC2SOFTWAREHOH A:4 , LEU A:888 , GLY A:890 , PHE A:891 , THR A:892 , LYS A:945BINDING SITE FOR RESIDUE PO4 A 302

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1HZG)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Gln A:767 -Pro A:768
2Ile A:967 -Pro A:968

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HZG)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1HZG)

(-) Exons   (0, 0)

(no "Exon" information available for 1HZG)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:295
 aligned with Q47106_ECOLX | Q47106 from UniProtKB/TrEMBL  Length:1014

    Alignment length:295
                                   729       739       749       759       769       779       789       799       809       819       829       839       849       859       869       879       889       899       909       919       929       939       949       959       969       979       989       999      1009
        Q47106_ECOLX    720 SIESTSKSNFQKLSRGNIDVLKGRGSISSTRQRAIYPYFEAANADEQQPLFFYIKKDRFDNHGYDQYFYDNTVGLNGIPTLNTYTGEIPSDSSSLGSTYWKKYNLTNETSIIRVSNSARGANGIKIALEEVQEGKPVIITSGNLSGCTTIVARKEGYIYKVHTGTTKSLAGFTSTTGVKKAVEVLELLTKEPIPRVEGIMSNDFLVDYLSENFEDSLITYSSSEKKPDSQITIIRDNVSVFPYFLDNIPEHGFGTSATVLVRVDGNVVVRSLSESYSLNADASEISVLKVFSKKF 1014
               SCOP domains d1hzga_ A: Type 1 cytotoxic necrotizing factor, catalytic domain                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1hzgA00 A:720-1014 Cytotoxic necrotizing factor 1 (CNF1)                                                                                                                                                                                                                                                CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhh.................eeeeee.....eeeee.........hhh.ee.......ee.eeeee............hhhhhh......eeeee....eeeeeeeee.hhh.....eeee.......eeeeeee..eeeeeeeee.........hhhhhhhhhhhhhhh...........hhhhhhhhhhhhh.eeeeeeee....hhhh.......eeeeeeee......eeeeeeeeeeee..eeeeeeeeeeeee......eeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1hzg A  720 SIESTSKSNFQKLSRGNIDVLKGRGSISSTRQRAIYPYFEAANADEQQPLFFYIKKDRFDNHGYDQYFYDNTVGPNGIPTLNTYTGEIPSDSSSLGSTYWKKYNLTNETSIIRVSNSARGANGIKIALEEVQEGKPVIITSGNLSGSTTIVARKEGYIYKVHTGTTKSLAGFTSTTGVKKAVEVLELLTKEPIPRVEGIMSNDFLVDYLSENFEDSLITYSSSEKKPDSQITIIRDNVSVFPYFLDNIPEHGFGTSATVLVRVDGNVVVRSLSESYSLNADASEISVLKVFSKKF 1014
                                   729       739       749       759       769       779       789       799       809       819       829       839       849       859       869       879       889       899       909       919       929       939       949       959       969       979       989       999      1009
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HZG)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 1HZG)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    PO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gln A:767 - Pro A:768   [ RasMol ]
    Ile A:967 - Pro A:968   [ RasMol ]

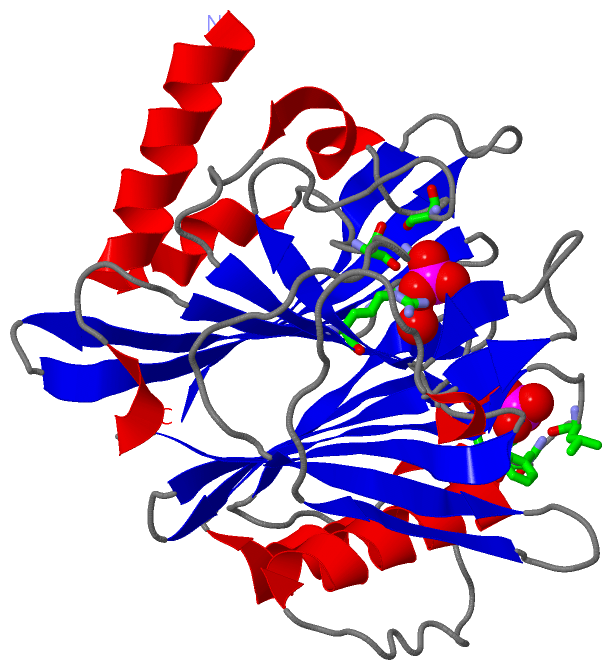

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1hzg
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q47106_ECOLX | Q47106
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q47106_ECOLX | Q47106
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q47106_ECOLX | Q47106: 1hq0

(-) Related Entries Specified in the PDB File

1hq0 ACTIVE CATALYTIC DOMAIN OF CYTOTOXIC NECROTIZING FACTOR 1
