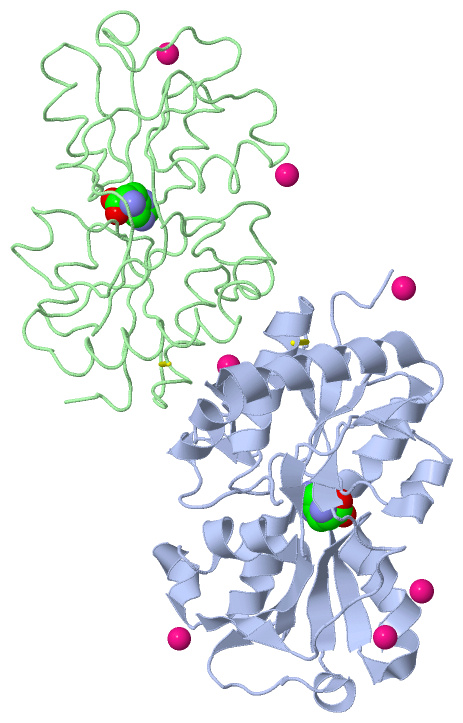

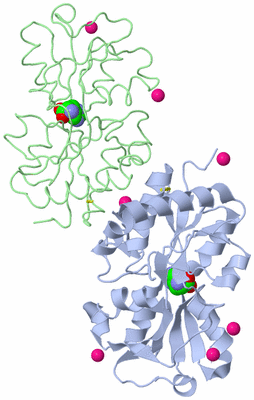

Asym./Biol. Unit (Jmol Viewer)

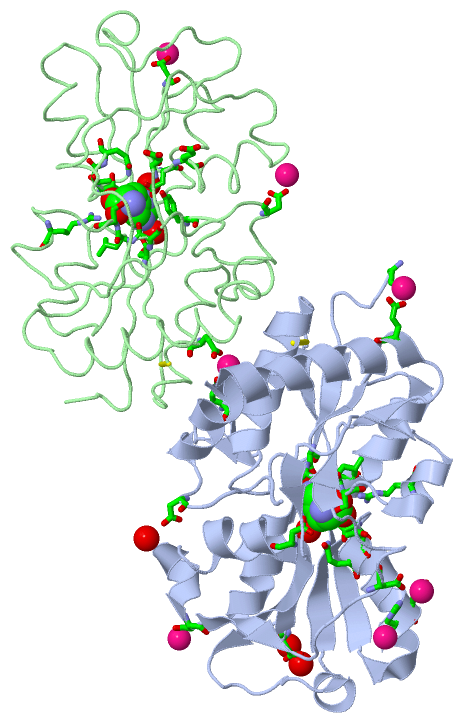

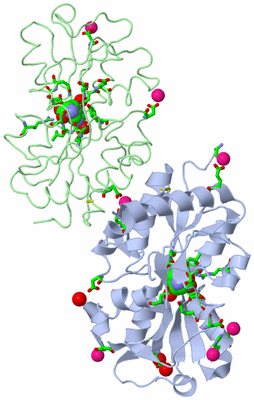

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   REFINED 1.89 ANGSTROMS STRUCTURE OF THE HISTIDINE-BINDING PROTEIN COMPLEXED WITH HISTIDINE AND ITS RELATIONSHIP WITH MANY OTHER ACTIVE TRANSPORT(SLASH)CHEMOSENSORY RECEPTORS

Authors :   N. Yao, S. Trakhanov, F. A. Quiocho

Date :   03 Jan 94 (Deposition) - 31 May 94 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.89

Chains :   Asym./Biol. Unit : A,B

Keywords :   Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   N. Yao, S. Trakhanov, F. A. Quiocho
Refined 1. 89-A Structure Of The Histidine-Binding Protein Complexed With Histidine And Its Relationship With Many Other Active Transport/Chemosensory Proteins.
Biochemistry V. 33 4769 1994
PubMed-ID: 8161536 | Reference-DOI: 10.1021/BI00182A004
(for further references see the PDB file header)

Molecule 1 - HISTIDINE-BINDING PROTEIN
	Chains	:	A, B
	Engineered	:	YES
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (2, 9)

No.	Name	Count	Type	Full Name
1	CD	7	Ligand/Ion	CADMIUM ION
2	HIS	2	Mod. Amino Acid	HISTIDINE

Asymmetric Unit (9, 9)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ALA A:1 , GLU A:205 , HOH A:810	BINDING SITE FOR RESIDUE CD A 750
2	AC2	SOFTWARE	ASP A:177 , HOH A:923 , ASP B:91 , GLU B:162	BINDING SITE FOR RESIDUE CD A 751
3	AC3	SOFTWARE	GLU A:128 , HIS A:129 , ASP A:187	BINDING SITE FOR RESIDUE CD A 752
4	AC4	SOFTWARE	GLU A:25 , GLU B:36 , HOH B:895 , HOH B:896	BINDING SITE FOR RESIDUE CD A 753
5	AC5	SOFTWARE	ASP A:232 , HOH A:328 , ASP B:156 , HOH B:887 , HOH B:942 , HOH B:954	BINDING SITE FOR RESIDUE CD B 754
6	AC6	SOFTWARE	ASP A:156 , HOH A:926 , HOH A:927 , ASP B:232 , HOH B:890 , HOH B:944	BINDING SITE FOR RESIDUE CD B 755
7	AC7	SOFTWARE	HIS A:129 , HOH A:261 , HOH A:263	BINDING SITE FOR RESIDUE CD A 756
8	AC8	SOFTWARE	LEU A:52 , SER A:69 , SER A:70 , LEU A:71 , SER A:72 , ARG A:77 , THR A:120 , THR A:121 , GLN A:122 , ASP A:161 , HOH A:240 , HOH A:242	BINDING SITE FOR RESIDUE HIS A 239
9	AC9	SOFTWARE	TYR B:14 , SER B:69 , SER B:70 , LEU B:71 , SER B:72 , ARG B:77 , THR B:120 , THR B:121 , GLN B:122 , ASP B:161 , HOH B:245 , HOH B:247	BINDING SITE FOR RESIDUE HIS B 239

Asymmetric/Biological Unit

No.	Residues
1	A:38	-	A:45
2	B:38	-	B:45

Asymmetric/Biological Unit

No.	Residues
1	Ala A:15	-	Pro A:16
2	Ala B:15	-	Pro B:16

(no "SAP(SNP)/Variant" information available for 1HSL)

Asymmetric/Biological Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SBP_BACTERIAL_3	PS01039	Bacterial extracellular solute-binding proteins, family 3 signature.	HISJ_ECO57	50-63	2	A:28-41 B:28-41
				HISJ_ECOL6	50-63	2	A:28-41 B:28-41
				HISJ_ECOLI	50-63	2	A:28-41 B:28-41

(no "Exon" information available for 1HSL)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:238
 aligned with HISJ_ECO57 | P0AEU2 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:238
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           HISJ_ECO57    23 AIPQNIRIGTDPTYAPFESKNSQGELVGFDIDLAKELCKRINTQCTFVENPLDALIPSLKAKKIDAIMSSLSITEKRQQEIAFTDKLYAADSRLVVAKNSDIQPTVESLKGKRVGVLQGTTQETFGNEHWAPKGIEIVSYQGQDNIYSDLTAGRIDAAFQDEVAASEGFLKQPVGKDYKFGGPSVKDEKLFGVGTGMGLRKEDNELREALNKAFAEMRADGTYEKLAKKYFDFDVYGG 260
               SCOP domains d1hsla_ A: Histidine-binding protein                                                                                                                                                                                                           SCOP domains
               CATH domains 1hslA01 A:1-90,A:192-238 Periplasmic binding protein-like II                              1hslA02 A:91-191 Periplasmic binding protein-like II                                                 1hslA01 A:1-90,A:192-238                        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeee........ee.....eehhhhhhhhhhhhhh....eeee.hhhhhhhhhhh....ee......hhhhhh..ee....ee..eeeeee.......hhhhhh..eeeee..hhhhhhhhhhhhhhh.eeeee.hhhhhhhhhhh....eeeeehhhhhhhh..hhhhh.eeee............ee..ee...hhhhhhhhhhhhhhhhhhhhhhhhhhh......... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                PROSITE (3) ---------------------------SBP_BACTERIAL_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (3)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hsl A   1 AIPQKIRIGTDPTYAPFESKNAQGELVGFDIDLAKELCKRINTQCTFVENPLDALIPSLKAKKIDAIMSSLSITEKRQQEIAFTDKLYAADSRLVVAKNSDIQPTVASLKGKRVGVLQGTTQETFGNEHWAPKGIEIVSYQGQDNIYSDLTAGRIDAAFQDEVAASEGFLKQPVGKDYKFGGPAVKDEKLFGVGTGMGLRKEDNELREALNKAFAEMRADGTYEKLAKKYFDFDVYGG 238
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Chain A from PDB  Type:PROTEIN  Length:238
 aligned with HISJ_ECOL6 | P0AEU1 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:238
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           HISJ_ECOL6    23 AIPQNIRIGTDPTYAPFESKNSQGELVGFDIDLAKELCKRINTQCTFVENPLDALIPSLKAKKIDAIMSSLSITEKRQQEIAFTDKLYAADSRLVVAKNSDIQPTVESLKGKRVGVLQGTTQETFGNEHWAPKGIEIVSYQGQDNIYSDLTAGRIDAAFQDEVAASEGFLKQPVGKDYKFGGPSVKDEKLFGVGTGMGLRKEDNELREALNKAFAEMRADGTYEKLAKKYFDFDVYGG 260
               SCOP domains d1hsla_ A: Histidine-binding protein                                                                                                                                                                                                           SCOP domains
               CATH domains 1hslA01 A:1-90,A:192-238 Periplasmic binding protein-like II                              1hslA02 A:91-191 Periplasmic binding protein-like II                                                 1hslA01 A:1-90,A:192-238                        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeee........ee.....eehhhhhhhhhhhhhh....eeee.hhhhhhhhhhh....ee......hhhhhh..ee....ee..eeeeee.......hhhhhh..eeeee..hhhhhhhhhhhhhhh.eeeee.hhhhhhhhhhh....eeeeehhhhhhhh..hhhhh.eeee............ee..ee...hhhhhhhhhhhhhhhhhhhhhhhhhhh......... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------------------------SBP_BACTERIAL_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hsl A   1 AIPQKIRIGTDPTYAPFESKNAQGELVGFDIDLAKELCKRINTQCTFVENPLDALIPSLKAKKIDAIMSSLSITEKRQQEIAFTDKLYAADSRLVVAKNSDIQPTVASLKGKRVGVLQGTTQETFGNEHWAPKGIEIVSYQGQDNIYSDLTAGRIDAAFQDEVAASEGFLKQPVGKDYKFGGPAVKDEKLFGVGTGMGLRKEDNELREALNKAFAEMRADGTYEKLAKKYFDFDVYGG 238
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Chain A from PDB  Type:PROTEIN  Length:238
 aligned with HISJ_ECOLI | P0AEU0 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:238
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           HISJ_ECOLI    23 AIPQNIRIGTDPTYAPFESKNSQGELVGFDIDLAKELCKRINTQCTFVENPLDALIPSLKAKKIDAIMSSLSITEKRQQEIAFTDKLYAADSRLVVAKNSDIQPTVESLKGKRVGVLQGTTQETFGNEHWAPKGIEIVSYQGQDNIYSDLTAGRIDAAFQDEVAASEGFLKQPVGKDYKFGGPSVKDEKLFGVGTGMGLRKEDNELREALNKAFAEMRADGTYEKLAKKYFDFDVYGG 260
               SCOP domains d1hsla_ A: Histidine-binding protein                                                                                                                                                                                                           SCOP domains
               CATH domains 1hslA01 A:1-90,A:192-238 Periplasmic binding protein-like II                              1hslA02 A:91-191 Periplasmic binding protein-like II                                                 1hslA01 A:1-90,A:192-238                        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeee........ee.....eehhhhhhhhhhhhhh....eeee.hhhhhhhhhhh....ee......hhhhhh..ee....ee..eeeeee.......hhhhhh..eeeee..hhhhhhhhhhhhhhh.eeeee.hhhhhhhhhhh....eeeeehhhhhhhh..hhhhh.eeee............ee..ee...hhhhhhhhhhhhhhhhhhhhhhhhhhh......... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------SBP_BACTERIAL_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hsl A   1 AIPQKIRIGTDPTYAPFESKNAQGELVGFDIDLAKELCKRINTQCTFVENPLDALIPSLKAKKIDAIMSSLSITEKRQQEIAFTDKLYAADSRLVVAKNSDIQPTVASLKGKRVGVLQGTTQETFGNEHWAPKGIEIVSYQGQDNIYSDLTAGRIDAAFQDEVAASEGFLKQPVGKDYKFGGPAVKDEKLFGVGTGMGLRKEDNELREALNKAFAEMRADGTYEKLAKKYFDFDVYGG 238
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Chain B from PDB  Type:PROTEIN  Length:238
 aligned with HISJ_ECO57 | P0AEU2 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:238
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           HISJ_ECO57    23 AIPQNIRIGTDPTYAPFESKNSQGELVGFDIDLAKELCKRINTQCTFVENPLDALIPSLKAKKIDAIMSSLSITEKRQQEIAFTDKLYAADSRLVVAKNSDIQPTVESLKGKRVGVLQGTTQETFGNEHWAPKGIEIVSYQGQDNIYSDLTAGRIDAAFQDEVAASEGFLKQPVGKDYKFGGPSVKDEKLFGVGTGMGLRKEDNELREALNKAFAEMRADGTYEKLAKKYFDFDVYGG 260
               SCOP domains d1hslb_ B: Histidine-binding protein                                                                                                                                                                                                           SCOP domains
               CATH domains 1hslB01 B:1-90,B:192-238 Periplasmic binding protein-like II                              1hslB02 B:91-191 Periplasmic binding protein-like II                                                 1hslB01 B:1-90,B:192-238                        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............................................................................................................................................................................................................................................. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                PROSITE (3) ---------------------------SBP_BACTERIAL_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (3)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hsl B   1 AIPQKIRIGTDPTYAPFESKNAQGELVGFDIDLAKELCKRINTQCTFVENPLDALIPSLKAKKIDAIMSSLSITEKRQQEIAFTDKLYAADSRLVVAKNSDIQPTVASLKGKRVGVLQGTTQETFGNEHWAPKGIEIVSYQGQDNIYSDLTAGRIDAAFQDEVAASEGFLKQPVGKDYKFGGPAVKDEKLFGVGTGMGLRKEDNELREALNKAFAEMRADGTYEKLAKKYFDFDVYGG 238
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Chain B from PDB  Type:PROTEIN  Length:238
 aligned with HISJ_ECOL6 | P0AEU1 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:238
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           HISJ_ECOL6    23 AIPQNIRIGTDPTYAPFESKNSQGELVGFDIDLAKELCKRINTQCTFVENPLDALIPSLKAKKIDAIMSSLSITEKRQQEIAFTDKLYAADSRLVVAKNSDIQPTVESLKGKRVGVLQGTTQETFGNEHWAPKGIEIVSYQGQDNIYSDLTAGRIDAAFQDEVAASEGFLKQPVGKDYKFGGPSVKDEKLFGVGTGMGLRKEDNELREALNKAFAEMRADGTYEKLAKKYFDFDVYGG 260
               SCOP domains d1hslb_ B: Histidine-binding protein                                                                                                                                                                                                           SCOP domains
               CATH domains 1hslB01 B:1-90,B:192-238 Periplasmic binding protein-like II                              1hslB02 B:91-191 Periplasmic binding protein-like II                                                 1hslB01 B:1-90,B:192-238                        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............................................................................................................................................................................................................................................. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------------------------SBP_BACTERIAL_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hsl B   1 AIPQKIRIGTDPTYAPFESKNAQGELVGFDIDLAKELCKRINTQCTFVENPLDALIPSLKAKKIDAIMSSLSITEKRQQEIAFTDKLYAADSRLVVAKNSDIQPTVASLKGKRVGVLQGTTQETFGNEHWAPKGIEIVSYQGQDNIYSDLTAGRIDAAFQDEVAASEGFLKQPVGKDYKFGGPAVKDEKLFGVGTGMGLRKEDNELREALNKAFAEMRADGTYEKLAKKYFDFDVYGG 238
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Chain B from PDB  Type:PROTEIN  Length:238
 aligned with HISJ_ECOLI | P0AEU0 from UniProtKB/Swiss-Prot  Length:260

    Alignment length:238
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           HISJ_ECOLI    23 AIPQNIRIGTDPTYAPFESKNSQGELVGFDIDLAKELCKRINTQCTFVENPLDALIPSLKAKKIDAIMSSLSITEKRQQEIAFTDKLYAADSRLVVAKNSDIQPTVESLKGKRVGVLQGTTQETFGNEHWAPKGIEIVSYQGQDNIYSDLTAGRIDAAFQDEVAASEGFLKQPVGKDYKFGGPSVKDEKLFGVGTGMGLRKEDNELREALNKAFAEMRADGTYEKLAKKYFDFDVYGG 260
               SCOP domains d1hslb_ B: Histidine-binding protein                                                                                                                                                                                                           SCOP domains
               CATH domains 1hslB01 B:1-90,B:192-238 Periplasmic binding protein-like II                              1hslB02 B:91-191 Periplasmic binding protein-like II                                                 1hslB01 B:1-90,B:192-238                        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............................................................................................................................................................................................................................................. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------SBP_BACTERIAL_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hsl B   1 AIPQKIRIGTDPTYAPFESKNAQGELVGFDIDLAKELCKRINTQCTFVENPLDALIPSLKAKKIDAIMSSLSITEKRQQEIAFTDKLYAADSRLVVAKNSDIQPTVASLKGKRVGVLQGTTQETFGNEHWAPKGIEIVSYQGQDNIYSDLTAGRIDAAFQDEVAASEGFLKQPVGKDYKFGGPAVKDEKLFGVGTGMGLRKEDNELREALNKAFAEMRADGTYEKLAKKYFDFDVYGG 238
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Periplasmic binding protein-like II (813)

Superfamily: Periplasmic binding protein-like II (813)

Family: Phosphate binding protein-like (463)

Protein domain: Histidine-binding protein (2)

Escherichia coli [TaxId: 562] (1)

1a	d1hsla_	A:
1b	d1hslb_	B:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: D-Maltodextrin-Binding Protein; domain 2 (600)

Homologous Superfamily: Periplasmic binding protein-like II (486)

Escherichia coli. Organism_taxid: 562 (6)

1a	1hslA01	A:1-90,A:192-238
1b	1hslA02	A:91-191
1c	1hslB02	B:91-191
1d	1hslB01	B:1-90,B:192-238

(no "Pfam Domain" information available for 1HSL)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (HISJ_ECOL6 | P0AEU1)

molecular function
	GO:0005215	transporter activity	Enables the directed movement of substances (such as macromolecules, small molecules, ions) into, out of or within a cell, or between cells.
biological process
	GO:0006865	amino acid transport	The directed movement of amino acids, organic acids containing one or more amino substituents, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0030288	outer membrane-bounded periplasmic space	The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
	GO:0042597	periplasmic space	The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

Chain A,B (HISJ_ECO57 | P0AEU2)

molecular function
	GO:0005215	transporter activity	Enables the directed movement of substances (such as macromolecules, small molecules, ions) into, out of or within a cell, or between cells.
biological process
	GO:0006865	amino acid transport	The directed movement of amino acids, organic acids containing one or more amino substituents, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0030288	outer membrane-bounded periplasmic space	The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
	GO:0042597	periplasmic space	The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

Chain A,B (HISJ_ECOLI | P0AEU0)

molecular function
	GO:0005215	transporter activity	Enables the directed movement of substances (such as macromolecules, small molecules, ions) into, out of or within a cell, or between cells.
biological process
	GO:0006865	amino acid transport	The directed movement of amino acids, organic acids containing one or more amino substituents, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0030288	outer membrane-bounded periplasmic space	The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
	GO:0042597	periplasmic space	The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		HIS	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Ala A:15 - Pro A:16	[ RasMol ]
		Ala B:15 - Pro B:16	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1hsl
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	HISJ_ECO57 \| P0AEU2
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	HISJ_ECOL6 \| P0AEU1
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	HISJ_ECOLI \| P0AEU0
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	HISJ_ECO57 \| P0AEU2
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	HISJ_ECOL6 \| P0AEU1
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	HISJ_ECOLI \| P0AEU0
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1HSL)

(no "Related Entries Specified in the PDB File" available for 1HSL)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 9)

Sites (9, 9)

SS Bonds (2, 2)

Cis Peptide Bonds (2, 2)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 2)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (1, 4)

Pfam Domains (0, 0)

Gene Ontology (5, 15)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
