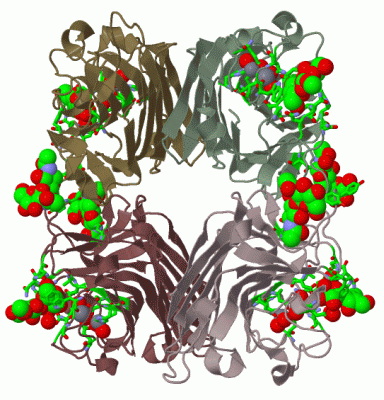

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

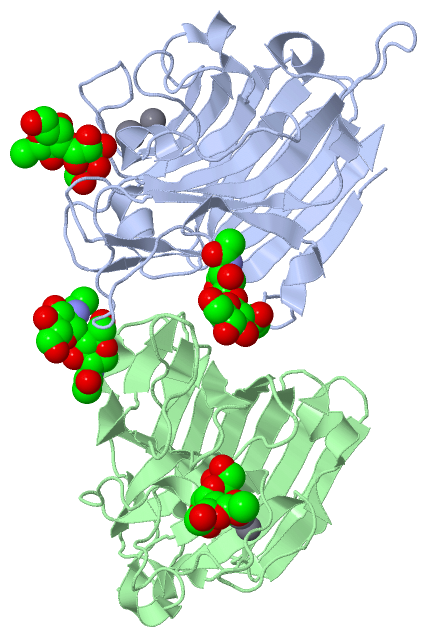

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

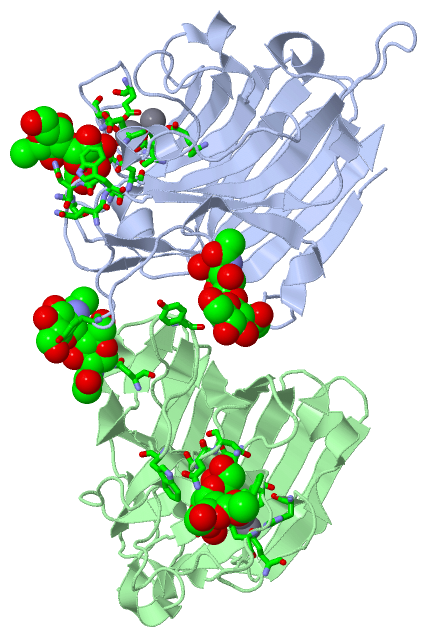

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

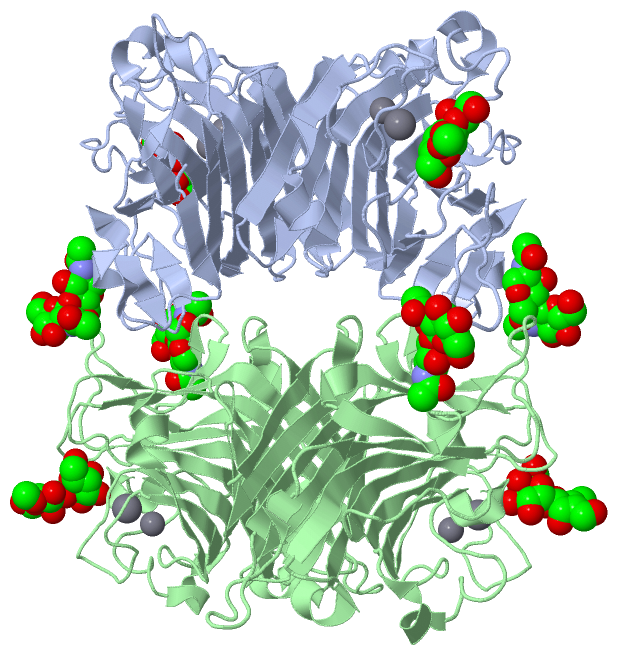

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

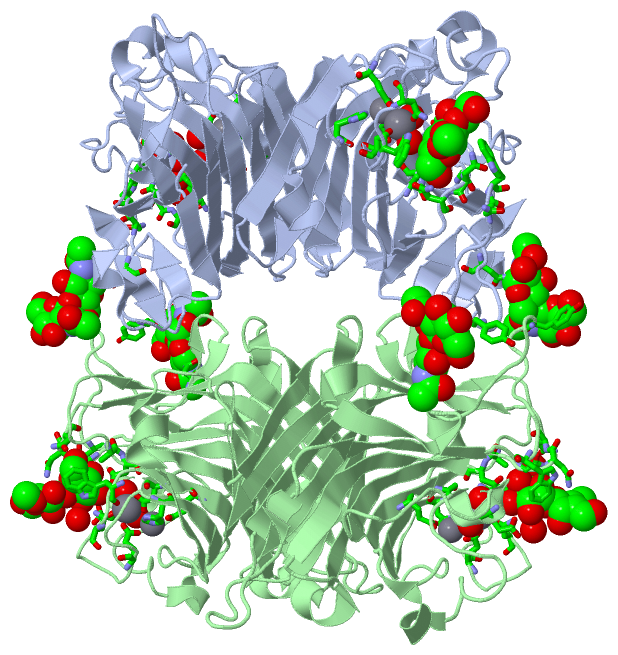

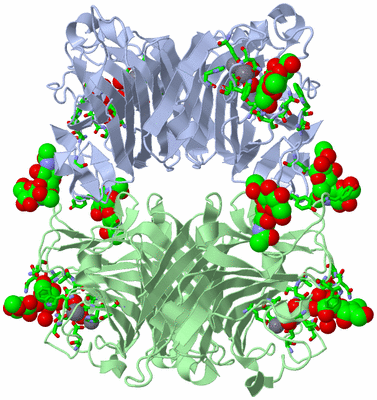

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  THE XENOGRAFT ANTIGEN IN COMPLEX WITH THE B4 ISOLECTIN OF GRIFFONIA SIMPLICIFOLIA LECTIN-1

Authors :  W. Tempel, L. A. Lipscomb, J. P. Rose, R. J. Woods
Date :  18 Dec 00  (Deposition) - 16 Jan 02  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Keywords :  Griffonia Simplicifolia, Lectin, Xenograft Antigen, Sugar Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  W. Tempel, S. Tschampel, R. J. Woods
The Xenograft Antigen Bound To Griffonia Simplicifolia Lectin 1-B(4). X-Ray Crystal Structure Of The Complex And Molecular Dynamics Characterization Of The Binding Site.
J. Biol. Chem. V. 277 6615 2002
PubMed-ID: 11714721  |  Reference-DOI: 10.1074/JBC.M109919200

(-) Compounds

Molecule 1 - LECTIN
    Chains: A, B
    Organ: SEED
    Organism Scientific: GRIFFONIA SIMPLICIFOLIA
    Organism Taxid: 3850

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (5, 12)

Asymmetric Unit (5, 12)
No.NameCountTypeFull Name
1CA2Ligand/IonCALCIUM ION
2GLA2Ligand/IonALPHA D-GALACTOSE
3MBG2Ligand/IonMETHYL-BETA-GALACTOSE
4MN2Ligand/IonMANGANESE (II) ION
5NAG4Ligand/IonN-ACETYL-D-GLUCOSAMINE
Biological Unit 1 (3, 16)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2GLA4Ligand/IonALPHA D-GALACTOSE
3MBG4Ligand/IonMETHYL-BETA-GALACTOSE
4MN-1Ligand/IonMANGANESE (II) ION
5NAG8Ligand/IonN-ACETYL-D-GLUCOSAMINE

(-) Sites  (11, 11)

Asymmetric Unit (11, 11)
No.NameEvidenceResiduesDescription
01AC1SOFTWARETRP A:47 , ALA A:87 , ASP A:88 , GLU A:106 , ASN A:134 , GLY A:221 , ASN A:222 , ASN A:223BINDING SITE FOR RESIDUE GLA A 401
02AC2SOFTWARETRP B:47 , ALA B:87 , ASP B:88 , GLU B:106 , TRP B:132 , ASN B:134 , GLY B:221 , ASN B:222 , ASN B:223 , MBG B:402 , HOH B:534BINDING SITE FOR RESIDUE GLA B 401
03AC3SOFTWARETRP B:132 , ASN B:222 , GLA B:401BINDING SITE FOR RESIDUE MBG B 402
04AC4SOFTWAREGLN A:46 , NAG A:502BINDING SITE FOR RESIDUE NAG A 501
05AC5SOFTWAREASN A:27 , NAG A:501 , HOH A:527 , TYR B:41BINDING SITE FOR RESIDUE NAG A 502
06AC6SOFTWARENAG B:502BINDING SITE FOR RESIDUE NAG B 501
07AC7SOFTWARETYR A:41 , ASN B:27 , NAG B:501BINDING SITE FOR RESIDUE NAG B 502
08AC8SOFTWAREGLU A:128 , ASP A:130 , GLU A:139 , HIS A:144 , HOH A:508 , HOH A:509BINDING SITE FOR RESIDUE MN A 301
09AC9SOFTWAREASP A:130 , TRP A:132 , ASN A:134 , GLU A:139 , HOH A:504 , HOH A:506BINDING SITE FOR RESIDUE CA A 302
10BC1SOFTWAREGLU B:128 , ASP B:130 , GLU B:139 , HIS B:144 , HOH B:508 , HOH B:509BINDING SITE FOR RESIDUE MN B 301
11BC2SOFTWAREASP B:130 , TRP B:132 , ASN B:134 , GLU B:139 , HOH B:504 , HOH B:513BINDING SITE FOR RESIDUE CA B 302

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1HQL)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Ala A:87 -Asp A:88
2Ala B:87 -Asp B:88

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HQL)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1HQL)

(-) Exons   (0, 0)

(no "Exon" information available for 1HQL)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:236
 aligned with Q8W1R6_GRISI | Q8W1R6 from UniProtKB/TrEMBL  Length:247

    Alignment length:236
                                   1
                                   | 3        13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223
         Q8W1R6_GRISI     - -------NFWSDVEDSIIFQGDANTTAGTLQLCKTNQYGTPLQWSAGRALYSDPVQLWDNKTESVASFYTEFTFFLKITGNGPADGLAFFLAPPDSDVKDAGEYLGLFNKSTATQPSKNQVVAVEFDTWTNPNFPEPSYRHIGINVNSIVSVATKRWEDSDIFSGKIATARISYDGSAEILTVVLSYPDGSDYILSHSVDMRQNLPESVRVGISASTGNNQFLTVYILSWRFSSNL 229
               SCOP domains d1hqla_ A: Legume lectin                                                                                                                                                                                                                     SCOP domains
               CATH domains 1hqlA00 A:4-239  [code=2.60.120.200, no name defined]                                                                                                                                                                                        CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee.....hhhh.eeeee..eee..eee..............eeeeee...ee..........eeeeeeeeeeee.......eeeeeee........hhhhh.........hhhhh..eeeeee.............eeeeee......eeee.hhhhhh....eeeeeeee....eeeeeeee...eeeeeeee.hhhhh...eeeeeeeee......eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hql A   4 SVSFTFPNFWSDVEDSIIFQGDANTTAGTLQLCKTNQYGTPLQWSAGRALYSDPVQLWDNKTESVASFYTEFTFFLKITGNGPADGLAFFLAPPDSDVKDAGEYLGLFNKSTATQPSKNQVVAVEFDTWTNPNFPEPSYRHIGINVNSIVSVATKRWEDSDIFSGKIATARISYDGSAEILTVVLSYPDGSDYILSHSVDMRQNLPESVRVGISASTGNNQFLTVYILSWRFSSNL 239
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233


Chain B from PDB  Type:PROTEIN  Length:236
 aligned with Q8W1R6_GRISI | Q8W1R6 from UniProtKB/TrEMBL  Length:247

    Alignment length:236
                                   1
                                   | 3        13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223
         Q8W1R6_GRISI     - -------NFWSDVEDSIIFQGDANTTAGTLQLCKTNQYGTPLQWSAGRALYSDPVQLWDNKTESVASFYTEFTFFLKITGNGPADGLAFFLAPPDSDVKDAGEYLGLFNKSTATQPSKNQVVAVEFDTWTNPNFPEPSYRHIGINVNSIVSVATKRWEDSDIFSGKIATARISYDGSAEILTVVLSYPDGSDYILSHSVDMRQNLPESVRVGISASTGNNQFLTVYILSWRFSSNL 229
               SCOP domains d1hqlb_ B: Legume lectin                                                                                                                                                                                                                     SCOP domains
               CATH domains 1hqlB00 B:4-239  [code=2.60.120.200, no name defined]                                                                                                                                                                                        CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.....hhhh.eeeee..eee..eee..............eeeeee...ee..........eeeeeeeeeeee.......eeeeeee........hhhhh.........hhhhh..eeeeee.............eeeeee......eeee.hhhhhh....eeeeeeee....eeeeeeee...eeeeeeee.hhhhh...eeeeeeeee......eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hql B   4 SVSFTFPNFWSDVEDSIIFQGDANTTAGTLQLCKTNQYGTPLQWSAGRALYSDPVQLWDNKTESVASFYTEFTFFLKITGNGPADGLAFFLAPPDSDVKDAGEYLGLFNKSTATQPSKNQVVAVEFDTWTNPNFPEPSYRHIGINVNSIVSVATKRWEDSDIFSGKIATARISYDGSAEILTVVLSYPDGSDYILSHSVDMRQNLPESVRVGISASTGNNQFLTVYILSWRFSSNL 239
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HQL)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q8W1R6_GRISI | Q8W1R6)
molecular function
    GO:0030246    carbohydrate binding    Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GLA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MBG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NAG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:87 - Asp A:88   [ RasMol ]
    Ala B:87 - Asp B:88   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1hql
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q8W1R6_GRISI | Q8W1R6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q8W1R6_GRISI | Q8W1R6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q8W1R6_GRISI | Q8W1R6: 1gnz

(-) Related Entries Specified in the PDB File

1gnz LECTIN I-B4 FROM GRIFFONIA SIMPLICIFOLIA (GS I-B4) METAL FREE FORM
1gsl GRIFFONIA SIMPLICIFOLIA LECTIN-4
