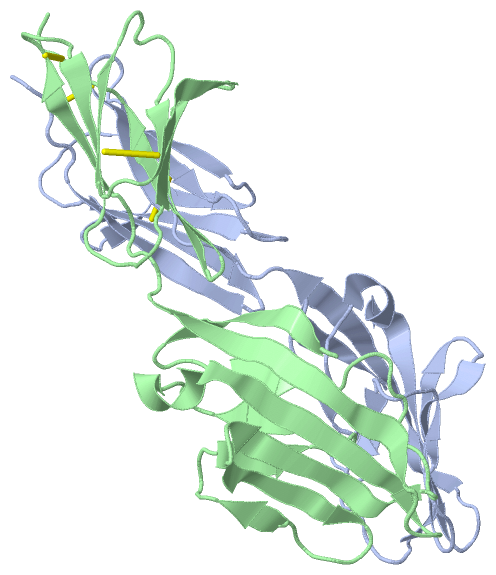

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE AT 2.8 ANGSTROMS RESOLUTION OF A SOLUBLE FORM OF THE CELL ADHESION MOLECULE CD2

Authors :  E. Y. Jones, S. J. Davis, A. F. Williams, K. Harlos, D. I. Stuart
Date :  10 Aug 94  (Deposition) - 07 Feb 95  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym./Biol. Unit :  A,B
Keywords :  T Lymphocyte Adhesion Glycoprotein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. Y. Jones, S. J. Davis, A. F. Williams, K. Harlos, D. I. Stuart
Crystal Structure At 2. 8 A Resolution Of A Soluble Form Of The Cell Adhesion Molecule Cd2.
Nature V. 360 232 1992
PubMed-ID: 1279440  |  Reference-DOI: 10.1038/360232A0
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CD2
    Chains: A, B
    Engineered: YES
    Organ: OVARY
    Organism Common: BLACK RAT
    Organism Scientific: RATTUS RATTUS
    Organism Taxid: 10117

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1HNG)

(-) Sites  (0, 0)

(no "Site" information available for 1HNG)

(-) SS Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1A:110 -A:174
2A:117 -A:157
3B:110 -B:174
4B:117 -B:157

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1HNG)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HNG)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1HNG)

(-) Exons   (0, 0)

(no "Exon" information available for 1HNG)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:175
 aligned with CD2_RAT | P08921 from UniProtKB/Swiss-Prot  Length:344

    Alignment length:175
                                    33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193
              CD2_RAT    24 DSGTVWGALGHGINLNIPNFQMTDDIDEVRWERGSTLVAEFKRKMKPFLKSGAFEILANGDLKIKNLTRDDSGTYNVTVYSTNGTRILDKALDLRILEMVSKPMIYWECSNATLTCEVLEGTDVELKLYQGKEHLRSLRQKTMSYQWTNLRAPFKCKAVNRVSQESEMEVVNCPE 198
               SCOP domains d1hnga1 A:2-99 CD2, first domain                                                                  d1hnga2 A:100-176 CD2, second domain                                          SCOP domains
               CATH domains 1hngA01 A:2-98 Immunoglobulins                                                                   1hngA02 A:99-176 Immunoglobulins                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee....eee..........eeeeeeee..eeeeeee.....ee....eee.....eee...hhhhheeeeeeeee....eeeeeeeeeeee......eeeee....eeeee.......eeeeee..eeeeee...eeeee.......eeeeeee..eeeeeee...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hng A   2 DSGTVWGALGHGINLNIPNFQMTDDIDEVRWERGSTLVAEFKRKMKPFLKSGAFEILANGDLKIKNLTRDDSGTYNVTVYSTNGTRILNKALDLRILEMVSKPMIYWECSNATLTCEVLEGTDVELKLYQGKEHLRSLRQKTMSYQWTNLRAPFKCKAVNRVSQESEMEVVNCPE 176
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171


Chain B from PDB  Type:PROTEIN  Length:175
 aligned with CD2_RAT | P08921 from UniProtKB/Swiss-Prot  Length:344

    Alignment length:175
                                    33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193
              CD2_RAT    24 DSGTVWGALGHGINLNIPNFQMTDDIDEVRWERGSTLVAEFKRKMKPFLKSGAFEILANGDLKIKNLTRDDSGTYNVTVYSTNGTRILDKALDLRILEMVSKPMIYWECSNATLTCEVLEGTDVELKLYQGKEHLRSLRQKTMSYQWTNLRAPFKCKAVNRVSQESEMEVVNCPE 198
               SCOP domains d1hngb1 B:2-99 CD2, first domain                                                                  d1hngb2 B:100-176 CD2, second domain                                          SCOP domains
               CATH domains 1hngB01 B:2-98 Immunoglobulins                                                                   1hngB02 B:99-176 Immunoglobulins                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee....eee..........eeeeeeee..eeeeeee.....ee....eee.....eee...hhhhheeeeeeeee....eeeeeeeeeeee......eeeee....eeeee.......eeeeee..eeeeee...eeeee.......eeeeeee..eeeeeee...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hng B   2 DSGTVWGALGHGINLNIPNFQMTDDIDEVRWERGSTLVAEFKRKMKPFLKSGAFEILANGDLKIKNLTRDDSGTYNVTVYSTNGTRILNKALDLRILEMVSKPMIYWECSNATLTCEVLEGTDVELKLYQGKEHLRSLRQKTMSYQWTNLRAPFKCKAVNRVSQESEMEVVNCPE 176
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HNG)

(-) Gene Ontology  (13, 13)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (CD2_RAT | P08921)
molecular function
    GO:0003823    antigen binding    Interacting selectively and non-covalently with an antigen, any substance which is capable of inducing a specific immune response and of reacting with the products of that response, the specific antibody or specifically sensitized T-lymphocytes, or both. Binding may counteract the biological activity of the antigen.
    GO:0042803    protein homodimerization activity    Interacting selectively and non-covalently with an identical protein to form a homodimer.
    GO:0019901    protein kinase binding    Interacting selectively and non-covalently with a protein kinase, any enzyme that catalyzes the transfer of a phosphate group, usually from ATP, to a protein substrate.
    GO:0043621    protein self-association    Interacting selectively and non-covalently with a domain within the same polypeptide.
    GO:0030971    receptor tyrosine kinase binding    Interacting selectively and non-covalently with a receptor that possesses protein tyrosine kinase activity.
biological process
    GO:0042110    T cell activation    The change in morphology and behavior of a mature or immature T cell resulting from exposure to a mitogen, cytokine, chemokine, cellular ligand, or an antigen for which it is specific.
    GO:0007155    cell adhesion    The attachment of a cell, either to another cell or to an underlying substrate such as the extracellular matrix, via cell adhesion molecules.
    GO:0016337    single organismal cell-cell adhesion    The attachment of one cell to another cell via adhesion molecules, where both cells are part of the same organism.
cellular component
    GO:0009986    cell surface    The external part of the cell wall and/or plasma membrane.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0045121    membrane raft    Any of the small (10-200 nm), heterogeneous, highly dynamic, sterol- and sphingolipid-enriched membrane domains that compartmentalize cellular processes. Small rafts can sometimes be stabilized to form larger platforms through protein-protein and protein-lipid interactions.
    GO:0043234    protein complex    A stable macromolecular complex composed (only) of two or more polypeptide subunits along with any covalently attached molecules (such as lipid anchors or oligosaccharide) or non-protein prosthetic groups (such as nucleotides or metal ions). Prosthetic group in this context refers to a tightly bound cofactor. The component polypeptide subunits may be identical.
