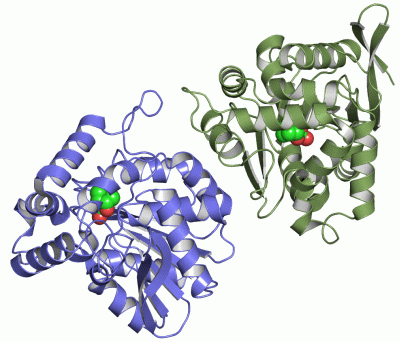

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)
Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  GAMMA LACTAMASE FROM AN AUREOBACTERIUM SPECIES IN COMPLEX WITH 3A,4,7,7A-TETRAHYDRO-BENZO [1,3] DIOXOL-2-ONE

Authors :  K. Line, M. N. Isupov, J. A. Littlechild
Date :  14 Mar 03  (Deposition) - 30 Mar 04  (Release) - 12 Mar 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.73
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (3x)
Biol. Unit 2:  B  (3x)
Keywords :  Hydrolase, Alpha/Beta Hydrolase, Co-Factor Free Haloperoxidase, Tetrahedral Intermediate (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Line, M. N. Isupov, J. A. Littlechild
The Crystal Structure Of A (-)Gamma-Lactamase From An Aureobacterium Species Reveals A Tetrahedral Intermediate In The Active Site
J. Mol. Biol. V. 338 519 2004
PubMed-ID: 15081810  |  Reference-DOI: 10.1016/J.JMB.2004.03.001

(-) Compounds

Molecule 1 - GAMMA LACTAMASE
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI DH5[ALPHA]
    Expression System Plasmid: PTRC99
    Expression System Taxid: 668369
    Expression System Vector Type: PLASMID
    Organism Scientific: MICROBACTERIUM SP.
    Organism Taxid: 51671
    Other Details: CHIROTECH CULTURE COLLECTION
    Synonym: CO-FACTOR FREE HALOPEROXIDASE (BY IDENTITY)

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (3x): A
Biological Unit 2 (3x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1BD12Ligand/Ion3A,4,7,7A-TETRAHYDRO-BENZO [1,3] DIOXOL-2-ONE
Biological Unit 1 (1, 3)
No.NameCountTypeFull Name
1BD13Ligand/Ion3A,4,7,7A-TETRAHYDRO-BENZO [1,3] DIOXOL-2-ONE
Biological Unit 2 (1, 3)
No.NameCountTypeFull Name
1BD13Ligand/Ion3A,4,7,7A-TETRAHYDRO-BENZO [1,3] DIOXOL-2-ONE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:31 , TYR A:32 , PHE A:97 , SER A:98 , MET A:99 , LEU A:125 , PHE A:166 , ILE A:232 , LEU A:233 , HIS A:259BINDING SITE FOR RESIDUE BD1 A1280
2AC2SOFTWAREGLY B:31 , TYR B:32 , PHE B:97 , SER B:98 , MET B:99 , LEU B:125 , PHE B:166 , TRP B:204 , ILE B:232 , LEU B:233 , HIS B:259BINDING SITE FOR RESIDUE BD1 B1280

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1HL7)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Tyr A:32 -Pro A:33
2Glu A:126 -Pro A:127
3Tyr B:32 -Pro B:33
4Glu B:126 -Pro B:127

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HL7)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1HL7)

(-) Exons   (0, 0)

(no "Exon" information available for 1HL7)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:279
 aligned with Q8GJP7_9MICO | Q8GJP7 from UniProtKB/TrEMBL  Length:280

    Alignment length:279
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271
         Q8GJP7_9MICO     2 GYITVGNENSTPIELYYEDQGSGQPVVLIHGYPLDGHSWERQTRELLAQGYRVITYDRRGFGGSSKVNTGYDYDTFAADLHTVLETLDLRDVVLVGFSMGTGELARYVARYGHERVAKLAFLASLEPFLVQRDDNPEGVPQEVFDGIEAAAKGDRFAWFTDFYKNFYNLDENLGSRISEQAVTGSWNVAIGSAPVAAYAVVPAWIEDFRSDVEAVRAAGKPTLILHGTKDNILPIDATARRFHQAVPEADYVEVEGAPHGLLWTHADEVNAALKTFLAK 280
               SCOP domains d1hl7a_ A: Gamma-lactamase                                                                                                                                                                                                                                                              SCOP domains
               CATH domains 1hl7A00 A:1-279  [code=3.40.50.1820, no name defined]                                                                                                                                                                                                                                   CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee..eeeeeeeeeee...eeeee.....hhhhhhhhhhhhhhh..eeeee...............hhhhhhhhhhhhhhhh....eeeeee.hhhhhhhhhhhhhh...eeeeeee.................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh...hhhhhhhhhhh..hhhhhhhhhhhh..eeeeee..........hhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hl7 A   1 GYITVGNENSTPIELYYEDQGSGQPVVLIHGYPLDGHSWERQTRELLAQGYRVITYDRRGFGGSSKVNTGYDYDTFAADLHTVLETLDLRDVVLVGFSMGTGELARYVARYGHERVAKLAFLASLEPFLVQRDDNPEGVPQEVFDGIEAAAKGDRFAWFTDFYKNFYNLDENLGSRISEQAVTGSWNVAIGSAPVAAYAVVPAWIEDFRSDVEAVRAAGKPTLILHGTKDNILPIDATARRFHQAVPEADYVEVEGAPHGLLWTHADEVNAALKTFLAK 279
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270


Chain B from PDB  Type:PROTEIN  Length:279
 aligned with Q8GJP7_9MICO | Q8GJP7 from UniProtKB/TrEMBL  Length:280

    Alignment length:279
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271
         Q8GJP7_9MICO     2 GYITVGNENSTPIELYYEDQGSGQPVVLIHGYPLDGHSWERQTRELLAQGYRVITYDRRGFGGSSKVNTGYDYDTFAADLHTVLETLDLRDVVLVGFSMGTGELARYVARYGHERVAKLAFLASLEPFLVQRDDNPEGVPQEVFDGIEAAAKGDRFAWFTDFYKNFYNLDENLGSRISEQAVTGSWNVAIGSAPVAAYAVVPAWIEDFRSDVEAVRAAGKPTLILHGTKDNILPIDATARRFHQAVPEADYVEVEGAPHGLLWTHADEVNAALKTFLAK 280
               SCOP domains d1hl7b_ B: Gamma-lactamase                                                                                                                                                                                                                                                              SCOP domains
               CATH domains 1hl7B00 B:1-279  [code=3.40.50.1820, no name defined]                                                                                                                                                                                                                                   CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee..eeeeeeeeeee...eeeee.....hhhhhhhhhhhhhhh..eeeee...............hhhhhhhhhhhhhhhh....eeeeee.hhhhhhhhhhhhhh...eeeeeee.................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh...hhhhhhhhhhh..hhhhhhhhhhhh..eeeeee..........hhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hl7 B   1 GYITVGNENSTPIELYYEDQGSGQPVVLIHGYPLDGHSWERQTRELLAQGYRVITYDRRGFGGSSKVNTGYDYDTFAADLHTVLETLDLRDVVLVGFSMGTGELARYVARYGHERVAKLAFLASLEPFLVQRDDNPEGVPQEVFDGIEAAAKGDRFAWFTDFYKNFYNLDENLGSRISEQAVTGSWNVAIGSAPVAAYAVVPAWIEDFRSDVEAVRAAGKPTLILHGTKDNILPIDATARRFHQAVPEADYVEVEGAPHGLLWTHADEVNAALKTFLAK 279
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HL7)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q8GJP7_9MICO | Q8GJP7)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0004601    peroxidase activity    Catalysis of the reaction: donor + hydrogen peroxide = oxidized donor + 2 H2O.
biological process
    GO:0098869    cellular oxidant detoxification    Any process carried out at the cellular level that reduces or removes the toxicity superoxide radicals or hydrogen peroxide.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    BD1  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Glu A:126 - Pro A:127   [ RasMol ]
    Glu B:126 - Pro B:127   [ RasMol ]
    Tyr A:32 - Pro A:33   [ RasMol ]
    Tyr B:32 - Pro B:33   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1hl7
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q8GJP7_9MICO | Q8GJP7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q8GJP7_9MICO | Q8GJP7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q8GJP7_9MICO | Q8GJP7: 1hkh

(-) Related Entries Specified in the PDB File

1hkh UNLIGATED GAMMA LACTAMASE FROM AN AUREOBACTERIUM SPECIES
