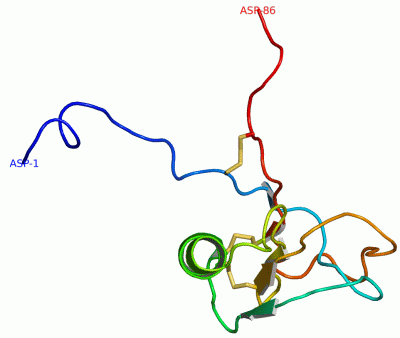

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

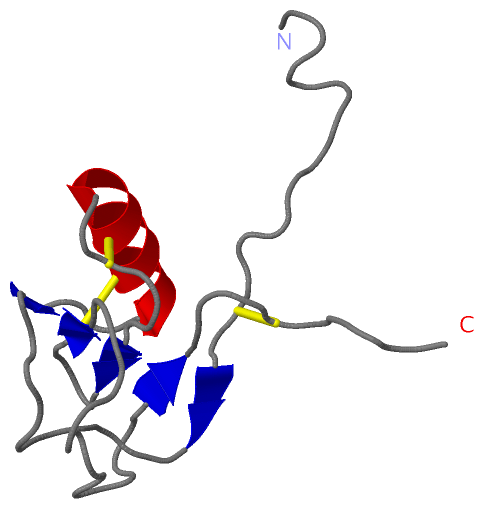

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

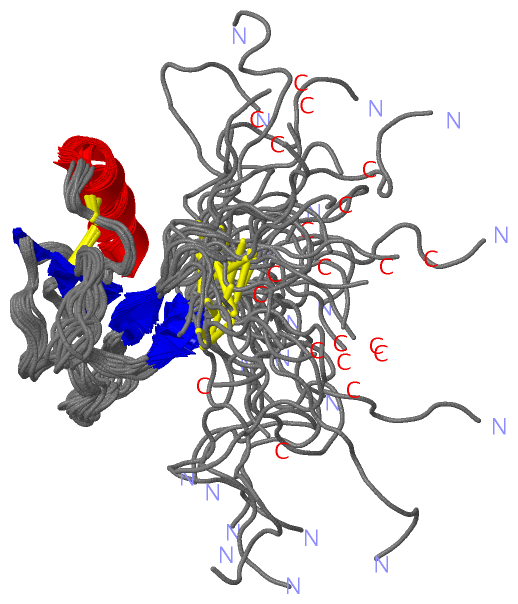

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF A PAN MODULE FROM EIMERIA TENELLA

Authors :  P. J. Brown, D. Mulvey, J. R. Potts, F. M. Tomley, I. D. Campbell
Date :  03 Oct 02  (Deposition) - 17 Oct 02  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Adhesin, Nmr, Pan Module, Eimeria Tenella (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. J. Brown, D. Mulvey, J. R. Potts, F. M. Tomley, I. D. Campbell
Solution Structure Of A Pan Module From The Apicomplexan Parasite Eimeria Tenella
J. Struct. Funct. Genom. V. 4 227 2003
PubMed-ID: 15185963  |  Reference-DOI: 10.1023/B:JSFG.0000016118.87333.03

(-) Compounds

Molecule 1 - MICRONEME PROTEIN 5 PRECURSOR
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PFLAG-ATS
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Fragment: RESIDUES 712-786
    Organism Scientific: EIMERIA TENELLA
    Organism Taxid: 5802
    Other Details: CONSTRUCT INCLUDES 11 NON-NATIVE RESIDUES N-TERMINAL TO THR712
    Other Details - Source: ETMIC5 IS A SECRETED PROTEIN FROM THE MICRONEME ORGANELLES
    Strain: HOUGHTON
    Synonym: MIC-5, ETMIC5

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1HKY)

(-) Sites  (0, 0)

(no "Site" information available for 1HKY)

(-) SS Bonds  (3, 3)

NMR Structure
No.Residues
1A:13 -A:81
2A:37 -A:57
3A:41 -A:47

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1HKY)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HKY)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1HKY)

(-) Exons   (0, 0)

(no "Exon" information available for 1HKY)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:86
 aligned with Q9U966_EIMTE | Q9U966 from UniProtKB/TrEMBL  Length:932

    Alignment length:186
                                   610       620       630       640       650       660       670       680       690       700       710       720       730       740       750       760       770       780
         Q9U966_EIMTE   601 NFTSWLNKECYIKDDQDHRMQEPIPEATSGWVSCSTCFRQGVGYKATEANLLWTLPSENAEECRQRCEVMESCGRFSYDAASKACSMLSGEGEEVQGENLVSGPPRCTRRDTCYQNGVSFTGGKAISEAKAASSQACQELCEKDAKCRFFTLASGKCSLFADDAALRPTKSDGAVSGNKRCILLED 786
               SCOP domains d1          hkya_                                                                                           A: Pan module from microneme protein 5 (MIC-5)                                 SCOP domains
               CATH domains 1h          kyA00                                                                                           A:1-86 Hepatocyte Growth Factor                                                CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..----------......------------------------------------------------------------------------------------------......ee..........eee...hhhhhhhhhhhh......ee....eee...............ee.......... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1hky A   1 DY----------KDDDDK------------------------------------------------------------------------------------------VKLTCYQNGVSFTGGKAISEAKAASSQACQELCEKDAKCRFFTLASGKCSLFADDAALRPTKSDGAVSGNKRCILLED  86
                             |       -  |    | -         -         -         -         -         -         -         -         -        10        20        30        40        50        60        70        80
                             2          3    8                                                                                          9
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Small proteins (3458)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HKY)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (Q9U966_EIMTE | Q9U966)
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
