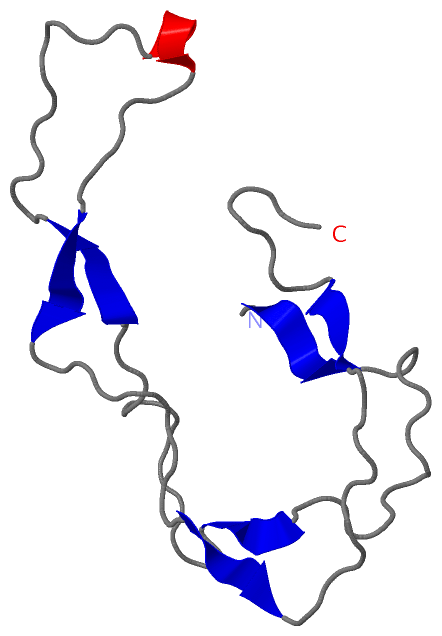

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

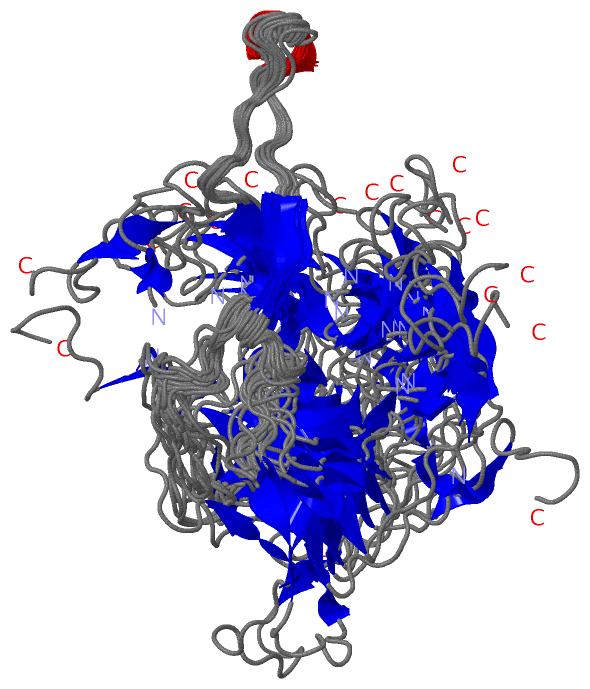

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  CALRETICULIN P-DOMAIN

Authors :  L. Ellgaard, R. Riek, T. Herrmann, P. Guntert, D. Braun, A. Helenius, K. Wuthrich
Date :  22 Dec 00  (Deposition) - 08 Mar 01  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Molecular Chaperone (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  L. Ellgaard, R. Riek, T. Herrmann, D. Braun, P. Guntert, A. Helenius, K. Wuthrich
Nmr Structure Of The Calreticulin P-Domain
Proc. Natl. Acad. Sci. Usa V. 98 3133 2001
PubMed-ID: 11248044  |  Reference-DOI: 10.1073/PNAS.051630098
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CALRETICULIN
    Cellular LocationENDOPLASMIC RETICULUM
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPRSET A
    Expression System StrainBL21(DE3)
    Expression System Taxid469008
    Expression System VariantPLYSS
    FragmentP-DOMAIN RESIDUES 189-288
    Organism CommonNORWAY RAT
    Organism ScientificRATTUS NORVEGICUS
    Organism Taxid10116

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1HHN)

(-) Sites  (0, 0)

(no "Site" information available for 1HHN)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1HHN)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1HHN)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HHN)

(-) PROSITE Motifs  (1, 3)

NMR Structure (1, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CALRETICULIN_REPEATPS00805 Calreticulin family repeated motif signature.CALR_RAT208-220
225-237
242-254
  3A:191-203
A:208-220
A:225-237

(-) Exons   (3, 3)

NMR Structure (3, 3)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1ENSRNOT000000040911ENSRNOE00000028667chr19:24964775-24964928154CALR_RAT1-31310--
1.2ENSRNOT000000040912ENSRNOE00000029143chr19:24965287-24965388102CALR_RAT31-65350--
1.3ENSRNOT000000040913ENSRNOE00000029212chr19:24965582-24965785204CALR_RAT65-133690--
1.4ENSRNOT000000040914ENSRNOE00000028712chr19:24966687-2496678195CALR_RAT133-164320--
1.5ENSRNOT000000040915ENSRNOE00000028738chr19:24966869-24967078210CALR_RAT165-234701A:188-21730
1.6ENSRNOT000000040916ENSRNOE00000029276chr19:24967158-24967271114CALR_RAT235-272381A:218-25538
1.7ENSRNOT000000040917ENSRNOE00000029336chr19:24967439-24967582144CALR_RAT273-320481A:256-28833
1.8ENSRNOT000000040918ENSRNOE00000029402chr19:24968736-2496882893CALR_RAT321-351310--
1.9ENSRNOT000000040919ENSRNOE00000028844chr19:24968922-24969670749CALR_RAT352-416650--

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:101
 aligned with CALR_RAT | P18418 from UniProtKB/Swiss-Prot  Length:416

    Alignment length:101
                                   214       224       234       244       254       264       274       284       294       304
             CALR_RAT   205 PKKIKDPDAAKPEDWDERAKIDDPTDSKPEDWDKPEHIPDPDAKKPEDWDEEMDGEWEPPVIQNPEYKGEWKPRQIDNPDYKGTWIHPEIDNPEYSPDANI 305
               SCOP domains d1hhna_ A: Calreticulin                                                                               SCOP domains
               CATH domains 1hhnA00 A:188-288 Calnexin lumenal domain, non-globular proline-rich hairpin domain                   CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee.............eeee.............eeee...........hhhh......eeee..........eeee..........eeee......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---CALRETICULIN_----CALRETICULIN_----CALRETICULIN_--------------------------------------------------- PROSITE
               Transcript 1 Exon 1.5  PDB: A:188-217      Exon 1.6  PDB: A:218-255              Exon 1.7  PDB: A:256-288          Transcript 1
                 1hhn A 188 SKKIKDPDAAKPEDWDERAKIDDPTDSKPEDWDKPEHIPDPDAKKPEDWDEEMDGEWEPPVIQNPEYKGEWKPRQIDNPDYKGTWIHPEIDNPEYSPDANI 288
                                   197       207       217       227       237       247       257       267       277       287

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HHN)

(-) Gene Ontology  (65, 65)

NMR Structure(hide GO term definitions)
Chain A   (CALR_RAT | P18418)
molecular function
    GO:0050681    androgen receptor binding    Interacting selectively and non-covalently with an androgen receptor.
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
    GO:0030246    carbohydrate binding    Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
    GO:0042562    hormone binding    Interacting selectively and non-covalently with any hormone, naturally occurring substances secreted by specialized cells that affect the metabolism or behavior of other cells possessing functional receptors for the hormone.
    GO:0005178    integrin binding    Interacting selectively and non-covalently with an integrin.
    GO:0005506    iron ion binding    Interacting selectively and non-covalently with iron (Fe) ions.
    GO:0003729    mRNA binding    Interacting selectively and non-covalently with messenger RNA (mRNA), an intermediate molecule between DNA and protein. mRNA includes UTR and coding sequences, but does not contain introns.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0042277    peptide binding    Interacting selectively and non-covalently with peptides, any of a group of organic compounds comprising two or more amino acids linked by peptide bonds.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0031625    ubiquitin protein ligase binding    Interacting selectively and non-covalently with a ubiquitin protein ligase enzyme, any of the E3 proteins.
    GO:0051082    unfolded protein binding    Interacting selectively and non-covalently with an unfolded protein.
biological process
    GO:0055007    cardiac muscle cell differentiation    The process in which a cardiac muscle precursor cell acquires specialized features of a cardiac muscle cell. Cardiac muscle cells are striated muscle cells that are responsible for heart contraction.
    GO:0007050    cell cycle arrest    A regulatory process that halts progression through the cell cycle during one of the normal phases (G1, S, G2, M).
    GO:0071285    cellular response to lithium ion    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a lithium (Li+) ion stimulus.
    GO:0071310    cellular response to organic substance    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an organic substance stimulus.
    GO:0090398    cellular senescence    A cell aging process stimulated in response to cellular stress, whereby normal cells lose the ability to divide through irreversible cell cycle arrest.
    GO:0061077    chaperone-mediated protein folding    The process of inhibiting aggregation and assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure that is dependent on interaction with a chaperone.
    GO:0030866    cortical actin cytoskeleton organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of actin-based cytoskeletal structures in the cell cortex, i.e. just beneath the plasma membrane.
    GO:0033144    negative regulation of intracellular steroid hormone receptor signaling pathway    Any process that stops, prevents, or reduces the frequency, rate or extent of the activity of any intracellular steroid hormone receptor signaling pathway.
    GO:0045665    negative regulation of neuron differentiation    Any process that stops, prevents, or reduces the frequency, rate or extent of neuron differentiation.
    GO:0048387    negative regulation of retinoic acid receptor signaling pathway    Any process that stops, prevents, or reduces the frequency, rate or extent of retinoic acid receptor signaling pathway activity.
    GO:0000122    negative regulation of transcription from RNA polymerase II promoter    Any process that stops, prevents, or reduces the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0017148    negative regulation of translation    Any process that stops, prevents, or reduces the frequency, rate or extent of the chemical reactions and pathways resulting in the formation of proteins by the translation of mRNA or circRNA.
    GO:0002502    peptide antigen assembly with MHC class I protein complex    The binding of a peptide to the antigen binding groove of an MHC class I protein complex. Class I here refers to classical class I molecules.
    GO:0045740    positive regulation of DNA replication    Any process that activates or increases the frequency, rate or extent of DNA replication.
    GO:0045787    positive regulation of cell cycle    Any process that activates or increases the rate or extent of progression through the cell cycle.
    GO:0008284    positive regulation of cell proliferation    Any process that activates or increases the rate or extent of cell proliferation.
    GO:2000510    positive regulation of dendritic cell chemotaxis    Any process that activates or increases the frequency, rate or extent of dendritic cell chemotaxis.
    GO:0010628    positive regulation of gene expression    Any process that increases the frequency, rate or extent of gene expression. Gene expression is the process in which a gene's coding sequence is converted into a mature gene product or products (proteins or RNA). This includes the production of an RNA transcript as well as any processing to produce a mature RNA product or an mRNA or circRNA (for protein-coding genes) and the translation of that mRNA or circRNA into protein. Protein maturation is included when required to form an active form of a product from an inactive precursor form.
    GO:0050766    positive regulation of phagocytosis    Any process that activates or increases the frequency, rate or extent of phagocytosis.
    GO:1900026    positive regulation of substrate adhesion-dependent cell spreading    Any process that activates or increases the frequency, rate or extent of substrate adhesion-dependent cell spreading.
    GO:0006611    protein export from nucleus    The directed movement of a protein from the nucleus into the cytoplasm.
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0034504    protein localization to nucleus    A process in which a protein transports or maintains the localization of another protein to the nucleus.
    GO:0050821    protein stabilization    Any process involved in maintaining the structure and integrity of a protein and preventing it from degradation or aggregation.
    GO:0040020    regulation of meiotic nuclear division    Any process that modulates the frequency, rate or extent of meiotic nuclear division, the process in which the nucleus of a diploid cell divides twice forming four haploid cells, one or more of which usually function as gametes.
    GO:0042493    response to drug    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a drug stimulus. A drug is a substance used in the diagnosis, treatment or prevention of a disease.
    GO:0032355    response to estradiol    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of stimulus by estradiol, a C18 steroid hormone hydroxylated at C3 and C17 that acts as a potent estrogen.
    GO:0010033    response to organic substance    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an organic substance stimulus.
    GO:0033574    response to testosterone    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a testosterone stimulus.
    GO:0007283    spermatogenesis    The process of formation of spermatozoa, including spermatocytogenesis and spermiogenesis.
cellular component
    GO:0005794    Golgi apparatus    A compound membranous cytoplasmic organelle of eukaryotic cells, consisting of flattened, ribosome-free vesicles arranged in a more or less regular stack. The Golgi apparatus differs from the endoplasmic reticulum in often having slightly thicker membranes, appearing in sections as a characteristic shallow semicircle so that the convex side (cis or entry face) abuts the endoplasmic reticulum, secretory vesicles emerging from the concave side (trans or exit face). In vertebrate cells there is usually one such organelle, while in invertebrates and plants, where they are known usually as dictyosomes, there may be several scattered in the cytoplasm. The Golgi apparatus processes proteins produced on the ribosomes of the rough endoplasmic reticulum; such processing includes modification of the core oligosaccharides of glycoproteins, and the sorting and packaging of proteins for transport to a variety of cellular locations. Three different regions of the Golgi are now recognized both in terms of structure and function: cis, in the vicinity of the cis face, trans, in the vicinity of the trans face, and medial, lying between the cis and trans regions.
    GO:0042824    MHC class I peptide loading complex    A large, multisubunit complex which consists of the MHC class I-beta 2 microglobulin dimer, the transporter associated with antigen presentation (TAP), tapasin (an MHC-encoded membrane protein), the chaperone calreticulin and the thiol oxidoreductase ERp57. Functions in the assembly of peptides with newly synthesized MHC class I molecules.
    GO:0001669    acrosomal vesicle    A structure in the head of a spermatozoon that contains acid hydrolases, and is concerned with the breakdown of the outer membrane of the ovum during fertilization. It lies just beneath the plasma membrane and is derived from the lysosome.
    GO:0009986    cell surface    The external part of the cell wall and/or plasma membrane.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005783    endoplasmic reticulum    The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
    GO:0005788    endoplasmic reticulum lumen    The volume enclosed by the membranes of the endoplasmic reticulum.
    GO:0009897    external side of plasma membrane    The leaflet of the plasma membrane that faces away from the cytoplasm and any proteins embedded or anchored in it or attached to its surface.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0031012    extracellular matrix    A structure lying external to one or more cells, which provides structural support for cells or tissues.
    GO:0005615    extracellular space    That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.
    GO:0005925    focal adhesion    Small region on the surface of a cell that anchors the cell to the extracellular matrix and that forms a point of termination of actin filaments.
    GO:0043231    intracellular membrane-bounded organelle    Organized structure of distinctive morphology and function, bounded by a single or double lipid bilayer membrane and occurring within the cell. Includes the nucleus, mitochondria, plastids, vacuoles, and vesicles. Excludes the plasma membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0048471    perinuclear region of cytoplasm    Cytoplasm situated near, or occurring around, the nucleus.
    GO:0005844    polysome    A multiribosomal structure representing a linear array of ribosomes held together by messenger RNA. They represent the active complexes in cellular protein synthesis and are able to incorporate amino acids into polypeptides both in vivo and in vitro.
    GO:0043234    protein complex    A stable macromolecular complex composed (only) of two or more polypeptide subunits along with any covalently attached molecules (such as lipid anchors or oligosaccharide) or non-protein prosthetic groups (such as nucleotides or metal ions). Prosthetic group in this context refers to a tightly bound cofactor. The component polypeptide subunits may be identical.
    GO:0016529    sarcoplasmic reticulum    A fine reticular network of membrane-limited elements that pervades the sarcoplasm of a muscle cell; continuous over large portions of the cell and with the nuclear envelope; that part of the endoplasmic reticulum specialized for calcium release, uptake and storage.
    GO:0033018    sarcoplasmic reticulum lumen    The volume enclosed by the membranes of the sarcoplasmic reticulum.
    GO:0005790    smooth endoplasmic reticulum    The smooth endoplasmic reticulum (smooth ER or SER) has no ribosomes attached to it. The smooth ER is the recipient of the proteins synthesized in the rough ER. Those proteins to be exported are passed to the Golgi complex, the resident proteins are returned to the rough ER and the lysosomal proteins after phosphorylation of their mannose residues are passed to the lysosomes. Glycosylation of the glycoproteins also continues. The smooth ER is the site of synthesis of lipids, including the phospholipids. The membranes of the smooth ER also contain enzymes that catalyze a series of reactions to detoxify both lipid-soluble drugs and harmful products of metabolism. Large quantities of certain compounds such as phenobarbital cause an increase in the amount of the smooth ER.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1hhn)

  Sites
(no "Sites" information available for 1hhn)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1hhn)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1hhn
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CALR_RAT | P18418
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  CALR_RAT | P18418
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CALR_RAT | P184181k91 1k9c

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1HHN)
