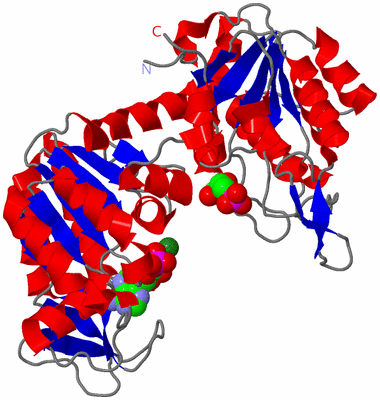

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

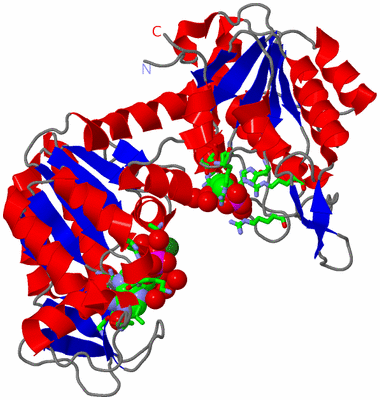

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  PIG MUSCLE 3-PHOSPHOGLYCERATE KINASE COMPLEXED WITH 3-PG AND MGADP.

Authors :  A. N. Szilagyi, M. Ghosh, E. Garman, M. Vas
Date :  16 Nov 00  (Deposition) - 26 Feb 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  Phosphotransferase, Kinase, Phosphoglycerate, Ternary Complex, Glycolysis (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. N. Szilagyi, M. Ghosh, E. Garman, M. Vas
A 1. 8 A Resolution Structure Of Pig Muscle 3-Phosphoglycerate Kinase With Bound Mgadp And 3-Phosphoglycerate In Open Conformation: New Insight Into The Role Of The Nucleotide In Domain Closure
J. Mol. Biol. V. 306 499 2001
PubMed-ID: 11178909  |  Reference-DOI: 10.1006/JMBI.2000.4294

(-) Compounds

Molecule 1 - PHOSPHOGLYCERATE KINASE
    Chains: A
    EC Number: 2.7.2.3
    Organism Common: PIG
    Organism Scientific: SUS SCROFA
    Organism Taxid: 9823
    Synonym: PGK
    Tissue: MUSCLE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 3)

Asymmetric/Biological Unit (3, 3)
No.NameCountTypeFull Name
13PG1Ligand/Ion3-PHOSPHOGLYCERIC ACID
2AMP1Ligand/IonADENOSINE MONOPHOSPHATE
3MG1Ligand/IonMAGNESIUM ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:374 , AMP A:417BINDING SITE FOR RESIDUE MG A 418
2AC2SOFTWAREALA A:214 , LYS A:215 , LYS A:219 , GLY A:237 , GLY A:238 , LEU A:256 , GLY A:312 , LEU A:313 , GLY A:340 , VAL A:341 , GLU A:343 , ASP A:374 , MG A:418 , HOH A:2111 , HOH A:2182 , HOH A:2201 , HOH A:2202 , HOH A:2203 , HOH A:2204 , HOH A:2205 , HOH A:2206BINDING SITE FOR RESIDUE AMP A 417
3AC3SOFTWAREASP A:23 , ASN A:25 , ARG A:38 , HIS A:62 , ARG A:65 , ARG A:122 , GLY A:166 , ARG A:170 , HOH A:2009 , HOH A:2207 , HOH A:2208BINDING SITE FOR RESIDUE 3PG A 419

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1HDI)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Arg A:205 -Pro A:206

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HDI)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PGLYCERATE_KINASEPS00111 Phosphoglycerate kinase signature.PGK1_PIG18-28  1A:17-27

(-) Exons   (0, 0)

(no "Exon" information available for 1HDI)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:413
 aligned with PGK1_PIG | Q7SIB7 from UniProtKB/Swiss-Prot  Length:417

    Alignment length:413
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414
             PGK1_PIG     5 NKLTLDKLDVKGKRVVMRVDFNVPMKNNQITNNQRIKAAIPSIKFCLDNGAKSVVLMSHLGRPDGIPMPDKYSLEPVAVELKSLPGKDVLFLKDCVGPEVEKACADPAAGSVILLENLRFHVEEEGKGKDASGSKVKADPAKIEAFRASLSKLGDVYVNDAFGTAHRAHSSMVGVNLPKKAGGFLMKKELNYFAKALESPERPFLAILGGAKVADKIQLINNMLDKVNEMIIGGGMAFTFLKVLNNMEIGTSLFDEEGSKIVKDLMSKAEKNGVKITLPVDFVTADKFDENAKIGQATVASGIPAGWMGLDCGPESSKKYSEAVARAKQIVWNGPVGVFEWEAFAQGTKALMDEVVKATSRGCITIIGGGDTATCCAKWNTEDKVSHVSTGGGASLELLEGKVLPGVDALSNV 417
               SCOP domains d1hdia_ A: Phosphoglycerate kinase                                                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 1hdiA01 A:4-188  [code=3.40.50.1260, no name defined]                                                                                                                                    ------1hdiA02 A:195-403  [code=3.40.50.1270, no name defined]                                                                                                                                                          ------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhh.....eeeee..............hhhhhhhhhhhhhhhhh...eeeee................hhhhhhhhhhhhh...ee.....hhhhhhhhhh....eeee..hhhhh.....eee.....eee.hhhhhhhhhhhhhhh..eeee.hhhhh...hhhhhh.....eeehhhhhhhhhhhhhhhh.....eeeee....hhhhhhhhhhhhh...eeee...hhhhhhhhhhh..........hhhhhhhhhhhhhhhhh.eee...eeeee........eeeee.........eeeeehhhhhhhhhhhhhhh.eeeee.......hhhhhhhhhhhhhhhhhhhhh..eeee..hhhhhhhhhh.......ee..hhhhhhhhhh...hhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------PGLYCERATE_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hdi A   4 NKLTLDKLNVKGKRVVMRVDFNVPMAAAQITNNARIKAAVPSIKFCLDDGAKSVVLMSHLGRPDGSPMPDKYSLQPVAAELKSALGKAVLFLKDCVGPAVEKACADPAAGSVILLENLRFHVEEEGKGKDASGNKAAGEPAKIKAFRASLSALGDVYVNDAFGTAHRAHSSMVGVNLPKKAGAFLMKKELNYFAAAAESPERPFLAILGGAKVADKIQLINNMLDKVNEMIIGGGMAFTFLKVLNNMEIGTSLFDEAGKKIVKNLMSKAAANGVKITLPVDFVTADKFDEQAKIGQATVASGIPAGWMGLDCGPKSSAKYSEAVARAKQIVWNGPVGVFEWEAFAQGTKALMDEVVKATSRGCITIIGGGDTATCCAKWNTEDNVSHVSTGGGASLELLEGKVLPGVDALSNV 416
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HDI)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (PGK1_PIG | Q7SIB7)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0004618    phosphoglycerate kinase activity    Catalysis of the reaction: 3-phospho-D-glycerate + ATP = 3-phospho-D-glyceroyl phosphate + ADP + H(+).
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006096    glycolytic process    The chemical reactions and pathways resulting in the breakdown of a carbohydrate into pyruvate, with the concomitant production of a small amount of ATP and the reduction of NAD(P) to NAD(P)H. Glycolysis begins with the metabolism of a carbohydrate to generate products that can enter the pathway and ends with the production of pyruvate. Pyruvate may be converted to acetyl-coenzyme A, ethanol, lactate, or other small molecules.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    3PG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    AMP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Arg A:205 - Pro A:206   [ RasMol ]


(-) Still Images

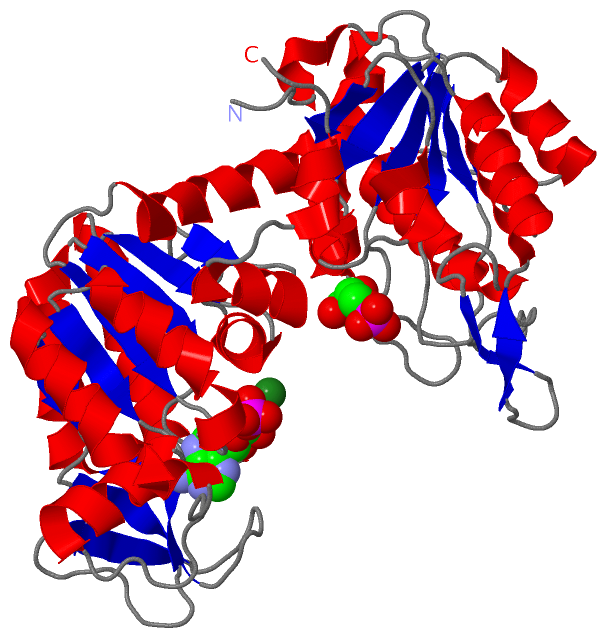

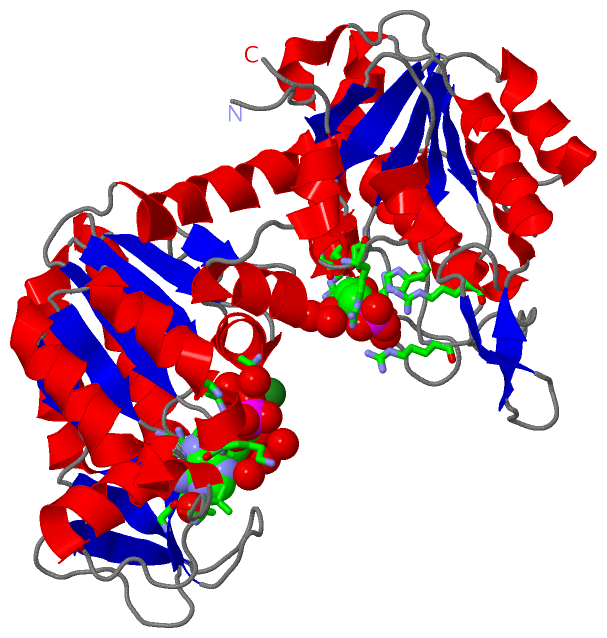

Jmol
