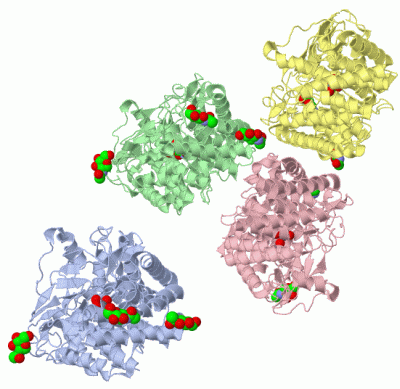

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

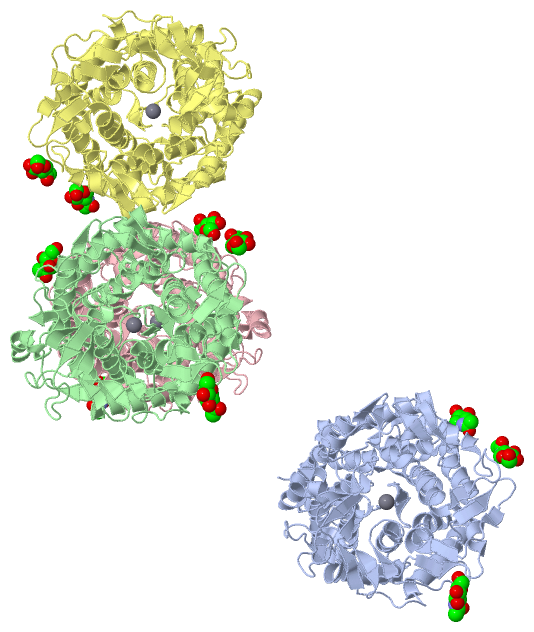

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

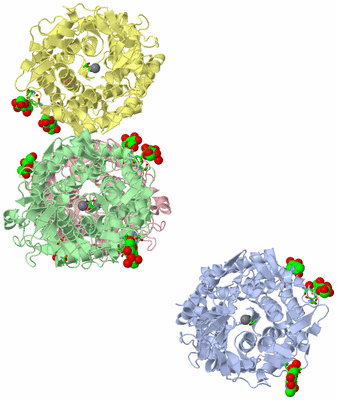

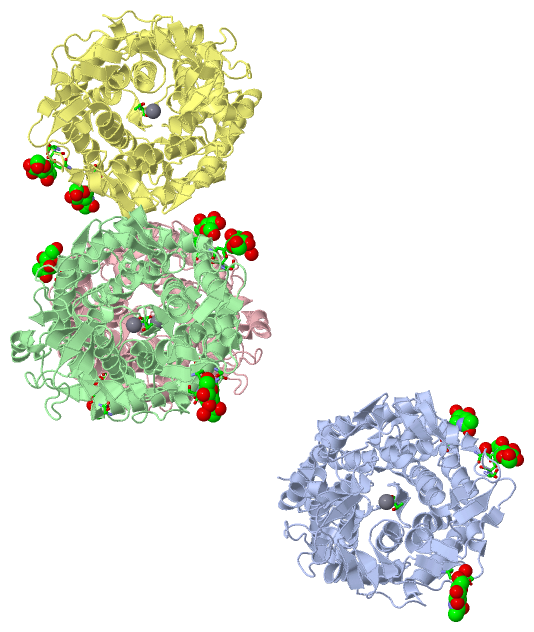

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

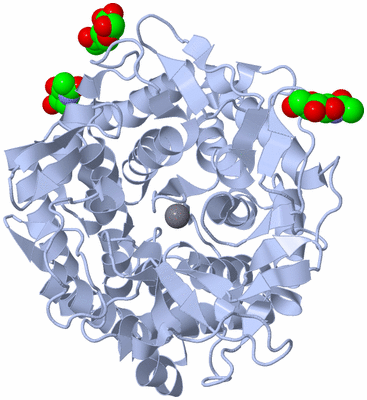

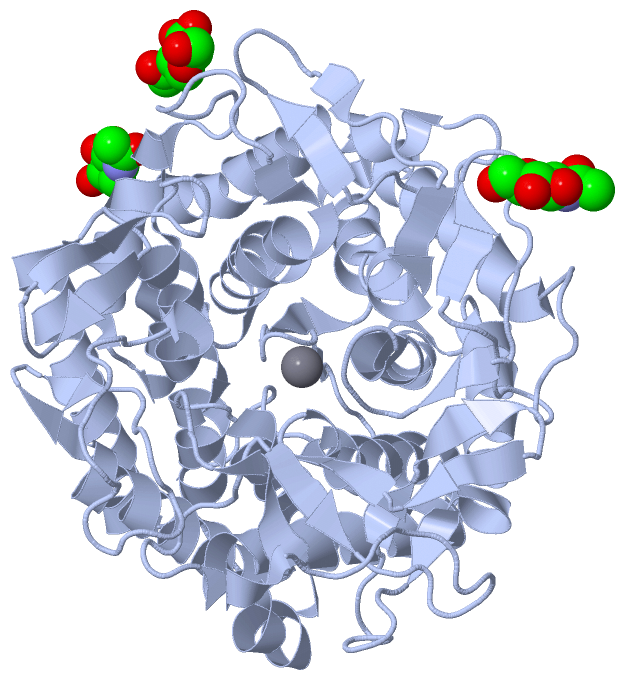

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

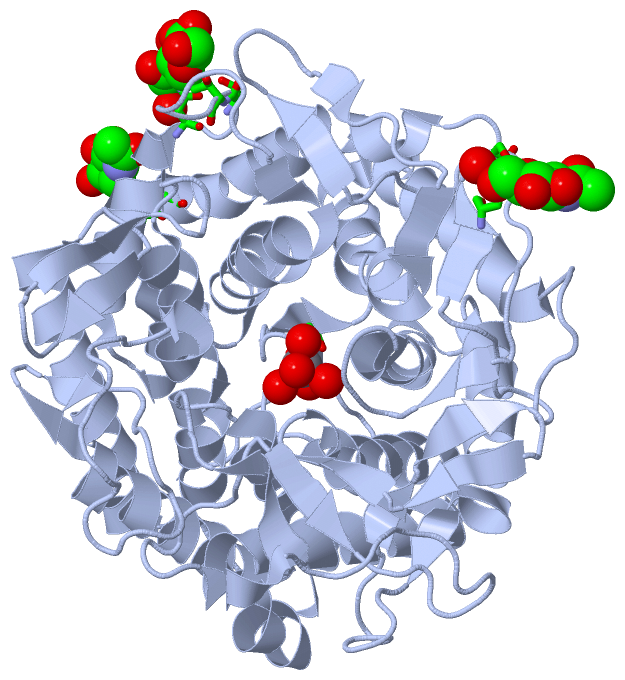

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

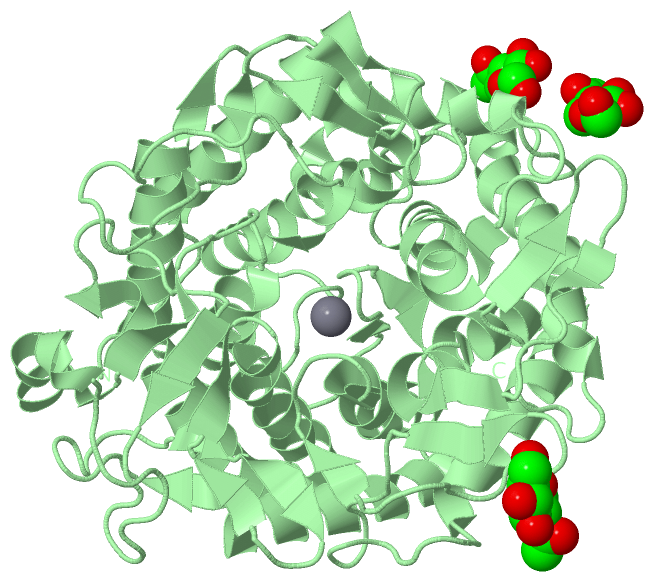

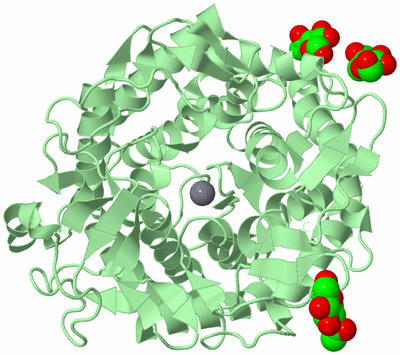

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

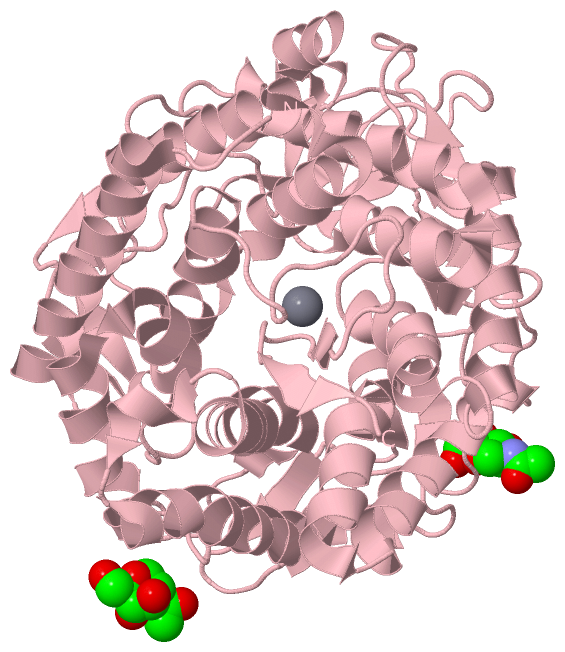

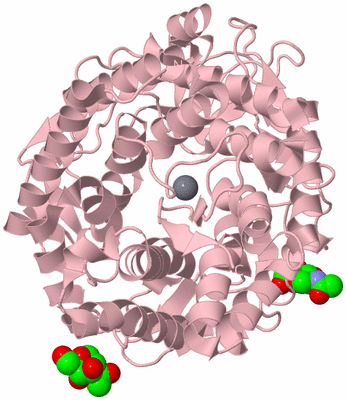

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

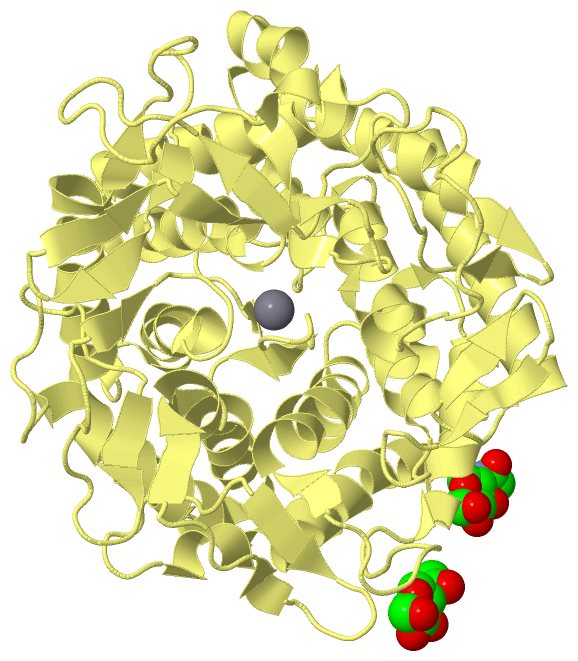

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  ALPHA-1,2-MANNOSIDASE FROM TRICHODERMA REESEI

Authors :  F. Van Petegem, H. Contreras, R. Contreras, J. Van Beeumen
Date :  09 May 01  (Deposition) - 18 Oct 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.37
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Keywords :  Glycosylation, Glycosyl Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Van Petegem, H. Contreras, R. Contreras, J. Van Beeumen
Trichoderma Reesei Alpha-1, 2-Mannosidase: Structural Basis For The Cleavage Of Four Consecutive Mannose Residues
J. Mol. Biol. V. 312 157 2001
PubMed-ID: 11545593  |  Reference-DOI: 10.1006/JMBI.2001.4946

(-) Compounds

Molecule 1 - ALPHA-1,2-MANNOSIDASE
    Chains: A, B, C, D
    EC Number: 3.2.1.113
    Engineered: YES
    Expression System: PICHIA PASTORIS
    Expression System Taxid: 4922
    Organism Scientific: TRICHODERMA REESEI
    Organism Taxid: 51453
    Synonym: 1,2-A-D-MANNOSIDASE

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 14)

Asymmetric Unit (2, 14)
No.NameCountTypeFull Name
1CA4Ligand/IonCALCIUM ION
2NAG10Ligand/IonN-ACETYL-D-GLUCOSAMINE
Biological Unit 1 (1, 3)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2NAG3Ligand/IonN-ACETYL-D-GLUCOSAMINE
Biological Unit 2 (1, 3)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2NAG3Ligand/IonN-ACETYL-D-GLUCOSAMINE
Biological Unit 3 (1, 2)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2NAG2Ligand/IonN-ACETYL-D-GLUCOSAMINE
Biological Unit 4 (1, 2)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2NAG2Ligand/IonN-ACETYL-D-GLUCOSAMINE

(-) Sites  (14, 14)

Asymmetric Unit (14, 14)
No.NameEvidenceResiduesDescription
01AC1SOFTWARESER A:227 , SER A:229 , ASN A:230 , HOH A:2133BINDING SITE FOR RESIDUE NAG A 600
02AC2SOFTWAREASN A:85 , THR A:87 , THR A:88 , HOH A:2070 , HOH A:2314BINDING SITE FOR RESIDUE NAG A 601
03AC3SOFTWAREASN A:126 , LEU A:129BINDING SITE FOR RESIDUE NAG A 602
04AC4SOFTWARESER B:227 , SER B:229 , ASN B:230 , THR B:232 , HOH B:2309 , SER C:300 , THR C:301 , HOH C:2160BINDING SITE FOR RESIDUE NAG B 600
05AC5SOFTWAREASN B:85 , THR B:87 , THR B:88 , HOH B:2311BINDING SITE FOR RESIDUE NAG B 601
06AC6SOFTWAREASN B:126 , LEU B:129BINDING SITE FOR RESIDUE NAG B 602
07AC7SOFTWARESER B:300 , THR B:301 , SER C:227 , SER C:229 , ASN C:230 , THR C:232 , HOH C:2270BINDING SITE FOR RESIDUE NAG C 600
08AC8SOFTWAREASN C:85 , THR C:87 , THR C:88BINDING SITE FOR RESIDUE NAG C 601
09AC9SOFTWAREASN D:85 , THR D:87 , THR D:88BINDING SITE FOR RESIDUE NAG D 600
10BC1SOFTWAREASN D:126 , LEU D:129BINDING SITE FOR RESIDUE NAG D 602
11BC2SOFTWARETHR A:485 , HOH A:2182 , HOH A:2183 , HOH A:2264 , HOH A:2296 , HOH A:2311BINDING SITE FOR RESIDUE CA A1495
12BC3SOFTWARETHR B:485 , HOH B:2169 , HOH B:2170 , HOH B:2241 , HOH B:2245 , HOH B:2305BINDING SITE FOR RESIDUE CA B1495
13BC4SOFTWARETHR C:485 , HOH C:2055 , HOH C:2133 , HOH C:2215 , HOH C:2251BINDING SITE FOR RESIDUE CA C1494
14BC5SOFTWARETHR D:485 , HOH D:2099 , HOH D:2100 , HOH D:2162 , HOH D:2186 , HOH D:2197BINDING SITE FOR RESIDUE CA D1495

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1HCU)

(-) Cis Peptide Bonds  (8, 8)

Asymmetric Unit
No.Residues
1Phe A:35 -Pro A:36
2Asn A:162 -Pro A:163
3Phe B:35 -Pro B:36
4Asn B:162 -Pro B:163
5Phe C:35 -Pro C:36
6Asn C:162 -Pro C:163
7Phe D:35 -Pro D:36
8Asn D:162 -Pro D:163

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HCU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1HCU)

(-) Exons   (0, 0)

(no "Exon" information available for 1HCU)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:488
 aligned with Q9P8T8_HYPJE | Q9P8T8 from UniProtKB/TrEMBL  Length:523

    Alignment length:488
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506
         Q9P8T8_HYPJE    27 KRGSPNPTRAAAVKAAFQTSWNAYHHFAFPHDDLHPVSNSFDDERNGWGSSAIDGLDTAILMGDADIVNTILQYVPQINFTTTAVANQGSSVFETNIRYLGGLLSAYDLLRGPFSSLATNQTLVNSLLRQAQTLANGLKVAFTTPSGVPDPTVFFNPTVRRSGASSNNVAEIGSLVLEWTRLSDLTGNPQYAQLAQKGESYLLNPKGSPEAWPGLIGTFVSTSNGTFQDSSGSWSGLMDSFYEYLIKMYLYDPVAFAHYKDRWVLGADSTIGHLGSHPSTRKDLTFLSSYNGQSTSPNSGHLASFGGGNFILGGILLNEQKYIDFGIKLASSYFGTYTQTASGIGPEGFAWVDSVTGAGGSPPSSQSGFYSSAGFWVTAPYYILRPETLESLYYAYRVTGDSKWQDLAWEALSAIEDACRAGSAYSSINDVTQANGGGASDDMESFWFAEALKYAYLIFAEESDVQVQATGGNKFVFNTEAHPFSIRS 514
               SCOP domains d1hcua_ A: Class I alpha-1;2-mannosidase, catalytic domain                                                                                                                                                                                                                                                                                                                                                                                                                                               SCOP domains
               CATH domains 1hcuA00 A:7-494  [code=1.50.10.50, no name defined]                                                                                                                                                                                                                                                                                                                                                                                                                                                      CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhh....eee....eee......hhhhhhhhhhhhhh.hhhhhhhhhhhhhhh...........eehhhhhhhhhhhhhhhhhhhhh.hhhhh.hhhhhhhhhhhhhhhhhhhhhhhh........eee.....ee....eeehhhhh.hhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..............eee.........ee.....hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhee.........ee.eee..eee.eee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........eee............hhhhhhhhhhhh.eeee......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhee..ee..................hhhhhhhhhhhhhhhhh..............eee.....eee... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hcu A   7 KRGSPNPTRAAAVKAAFQTSWNAYHHFAFPHDDLHPVSNSFDDERNGWGSSAIDGLDTAILMGDADIVNTILQYVPQINFTTTAVANQGSSVFETNIRYLGGLLSAYDLLRGPFSSLATNQTLVNSLLRQAQTLANGLKVAFTTPSGVPDPTVFFNPTVRRSGASSNNVAEIGSLVLEWTRLSDLTGNPQYAQLAQKGESYLLNPKGSPEAWPGLIGTFVSTSNGTFQDSSGSWSGLMDSFYEYLIKMYLYDPVAFAHYKDRWVLGADSTIGHLGSHPSTRKDLTFLSSYNGQSTSPNSGHLASFGGGNFILGGILLNEQKYIDFGIKLASSYFGTYTQTASGIGPEGFAWVDSVTGAGGSPPSSQSGFYSSAGFWVTAPYYILRPETLESLYYAYRVTGDSKWQDLAWEALSAIEDACRAGSAYSSINDVTQANGGGASDDMESFWFAEALKYAYLIFAEESDVQVQATGGNKFVFNTEAHPFSIRS 494
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486


Chain B from PDB  Type:PROTEIN  Length:489
 aligned with Q9P8T8_HYPJE | Q9P8T8 from UniProtKB/TrEMBL  Length:523

    Alignment length:489
                                    35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505
         Q9P8T8_HYPJE    26 TKRGSPNPTRAAAVKAAFQTSWNAYHHFAFPHDDLHPVSNSFDDERNGWGSSAIDGLDTAILMGDADIVNTILQYVPQINFTTTAVANQGSSVFETNIRYLGGLLSAYDLLRGPFSSLATNQTLVNSLLRQAQTLANGLKVAFTTPSGVPDPTVFFNPTVRRSGASSNNVAEIGSLVLEWTRLSDLTGNPQYAQLAQKGESYLLNPKGSPEAWPGLIGTFVSTSNGTFQDSSGSWSGLMDSFYEYLIKMYLYDPVAFAHYKDRWVLGADSTIGHLGSHPSTRKDLTFLSSYNGQSTSPNSGHLASFGGGNFILGGILLNEQKYIDFGIKLASSYFGTYTQTASGIGPEGFAWVDSVTGAGGSPPSSQSGFYSSAGFWVTAPYYILRPETLESLYYAYRVTGDSKWQDLAWEALSAIEDACRAGSAYSSINDVTQANGGGASDDMESFWFAEALKYAYLIFAEESDVQVQATGGNKFVFNTEAHPFSIRS 514
               SCOP domains d1hcub_ B: Class I alpha-1;2-mannosidase, catalytic domain                                                                                                                                                                                                                                                                                                                                                                                                                                                SCOP domains
               CATH domains 1hcuB00 B:6-494  [code=1.50.10.50, no name defined]                                                                                                                                                                                                                                                                                                                                                                                                                                                       CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhhhhhhhhhhh....eee....eee......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........eehhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhh........eee.....ee....eeehhhhh.hhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..............eee.........ee.....hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhee.........ee.eee...ee.eee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........eee............hhhhhhhhhhhh.eeee......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhee..ee...................hhhhhhhhhhhhhhhh..............eee.....eee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hcu B   6 TKRGSPNPTRAAAVKAAFQTSWNAYHHFAFPHDDLHPVSNSFDDERNGWGSSAIDGLDTAILMGDADIVNTILQYVPQINFTTTAVANQGSSVFETNIRYLGGLLSAYDLLRGPFSSLATNQTLVNSLLRQAQTLANGLKVAFTTPSGVPDPTVFFNPTVRRSGASSNNVAEIGSLVLEWTRLSDLTGNPQYAQLAQKGESYLLNPKGSPEAWPGLIGTFVSTSNGTFQDSSGSWSGLMDSFYEYLIKMYLYDPVAFAHYKDRWVLGADSTIGHLGSHPSTRKDLTFLSSYNGQSTSPNSGHLASFGGGNFILGGILLNEQKYIDFGIKLASSYFGTYTQTASGIGPEGFAWVDSVTGAGGSPPSSQSGFYSSAGFWVTAPYYILRPETLESLYYAYRVTGDSKWQDLAWEALSAIEDACRAGSAYSSINDVTQANGGGASDDMESFWFAEALKYAYLIFAEESDVQVQATGGNKFVFNTEAHPFSIRS 494
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455       465       475       485


Chain C from PDB  Type:PROTEIN  Length:485
 aligned with Q9P8T8_HYPJE | Q9P8T8 from UniProtKB/TrEMBL  Length:523

    Alignment length:485
                                    38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448       458       468       478       488       498       508
         Q9P8T8_HYPJE    29 GSPNPTRAAAVKAAFQTSWNAYHHFAFPHDDLHPVSNSFDDERNGWGSSAIDGLDTAILMGDADIVNTILQYVPQINFTTTAVANQGSSVFETNIRYLGGLLSAYDLLRGPFSSLATNQTLVNSLLRQAQTLANGLKVAFTTPSGVPDPTVFFNPTVRRSGASSNNVAEIGSLVLEWTRLSDLTGNPQYAQLAQKGESYLLNPKGSPEAWPGLIGTFVSTSNGTFQDSSGSWSGLMDSFYEYLIKMYLYDPVAFAHYKDRWVLGADSTIGHLGSHPSTRKDLTFLSSYNGQSTSPNSGHLASFGGGNFILGGILLNEQKYIDFGIKLASSYFGTYTQTASGIGPEGFAWVDSVTGAGGSPPSSQSGFYSSAGFWVTAPYYILRPETLESLYYAYRVTGDSKWQDLAWEALSAIEDACRAGSAYSSINDVTQANGGGASDDMESFWFAEALKYAYLIFAEESDVQVQATGGNKFVFNTEAHPFSIR 513
               SCOP domains d1hcuc_ C: Class I alpha-1;2-mannosidase, catalytic domain                                                                                                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 1hcuC00 C:9-493  [code=1.50.10.50, no name defined]                                                                                                                                                                                                                                                                                                                                                                                                                                                   CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhh....eee....eee......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........eehhhhhhhhhhhhhhhhhhhhh.hhhhh.hhhhhhhhhhhhhhhhhhhhhhhh........eee.....ee....eeehhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..............eee.........ee.....hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhee.........ee.eee...ee.eee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........eee............hhhhhhhhhhhh.eeee......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhee..ee...................hhhhhhhhhhhhhh................eee.....eee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hcu C   9 GSPNPTRAAAVKAAFQTSWNAYHHFAFPHDDLHPVSNSFDDERNGWGSSAIDGLDTAILMGDADIVNTILQYVPQINFTTTAVANQGSSVFETNIRYLGGLLSAYDLLRGPFSSLATNQTLVNSLLRQAQTLANGLKVAFTTPSGVPDPTVFFNPTVRRSGASSNNVAEIGSLVLEWTRLSDLTGNPQYAQLAQKGESYLLNPKGSPEAWPGLIGTFVSTSNGTFQDSSGSWSGLMDSFYEYLIKMYLYDPVAFAHYKDRWVLGADSTIGHLGSHPSTRKDLTFLSSYNGQSTSPNSGHLASFGGGNFILGGILLNEQKYIDFGIKLASSYFGTYTQTASGIGPEGFAWVDSVTGAGGSPPSSQSGFYSSAGFWVTAPYYILRPETLESLYYAYRVTGDSKWQDLAWEALSAIEDACRAGSAYSSINDVTQANGGGASDDMESFWFAEALKYAYLIFAEESDVQVQATGGNKFVFNTEAHPFSIR 493
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448       458       468       478       488


Chain D from PDB  Type:PROTEIN  Length:486
 aligned with Q9P8T8_HYPJE | Q9P8T8 from UniProtKB/TrEMBL  Length:523

    Alignment length:486
                                    38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448       458       468       478       488       498       508
         Q9P8T8_HYPJE    29 GSPNPTRAAAVKAAFQTSWNAYHHFAFPHDDLHPVSNSFDDERNGWGSSAIDGLDTAILMGDADIVNTILQYVPQINFTTTAVANQGSSVFETNIRYLGGLLSAYDLLRGPFSSLATNQTLVNSLLRQAQTLANGLKVAFTTPSGVPDPTVFFNPTVRRSGASSNNVAEIGSLVLEWTRLSDLTGNPQYAQLAQKGESYLLNPKGSPEAWPGLIGTFVSTSNGTFQDSSGSWSGLMDSFYEYLIKMYLYDPVAFAHYKDRWVLGADSTIGHLGSHPSTRKDLTFLSSYNGQSTSPNSGHLASFGGGNFILGGILLNEQKYIDFGIKLASSYFGTYTQTASGIGPEGFAWVDSVTGAGGSPPSSQSGFYSSAGFWVTAPYYILRPETLESLYYAYRVTGDSKWQDLAWEALSAIEDACRAGSAYSSINDVTQANGGGASDDMESFWFAEALKYAYLIFAEESDVQVQATGGNKFVFNTEAHPFSIRS 514
               SCOP domains d1hcud_ D: Class I alpha-1;2-mannosidase, catalytic domain                                                                                                                                                                                                                                                                                                                                                                                                                                             SCOP domains
               CATH domains 1hcuD00 D:9-494  [code=1.50.10.50, no name defined]                                                                                                                                                                                                                                                                                                                                                                                                                                                    CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhh....eee....eee......hhhhhhhhhhhhhh..hhhhhhhhhhhhhh...........eehhhhhhhhhhhhhhhhhhhh..hhhhh.hhhhhhhhhhhhhhhhhhhhhhhh........eee.....ee....eeehhhhh.hhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..............eee.........ee.....hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhee.........ee.eee..eee.eee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........eee............hhhhhhhhhhhh.eeee......hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhee..ee...................hhhhhhhhhhhhhh................eee.....eee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1hcu D   9 GSPNPTRAAAVKAAFQTSWNAYHHFAFPHDDLHPVSNSFDDERNGWGSSAIDGLDTAILMGDADIVNTILQYVPQINFTTTAVANQGSSVFETNIRYLGGLLSAYDLLRGPFSSLATNQTLVNSLLRQAQTLANGLKVAFTTPSGVPDPTVFFNPTVRRSGASSNNVAEIGSLVLEWTRLSDLTGNPQYAQLAQKGESYLLNPKGSPEAWPGLIGTFVSTSNGTFQDSSGSWSGLMDSFYEYLIKMYLYDPVAFAHYKDRWVLGADSTIGHLGSHPSTRKDLTFLSSYNGQSTSPNSGHLASFGGGNFILGGILLNEQKYIDFGIKLASSYFGTYTQTASGIGPEGFAWVDSVTGAGGSPPSSQSGFYSSAGFWVTAPYYILRPETLESLYYAYRVTGDSKWQDLAWEALSAIEDACRAGSAYSSINDVTQANGGGASDDMESFWFAEALKYAYLIFAEESDVQVQATGGNKFVFNTEAHPFSIRS 494
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448       458       468       478       488
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 4)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HCU)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (Q9P8T8_HYPJE | Q9P8T8)
molecular function
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004571    mannosyl-oligosaccharide 1,2-alpha-mannosidase activity    Catalysis of the hydrolysis of the terminal (1->2)-linked alpha-D-mannose residues in an oligo-mannose oligosaccharide.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NAG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asn A:162 - Pro A:163   [ RasMol ]
    Asn B:162 - Pro B:163   [ RasMol ]
    Asn C:162 - Pro C:163   [ RasMol ]
    Asn D:162 - Pro D:163   [ RasMol ]
    Phe A:35 - Pro A:36   [ RasMol ]
    Phe B:35 - Pro B:36   [ RasMol ]
    Phe C:35 - Pro C:36   [ RasMol ]
    Phe D:35 - Pro D:36   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1hcu
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9P8T8_HYPJE | Q9P8T8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  3.2.1.113
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9P8T8_HYPJE | Q9P8T8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1HCU)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1HCU)
