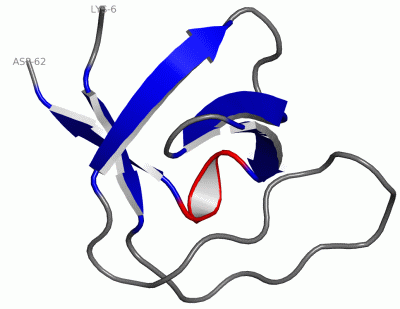

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

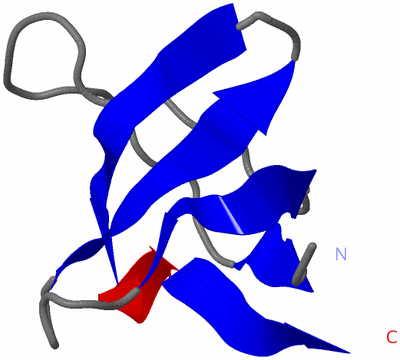

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  A-SPECTRIN SH3 DOMAIN A11V, V23L, M25V, V53I, V58L MUTANT

Authors :  M. C. Vega, L. Serrano
Date :  09 Feb 01  (Deposition) - 23 May 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym./Biol. Unit :  A
Keywords :  Sh3-Domain, Cytoskeleton, Calmodulin-Binding, Actin-Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Ventura, M. C. Vega, E. Lacroix, I. Angrand, L. Spagnolo, L. Serrano
Conformational Strain In The Hydrophobic Core And Its Implications For Protein Folding And Design
Nat. Struct. Biol. V. 9 485 2002
PubMed-ID: 12006985  |  Reference-DOI: 10.1038/NSB799
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SPECTRIN ALPHA CHAIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PBR322
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector: PBAT4
    Fragment: SH3-DOMAIN RESIDUES 965-1025
    Mutation: YES
    Organism Common: CHICKEN
    Organism Scientific: GALLUS GALLUS
    Organism Taxid: 9031
    Plasmid: PBR322
    Strain: BL21(DE3)

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1H8K)

(-) Sites  (0, 0)

(no "Site" information available for 1H8K)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1H8K)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1H8K)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1H8K)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1H8K)

(-) Exons   (0, 0)

(no "Exon" information available for 1H8K)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:57
 aligned with SPTN1_CHICK | P07751 from UniProtKB/Swiss-Prot  Length:2477

    Alignment length:57
                                   978       988       998      1008      1018
         SPTN1_CHICK    969 KELVLALYDYQEKSPREVTMKKGDILTLLNSTNKDWWKVEVNDRQGFVPAAYVKKLD 1025
               SCOP domains d1h8ka_ A: alpha-Spectrin, SH3 domain                     SCOP domains
               CATH domains 1h8kA00 A:6-62 SH3 Domains                                CATH domains
               Pfam domains --------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee..................eeeeee.....eeeeee..eeeeeehhheeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------- Transcript
                1h8k A    6 KELVLVLYDYQEKSPREVTVKKGDILTLLNSTNKDWWKVEVDDRQGFIPAAYLKKLD   62
                                    15        25        35        45        55
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1H8K)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (SPTN1_CHICK | P07751)
molecular function
    GO:0003779    actin binding    Interacting selectively and non-covalently with monomeric or multimeric forms of actin, including actin filaments.
    GO:0005509    calcium ion binding    Interacting selectively and non-covalently with calcium ions (Ca2+).
    GO:0005516    calmodulin binding    Interacting selectively and non-covalently with calmodulin, a calcium-binding protein with many roles, both in the calcium-bound and calcium-free states.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0051693    actin filament capping    The binding of a protein or protein complex to the end of an actin filament, thus preventing the addition, exchange or removal of further actin subunits.
cellular component
    GO:0005938    cell cortex    The region of a cell that lies just beneath the plasma membrane and often, but not always, contains a network of actin filaments and associated proteins.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1h8k)

  Sites
(no "Sites" information available for 1h8k)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1h8k)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

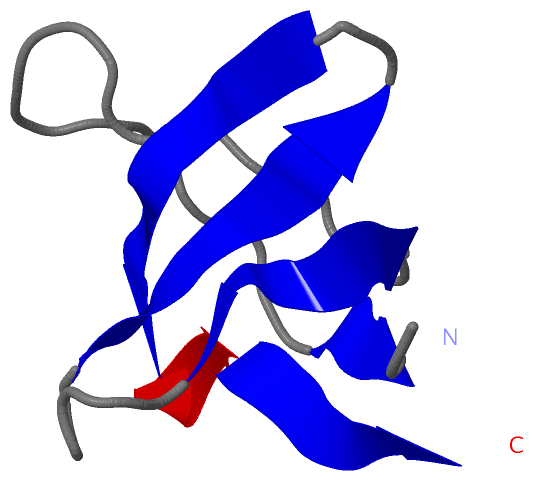

[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
