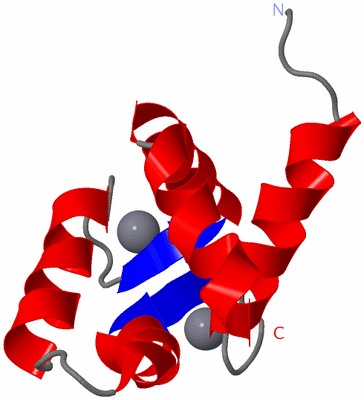

NMR Structure - model 1

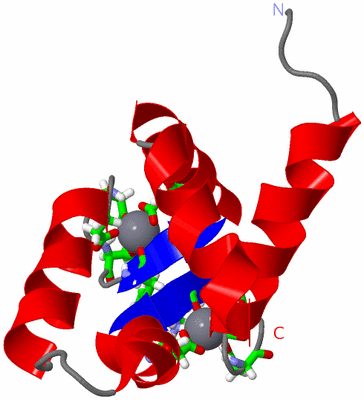

NMR Structure - model 1, sites

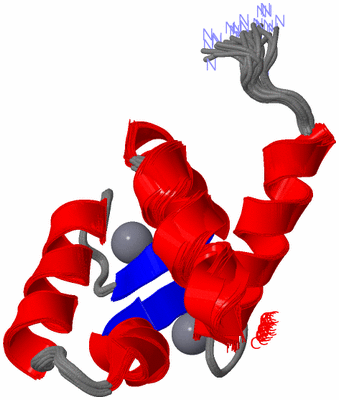

NMR Structure - all models

collapse

expand

NMR Structure - model 1 (Jmol Viewer)

NMR Structure - model 1, sites (Jmol Viewer)

NMR Structure - all models (Jmol Viewer)

Description

Title :   SOLUTION STRUCTURE OF THE BIRCH POLLEN ALLERGEN BET V 4

Authors :   P. Neudecker, J. Nerkamp, A. Eisenmann, T. Lauber, K. Lehmann, K. Schweimer, P. Roesch

Date :   26 Feb 03 (Deposition) - 26 Feb 04 (Release) - 24 Feb 09 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A  (25x)

Keywords :   Allergen, Birch Pollen Allergen, Calcium-Binding Polcalcin, Heteronuclear Nmr, Structure (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   P. Neudecker, J. Nerkamp, A. Eisenmann, A. Nourse, T. Lauber, K. Schweimer, K. Lehmann, S. Schwarzinger, F. Ferreira, P. Roesch
Solution Structure, Dynamics, And Hydrodynamics Of The Calcium-Bound Cross-Reactive Birch Pollen Allergen Bet V 4 Reveal A Canonical Monomeric Two Ef-Hand Assembly With A Regulatory Function
J. Mol. Biol. V. 336 1141 2004
PubMed-ID: 15037075 | Reference-DOI: 10.1016/J.JMB.2003.12.070

Compounds

Molecule 1 - POLCALCIN BET V 4
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PMW175
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Organism Common	:	WHITE BIRCH
	Organism Scientific	:	BETULA VERRUCOSA
	Organism Taxid	:	3505
	Synonym	:	CALCIUM-BINDING POLLEN ALLERGEN BET V 4

Structural Features

Chains, Units


NMR Structure (25x)	:

Summary Information (see also Sequences/Alignments below)

Ligands, Modified Residues, Ions (1, 2)

NMR Structure (1, 2)

No.	Name	Count	Type	Full Name
1	CA	2	Ligand/Ion	CALCIUM ION

Sites (2, 2)

NMR Structure (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASP A:19 , ASN A:21 , ASP A:23 , LYS A:25 , GLU A:30	BINDING SITE FOR RESIDUE CA A1085
2	AC2	SOFTWARE	ASP A:54 , ASP A:56 , ASP A:58 , PHE A:60 , GLU A:65	BINDING SITE FOR RESIDUE CA A1086

SS Bonds (0, 0)

(no "SS Bond" information available for 1H4B)

Cis Peptide Bonds (0, 0)

(no "Cis Peptide Bond" information available for 1H4B)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

(no "SAP(SNP)/Variant" information available for 1H4B)

PROSITE Motifs (2, 4)

NMR Structure (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	EF_HAND_2	PS50222	EF-hand calcium-binding domain profile.	POLC4_BETPN	7-42 45-77	2	A:6-41 A:44-76
2	EF_HAND_1	PS00018	EF-hand calcium-binding domain.	POLC4_BETPN	20-32 55-67	2	A:19-31 A:54-66

Exons (0, 0)

(no "Exon" information available for 1H4B)

Sequences/Alignments

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:84
 aligned with POLC4_BETPN | Q39419 from UniProtKB/Swiss-Prot  Length:85

    Alignment length:84
                                    11        21        31        41        51        61        71        81
           POLC4_BETPN    2 ADDHPQDKAERERIFKRFDANGDGKISAAELGEALKTLGSITPDEVKHMMAEIDTDGDGFISFQEFTDFGRANRGLLKDVAKIF 85
               SCOP domains d1h4ba_ A: Polcalcin bet v 4                                                         SCOP domains
               CATH domains 1h4bA00 A:1-84 EF-hand                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhh......eeehhhhhhhhhhh....hhhhhhhhhhh......eeehhhhhhhhhh.hhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (1) -----EF_HAND_2  PDB: A:6-41 UniProt: 7-42--EF_HAND_2  PDB: A:44-76          -------- PROSITE (1)
                PROSITE (2) ------------------EF_HAND_1    ----------------------EF_HAND_1    ------------------ PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------ Transcript
                  1h4b A  1 ADDHPQDKAERERIFKRFDANGDGKISAAELGEALKTLGSITPDEVKHMMAEIDTDGDGFISFQEFTDFGRANRGLLKDVAKIF 84
                                    10        20        30        40        50        60        70        80

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

NMR Structure

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: EF Hand-like (739)

Superfamily: EF-hand (657)

Family: Polcalcin (6)

Protein domain: Polcalcin bet v 4 (1)

White birch (Betula verrucosa) [TaxId: 3505] (1)

d1h4ba_

CATH Domains (1, 1)

NMR Structure

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: Recoverin; domain 1 (474)

Homologous Superfamily: EF-hand (412)

White birch (Betula verrucosa) (1)

1h4bA00

A:1-84

Pfam Domains (0, 0)

(no "Pfam Domain" information available for 1H4B)

Gene Ontology (2, 2)

NMR Structure(hide GO term definitions)

Chain A (POLC4_BETPN | Q39419)

molecular function
	GO:0005509		calcium ion binding		Interacting selectively and non-covalently with calcium ions (Ca2+).
	GO:0046872		metal ion binding		Interacting selectively and non-covalently with any metal ion.

Visualization

Interactive Views

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1h4b)

Still Images

Jmol

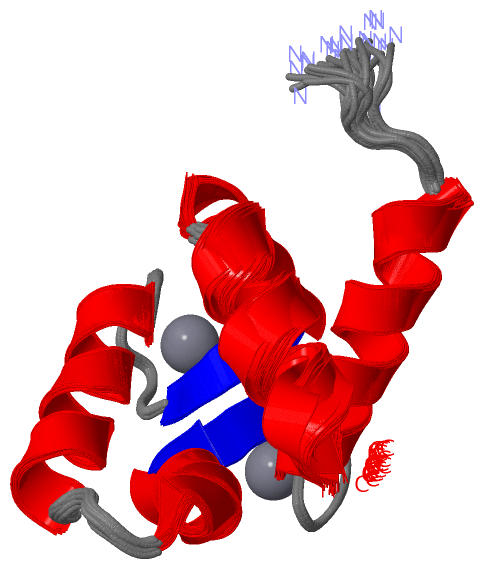

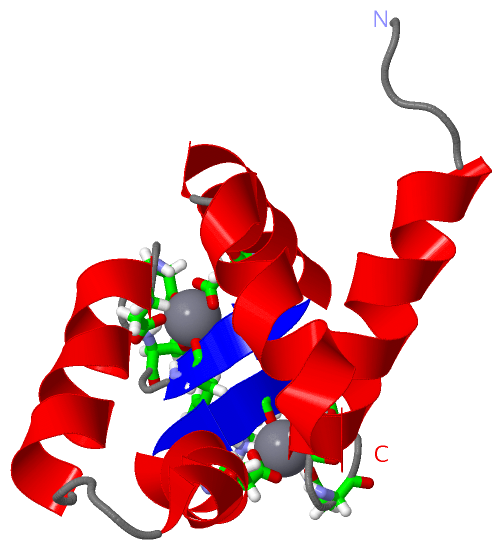

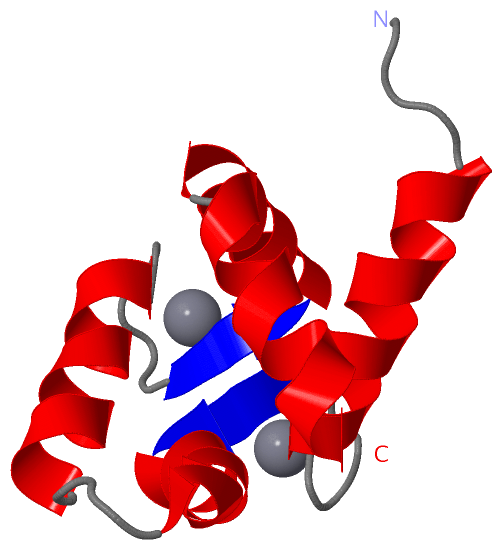

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ NMR Structure - model 1 PNG format \| NMR Structure - model 1, sites PNG format \| NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1h4b
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	POLC4_BETPN \| Q39419
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Analysis Tools

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	POLC4_BETPN \| Q39419
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
