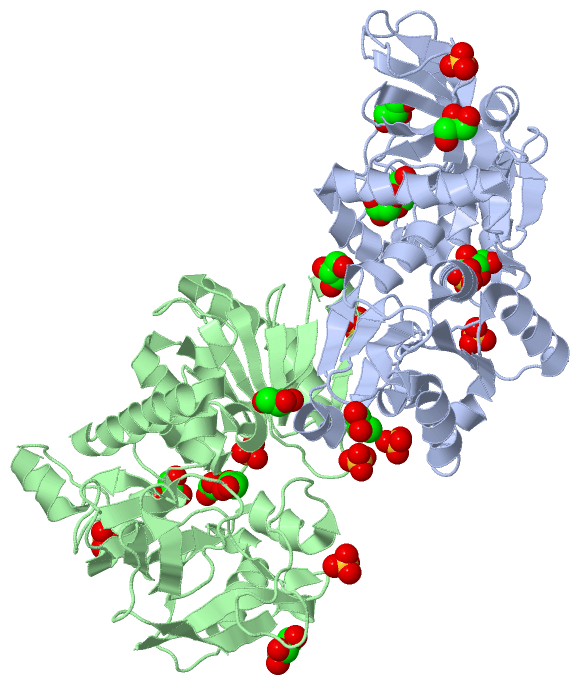

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

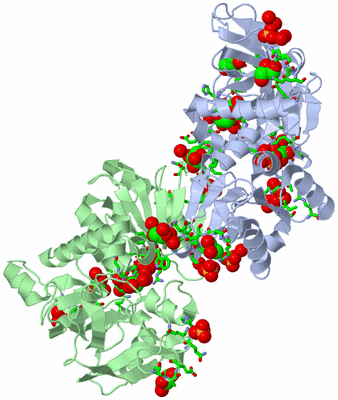

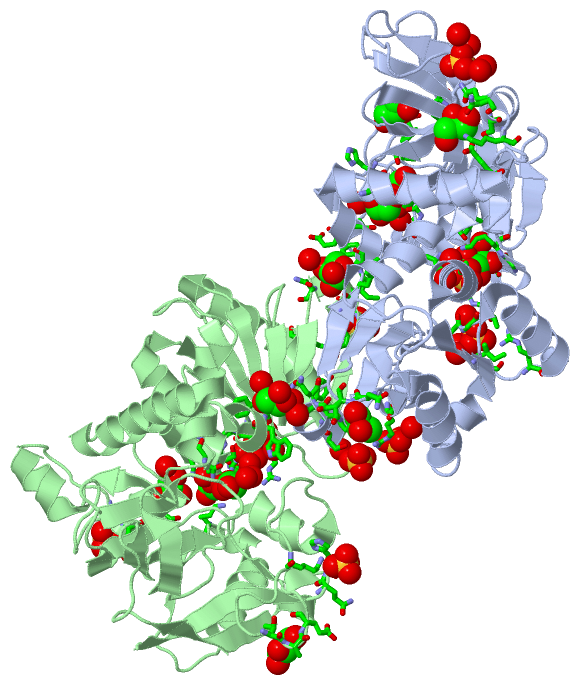

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  ENOYL THIOESTER REDUCTASE 2

Authors :  T. T. Airenne, J. M. Torkko, J. K. Hiltunen
Date :  20 Jun 02  (Deposition) - 26 Jun 03  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.11
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. T. Airenne, J. M. Torkko, J. K. Hiltunen
Crystal Structure Of Enoyl Thioester Reductase 2
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - 2,4-DIENOYL-COA REDUCTASE
    Atcc: 20336
    Chains: A, B
    EC Number: 1.3.1.10, 1.3.1.38
    Engineered: YES
    Expression System: SACCHAROMYCES CEREVISIAE
    Expression System Strain: BJ1991
    Expression System Taxid: 4932
    Organism Common: YEAST
    Organism Scientific: CANDIDA TROPICALIS
    Organism Taxid: 5482
    Strain: PK233

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 21)

Asymmetric/Biological Unit (2, 21)
No.NameCountTypeFull Name
1GOL12Ligand/IonGLYCEROL
2SO49Ligand/IonSULFATE ION

(-) Sites  (21, 21)

Asymmetric Unit (21, 21)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREGLY A:197 , GLY A:198 , THR A:199 , ILE A:221 , ARG A:222 , ARG A:224 , HOH A:2255 , HOH A:2256 , HOH A:2257BINDING SITE FOR RESIDUE SO4 A1394
02AC2SOFTWARESER A:200 , ALA A:201 , LYS A:381 , GOL A:1388 , HOH A:2260 , HOH A:2261BINDING SITE FOR RESIDUE SO4 A1395
03AC3SOFTWARETHR A:281 , ARG A:285 , HOH A:2262BINDING SITE FOR RESIDUE SO4 A1396
04AC4SOFTWAREARG A:285 , SER A:309 , HOH A:2263BINDING SITE FOR RESIDUE SO4 A1397
05AC5SOFTWAREGLN A:151 , HOH A:2264 , HOH A:2265 , HOH A:2267 , HOH A:2268BINDING SITE FOR RESIDUE SO4 A1398
06AC6SOFTWAREGLY B:197 , GLY B:198 , THR B:199 , ILE B:221 , ARG B:222 , ARG B:224 , HOH B:2197 , HOH B:2217 , HOH B:2339 , HOH B:2340BINDING SITE FOR RESIDUE SO4 B1392
07AC7SOFTWAREGLN B:33 , HIS B:34 , LYS B:85BINDING SITE FOR RESIDUE SO4 B1393
08AC8SOFTWAREARG B:285 , SER B:309 , HOH B:2341BINDING SITE FOR RESIDUE SO4 B1394
09AC9SOFTWARETHR B:162 , ILE B:163 , HOH B:2301 , HOH B:2342BINDING SITE FOR RESIDUE SO4 B1395
10BC1SOFTWAREGLY A:320 , PHE A:321 , TRP A:322 , GLU A:325 , HOH A:2107 , HOH A:2250 , HOH A:2251 , TYR B:311 , ILE B:312 , ASN B:315BINDING SITE FOR RESIDUE GOL A1387
11BC2SOFTWAREILE A:67 , PRO A:69 , SER A:377 , GLY A:380 , LYS A:381 , SO4 A:1395 , HOH A:2019 , HOH A:2252BINDING SITE FOR RESIDUE GOL A1388
12BC3SOFTWAREVAL A:127 , SER A:170 , THR A:324 , LYS A:334 , GOL A:1390 , HOH A:2209BINDING SITE FOR RESIDUE GOL A1389
13BC4SOFTWAREASN A:100 , PRO A:124 , HIS A:126 , VAL A:127 , SER A:170 , VAL A:171 , LYS A:334 , GOL A:1389 , HOH A:2253BINDING SITE FOR RESIDUE GOL A1390
14BC5SOFTWAREASN A:288 , ASN A:289 , LYS A:314BINDING SITE FOR RESIDUE GOL A1391
15BC6SOFTWAREGLN A:151 , SER A:152 , ASN A:155 , LYS A:157 , GLU A:346BINDING SITE FOR RESIDUE GOL A1392
16BC7SOFTWAREPHE A:46 , GLY A:88 , PHE A:89 , HOH A:2254BINDING SITE FOR RESIDUE GOL A1393
17BC8SOFTWARETYR A:311 , ASN A:315 , GLY B:320 , PHE B:321 , TRP B:322 , HOH B:2173 , HOH B:2332 , HOH B:2333BINDING SITE FOR RESIDUE GOL B1387
18BC9SOFTWARETHR B:91 , ALA B:92 , GLU B:93BINDING SITE FOR RESIDUE GOL B1388
19CC1SOFTWAREASN B:172 , SER B:200 , ALA B:201 , LYS B:381 , HOH B:2151 , HOH B:2334 , HOH B:2335BINDING SITE FOR RESIDUE GOL B1389
20CC2SOFTWAREARG B:224 , ASN B:226 , VAL B:230 , HOH B:2337BINDING SITE FOR RESIDUE GOL B1390
21CC3SOFTWARELYS B:204 , ALA B:353 , LYS B:354 , HOH B:2338BINDING SITE FOR RESIDUE GOL B1391

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1H0K)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1H0K)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1H0K)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1H0K)

(-) Exons   (0, 0)

(no "Exon" information available for 1H0K)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:364
 aligned with ETR2_CANTR | Q8WZM4 from UniProtKB/Swiss-Prot  Length:386

    Alignment length:364
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382
           ETR2_CANTR    23 MITAQAVLYTQHGEPKDVLFTQSFEIDDDNLAPNEVIVKTLGSPINPSDINQIQGVYPSKPAKTTGFGTAEPAAPCGNEGLFEVIKVGSNVSSLEAGDWVIPSHVNFGTWRTHALGNDDDFIKLPNPAQSKANGKPNGLTINQGATISVNPLTAYLMLTHYVKLTPGKDWFIQNGGTSAVGKYASQIGKLLNFNSISVIRDRPNLDEVVASLKELGATQVITEDQNNSKEFGPTIKEWIKQSGGEAKLALNCVGGKSSTGIARKLNNNGLMLTYGGMSFQPVTIPTSLYIFKNFTSAGFWVTELLKNNKELKTSTLNQIIAWYEEGKLTDAKSIETLYDGTKPLHELYQDGVANSKDGKQLITY 386
               SCOP domains d1h0ka1 A:23-160,A:350-386 2,4-dienoyl-CoA reductase                                                                                      d1h0ka2 A:161-349 2,4-dienoyl-CoA reductase                                                                                                                                                  d1h0ka1 A:23-160,A:350-386            SCOP domains
               CATH domains 1h0kA01 A:23-175,A:333-386 Medium-chain alcohol dehydrogenases, catalytic domain                                                                         1h0kA02 A:176-332 NAD(P)-binding Rossmann-like Domain                                                                                                        1h0kA01 A:23-175,A:333-386                             CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeee....hhhhhheeeeeee........eeeeeeeeeeehhhhhhhhhh..................ee.....eeeeeee...........eeee..........eeeee...eeee.hhhhhhhh......hhhhhhh..hhhhhhhhhhhh.........eeee....hhhhhhhhhhhhhhh.eeeeee....hhhhhhhhhhhhh..eeeehhhhhh..hhhhhhhhhhhhh..eeeeee..hhhhhhhhhhh.....eeee........eeehhhhhhhh..eeee.hhhhhhh.hhhhhhhhhhhhhhhhhh........eeee.....hhhhhhhhhhhhhhhh.eeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1h0k A  23 MITAQAVLYTQHGEPKDVLFTQSFEIDDDNLAPNEVIVKTLGSPINPSDINQIQGVYPSKPAKTTGFGTAEPAAPCGNEGLFEVIKVGSNVSSLEAGDWVIPSHVNFGTWRTHALGNDDDFIKLPNPAQSKANGKPNGLTINQGATISVNPLTAYLMLTHYVKLTPGKDWFIQNGGTSAVGKYASQIGKLLNFNSISVIRDRPNLDEVVASLKELGATQVITEDQNNSKEFGPTIKEWIKQSGGEAKLALNCVGGKSSTGIARKLNNNGLMLTYGGMSFQPVTIPTSLYIFKNFTSAGFWVTELLKNNKELKTSTLNQIIAWYEEGKLTDAKSIETLYDGTKPLHELYQDGVANSKDGKQLITY 386
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382


Chain B from PDB  Type:PROTEIN  Length:364
 aligned with ETR2_CANTR | Q8WZM4 from UniProtKB/Swiss-Prot  Length:386

    Alignment length:364
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382
           ETR2_CANTR    23 MITAQAVLYTQHGEPKDVLFTQSFEIDDDNLAPNEVIVKTLGSPINPSDINQIQGVYPSKPAKTTGFGTAEPAAPCGNEGLFEVIKVGSNVSSLEAGDWVIPSHVNFGTWRTHALGNDDDFIKLPNPAQSKANGKPNGLTINQGATISVNPLTAYLMLTHYVKLTPGKDWFIQNGGTSAVGKYASQIGKLLNFNSISVIRDRPNLDEVVASLKELGATQVITEDQNNSKEFGPTIKEWIKQSGGEAKLALNCVGGKSSTGIARKLNNNGLMLTYGGMSFQPVTIPTSLYIFKNFTSAGFWVTELLKNNKELKTSTLNQIIAWYEEGKLTDAKSIETLYDGTKPLHELYQDGVANSKDGKQLITY 386
               SCOP domains d1h0kb1 B:23-160,B:350-386 2,4-dienoyl-CoA reductase                                                                                      d1h0kb2 B:161-349 2,4-dienoyl-CoA reductase                                                                                                                                                  d1h0kb1 B:23-160,B:350-386            SCOP domains
               CATH domains 1h0kB01 B:23-175,B:333-386 Medium-chain alcohol dehydrogenases, catalytic domain                                                                         1h0kB02 B:176-332 NAD(P)-binding Rossmann-like Domain                                                                                                        1h0kB01 B:23-175,B:333-386                             CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeee....hhhhhheeeeeee........eeeeeeeeee.hhhhhhhhhh..................ee.....eeeeeee...........eeee..........eeeee...eeee.hhhhhhhh......hhhhhhh..hhhhhhhhhhhh.........eeee....hhhhhhhhhhhhhhh.eeeeee....hhhhhhhhhhhhh..eeeehhhhhh..hhhhhhhhhhhhh..eeeeee..hhhhhhhhhhh.....eeee........eeehhhhhhhh..eeee.hhhhhh..hhhhhhhhhhhhhhhhhh........eeee.....hhhhhhhhhhhhhhhh.eeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1h0k B  23 MITAQAVLYTQHGEPKDVLFTQSFEIDDDNLAPNEVIVKTLGSPINPSDINQIQGVYPSKPAKTTGFGTAEPAAPCGNEGLFEVIKVGSNVSSLEAGDWVIPSHVNFGTWRTHALGNDDDFIKLPNPAQSKANGKPNGLTINQGATISVNPLTAYLMLTHYVKLTPGKDWFIQNGGTSAVGKYASQIGKLLNFNSISVIRDRPNLDEVVASLKELGATQVITEDQNNSKEFGPTIKEWIKQSGGEAKLALNCVGGKSSTGIARKLNNNGLMLTYGGMSFQPVTIPTSLYIFKNFTSAGFWVTELLKNNKELKTSTLNQIIAWYEEGKLTDAKSIETLYDGTKPLHELYQDGVANSKDGKQLITY 386
                                    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1H0K)

(-) Gene Ontology  (9, 9)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (ETR2_CANTR | Q8WZM4)
molecular function
    GO:0004319    enoyl-[acyl-carrier-protein] reductase (NADPH, B-specific) activity    Catalysis of the reaction: acyl-[acyl-carrier protein] + NADP+ = trans-2,3-dehydroacyl-[acyl-carrier protein] + NADPH + H+.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0019166    trans-2-enoyl-CoA reductase (NADPH) activity    Catalysis of the reaction: acyl-CoA + NADP+ = trans-2,3-dehydroacyl-CoA + NADPH + H+.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0006633    fatty acid biosynthetic process    The chemical reactions and pathways resulting in the formation of a fatty acid, any of the aliphatic monocarboxylic acids that can be liberated by hydrolysis from naturally occurring fats and oils. Fatty acids are predominantly straight-chain acids of 4 to 24 carbon atoms, which may be saturated or unsaturated; branched fatty acids and hydroxy fatty acids also occur, and very long chain acids of over 30 carbons are found in waxes.
    GO:0006631    fatty acid metabolic process    The chemical reactions and pathways involving fatty acids, aliphatic monocarboxylic acids liberated from naturally occurring fats and oils by hydrolysis.
    GO:0006629    lipid metabolic process    The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
