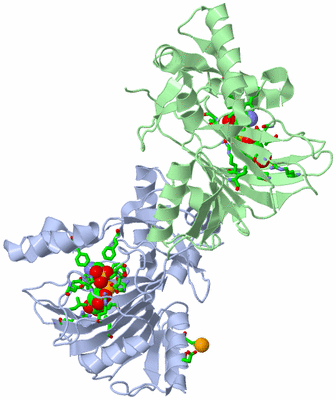

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

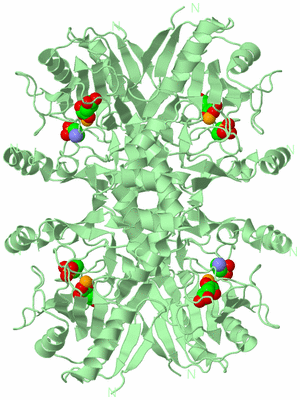

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  TAURINE/ALPHA-KETOGLUTARATE DIOXYGENASE FROM ESCHERICHIA COLI

Authors :  J. M. Elkins, N. I. Burzlaff, M. J. Ryle, J. S. Lloyd, I. J. Clifton, J. E. B R. P. Hausinger, P. L. Roach
Date :  22 Apr 02  (Deposition) - 26 Apr 02  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  B  (4x)
Biol. Unit 2:  A  (4x)
Keywords :  Oxidoreductase, Taurine, Sulphur Metabolism, Oxygenase, Alpha-Ketoglutarate, Taud, Tfda (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. M. Elkins, M. J. Ryle, I. J. Clifton, J. C. Dunning Hotopp, J. S. Lloyd, N. I. Burzlaff, J. E. Baldwin, R. P. Hausinger, P. L. Roach
X-Ray Crystal Structure Of Escherichia Coli Taurine/Alpha-Ketoglutarate Dioxygenase Complexed To Ferrous Iron And Substrates.
Biochemistry V. 41 5185 2002
PubMed-ID: 11955067  |  Reference-DOI: 10.1021/BI016014E

(-) Compounds

Molecule 1 - ALPHA-KETOGLUTARATE-DEPENDENT TAURINE DIOXYGENASE
    Chains: A, B
    EC Number: 1.14.11.17
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (4x):  B
Biological Unit 2 (4x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 7)

Asymmetric Unit (3, 7)
No.NameCountTypeFull Name
1AKG2Ligand/Ion2-OXOGLUTARIC ACID
2FE3Ligand/IonFE (III) ION
3TAU2Ligand/Ion2-AMINOETHANESULFONIC ACID
Biological Unit 1 (2, 8)
No.NameCountTypeFull Name
1AKG4Ligand/Ion2-OXOGLUTARIC ACID
2FE-1Ligand/IonFE (III) ION
3TAU4Ligand/Ion2-AMINOETHANESULFONIC ACID
Biological Unit 2 (2, 8)
No.NameCountTypeFull Name
1AKG4Ligand/Ion2-OXOGLUTARIC ACID
2FE-1Ligand/IonFE (III) ION
3TAU4Ligand/Ion2-AMINOETHANESULFONIC ACID

(-) Sites  (7, 7)

Asymmetric Unit (7, 7)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:99 , ASP A:101 , HIS A:255 , AKG A:351BINDING SITE FOR RESIDUE FE A 300
2AC2SOFTWAREGLU A:33 , HIS A:37BINDING SITE FOR RESIDUE FE A 310
3AC3SOFTWAREHIS B:99 , ASP B:101 , HIS B:255 , AKG B:351BINDING SITE FOR RESIDUE FE B 300
4AC4SOFTWAREHIS A:70 , TYR A:73 , ASN A:95 , HIS A:99 , ASP A:101 , VAL A:102 , PHE A:159 , PHE A:206 , ARG A:270BINDING SITE FOR RESIDUE TAU A 350
5AC5SOFTWARELEU A:85 , ASN A:95 , HIS A:99 , ASP A:101 , LEU A:114 , THR A:126 , HIS A:255 , ALA A:257 , ARG A:266 , ARG A:270 , FE A:300BINDING SITE FOR RESIDUE AKG A 351
6AC6SOFTWAREHIS B:70 , TYR B:73 , ASN B:95 , HIS B:99 , ASP B:101 , VAL B:102 , PHE B:159 , PHE B:206 , ARG B:270BINDING SITE FOR RESIDUE TAU B 350
7AC7SOFTWARELEU B:85 , ASN B:95 , HIS B:99 , ASP B:101 , LEU B:114 , THR B:126 , HIS B:255 , ALA B:257 , ARG B:266 , MET B:268 , ARG B:270 , FE B:300BINDING SITE FOR RESIDUE AKG B 351

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1GY9)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Leu A:262 -Pro A:263
2Leu B:262 -Pro B:263

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1GY9)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1GY9)

(-) Exons   (0, 0)

(no "Exon" information available for 1GY9)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:279
 aligned with TAUD_ECOLI | P37610 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:279
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273
           TAUD_ECOLI     4 RLSITPLGPYIGAQISGADLTRPLSDNQFEQLYHAVLRHQVVFLRDQAITPQQQRALAQRFGELHIHPVYPHAEGVDEIIVLDTHNDNPPDNDNWHTDVTFIETPPAGAILAAKELPSTGGDTLWTSGIAAYEALSVPFRQLLSGLRAEHDFRKSFPEYKYRKTEEEHQRWREAVAKNPPLLHPVVRTHPVSGKQALFVNEGFTTRIVDVSEKESEALLSFLFAHITKPEFQVRWRWQPNDIAIWDNRVTQHYANADYLPQRRIMHRATILGDKPFYRA 282
               SCOP domains d1gy9a_ A: Taurine/alpha-ketoglutarate dioxygenase TauD                                                                                                                                                                                                                                 SCOP domains
               CATH domains 1gy9A00 A:4-282 Clavaminate synthase-like                                                                                                                                                                                                                                               CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee......eeee........hhhhhhhhhhhhhhh.eeee.....hhhhhhhhhhh..................eeeeee.......................eeeeeeee.......eeeeehhhhhhh.hhhhhhhhh..eeeehhhhhhhhhhhh.hhhhhhhhhhhhhh...eeee.eee......eee......eeee...hhhhhhhhhhhhhhhhhhhh.eeee......eeeee...eeeee........eeeeeeee......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1gy9 A   4 RLSITPLGPYIGAQISGADLTRPLSDNQFEQLYHAVLRHQVVFLRDQAITPQQQRALAQRFGELHIHPVYPHAEGVDEIIVLDTHNDNPPDNDNWHTDVTFIETPPAGAILAAKELPSTGGDTLWTSGIAAYEALSVPFRQLLSGLRAEHDFRKSFPEYKYRKTEEEHQRWREAVAKNPPLLHPVVRTHPVSGKQALFVNEGFTTRIVDVSEKESEALLSFLFAHITKPEFQVRWRWQPNDIAIWDNRVTQHYANADYLPQRRIMHRATILGDKPFYRA 282
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273


Chain B from PDB  Type:PROTEIN  Length:275
 aligned with TAUD_ECOLI | P37610 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:280
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282
           TAUD_ECOLI     3 ERLSITPLGPYIGAQISGADLTRPLSDNQFEQLYHAVLRHQVVFLRDQAITPQQQRALAQRFGELHIHPVYPHAEGVDEIIVLDTHNDNPPDNDNWHTDVTFIETPPAGAILAAKELPSTGGDTLWTSGIAAYEALSVPFRQLLSGLRAEHDFRKSFPEYKYRKTEEEHQRWREAVAKNPPLLHPVVRTHPVSGKQALFVNEGFTTRIVDVSEKESEALLSFLFAHITKPEFQVRWRWQPNDIAIWDNRVTQHYANADYLPQRRIMHRATILGDKPFYRA 282
               SCOP domains d1gy9b_ B: Taurine/alpha-ketoglutarate dioxygenase TauD                                                                                                                                                                                                                                  SCOP domains
               CATH domains 1gy9B00 B:3-282 Clavaminate synthase-like                                                                                                                                                                                                                                                CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee......eeee........hhhhhhhhhhhhhhh.eeee.....hhhhhhhhhhh..................eeeeee.......................eeeeeeee.......eeeeehhhhhhhhhhhhhhhhh..eeee.hhhh.hhhhh-----hhhhhhhhhhh...eeee.eee......eee......eeee...hhhhhhhhhhhhhhhhhhhh.eeee......eeeee...eeeee........eeeeeeee......... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1gy9 B   3 ERLSITPLGPYIGAQISGADLTRPLSDNQFEQLYHAVLRHQVVFLRDQAITPQQQRALAQRFGELHIHPVYPHAEGVDEIIVLDTHNDNPPDNDNWHTDVTFIETPPAGAILAAKELPSTGGDTLWTSGIAAYEALSVPFRQLLSGLRAEHDFRKSFPEYKY-----EHQRWREAVAKNPPLLHPVVRTHPVSGKQALFVNEGFTTRIVDVSEKESEALLSFLFAHITKPEFQVRWRWQPNDIAIWDNRVTQHYANADYLPQRRIMHRATILGDKPFYRA 282
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162 |     172       182       192       202       212       222       232       242       252       262       272       282
                                                                                                                                                                                           164   170
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1GY9)

(-) Gene Ontology  (8, 8)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (TAUD_ECOLI | P37610)
molecular function
    GO:0031418    L-ascorbic acid binding    Interacting selectively and non-covalently with L-ascorbic acid, (2R)-2-[(1S)-1,2-dihydroxyethyl]-4-hydroxy-5-oxo-2,5-dihydrofuran-3-olate; L-ascorbic acid is vitamin C and has co-factor and anti-oxidant activities in many species.
    GO:0051213    dioxygenase activity    Catalysis of an oxidation-reduction (redox) reaction in which both atoms of oxygen from one molecule of O2 are incorporated into the (reduced) product(s) of the reaction. The two atoms of oxygen may be distributed between two different products.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0000908    taurine dioxygenase activity    Catalysis of the reaction: 2-oxoglutarate + O(2) + taurine = aminoacetaldehyde + CO(2) + succinate + sulfite.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0006790    sulfur compound metabolic process    The chemical reactions and pathways involving the nonmetallic element sulfur or compounds that contain sulfur, such as the amino acids methionine and cysteine or the tripeptide glutathione.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    AKG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    FE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    TAU  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Leu A:262 - Pro A:263   [ RasMol ]
    Leu B:262 - Pro B:263   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1gy9
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TAUD_ECOLI | P37610
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.14.11.17
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TAUD_ECOLI | P37610
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TAUD_ECOLI | P37610: 1gqw 1os7 1otj

(-) Related Entries Specified in the PDB File

1gqw TAURINE/ALPHA-KETOGLUTARATE DIOXYGENASE FROM ESCHERICHIA COLI
