1GXU - JenaLib

Title :   HYDROGENASE MATURATION PROTEIN HYPF "ACYLPHOSPHATASE-LIKE" N-TERMINAL DOMAIN (HYPF-ACP) IN COMPLEX WITH A SUBSTRATE. CRYSTAL GROWN IN THE PRESENCE OF CARBAMOYLPHOSPHATE

Authors :   C. Rosano, S. Zuccotti, M. Stefani, M. Bucciantini, G. Ramponi, M. Bolognesi

Date :   11 Apr 02 (Deposition) - 12 Sep 02 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.27

Chains :   Asym. Unit : A
Biol. Unit 1: A  (6x)

Keywords :   Phosphatase, Acylphosphatases, Hydrogenase Maturations, Fibril Formation, Zinc-Finger, Complete Proteome (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. Rosano, S. Zuccotti, M. Bucciantini, M. Stefani, G. Ramponi, M. Bolognesi
Crystal Structure And Anion Binding In The Prokaryotic Hydrogenase Maturation Factor Hypf Acylphosphatase-Like Domain
J. Mol. Biol. V. 321 785 2002
PubMed-ID: 12206761 | Reference-DOI: 10.1016/S0022-2836(02)00713-1

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 1)

Sites (1, 1)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 2)

Asymmetric Unit (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	ACYLPHOSPHATASE_3	PS51160	Acylphosphatase-like domain profile.	HYPF_ECOLI	8-92	1	A:8-91
2	ACYLPHOSPHATASE_1	PS00150	Acylphosphatase signature 1.	HYPF_ECOLI	13-23	1	A:13-23

Biological Unit 1 (2, 12)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	ACYLPHOSPHATASE_3	PS51160	Acylphosphatase-like domain profile.	HYPF_ECOLI	8-92	6	A:8-91
2	ACYLPHOSPHATASE_1	PS00150	Acylphosphatase signature 1.	HYPF_ECOLI	13-23	6	A:13-23

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:88
 aligned with HYPF_ECOLI | P30131 from UniProtKB/Swiss-Prot  Length:750

    Alignment length:88
                                    13        23        33        43        53        63        73        83
            HYPF_ECOLI    4 NTSCGVQLRIRGKVQGVGFRPFVWQLAQQLNLHGDVCNDGDGVEVRLREDPETFLVQLYQHCPPLARIDSVEREPFIWSQLPTEFTIR 91
               SCOP domains d1gxua_ A: Hydrogenase maturation protein HypF N-terminal domain (HypF-ACP)              SCOP domains
               CATH domains 1gxuA00 A:4-91  [code=3.30.70.100, no name defined]                                      CATH domains
               Pfam domains ---------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeeeee....hhhhhhhhhhhhhh..eeeee....eeeee...hhhhhhhhhhh.....eeeeeeeeeeee......eee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ----ACYLPHOSPHATASE_3  PDB: A:8-91 UniProt: 8-92                                         PROSITE (1)
                PROSITE (2) ---------ACYLPHOSPHA-------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------- Transcript
                  1gxu A  4 NTSCGVQLRIRGKVQGVGFRPFVWQLAQQLNLHGDVCNDGDGVEVRLREDPEVFLVQLYQHCPPLARIDSVEREPFIWSALPTEFTIR 91
                                    13        23        33        43        53        63        73        83

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (8, 8)

Asymmetric Unit(hide GO term definitions)

Chain A (HYPF_ECOLI | P30131)

molecular function
	GO:0016743	carboxyl- or carbamoyltransferase activity	Catalysis of the transfer of a carboxyl- or carbamoyl group from one compound (donor) to another (acceptor).
	GO:0003725	double-stranded RNA binding	Interacting selectively and non-covalently with double-stranded RNA.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0008270	zinc ion binding	Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
	GO:0046944	protein carbamoylation	The addition of a carbamoyl group to a protein amino acid. A carbamoyl group is the acyl group -CO-NH2.
	GO:0051604	protein maturation	Any process leading to the attainment of the full functional capacity of a protein.

Visualization

Interactive Views

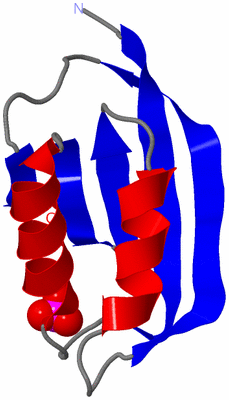

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		2HP	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1gxu)

Biological Unit
	Complete Structure

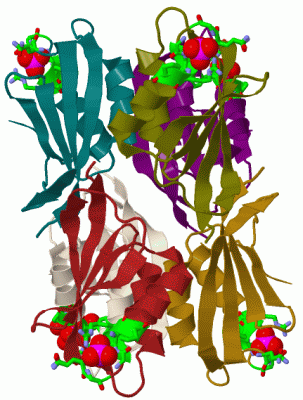

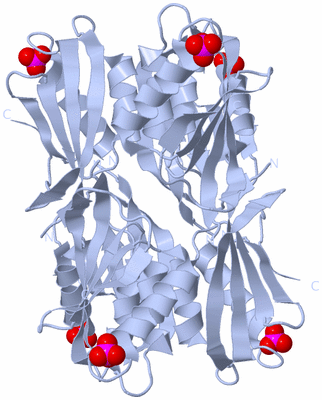

		Biological Unit 1	[ Jena3D ]

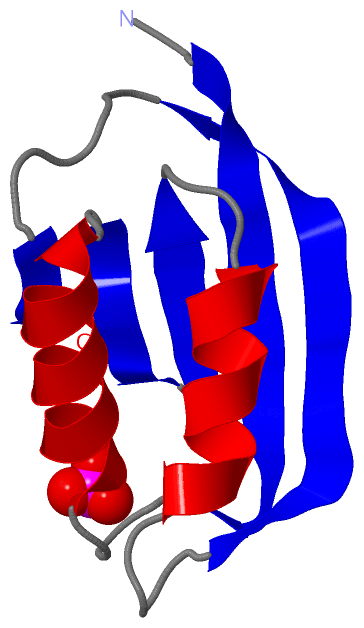

Still Images

Jmol

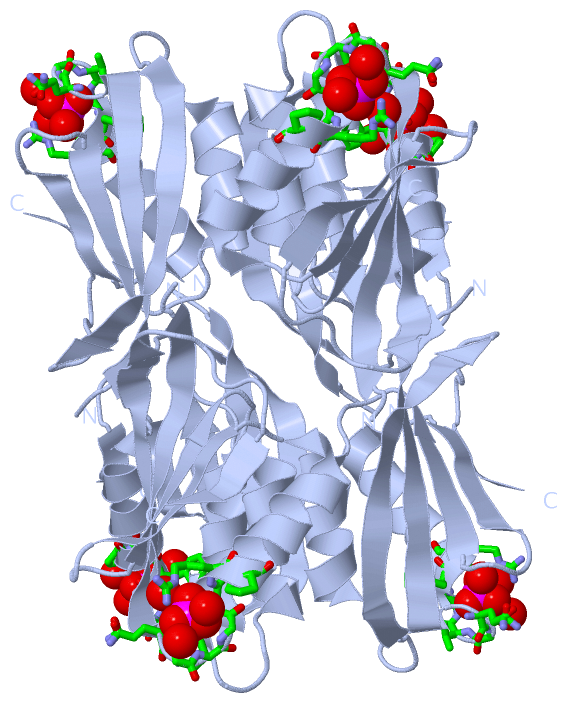

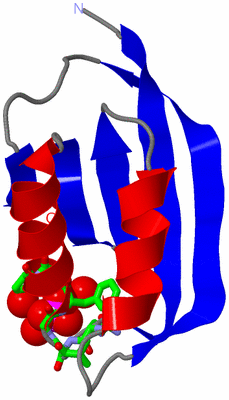

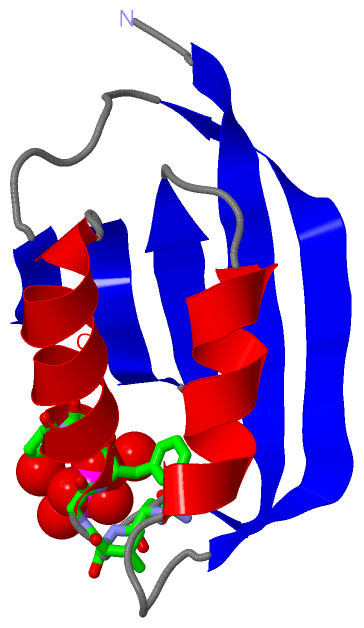

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1gxu
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	HYPF_ECOLI \| P30131
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Analysis Tools

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	HYPF_ECOLI \| P30131
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
