Title :   CRYSTAL STRUCTURE OF CLAVAMINATE SYNTHASE WITH NITRIC OXIDE

Authors :   Z. H. Zhang, J. Ren, C. H. Mckinnon, I. J. Clifton, K. Harlos, C. J. Schofi

Date :   12 Feb 02 (Deposition) - 07 Feb 03 (Release) - 05 Jul 17 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.54

Chains :   Asym./Biol. Unit : A

Keywords :   Oxidoreductase, Lyase, Oxygenase, Trifunctional Enzyme, Clavaminate Synthase 1, Jelly Roll, Nitric Oxide (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   Z. H. Zhang, J. Ren, K. Harlos, C. H. Mckinnon, I. J. Clifton, C. J. Schofield
Crystal Structure Of A Clavaminate Synthase-Fe(Ii) -2-Oxoglutarate-Substrate-No Complex: Evidence For Metal Centered Rearrangements
Febs Lett. V. 517 7 2002
PubMed-ID: 12062399 | Reference-DOI: 10.1016/S0014-5793(02)02520-6
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (5, 7)

Sites (7, 7)

Asymmetric Unit (7, 7)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	HIS A:144 , GLU A:146 , HIS A:279 , AKG A:326 , HOA A:332	BINDING SITE FOR RESIDUE FE A 325
2	AC2	SOFTWARE	PRO A:21 , ARG A:22 , HOH A:2049 , HOH A:2385 , HOH A:2386	BINDING SITE FOR RESIDUE SO4 A 328
3	AC3	SOFTWARE	SER A:58 , GLU A:59 , HOH A:2387 , HOH A:2388 , HOH A:2389	BINDING SITE FOR RESIDUE SO4 A 329
4	AC4	SOFTWARE	ARG A:151 , ARG A:196 , ARG A:323 , GLY A:324 , HOH A:2227 , HOH A:2390	BINDING SITE FOR RESIDUE SO4 A 330
5	AC5	SOFTWARE	GLU A:146 , LEU A:159 , HIS A:279 , ARG A:297 , FE A:325 , AKG A:326	BINDING SITE FOR RESIDUE HOA A 332
6	AC6	SOFTWARE	SER A:134 , LEU A:141 , HIS A:144 , GLU A:146 , THR A:172 , HIS A:279 , ARG A:281 , ARG A:293 , ARG A:297 , FE A:325 , PCX A:331 , HOA A:332 , HOH A:2384	BINDING SITE FOR RESIDUE AKG A 326
7	AC7	SOFTWARE	LEU A:114 , LEU A:132 , SER A:133 , SER A:134 , HIS A:144 , GLU A:146 , ASP A:202 , ASP A:233 , LEU A:236 , ARG A:297 , AKG A:326 , HOH A:2189 , HOH A:2208 , HOH A:2219 , HOH A:2391 , HOH A:2392	BINDING SITE FOR RESIDUE PCX A 331

SS Bonds (0, 0)

Cis Peptide Bonds (1, 1)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:315
 aligned with CAS1_STRC2 | Q05581 from UniProtKB/Swiss-Prot  Length:324

    Alignment length:323
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321
           CAS1_STRC2     2 TSVDCTAYGPELRALAARLPRTPRADLYAFLDAAHTAAASLPGALATALDTFNAEGSEDGHLLLRGLPVEADADLPTTPSSTPAPEDRSLLTMEAMLGLVGRRLGLHTGYRELRSGTVYHDVYPSPGAHHLSSETSETLLEFHTEMAYHRLQPNYVMLACSRADHERTAATLVASVRKALPLLDERTRARLLDRRMPCCVDVAFRGGVDDPGAIAQVKPLYGDADDPFLGYDRELLAPEDPADKEAVAALSKALDEVTEAVYLEPGDLLIVDNFRTTHARTPFSPRWDGKDRWLHRVYIRTDRNGQLSGGERAGDVVAFTPRG 324
               SCOP domains d1gvga_ A: Clavaminate synthase                                                                                                                                                                                                                                                                                                     SCOP domains
               CATH domains 1gvgA00 A:2-324 Clavaminate synthase-like                                                                                                                                                                                                                                                                                           CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee...hhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh....eeeee.....hhhhh...............hhhhhhhhhhhhhhheeeee..hhhhh..eee.................eeee...........eeeeeeee........eeeeehhhhhhhhhhhhhhhhh...eee..hhhhh--------.eee..ee......ee..........hhhhhhhhhhhhhhhhhh.eee......eeeee...eeeee............eeeeeeee..............eee...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1gvg A   2 TSVDCTAYGPELRALAARLPRTPRADLYAFLDAAHTAAASLPGALATALDTFNAEGSEDGHLLLRGLPVEADADLPTTPSSTPAPEDRSLLTMEAMLGLVGRRLGLHTGYRELRSGTVYHDVYPSPGAHHLSSETSETLLEFHTEMAYHRLQPNYVMLACSRADHERTAATLVASVRKALPLLDERTRARLLDRRMPCCVDVAFR--------IAQVKPLYGDADDPFLGYDRELLAPEDPADKEAVAALSKALDEVTEAVYLEPGDLLIVDNFRTTHARTPFSPRWDGKDRWLHRVYIRTDRNGQLSGGERAGDVVAFTPRG 324
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201    |    -   |   221       231       241       251       261       271       281       291       301       311       321
                                                                                                                                                                                                                                      206      215

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (CAS1_STRC2 | Q05581)

molecular function
	GO:0033758	clavaminate synthase activity	Catalysis of the reactions: deoxyamidinoproclavaminate + 2-oxoglutarate + O2 = amidinoproclavaminate + succinate + CO2 + H2O; proclavaminate + 2-oxoglutarate + O2 = dihydroclavaminate + succinate + CO2 + 2 H2O; and dihydroclavaminate + 2-oxoglutarate + O2 = clavaminate + succinate + CO2 + 2 H2O.
	GO:0005506	iron ion binding	Interacting selectively and non-covalently with iron (Fe) ions.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
	GO:0017000	antibiotic biosynthetic process	The chemical reactions and pathways resulting in the formation of an antibiotic, a substance produced by or derived from certain fungi, bacteria, and other organisms, that can destroy or inhibit the growth of other microorganisms.
	GO:0033050	clavulanic acid biosynthetic process	The chemical reactions and pathways resulting in the formation of clavulanic acid, (2R,3Z,5R)-3-(2-hydroxyethylidene)-7-oxo-4-oxa-1-azabicyclo[3.2.0]heptane-2-carboxylic acid.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Visualization

Interactive Views

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		AKG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		FE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		HOA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PCX	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

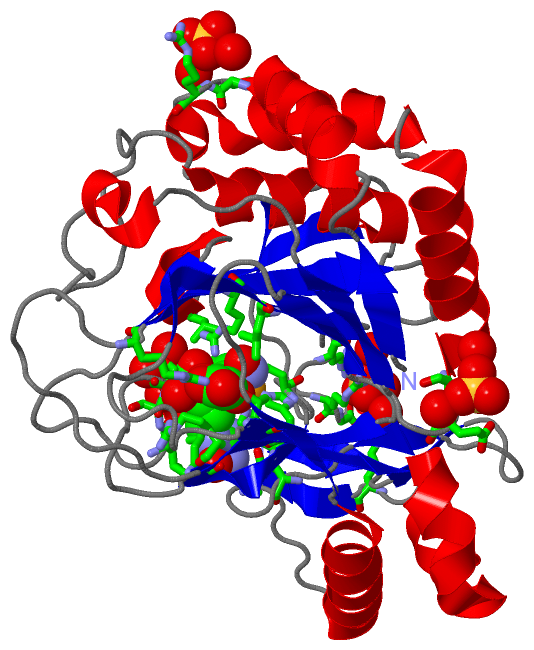

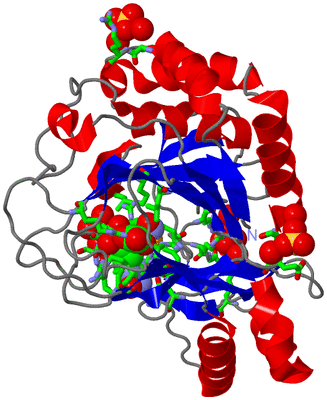

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Thr A:83 - Pro A:84	[ RasMol ]
