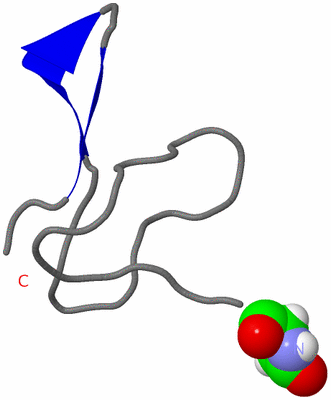

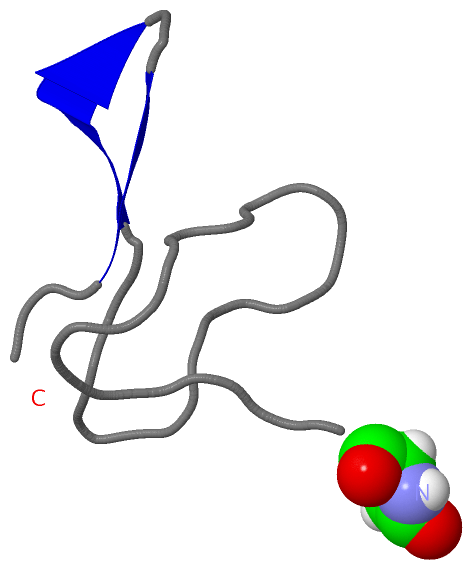

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

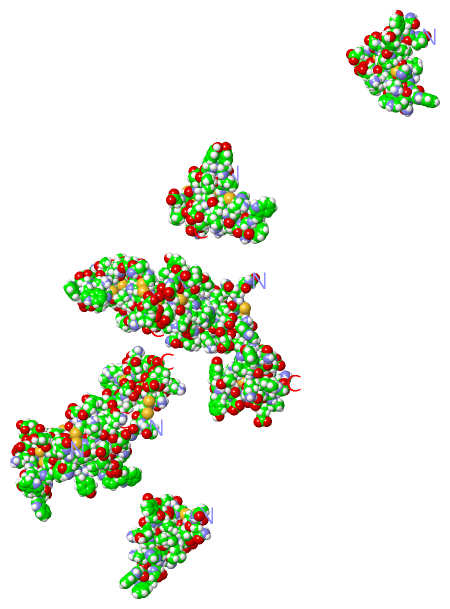

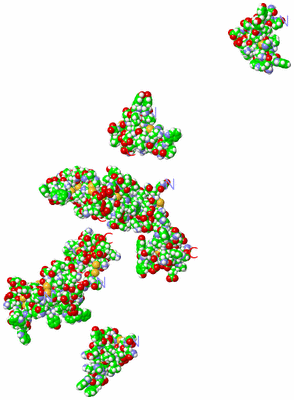

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  GURMARIN, A SWEET TASTE-SUPPRESSING POLYPEPTIDE, NMR, 10 STRUCTURES

Authors :  K. Arai, R. Ishima, S. Morikawa, T. Imoto, S. Yoshimura, S. Aimoto, K. Akasaka
Date :  12 Mar 96  (Deposition) - 01 Aug 96  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Sweet-Taste, Suppressing Protein, Sweet Taste-Suppressing Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Arai, R. Ishima, S. Morikawa, A. Miyasaka, T. Imoto, S. Yoshimura, S. Aimoto, K. Akasaka
Three-Dimensional Structure Of Gurmarin, A Sweet Taste-Suppressing Polypeptide.
J. Biomol. Nmr V. 5 297 1995
PubMed-ID: 7787425  |  Reference-DOI: 10.1007/BF00211756
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GURMARIN
    Chains: A
    Engineered: YES
    Organ: LEAF
    Organism Scientific: GYMNEMA SYLVESTRE
    Organism Taxid: 4068

 Structural Features

(-) Chains, Units


NMR Structure (10x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

NMR Structure (1, 1)
No.NameCountTypeFull Name
1PCA1Mod. Amino AcidPYROGLUTAMIC ACID

(-) Sites  (0, 0)

(no "Site" information available for 1GUR)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1GUR)

(-) Cis Peptide Bonds  (1, 10)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10Glu A:19 -Pro A:20

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1GUR)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1GUR)

(-) Exons   (0, 0)

(no "Exon" information available for 1GUR)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:35
 aligned with GUR_GYMSY | P25810 from UniProtKB/Swiss-Prot  Length:35

    Alignment length:35
                                    10        20        30
             GUR_GYMSY    1 QQCVKKDELCIPYYLDCCEPLECKKVNWWDHKCIG 35
               SCOP domains d1gura_ A:                          SCOP domains
               CATH domains ----------------------------------- CATH domains
               Pfam domains ----------------------------------- Pfam domains
         Sec.struct. author .......................eeee..eee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------- PROSITE
                 Transcript ----------------------------------- Transcript
                  1gur A  1 xQCVKKDELCIPYYLDCCEPLECKKVNWWDHKCIG 35
                            |       10        20        30
                            |
                            1-PCA
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Small proteins (3458)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1GUR)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1GUR)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 1GUR)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    PCA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1gur)

  Cis Peptide Bonds
    Glu A:19 - Pro A:20   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1gur
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GUR_GYMSY | P25810
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GUR_GYMSY | P25810
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GUR_GYMSY | P25810: 1c4e

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1GUR)
