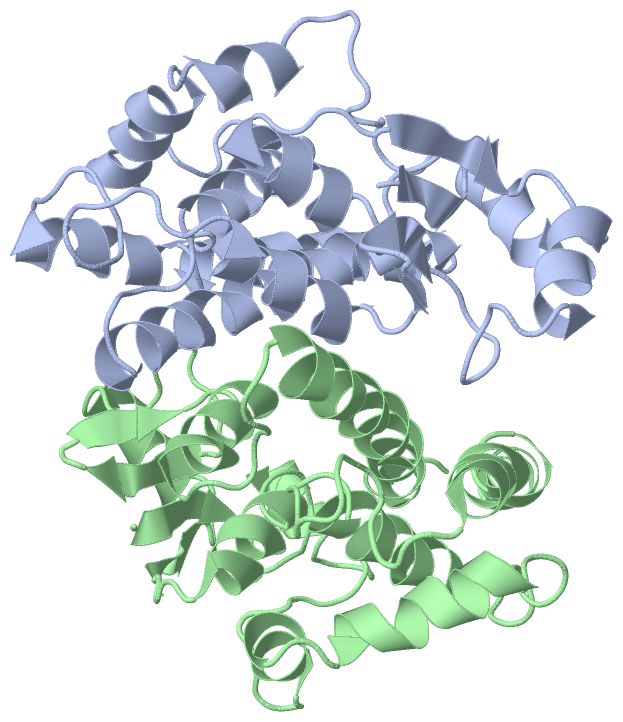

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MURINE ALPHA-CLASS GSTA4-4

Authors :  U. Krengel, K. H. Schroter, H. Hoier, B. W. Dijkstra
Date :  11 Dec 97  (Deposition) - 08 Apr 98  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.90
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Glutathione S-Transferase, Gst, Crystal Structure, Oxidative Stress, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  U. Krengel, K. H. Schroter, H. Hoier, A. Arkema, K. H. Kalk, P. Zimniak, B. W. Dijkstra
Crystal Structure Of A Murine Alpha-Class Glutathione S-Transferase Involved In Cellular Defense Against Oxidative Stress.
Febs Lett. V. 422 285 1998
PubMed-ID: 9498801  |  Reference-DOI: 10.1016/S0014-5793(98)00026-X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GLUTATHIONE S-TRANSFERASE A4-4
    ChainsA, B
    EC Number2.5.1.18
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    OrganLUNG
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090
    SynonymMGSTA4-4, GST5.7

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1GUK)

(-) Sites  (0, 0)

(no "Site" information available for 1GUK)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1GUK)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Val A:55 -Pro A:56
2Val B:55 -Pro B:56

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (2, 3)

Asymmetric/Biological Unit (2, 3)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_GSTA4_MOUSE_001 *K115PGSTA4_MOUSE  ---  ---AK115P
2UniProtVAR_GSTA4_MOUSE_002 *V167GGSTA4_MOUSE  ---  ---A/BV167G
   * ID not provided by source

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GST_CTERPS50405 Soluble glutathione S-transferase C-terminal domain profile.GSTA4_MOUSE85-208

  2A:85-208
B:85-208

(-) Exons   (0, 0)

(no "Exon" information available for 1GUK)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:215
 aligned with GSTA4_MOUSE | P24472 from UniProtKB/Swiss-Prot  Length:222

    Alignment length:215
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214
          GSTA4_MOUSE     5 PKLYYFNGRGRMESIRWLLAAAGVEFEEEFLETREQYEKMQKDGHLLFGQVPLVEIDGMMLTQTRAILSYLAAKYNLYGKDLKERVRIDMYADGTQDLMMMIAVAPFKTPKEKEESYDLILSRAKTRYFPVFEKILKDHGEAFLVGNQLSWADIQLLEAILMVEELSAPVLSDFPLLQAFKTRISNIPTIKKFLQPGSQRKPPPDGPYVEVVRTV 219
               SCOP domains d1guka2 A:5-79 Class alpha GST                                             d1guka1 A:80-219 Class alpha GST                                                                                                             SCOP domains
               CATH domains 1gukA01 A:5-81,A:191-209 Glutaredoxin                                        1gukA02 A:82-190  [code=1.20.1050.10, no name defined]                                                       1gukA01            ---------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee.......hhhhhhhhhh....eeee....hhhhhhhh..........eeee..eee..hhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh..hhhhhhhhhhh.............hhhhhhhhhhhh..........hhhhhhhhhhh..hhhhhh............hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------P---------------------------------------------------G---------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------GST_CTER  PDB: A:85-208 UniProt: 85-208                                                                                     ----------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1guk A   5 PKLYYFNGRGRMESIRWLLAAAGVEFEEEFLETREQYEKMQKDGHLLFGQVPLVEIDGMMLTQTRAILSYLAAKYNLYGKDLKERVRIDMYADGTQDLMMMIAVAPFKTPKEKEESYDLILSRAKTRYFPVFEKILKDHGEAFLVGNQLSWADIQLLEAILMVEELSAPVLSDFPLLQAFKTRISNIPTIKKFLQPGSQRKPPPDGPYVEVVRIV 219
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214

Chain B from PDB  Type:PROTEIN  Length:209
 aligned with GSTA4_MOUSE | P24472 from UniProtKB/Swiss-Prot  Length:222

    Alignment length:215
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214
          GSTA4_MOUSE     5 PKLYYFNGRGRMESIRWLLAAAGVEFEEEFLETREQYEKMQKDGHLLFGQVPLVEIDGMMLTQTRAILSYLAAKYNLYGKDLKERVRIDMYADGTQDLMMMIAVAPFKTPKEKEESYDLILSRAKTRYFPVFEKILKDHGEAFLVGNQLSWADIQLLEAILMVEELSAPVLSDFPLLQAFKTRISNIPTIKKFLQPGSQRKPPPDGPYVEVVRTV 219
               SCOP domains d1gukb2 B:5-79 Class alpha GST                                             d1gukb1 B:80-219 Class alpha GST                                                                                                             SCOP domains
               CATH domains 1gukB01 B:5-81,B:191-209 Glutaredoxin                                        1gukB02 B:82-190  [code=1.20.105      0.10, no name defined]                                                 1gukB01            ---------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee.......hhhhhhhhhh....eeee....hhhhhhhh..........eeee..eee..hhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhh..------.hhhhhhhhhh..hhhhhhhhhhh.............hhhhhhhhhhhh..........hhhhhhhhhhh..hhhhhhh..............hhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------G---------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------GST_CTER  PDB: B:85-208 UniProt: 85-208                                                                                     ----------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1guk B   5 PKLYYFNGRGRMESIRWLLAAAGVEFEEEFLETREQYEKMQKDGHLLFGQVPLVEIDGMMLTQTRAILSYLAAKYNLYGKDLKERVRIDMYADGTQDLMMMIAVAPFKT------SYDLILSRAKTRYFPVFEKILKDHGEAFLVGNQLSWADIQLLEAILMVEELSAPVLSDFPLLQAFKTRISNIPTIKKFLQPGSQRKPPPDGPYVEVVRIV 219
                                    14        24        34        44        54        64        74        84        94       104        |-     | 124       134       144       154       164       174       184       194       204       214
                                                                                                                                      113    120

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 4)

Asymmetric/Biological Unit

(-) CATH Domains  (2, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1GUK)

(-) Gene Ontology  (13, 13)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (GSTA4_MOUSE | P24472)
molecular function
    GO:0008144    drug binding    Interacting selectively and non-covalently with a drug, any naturally occurring or synthetic substance, other than a nutrient, that, when administered or applied to an organism, affects the structure or functioning of the organism; in particular, any such substance used in the diagnosis, prevention, or treatment of disease.
    GO:0043295    glutathione binding    Interacting selectively and non-covalently with glutathione; a tripeptide composed of the three amino acids cysteine, glutamic acid and glycine.
    GO:0004364    glutathione transferase activity    Catalysis of the reaction: R-X + glutathione = H-X + R-S-glutathione. R may be an aliphatic, aromatic or heterocyclic group; X may be a sulfate, nitrile or halide group.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0071285    cellular response to lithium ion    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a lithium (Li+) ion stimulus.
    GO:0006749    glutathione metabolic process    The chemical reactions and pathways involving glutathione, the tripeptide glutamylcysteinylglycine, which acts as a coenzyme for some enzymes and as an antioxidant in the protection of sulfhydryl groups in enzymes and other proteins; it has a specific role in the reduction of hydrogen peroxide (H2O2) and oxidized ascorbate, and it participates in the gamma-glutamyl cycle.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0009635    response to herbicide    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a herbicide stimulus. Herbicides are chemicals used to kill or control the growth of plants.
    GO:0035094    response to nicotine    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a nicotine stimulus.
    GO:0010043    response to zinc ion    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a zinc ion stimulus.
    GO:0006805    xenobiotic metabolic process    The chemical reactions and pathways involving a xenobiotic compound, a compound foreign to living organisms. Used of chemical compounds, e.g. a xenobiotic chemical, such as a pesticide.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
