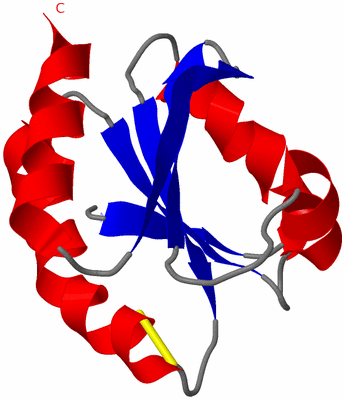

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE CATALYTIC DOMAIN OF A NEW HUMAN THIOREDOXIN-LIKE PROTEIN

Authors :  J. Jin, X. Chen, Q. Guo, J. Yuan, B. Qiang, Z. Rao
Date :  01 Nov 00  (Deposition) - 01 May 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.22
Chains :  Asym./Biol. Unit :  A
Keywords :  Redox-Active Center, Electron Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  J. Jin, X. Chen, Y. Zhou, M. Bartlam, Q. Guo, Y. Liu, Y. Sun, Y. Gao, S. Ye, G. Li, Z. Rao, B. Qiang, J. Yuan
Crystal Structure Of The Catalytic Domain Of A Human Thioredoxin-Like Protein.
Eur. J. Biochem. V. 269 2060 2002
PubMed-ID: 11985582  |  Reference-DOI: 10.1046/J.1432-1033.2002.02844.X
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - THIOREDOXIN-LIKE PROTEIN
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPGEX-4T-3
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentRESIDUES 2 - 108, CATALYTIC N-TERMINAL DOMAIN
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    TissueFETAL BRAIN

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1GH2)

(-) Sites  (0, 0)

(no "Site" information available for 1GH2)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:34 -A:37

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Thr A:76 -Pro A:77

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1GH2)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1THIOREDOXIN_1PS00194 Thioredoxin family active site.TXNL1_HUMAN26-44  1A:26-44

(-) Exons   (3, 3)

Asymmetric/Biological Unit (3, 3)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1ENST000002175151ENSE00001252552chr18:54305920-54305574347TXNL1_HUMAN1-33331A:2-3332
1.2ENST000002175152ENSE00001252531chr18:54293688-5429359297TXNL1_HUMAN33-65331A:33-6533
1.3ENST000002175153ENSE00001160080chr18:54291692-54291519174TXNL1_HUMAN66-123581A:66-10843
1.4ENST000002175154ENSE00000669568chr18:54285357-54285235123TXNL1_HUMAN124-164410--
1.5ENST000002175155ENSE00000669567chr18:54283545-5428347670TXNL1_HUMAN165-188240--
1.6ENST000002175156ENSE00000669565chr18:54281827-54281655173TXNL1_HUMAN188-245580--
1.7ENST000002175157ENSE00000581276chr18:54278328-54278224105TXNL1_HUMAN246-280350--
1.8ENST000002175158ENSE00001106452chr18:54270287-542644395849TXNL1_HUMAN281-28990--

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:107
 aligned with TXNL1_HUMAN | O43396 from UniProtKB/Swiss-Prot  Length:289

    Alignment length:107
                                    11        21        31        41        51        61        71        81        91       101
          TXNL1_HUMAN     2 VGVKPVGSDPDFQPELSGAGSRLAVVKFTMRGCGPCLRIAPAFSSMSNKYPQAVFLEVDVHQCQGTAATNNISATPTFLFFRNKVRIDQYQGADAVGLEEKIKQHLE 108
               SCOP domains d1gh2a_ A: Thioredoxin-like protein, N-terminal domain                                                      SCOP domains
               CATH domains 1gh2A00 A:2-108 Glutaredoxin                                                                                CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee.hhhhhhhhhhhh....eeeeee...hhhhhhhhhhhhhhhhhh...eeeeee...hhhhhhhh......eeeeee..eeeeeee..hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------THIOREDOXIN_1      ---------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.1  PDB: A:2-33           --------------------------------Exon 1.3  PDB: A:66-108 UniProt: 66-123     Transcript 1 (1)
           Transcript 1 (2) -------------------------------Exon 1.2  PDB: A:33-65           ------------------------------------------- Transcript 1 (2)
                 1gh2 A   2 VGVKPVGSDPDFQPELSGAGSRLAVVKFTMRGCGPCLRIAPAFSSMSNKYPQAVFLEVDVHQCQGTAATNNISATPTFQFFRNKVRIDQYQGADAVGLEEKIKQHLE 108
                                    11        21        31        41        51        61        71        81        91       101

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1GH2)

(-) Gene Ontology  (14, 14)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (TXNL1_HUMAN | O43396)
molecular function
    GO:0015036    disulfide oxidoreductase activity    Catalysis of the reaction: substrate with reduced sulfide groups = substrate with oxidized disulfide bonds.
    GO:0016671    oxidoreductase activity, acting on a sulfur group of donors, disulfide as acceptor    Catalysis of an oxidation-reduction (redox) reaction in which a sulfur-containing group acts as a hydrogen or electron donor and reduces disulfide.
    GO:0015035    protein disulfide oxidoreductase activity    Catalysis of the reaction: a protein with reduced sulfide groups = a protein with oxidized disulfide bonds.
biological process
    GO:0045454    cell redox homeostasis    Any process that maintains the redox environment of a cell or compartment within a cell.
    GO:0034599    cellular response to oxidative stress    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of oxidative stress, a state often resulting from exposure to high levels of reactive oxygen species, e.g. superoxide anions, hydrogen peroxide (H2O2), and hydroxyl radicals.
    GO:0006662    glycerol ether metabolic process    The chemical reactions and pathways involving glycerol ethers, any anhydride formed between two organic hydroxy compounds, one of which is glycerol.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0000103    sulfate assimilation    The pathways by which inorganic sulfate is processed and incorporated into sulfated compounds.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0000502    proteasome complex    A large multisubunit complex which catalyzes protein degradation, found in eukaryotes, archaea and some bacteria. In eukaryotes, this complex consists of the barrel shaped proteasome core complex and one or two associated proteins or complexes that act in regulating entry into or exit from the core.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1gh2)

  Sites
(no "Sites" information available for 1gh2)

  Cis Peptide Bonds
    Thr A:76 - Pro A:77   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1gh2
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TXNL1_HUMAN | O43396
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  TXNL1_HUMAN | O43396
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TXNL1_HUMAN | O433961wwy

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1GH2)
