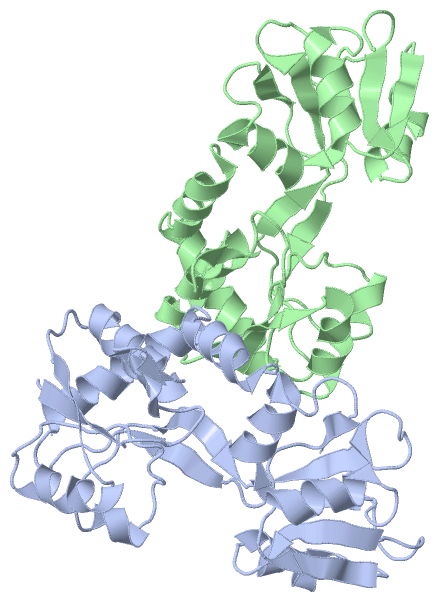

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  GLUTAMINE BINDING PROTEIN OPEN LIGAND-FREE STRUCTURE

Authors :  C. -D. Hsiao, Y. -J. Sun, J. Rose, B. -C. Wang
Date :  25 Jun 96  (Deposition) - 08 Nov 96  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Amino-Acid Transport, Glnbp, Open Form, Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. D. Hsiao, Y. J. Sun, J. Rose, B. C. Wang
The Crystal Structure Of Glutamine-Binding Protein From Escherichia Coli.
J. Mol. Biol. V. 262 225 1996
PubMed-ID: 8831790  |  Reference-DOI: 10.1006/JMBI.1996.0509
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GLUTAMINE BINDING PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Other Details: THIS ENTRY REPRESENTS THE OPEN LIGAND FREE STRUCTURE
    Strain: BK9MDG
    Synonym: GLNBP

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1GGG)

(-) Sites  (0, 0)

(no "Site" information available for 1GGG)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1GGG)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Val A:14 -Pro A:15
2Val B:14 -Pro B:15

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1GGG)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SBP_BACTERIAL_3PS01039 Bacterial extracellular solute-binding proteins, family 3 signature.GLNH_ECO5748-61
 		  2A:26-39
B:26-39
GLNH_ECOL648-61
 		  2A:26-39
B:26-39
GLNH_ECOLI48-61
 		  2A:26-39
B:26-39

(-) Exons   (0, 0)

(no "Exon" information available for 1GGG)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:220
 aligned with GLNH_ECO57 | P0AEQ5 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:220
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           GLNH_ECO57    27 LVVATDTAFVPFEFKQGDKYVGFDVDLWAAIAKELKLDYELKPMDFSGIIPALQTKNVDLALAGITITDERKKAIDFSDGYYKSGLLVMVKANNNDVKSVKDLDGKVVAVKSGTGSVDYAKANIKTKDLRQFPNIDNAYMELGTNRADAVLHDTPNILYFIKTAGNGQFKAVGDSLEAQQYGIAFPKGSDELRDKVNGALKTLRENGTYNEIYKKWFGTE 246
               SCOP domains d1ggga_ A: Glutamine-binding protein                                                                                                                                                                                         SCOP domains
               CATH domains 1gggA02 A:5-87,A:184-224 Periplasmic binding protein-like II                       1gggA01 A:88-183 Periplasmic binding protein-like II                                            1gggA02 A:5-87,A:184-224                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee........eee..eee.hhhhhhhhhhhh.....eeee..hhhhhhhhh..............hhhh.......eeeee.eeeeee...............eeeee...hhhhhhhhh....eeeee..hhhhhhhhh.....eeeeehhhhhhhhhh.....eeee......eeee.......hhhhhhhhhhhhhhhh..hhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------------------SBP_BACTERIAL_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ggg A   5 LVVATDTAFVPFEFKQGDLYVGFDVDLWAAIAKELKLDYELKPMDFSGIIPALQTKNVDLALAGITITDERKKAIDFSDGYYKSGLLVMVKANNNDVKSVKDLDGKVVAVKSGTGSVDYAKANIKTKDLRQFPNIDNAYMELGTNRADAVLHDTPNILYFIKTAGNGQFKAVGDSLEAQQYGIAFPKGSDELRDKVNGALKTLRENGTYNEIYKKWFGTE 224
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224


Chain A from PDB  Type:PROTEIN  Length:220
 aligned with GLNH_ECOL6 | P0AEQ4 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:220
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           GLNH_ECOL6    27 LVVATDTAFVPFEFKQGDKYVGFDVDLWAAIAKELKLDYELKPMDFSGIIPALQTKNVDLALAGITITDERKKAIDFSDGYYKSGLLVMVKANNNDVKSVKDLDGKVVAVKSGTGSVDYAKANIKTKDLRQFPNIDNAYMELGTNRADAVLHDTPNILYFIKTAGNGQFKAVGDSLEAQQYGIAFPKGSDELRDKVNGALKTLRENGTYNEIYKKWFGTE 246
               SCOP domains d1ggga_ A: Glutamine-binding protein                                                                                                                                                                                         SCOP domains
               CATH domains 1gggA02 A:5-87,A:184-224 Periplasmic binding protein-like II                       1gggA01 A:88-183 Periplasmic binding protein-like II                                            1gggA02 A:5-87,A:184-224                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee........eee..eee.hhhhhhhhhhhh.....eeee..hhhhhhhhh..............hhhh.......eeeee.eeeeee...............eeeee...hhhhhhhhh....eeeee..hhhhhhhhh.....eeeeehhhhhhhhhh.....eeee......eeee.......hhhhhhhhhhhhhhhh..hhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------SBP_BACTERIAL_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ggg A   5 LVVATDTAFVPFEFKQGDLYVGFDVDLWAAIAKELKLDYELKPMDFSGIIPALQTKNVDLALAGITITDERKKAIDFSDGYYKSGLLVMVKANNNDVKSVKDLDGKVVAVKSGTGSVDYAKANIKTKDLRQFPNIDNAYMELGTNRADAVLHDTPNILYFIKTAGNGQFKAVGDSLEAQQYGIAFPKGSDELRDKVNGALKTLRENGTYNEIYKKWFGTE 224
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224


Chain A from PDB  Type:PROTEIN  Length:220
 aligned with GLNH_ECOLI | P0AEQ3 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:220
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           GLNH_ECOLI    27 LVVATDTAFVPFEFKQGDKYVGFDVDLWAAIAKELKLDYELKPMDFSGIIPALQTKNVDLALAGITITDERKKAIDFSDGYYKSGLLVMVKANNNDVKSVKDLDGKVVAVKSGTGSVDYAKANIKTKDLRQFPNIDNAYMELGTNRADAVLHDTPNILYFIKTAGNGQFKAVGDSLEAQQYGIAFPKGSDELRDKVNGALKTLRENGTYNEIYKKWFGTE 246
               SCOP domains d1ggga_ A: Glutamine-binding protein                                                                                                                                                                                         SCOP domains
               CATH domains 1gggA02 A:5-87,A:184-224 Periplasmic binding protein-like II                       1gggA01 A:88-183 Periplasmic binding protein-like II                                            1gggA02 A:5-87,A:184-224                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee........eee..eee.hhhhhhhhhhhh.....eeee..hhhhhhhhh..............hhhh.......eeeee.eeeeee...............eeeee...hhhhhhhhh....eeeee..hhhhhhhhh.....eeeeehhhhhhhhhh.....eeee......eeee.......hhhhhhhhhhhhhhhh..hhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                PROSITE (3) ---------------------SBP_BACTERIAL_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (3)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ggg A   5 LVVATDTAFVPFEFKQGDLYVGFDVDLWAAIAKELKLDYELKPMDFSGIIPALQTKNVDLALAGITITDERKKAIDFSDGYYKSGLLVMVKANNNDVKSVKDLDGKVVAVKSGTGSVDYAKANIKTKDLRQFPNIDNAYMELGTNRADAVLHDTPNILYFIKTAGNGQFKAVGDSLEAQQYGIAFPKGSDELRDKVNGALKTLRENGTYNEIYKKWFGTE 224
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224


Chain B from PDB  Type:PROTEIN  Length:220
 aligned with GLNH_ECO57 | P0AEQ5 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:220
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           GLNH_ECO57    27 LVVATDTAFVPFEFKQGDKYVGFDVDLWAAIAKELKLDYELKPMDFSGIIPALQTKNVDLALAGITITDERKKAIDFSDGYYKSGLLVMVKANNNDVKSVKDLDGKVVAVKSGTGSVDYAKANIKTKDLRQFPNIDNAYMELGTNRADAVLHDTPNILYFIKTAGNGQFKAVGDSLEAQQYGIAFPKGSDELRDKVNGALKTLRENGTYNEIYKKWFGTE 246
               SCOP domains d1gggb_ B: Glutamine-binding protein                                                                                                                                                                                         SCOP domains
               CATH domains 1gggB02 B:5-87,B:184-224 Periplasmic binding protein-like II                       1gggB01 B:88-183 Periplasmic binding protein-like II                                            1gggB02 B:5-87,B:184-224                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.......eee..eee.hhhhhhhhhhhh.....eeeee.hhhhhhhhh..............hhhh.........eee.eeeeee...............eeeee...hhhhhhhh.....eeeee..hhhhhhhhhh.....eeeehhhhhhhhhh.....eeee......eee........hhhhhhhhhhhhhhhh..hhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------------------SBP_BACTERIAL_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ggg B   5 LVVATDTAFVPFEFKQGDLYVGFDVDLWAAIAKELKLDYELKPMDFSGIIPALQTKNVDLALAGITITDERKKAIDFSDGYYKSGLLVMVKANNNDVKSVKDLDGKVVAVKSGTGSVDYAKANIKTKDLRQFPNIDNAYMELGTNRADAVLHDTPNILYFIKTAGNGQFKAVGDSLEAQQYGIAFPKGSDELRDKVNGALKTLRENGTYNEIYKKWFGTE 224
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224


Chain B from PDB  Type:PROTEIN  Length:220
 aligned with GLNH_ECOL6 | P0AEQ4 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:220
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           GLNH_ECOL6    27 LVVATDTAFVPFEFKQGDKYVGFDVDLWAAIAKELKLDYELKPMDFSGIIPALQTKNVDLALAGITITDERKKAIDFSDGYYKSGLLVMVKANNNDVKSVKDLDGKVVAVKSGTGSVDYAKANIKTKDLRQFPNIDNAYMELGTNRADAVLHDTPNILYFIKTAGNGQFKAVGDSLEAQQYGIAFPKGSDELRDKVNGALKTLRENGTYNEIYKKWFGTE 246
               SCOP domains d1gggb_ B: Glutamine-binding protein                                                                                                                                                                                         SCOP domains
               CATH domains 1gggB02 B:5-87,B:184-224 Periplasmic binding protein-like II                       1gggB01 B:88-183 Periplasmic binding protein-like II                                            1gggB02 B:5-87,B:184-224                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.......eee..eee.hhhhhhhhhhhh.....eeeee.hhhhhhhhh..............hhhh.........eee.eeeeee...............eeeee...hhhhhhhh.....eeeee..hhhhhhhhhh.....eeeehhhhhhhhhh.....eeee......eee........hhhhhhhhhhhhhhhh..hhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------SBP_BACTERIAL_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ggg B   5 LVVATDTAFVPFEFKQGDLYVGFDVDLWAAIAKELKLDYELKPMDFSGIIPALQTKNVDLALAGITITDERKKAIDFSDGYYKSGLLVMVKANNNDVKSVKDLDGKVVAVKSGTGSVDYAKANIKTKDLRQFPNIDNAYMELGTNRADAVLHDTPNILYFIKTAGNGQFKAVGDSLEAQQYGIAFPKGSDELRDKVNGALKTLRENGTYNEIYKKWFGTE 224
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224


Chain B from PDB  Type:PROTEIN  Length:220
 aligned with GLNH_ECOLI | P0AEQ3 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:220
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246
           GLNH_ECOLI    27 LVVATDTAFVPFEFKQGDKYVGFDVDLWAAIAKELKLDYELKPMDFSGIIPALQTKNVDLALAGITITDERKKAIDFSDGYYKSGLLVMVKANNNDVKSVKDLDGKVVAVKSGTGSVDYAKANIKTKDLRQFPNIDNAYMELGTNRADAVLHDTPNILYFIKTAGNGQFKAVGDSLEAQQYGIAFPKGSDELRDKVNGALKTLRENGTYNEIYKKWFGTE 246
               SCOP domains d1gggb_ B: Glutamine-binding protein                                                                                                                                                                                         SCOP domains
               CATH domains 1gggB02 B:5-87,B:184-224 Periplasmic binding protein-like II                       1gggB01 B:88-183 Periplasmic binding protein-like II                                            1gggB02 B:5-87,B:184-224                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.......eee..eee.hhhhhhhhhhhh.....eeeee.hhhhhhhhh..............hhhh.........eee.eeeeee...............eeeee...hhhhhhhh.....eeeee..hhhhhhhhhh.....eeeehhhhhhhhhh.....eeee......eee........hhhhhhhhhhhhhhhh..hhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                PROSITE (3) ---------------------SBP_BACTERIAL_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (3)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ggg B   5 LVVATDTAFVPFEFKQGDLYVGFDVDLWAAIAKELKLDYELKPMDFSGIIPALQTKNVDLALAGITITDERKKAIDFSDGYYKSGLLVMVKANNNDVKSVKDLDGKVVAVKSGTGSVDYAKANIKTKDLRQFPNIDNAYMELGTNRADAVLHDTPNILYFIKTAGNGQFKAVGDSLEAQQYGIAFPKGSDELRDKVNGALKTLRENGTYNEIYKKWFGTE 224
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1GGG)

(-) Gene Ontology  (8, 22)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (GLNH_ECOL6 | P0AEQ4)
molecular function
    GO:0004970    ionotropic glutamate receptor activity    Catalysis of the transmembrane transfer of an ion by a channel that opens when glutamate has been bound by the channel complex or one of its constituent parts.
    GO:0005215    transporter activity    Enables the directed movement of substances (such as macromolecules, small molecules, ions) into, out of or within a cell, or between cells.
biological process
    GO:0006865    amino acid transport    The directed movement of amino acids, organic acids containing one or more amino substituents, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0035235    ionotropic glutamate receptor signaling pathway    A series of molecular signals initiated by glutamate binding to a glutamate receptor on the surface of the target cell, followed by the movement of ions through a channel in the receptor complex. Ends with regulation of a downstream cellular process, e.g. transcription.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0042597    periplasmic space    The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

Chain A,B   (GLNH_ECO57 | P0AEQ5)
molecular function
    GO:0004970    ionotropic glutamate receptor activity    Catalysis of the transmembrane transfer of an ion by a channel that opens when glutamate has been bound by the channel complex or one of its constituent parts.
    GO:0005215    transporter activity    Enables the directed movement of substances (such as macromolecules, small molecules, ions) into, out of or within a cell, or between cells.
biological process
    GO:0006865    amino acid transport    The directed movement of amino acids, organic acids containing one or more amino substituents, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0035235    ionotropic glutamate receptor signaling pathway    A series of molecular signals initiated by glutamate binding to a glutamate receptor on the surface of the target cell, followed by the movement of ions through a channel in the receptor complex. Ends with regulation of a downstream cellular process, e.g. transcription.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0042597    periplasmic space    The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

Chain A,B   (GLNH_ECOLI | P0AEQ3)
molecular function
    GO:0004970    ionotropic glutamate receptor activity    Catalysis of the transmembrane transfer of an ion by a channel that opens when glutamate has been bound by the channel complex or one of its constituent parts.
    GO:0005215    transporter activity    Enables the directed movement of substances (such as macromolecules, small molecules, ions) into, out of or within a cell, or between cells.
biological process
    GO:0006865    amino acid transport    The directed movement of amino acids, organic acids containing one or more amino substituents, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0035235    ionotropic glutamate receptor signaling pathway    A series of molecular signals initiated by glutamate binding to a glutamate receptor on the surface of the target cell, followed by the movement of ions through a channel in the receptor complex. Ends with regulation of a downstream cellular process, e.g. transcription.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0030288    outer membrane-bounded periplasmic space    The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
    GO:0042597    periplasmic space    The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ggg)

  Sites
(no "Sites" information available for 1ggg)

  Cis Peptide Bonds
    Val A:14 - Pro A:15   [ RasMol ]
    Val B:14 - Pro B:15   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ggg
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GLNH_ECO57 | P0AEQ5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  GLNH_ECOL6 | P0AEQ4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  GLNH_ECOLI | P0AEQ3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GLNH_ECO57 | P0AEQ5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  GLNH_ECOL6 | P0AEQ4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  GLNH_ECOLI | P0AEQ3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GLNH_ECO57 | P0AEQ5: 1wdn
        GLNH_ECOL6 | P0AEQ4: 1wdn
        GLNH_ECOLI | P0AEQ3: 1wdn

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1GGG)
