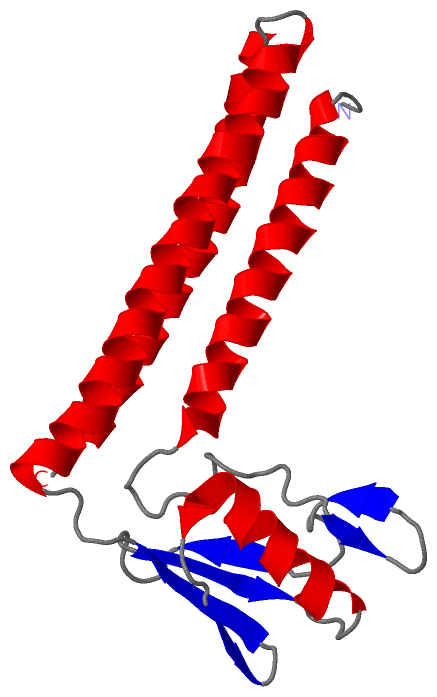

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

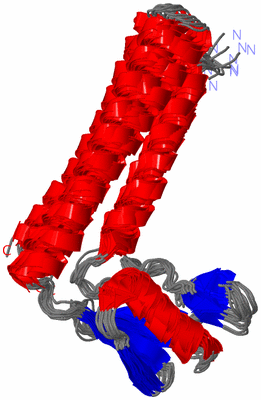

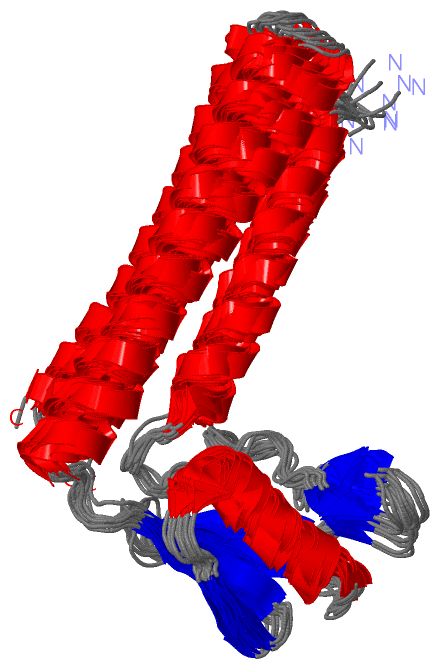

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE RIBOSOME RECYCLING FACTOR

Authors :  T. Yoshida, S. Uchiyama, H. Nakano, H. Kashimori, H. Kijima, T. Ohshima, Y. Saihara, T. Ishino, T. Shimahara, T. Yoshida, K. Yokose T. Ohkubo, A. Kaji, Y. Kobayashi
Date :  19 Oct 00  (Deposition) - 16 May 01  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (15x)
Keywords :  Three-Helix Bundle, Ribosome (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Yoshida, S. Uchiyama, H. Nakano, H. Kashimori, H. Kijima, T. Ohshima, Y. Saihara, T. Ishino, H. Shimahara, T. Yoshida, K. Yokose, T. Ohkubo, A. Kaji, Y. Kobayashi
Solution Structure Of The Ribosome Recycling Factor From Aquifex Aeolicus.
Biochemistry V. 40 2387 2001
PubMed-ID: 11327859  |  Reference-DOI: 10.1021/BI002474G
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RIBOSOME RECYCLING FACTOR
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET22B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: AQUIFEX AEOLICUS
    Organism Taxid: 63363

 Structural Features

(-) Chains, Units


NMR Structure (15x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1GE9)

(-) Sites  (0, 0)

(no "Site" information available for 1GE9)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1GE9)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1GE9)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1GE9)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1GE9)

(-) Exons   (0, 0)

(no "Exon" information available for 1GE9)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:184
 aligned with RRF_AQUAE | O66928 from UniProtKB/Swiss-Prot  Length:184

    Alignment length:184
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
            RRF_AQUAE     1 MIKELEDIFKEAEKDMKKAVEYYKNEIAGLRTSRASTALVEEIKVEYYGSKVPIKQLGTISVPEHNQIVIQVWDQNAVPAIEKAIREELNLNPTVQGNVIRVTLPPLTEERRRELVRLLHKITEEARVRVRNVRREAKEMIEELEGISEDEKKRALERLQKLTDKYIDEINKLMEAKEKEIMSV 184
               SCOP domains d1ge9a_ A: Ribosome recycling factor, RRF                                                                                                                                                SCOP domains
               CATH domains ----1ge9A01 A:5-33,A:108-184     1ge9A02 A:34-107  [code=3.30.1360.40, no name defined]                    1ge9A01 A:5-33,A:108-184  [code=1.10.132.20, no name defined]                 CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhh..............ee....ee......eee.....eeeee....hhhhhhhhhhhhhhh...eee..eeeee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ge9 A   1 MIKELEDIFKEAEKDMKKAVEYYKNEIAGLRTSRASTALVEEIKVEYYGSKVPIKQLGTISVPEHNQIVIQVWDQNAVPAIEKAIREELNLNPTVQGNVIRVTLPPLTEERRRELVRLLHKITEEARVRVRNVRREAKEMIEELEGISEDEKKRALERLQKLTDKYIDEINKLMEAKEKEIMSV 184
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 2)

NMR Structure
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1GE9)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (RRF_AQUAE | O66928)
molecular function
    GO:0043023    ribosomal large subunit binding    Interacting selectively and non-covalently with any part of the larger ribosomal subunit.
biological process
    GO:0002184    cytoplasmic translational termination    The process resulting in the release of a polypeptide chain from the ribosome in the cytoplasm, usually in response to a termination codon.
    GO:0006412    translation    The cellular metabolic process in which a protein is formed, using the sequence of a mature mRNA or circRNA molecule to specify the sequence of amino acids in a polypeptide chain. Translation is mediated by the ribosome, and begins with the formation of a ternary complex between aminoacylated initiator methionine tRNA, GTP, and initiation factor 2, which subsequently associates with the small subunit of the ribosome and an mRNA or circRNA. Translation ends with the release of a polypeptide chain from the ribosome.
    GO:0006415    translational termination    The process resulting in the release of a polypeptide chain from the ribosome, usually in response to a termination codon (UAA, UAG, or UGA in the universal genetic code).
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
