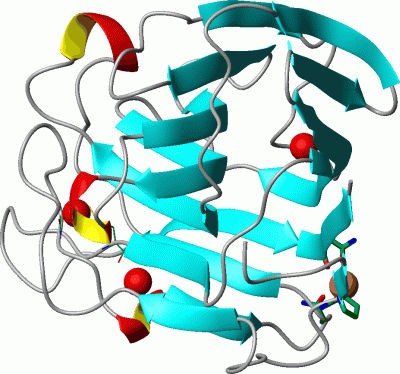

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

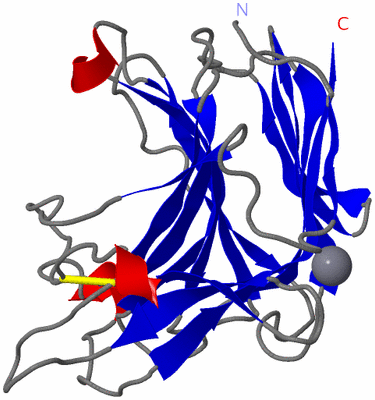

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

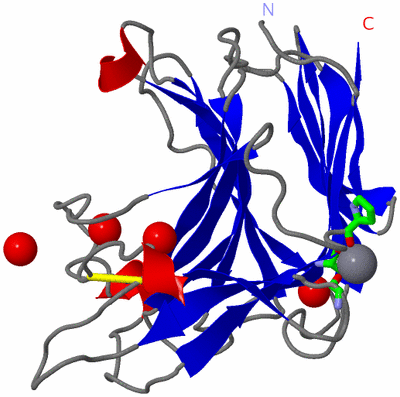

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  BACILLUS LICHENIFORMIS BETA-GLUCANASE

Authors :  M. Hahn, U. Heinemann
Date :  25 Aug 95  (Deposition) - 07 Dec 95  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  Hydrolase (Glucanase) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Hahn, J. Pons, A. Planas, E. Querol, U. Heinemann
Crystal Structure Of Bacillus Licheniformis 1, 3-1, 4-Beta-D-Glucan 4-Glucanohydrolase At 1. 8 A Resolution.
Febs Lett. V. 374 221 1995
PubMed-ID: 7589539  |  Reference-DOI: 10.1016/0014-5793(95)01111-Q
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - (1,3-1,4)-BETA-D-GLUCAN 4 GLUCANOHYDROLASE
    Chains: A
    EC Number: 3.2.1.73
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PBR328
    Expression System Taxid: 562
    Organism Scientific: BACILLUS LICHENIFORMIS
    Organism Taxid: 1402
    Synonym: BETA-GLUCANASE, LICHENASE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1CA1Ligand/IonCALCIUM ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPRO A:9 , GLY A:45 , ASN A:207 , HOH A:287 , HOH A:289 , HOH A:359BINDING SITE FOR RESIDUE CA A 373
2CA1UNKNOWNPRO A:9 , GLY A:45 , ASN A:207 , HOH A:216 , HOH A:217 , HOH A:218NULL

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:32 -A:61

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Thr A:200 -Pro A:201

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1GBG)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GH16_1PS01034 Glycosyl hydrolases family 16 active sites.GUB_BACLI134-144  1A:105-115

(-) Exons   (0, 0)

(no "Exon" information available for 1GBG)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:214
 aligned with GUB_BACLI | P27051 from UniProtKB/Swiss-Prot  Length:243

    Alignment length:214
                                    39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239
            GUB_BACLI    30 QTGGSFYEPFNNYNTGLWQKADGYSNGNMFNCTWRANNVSMTSLGEMRLSLTSPSYNKFDCGENRSVQTYGYGLYEVNMKPAKNVGIVSSFFTYTGPTDGTPWDEIDIEFLGKDTTKVQFNYYTNGVGNHEKIVNLGFDAANSYHTYAFDWQPNSIKWYVDGQLKHTATTQIPQTPGKIMMNLWNGAGVDEWLGSYNGVTPLSRSLHWVRYTKR 243
               SCOP domains d1gbga_ A: Bacillus 1-3,1-4-beta-glucanase                                                                                                                                                                             SCOP domains
               CATH domains 1gbgA00 A:1-214  [code=2.60.120.200, no name defined]                                                                                                                                                                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eee.........eee...............hhheee.....eeeee..........eeeee......eeeeeeee......eeeeeeeee.hhh....eeeeeeee.....eeeeeee........eeee.........eeeeeeee..eeeeee..eeeeee.........eeeeeeee....hhhh........eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------GH16_1     --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1gbg A   1 QTGGSFYEPFNNYNTGLWQKADGYSNGNMFNCTWRANNVSMTSLGEMRLSLTSPSYNKFDCGENRSVQTYGYGLYEVNMKPAKNVGIVSSFFTYTGPTDGTPWDEIDIEFLGKDTTKVQFNYYTNGVGNHEKIVNLGFDAANSYHTYAFDWQPNSIKWYVDGQLKHTATTQIPQTPGKIMMNLWNGAGVDEWLGSYNGVTPLYAHYNWVRYTKR 214
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1GBG)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (GUB_BACLI | P27051)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
    GO:0042972    licheninase activity    Catalysis of the hydrolysis of (1->4)-beta-D-glucosidic linkages in beta-D-glucans containing (1->3) and (1->4) bonds.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    CA1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Thr A:200 - Pro A:201   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

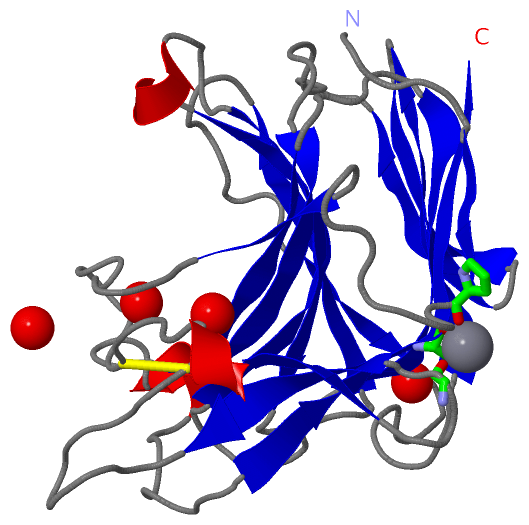

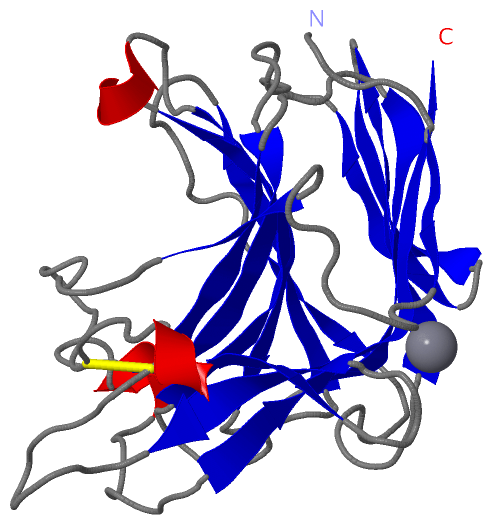

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1gbg
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GUB_BACLI | P27051
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.2.1.73
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GUB_BACLI | P27051
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GUB_BACLI | P27051: 3d6e

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1GBG)
