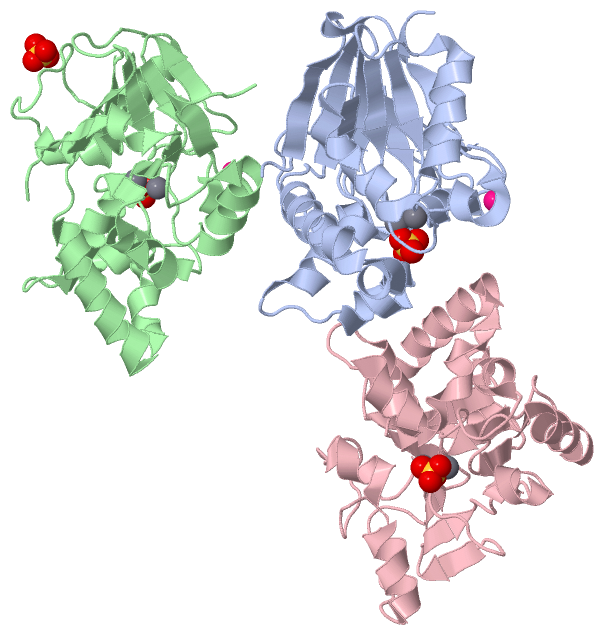

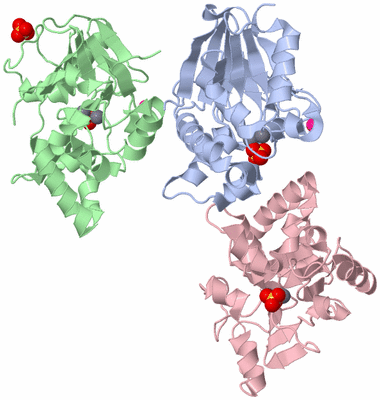

Asymmetric Unit (Jmol Viewer)

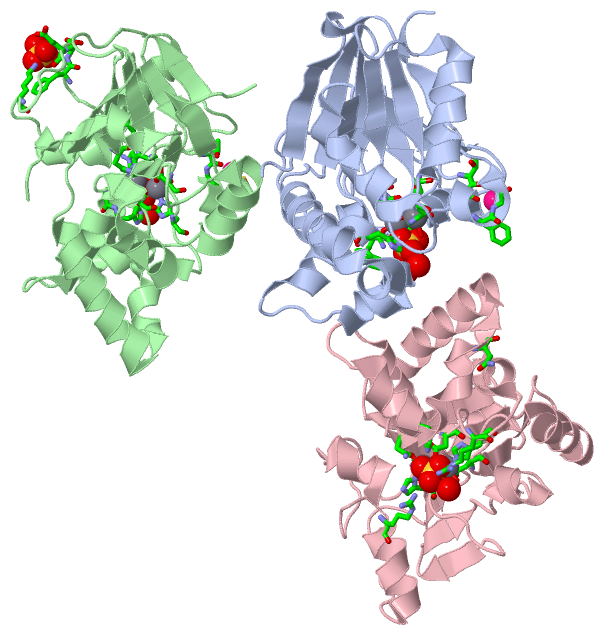

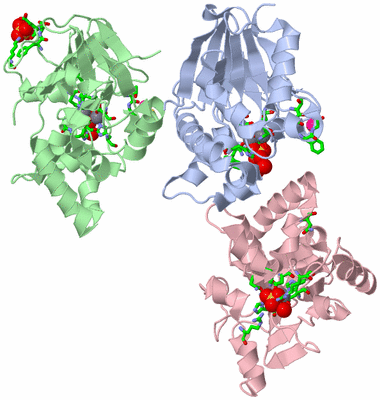

Asym. Unit - sites (Jmol Viewer)

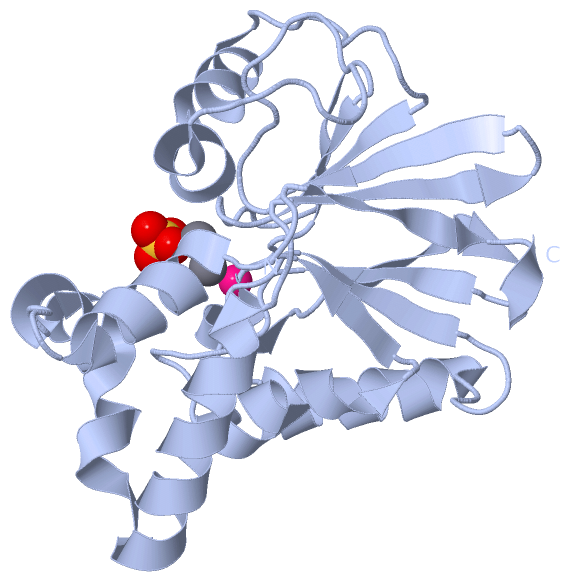

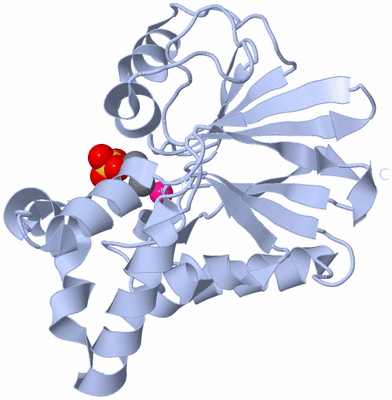

Biological Unit 1 (Jmol Viewer)

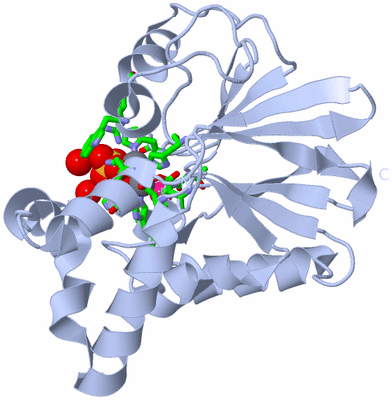

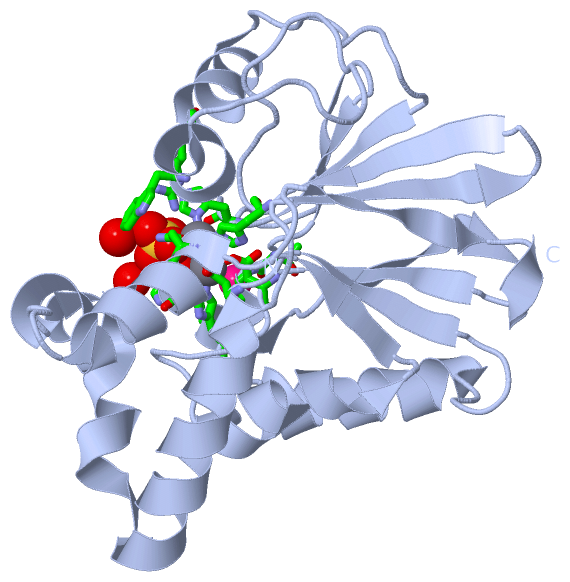

Biol. Unit 1 - sites (Jmol Viewer)

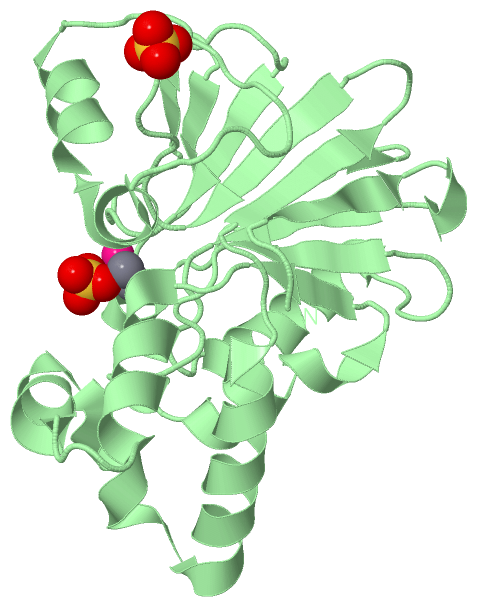

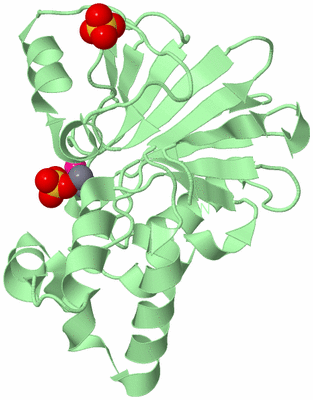

Biological Unit 2 (Jmol Viewer)

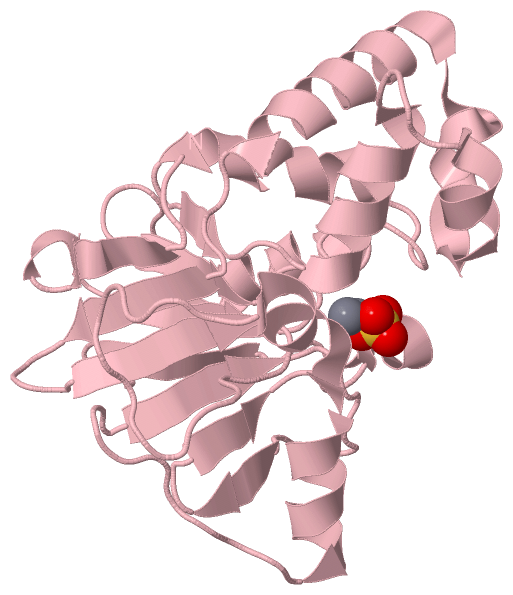

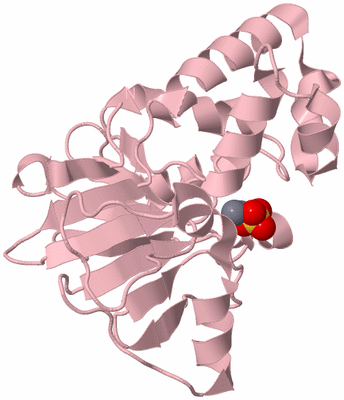

Biological Unit 3 (Jmol Viewer)

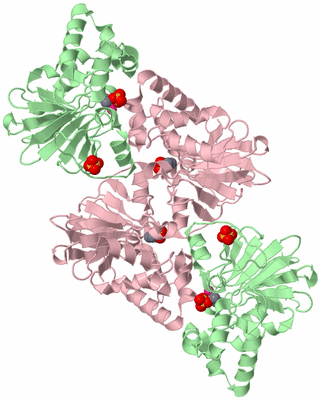

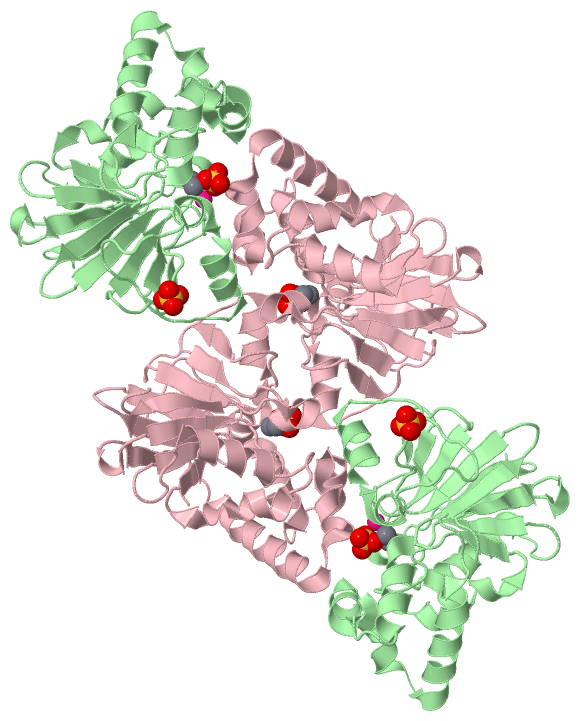

Biological Unit 4 (Jmol Viewer)

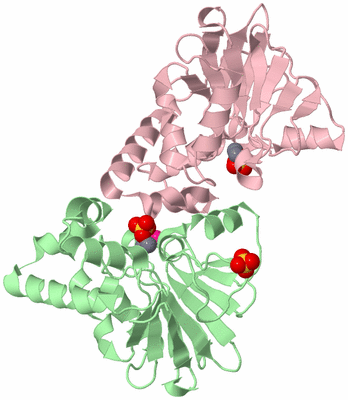

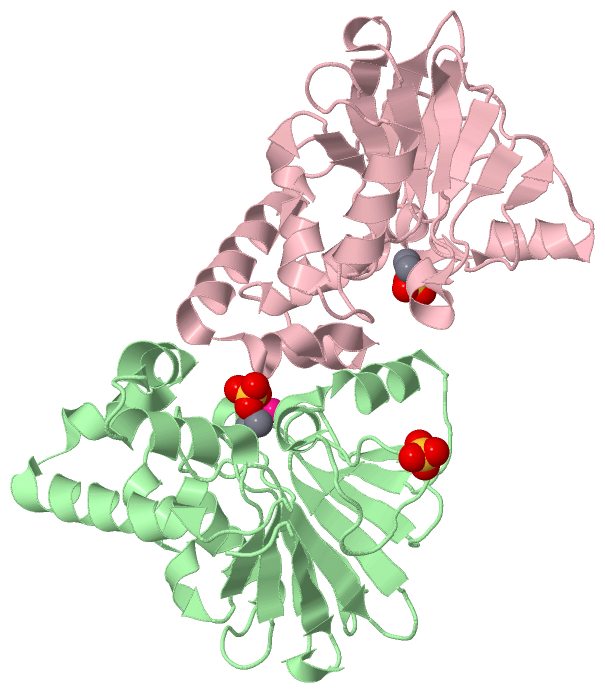

Biological Unit 5 (Jmol Viewer)

Title :   BACTERIOPHAGE LAMBDA SER/THR PROTEIN PHOSPHATASE

Authors :   W. C. Voegtli, D. J. White, N. J. Reiter, F. Rusnak, A. C. Rosenzweig

Date :   31 Oct 00 (Deposition) - 07 Mar 01 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.15

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: B (2x),C (2x)
Biol. Unit 5: B (1x),C (1x)

Keywords :   Bacteriophage Lambda, Ser/Thr Protein Phosphatase, Ppase, Protein Phosphatase, Manganese, Sulfate, Viral Protein, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   W. C. Voegtli, D. J. White, N. J. Reiter, F. Rusnak, A. C. Rosenzweig
Structure Of The Bacteriophage Lambda Ser/Thr Protein Phosphatase With Sulfate Ion Bound In Two Coordination Modes.
Biochemistry V. 39 15365 2000
PubMed-ID: 11112522 | Reference-DOI: 10.1021/BI0021030
(for further references see the PDB file header)

Molecule 1 - SERINE/THREONINE PROTEIN PHOSPHATASE
	Chains	:	A, B, C
	EC Number	:	3.1.3.-
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PT7-7
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	T7
	Organism Scientific	:	ENTEROBACTERIA PHAGE LAMBDA
	Organism Taxid	:	10710

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (2x)	:		B (2x)	C (2x)
Biological Unit 5 (1x)	:		B (1x)	C (1x)

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 12)

No.	Name	Count	Type	Full Name
1	HG	2	Ligand/Ion	MERCURY (II) ION
2	MN	6	Ligand/Ion	MANGANESE (II) ION
3	SO4	4	Ligand/Ion	SULFATE ION

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	HG	-1	Ligand/Ion	MERCURY (II) ION
2	MN	-1	Ligand/Ion	MANGANESE (II) ION
3	SO4	1	Ligand/Ion	SULFATE ION

Biological Unit 2 (1, 2)

No.	Name	Count	Type	Full Name
1	HG	-1	Ligand/Ion	MERCURY (II) ION
2	MN	-1	Ligand/Ion	MANGANESE (II) ION
3	SO4	2	Ligand/Ion	SULFATE ION

Biological Unit 3 (1, 1)

No.	Name	Count	Type	Full Name
1	HG	-1	Ligand/Ion	MERCURY (II) ION
2	MN	-1	Ligand/Ion	MANGANESE (II) ION
3	SO4	1	Ligand/Ion	SULFATE ION

Biological Unit 4 (1, 4)

No.	Name	Count	Type	Full Name
1	HG	-1	Ligand/Ion	MERCURY (II) ION
2	MN	-1	Ligand/Ion	MANGANESE (II) ION
3	SO4	4	Ligand/Ion	SULFATE ION

Biological Unit 5 (1, 2)

No.	Name	Count	Type	Full Name
1	HG	-1	Ligand/Ion	MERCURY (II) ION
2	MN	-1	Ligand/Ion	MANGANESE (II) ION
3	SO4	2	Ligand/Ion	SULFATE ION

Asymmetric Unit (12, 12)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ASP C:20 , HIS C:22 , ASP C:49 , MN C:1002 , SO4 C:3003 , HOH C:3082	BINDING SITE FOR RESIDUE MN C 1001
02	AC2	SOFTWARE	ASP C:49 , ASN C:75 , HIS C:139 , HIS C:186 , MN C:1001 , SO4 C:3003	BINDING SITE FOR RESIDUE MN C 1002
03	AC3	SOFTWARE	ASP B:20 , HIS B:22 , ASP B:49 , MN B:1004 , HOH B:3011 , HOH B:3012 , HOH B:3088	BINDING SITE FOR RESIDUE MN B 1003
04	AC4	SOFTWARE	ASP B:49 , ASN B:75 , HIS B:139 , HIS B:186 , MN B:1003 , SO4 B:3002 , HOH B:3011	BINDING SITE FOR RESIDUE MN B 1004
05	AC5	SOFTWARE	ASP A:49 , ASN A:75 , HIS A:139 , HIS A:186 , MN A:1006 , SO4 A:3001 , HOH A:3056	BINDING SITE FOR RESIDUE MN A 1005
06	AC6	SOFTWARE	ASP A:20 , HIS A:22 , ASP A:49 , MN A:1005 , HOH A:3047 , HOH A:3055 , HOH A:3056	BINDING SITE FOR RESIDUE MN A 1006
07	AC7	SOFTWARE	THR A:203 , GLY A:204 , PHE A:207 , CYS A:208	BINDING SITE FOR RESIDUE HG A 2001
08	AC8	SOFTWARE	THR B:203 , GLY B:204 , CYS B:208	BINDING SITE FOR RESIDUE HG B 2002
09	AC9	SOFTWARE	ASP A:49 , ASN A:75 , HIS A:76 , TRP A:160 , ARG A:162 , HIS A:186 , MN A:1005 , HOH A:3032 , HOH A:3047 , HOH A:3054 , HOH A:3056	BINDING SITE FOR RESIDUE SO4 A 3001
10	BC1	SOFTWARE	ASP B:49 , ASN B:75 , HIS B:76 , ARG B:162 , HIS B:186 , MN B:1004 , HOH B:3011 , HOH B:3088 , HOH B:3090 , ASN C:103	BINDING SITE FOR RESIDUE SO4 B 3002
11	BC2	SOFTWARE	ASP C:20 , HIS C:22 , ASP C:49 , ARG C:53 , ASN C:75 , HIS C:76 , ARG C:162 , HIS C:186 , MN C:1001 , MN C:1002 , HOH C:3019 , HOH C:3082	BINDING SITE FOR RESIDUE SO4 C 3003
12	BC3	SOFTWARE	PHE B:144 , ASP B:145 , GLU B:146 , LYS B:151	BINDING SITE FOR RESIDUE SO4 B 3004

(no "SS Bond" information available for 1G5B)

(no "Cis Peptide Bond" information available for 1G5B)

(no "SAP(SNP)/Variant" information available for 1G5B)

Asymmetric Unit (1, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SER_THR_PHOSPHATASE	PS00125	Serine/threonine specific protein phosphatases signature.	PP_LAMBD	72-77	3	A:72-77 B:72-77 C:72-77

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SER_THR_PHOSPHATASE	PS00125	Serine/threonine specific protein phosphatases signature.	PP_LAMBD	72-77	1	A:72-77 - -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SER_THR_PHOSPHATASE	PS00125	Serine/threonine specific protein phosphatases signature.	PP_LAMBD	72-77	1	- B:72-77 -

Biological Unit 3 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SER_THR_PHOSPHATASE	PS00125	Serine/threonine specific protein phosphatases signature.	PP_LAMBD	72-77	1	- - C:72-77

Biological Unit 4 (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SER_THR_PHOSPHATASE	PS00125	Serine/threonine specific protein phosphatases signature.	PP_LAMBD	72-77	4	- B:72-77 C:72-77

Biological Unit 5 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SER_THR_PHOSPHATASE	PS00125	Serine/threonine specific protein phosphatases signature.	PP_LAMBD	72-77	2	- B:72-77 C:72-77

(no "Exon" information available for 1G5B)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:219
 aligned with PP_LAMBD | P03772 from UniProtKB/Swiss-Prot  Length:221

    Alignment length:219
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
             PP_LAMBD     1 MRYYEKIDGSKYRNIWVVGDLHGCYTNLMNKLDTIGFDNKKDLLISVGDLVDRGAENVECLELITFPWFRAVRGNHEQMMIDGLSERGNVNHWLLNGGGWFFNLDYDKEILAKALAHKADELPLIIELVSKDKKYVICHADYPFDEYEFGKPVDHQQVIWNRERISNSQNGIVKEIKGADTFIFGHTPAVKPLKFANQMYIDTGAVFCGNLTLIQVQGE 219
               SCOP domains d1g5ba_ A: lambda ser/thr protein phosphatase                                                                                                                                                                               SCOP domains
               CATH domains 1g5bA00 A:1-219  [code=3.60.21.10, no name defined]                                                                                                                                                                         CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeee.hhh..eeee.....hhhhhhhhhhhhh......eeee.........hhhhhhhhhhh..eee..hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeee..eeeee................hhhhhhhhhhhhhhhhh..........eeee........eee..eee...hhhhhh...eeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------SER_TH---------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1g5b A   1 MRYYEKIDGSKYRNIWVVGDLHGCYTNLMNKLDTIGFDNKKDLLISVGDLVDRGAENVECLELITFPWFRAVRGNHEQMMIDGLSERGNVNHWLLNGGGWFFNLDYDKEILAKALAHKADELPLIIELVSKDKKYVICHADYPFDEYEFGKPVDHQQVIWNRERISNSQNGIVKEIKGADTFIFGHTPAVKPLKFANQMYIDTGAVFCGNLTLIQVQGA 219
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210

Chain B from PDB  Type:PROTEIN  Length:221
 aligned with PP_LAMBD | P03772 from UniProtKB/Swiss-Prot  Length:221

    Alignment length:221
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
             PP_LAMBD     1 MRYYEKIDGSKYRNIWVVGDLHGCYTNLMNKLDTIGFDNKKDLLISVGDLVDRGAENVECLELITFPWFRAVRGNHEQMMIDGLSERGNVNHWLLNGGGWFFNLDYDKEILAKALAHKADELPLIIELVSKDKKYVICHADYPFDEYEFGKPVDHQQVIWNRERISNSQNGIVKEIKGADTFIFGHTPAVKPLKFANQMYIDTGAVFCGNLTLIQVQGEGA 221
               SCOP domains d1g5bb_ B: lambda ser/thr protein phosphatase                                                                                                                                                                                 SCOP domains
               CATH domains 1g5bB00 B:1-221  [code=3.60.21.10, no name defined]                                                                                                                                                                           CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeee.hhh..eeee.....hhhhhhhhhhhhh......eeee.........hhhhhhhhhhh..eee..hhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeee....eeeee...............hhhhhhhhhhhhhhhhh..........eeee........eee..eee...hhhhhh...eeeee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------SER_TH------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1g5b B   1 MRYYEKIDGSKYRNIWVVGDLHGCYTNLMNKLDTIGFDNKKDLLISVGDLVDRGAENVECLELITFPWFRAVRGNHEQMMIDGLSERGNVNHWLLNGGGWFFNLDYDKEILAKALAHKADELPLIIELVSKDKKYVICHADYPFDEYEFGKPVDHQQVIWNRERISNSQNGIVKEIKGADTFIFGHTPAVKPLKFANQMYIDTGAVFCGNLTLIQVQGAGA 221
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220

Chain C from PDB  Type:PROTEIN  Length:221
 aligned with PP_LAMBD | P03772 from UniProtKB/Swiss-Prot  Length:221

    Alignment length:221
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220
             PP_LAMBD     1 MRYYEKIDGSKYRNIWVVGDLHGCYTNLMNKLDTIGFDNKKDLLISVGDLVDRGAENVECLELITFPWFRAVRGNHEQMMIDGLSERGNVNHWLLNGGGWFFNLDYDKEILAKALAHKADELPLIIELVSKDKKYVICHADYPFDEYEFGKPVDHQQVIWNRERISNSQNGIVKEIKGADTFIFGHTPAVKPLKFANQMYIDTGAVFCGNLTLIQVQGEGA 221
               SCOP domains d1g5bc_ C: lambda ser/thr protein phosphatase                                                                                                                                                                                 SCOP domains
               CATH domains 1g5bC00 C:1-221  [code=3.60.21.10, no name defined]                                                                                                                                                                           CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeee.hhh..eeee.....hhhhhhhhhhhh.......eeee.........hhhhhhhhhhh..eee..hhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeee....eeeee...............hhhhhhhhhhhhhhhhh..........eeee........eee..eee...hhhhhh...eeeee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------SER_TH------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1g5b C   1 MRYYEKIDGSKYRNIWVVGDLHGCYTNLMNKLDTIGFDNKKDLLISVGDLVDRGAENVECLELITFPWFRAVRGNHEQMMIDGLSERGNVNHWLLNGGGWFFNLDYDKEILAKALAHKADELPLIIELVSKDKKYVICHADYPFDEYEFGKPVDHQQVIWNRERISNSQNGIVKEIKGADTFIFGHTPAVKPLKFANQMYIDTGAVFCGNLTLIQVQGAGA 221
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Metallo-dependent phosphatases (115)

Superfamily: Metallo-dependent phosphatases (115)

Family: Protein serine/threonine phosphatase (50)

Protein domain: lambda ser/thr protein phosphatase (1)

Bacteriophage lambda [TaxId: 10710] (1)

1a	d1g5ba_	A:
1b	d1g5bb_	B:
1c	d1g5bc_	C:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 4-Layer Sandwich (459)

Topology: Purple Acid Phosphatase; chain A, domain 2 (87)

Homologous Superfamily: [code=3.60.21.10, no name defined] (83)

Enterobacteria phage lambda. Organism_taxid: 10710. (1)

1a	1g5bB00	B:1-221
1b	1g5bC00	C:1-221
1c	1g5bA00	A:1-219

(no "Pfam Domain" information available for 1G5B)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C (PP_LAMBD | P03772)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0004721	phosphoprotein phosphatase activity	Catalysis of the reaction: a phosphoprotein + H2O = a protein + phosphate. Together with protein kinases, these enzymes control the state of phosphorylation of cell proteins and thereby provide an important mechanism for regulating cellular activity.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0006470	protein dephosphorylation	The process of removing one or more phosphoric residues from a protein.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		HG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1g5b)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1g5b
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	PP_LAMBD \| P03772
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.1.3.-
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	PP_LAMBD \| P03772
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1G5B)

(no "Related Entries Specified in the PDB File" available for 1G5B)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 12)

Sites (12, 12)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 3)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 3)

CATH Domains (1, 3)

Pfam Domains (0, 0)

Gene Ontology (5, 5)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
