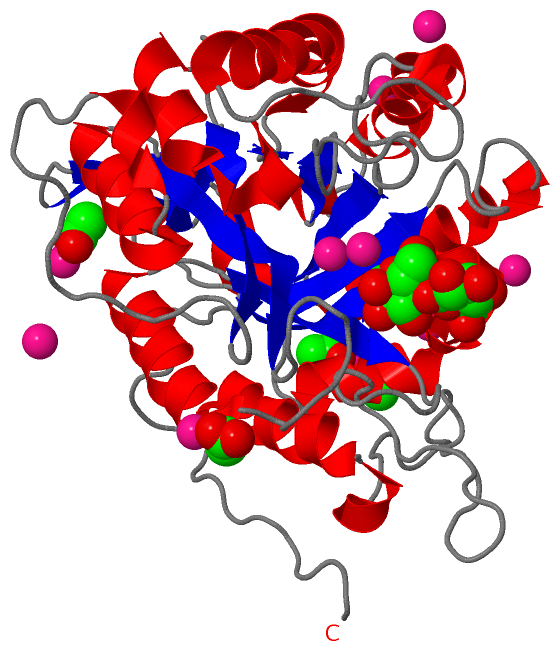

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

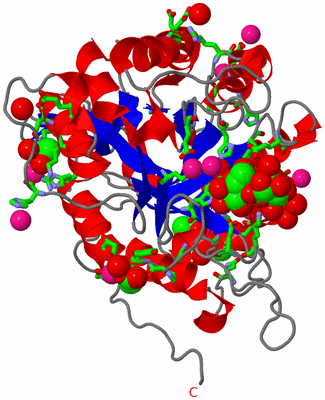

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  ALKALINE CELLULASE K CATALYTIC DOMAIN-CELLOBIOSE COMPLEX

Authors :  T. Shirai, H. Ishida, J. Noda, T. Yamane, K. Ozaki, Y. Hakamada, S. Ito
Date :  05 Oct 00  (Deposition) - 01 Aug 01  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Alpha/Beta Barrel, Tim-Barrel, Cellobiose Complex, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Shirai, H. Ishida, J. Noda, T. Yamane, K. Ozaki, Y. Hakamada, S. Ito
Crystal Structure Of Alkaline Cellulase K: Insight Into The Alkaline Adaptation Of An Industrial Enzyme.
J. Mol. Biol. V. 310 1079 2001
PubMed-ID: 11501997  |  Reference-DOI: 10.1006/JMBI.2001.4835

(-) Compounds

Molecule 1 - ENDOGLUCANASE
    Chains: A
    EC Number: 3.2.1.4
    Engineered: YES
    Expression System: BACILLUS SUBTILIS
    Expression System Plasmid: PHSP-BC115B
    Expression System Taxid: 1423
    Expression System Vector Type: PLASMID
    Fragment: ALKALINE CELLULASE K CATALYTIC DOMAIN
    Organism Scientific: BACILLUS SP.
    Organism Taxid: 1415
    Strain: KSM-635

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 15)

Asymmetric/Biological Unit (3, 15)
No.NameCountTypeFull Name
1ACY4Ligand/IonACETIC ACID
2CBI1Ligand/IonCELLOBIOSE
3CD10Ligand/IonCADMIUM ION

(-) Sites  (15, 15)

Asymmetric Unit (15, 15)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREHIS A:265 , TRP A:269 , TYR A:296 , GLU A:299 , HIS A:333 , TRP A:519 , LYS A:524 , GLU A:526 , HOH A:690 , HOH A:820 , HOH A:898 , HOH A:990BINDING SITE FOR RESIDUE CBI A 585
02AC2SOFTWAREGLU A:276 , GLU A:321 , GLU A:463 , HOH A:720BINDING SITE FOR RESIDUE CD A 586
03AC3SOFTWAREHIS A:322 , ACY A:597 , ACY A:598 , HOH A:879BINDING SITE FOR RESIDUE CD A 587
04AC4SOFTWAREASP A:359 , GLU A:403BINDING SITE FOR RESIDUE CD A 588
05AC5SOFTWAREGLU A:396 , ASP A:500 , GLU A:501 , ACY A:596BINDING SITE FOR RESIDUE CD A 589
06AC6SOFTWAREHIS A:356 , HIS A:452 , HOH A:712 , HOH A:713 , HOH A:886BINDING SITE FOR RESIDUE CD A 590
07AC7SOFTWAREHIS A:512 , ACY A:599 , HOH A:973 , HOH A:1055BINDING SITE FOR RESIDUE CD A 591
08AC8SOFTWAREGLU A:373 , GLU A:485 , HOH A:979 , HOH A:980 , HOH A:981 , HOH A:1057BINDING SITE FOR RESIDUE CD A 592
09AC9SOFTWAREHIS A:333 , HOH A:981 , HOH A:982BINDING SITE FOR RESIDUE CD A 593
10BC1SOFTWAREGLU A:351 , HOH A:1026BINDING SITE FOR RESIDUE CD A 594
11BC2SOFTWAREGLU A:314 , HOH A:890 , HOH A:1040 , HOH A:1041 , HOH A:1042 , HOH A:1056BINDING SITE FOR RESIDUE CD A 595
12BC3SOFTWAREARG A:339 , GLU A:396 , PRO A:497 , TYR A:498 , GLU A:501 , CD A:589 , HOH A:665 , HOH A:707BINDING SITE FOR RESIDUE ACY A 596
13BC4SOFTWAREVAL A:280 , HIS A:322 , GLN A:550 , CD A:587 , ACY A:598 , HOH A:873 , HOH A:941 , HOH A:948BINDING SITE FOR RESIDUE ACY A 597
14BC5SOFTWAREASN A:284 , GLU A:321 , HIS A:322 , CD A:587 , ACY A:597 , HOH A:879BINDING SITE FOR RESIDUE ACY A 598
15BC6SOFTWAREGLN A:246 , ARG A:472 , ASP A:476 , HIS A:512 , CD A:591 , HOH A:725BINDING SITE FOR RESIDUE ACY A 599

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1G0C)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1Ala A:334 -Pro A:335
2Gly A:496 -Pro A:497
3Trp A:519 -Ser A:520

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1G0C)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLYCOSYL_HYDROL_F5PS00659 Glycosyl hydrolases family 5 signature.GUN_BACS6366-375  1A:366-375

(-) Exons   (0, 0)

(no "Exon" information available for 1G0C)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:358
 aligned with GUN_BACS6 | P19424 from UniProtKB/Swiss-Prot  Length:941

    Alignment length:384
                                   206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506       516       526       536       546       556       566       576
            GUN_BACS6   197 PKRNSTREQSAKVISTLLWKVASHDYLYHTEAVKSPSEAGALQLVELNGQLTLAGEDGTPVQLRGMSTHGLQWFGEIVNENAFVALSNDWGSNMIRLAMYIGENGYATNPEVKDLVYEGIELAFEHDMYVIVDWHVHAPGDPRADVYSGAYDFFEEIADHYKDHPKNHYIIWELANEPSPNNNGGPGLTNDEKGWEAVKEYAEPIVEMLREKGDNMILVGNPNWSQRPDLSADNPIDAENIMYSVHFYTGSHGASHIGYPEGTPSSERSNVMANVRYALDNGVAVFATEWGTSQANGDGGPYFDEADVWLNFLNKHNISWANWSLTNKNEISGAFTPFELGRTDATDLDPGANQVWAPEELSLSGEYVRARIKGIEYTPIDRTK 580
               SCOP domains d1g                          0ca_ A: Alkaline cellulase K catalytic domain                                                                                                                                                                                                                                                                                                                       SCOP domains
               CATH domains 1g0                          cA00 A:223-580 Glycosidases                                                                                                                                                                                                                                                                                                                                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...--------------------------.....hhhhhh..eeeee..eeeee.........eeeee.hhhhhhhhhhhhhhhhhhh.....eeeeee.........hhhhhhhhhhhhhhhhhh..eeeeee.........hhhhhhhhhhhhhhhhhhh...hhh.eeee.................hhhhhhhhhhhhhhhhhhhhhhh...eee.hhhhhhhhhhhhhh......eeeeeeee...............hhhhh.hhhhhhhhhhhh..eeeeeeee..........hhhhhhhhhhhhhhh...eeeeee...............................hhhh.hhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLYCOSYL_H------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1g0c A 223 PAG--------------------------MQAVKSPSEAGALQLVELNGQLTLAGEDGTPVQLRGMSTHGLQWFGEIVNENAFVALSNDWGSNMIRLAMYIGENGYATNPEVKDLVYEGIELAFEHDMYVIVDWHVHAPGDPRADVYSGAYDFFEEIADHYKDHPKNHYIIWELANEPSPNNNGGPGLTNDEKGWEAVKEYAEPIVEMLREKGDNMILVGNPNWSQRPDLSADNPIDAENIMYSVHFYTGSHGASHIGYPEGTPSSERSNVMANVRYALDNGVAVFATEWGTSQANGDGGPYFDEADVWLNFLNKHNISWANWSLTNKNEISGAFTPFELGRTDATDLDPGANQVWAPEELSLSGEYVRARIKGIEYTPIDRTK 580
                              |      -         -       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506       516       526       536       546       556       566       576
                              |                        226
                            225
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1G0C)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (GUN_BACS6 | P19424)
molecular function
    GO:0008810    cellulase activity    Catalysis of the endohydrolysis of (1->4)-beta-D-glucosidic linkages in cellulose, lichenin and cereal beta-D-glucans.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0030245    cellulose catabolic process    The chemical reactions and pathways resulting in the breakdown of cellulose, a linear beta1-4 glucan of molecular mass 50-400 kDa with the pyranose units in the -4C1 conformation.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0000272    polysaccharide catabolic process    The chemical reactions and pathways resulting in the breakdown of a polysaccharide, a polymer of many (typically more than 10) monosaccharide residues linked glycosidically.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ACY  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CBI  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:334 - Pro A:335   [ RasMol ]
    Gly A:496 - Pro A:497   [ RasMol ]
    Trp A:519 - Ser A:520   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

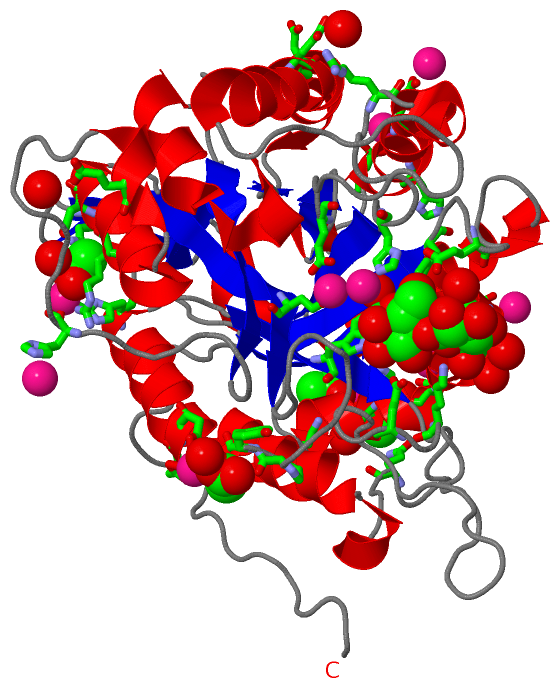

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1g0c
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GUN_BACS6 | P19424
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.2.1.4
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GUN_BACS6 | P19424
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GUN_BACS6 | P19424: 1g01

(-) Related Entries Specified in the PDB File

1g01 1G01 CONTAINS ALKALINE CELLULASE K CATALYTIC DOMAIN.
