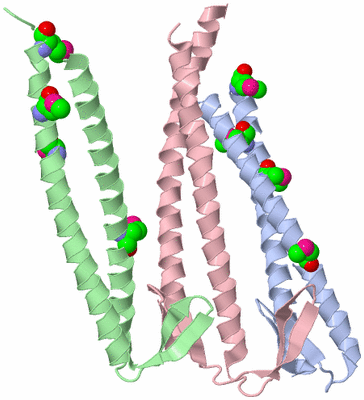

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

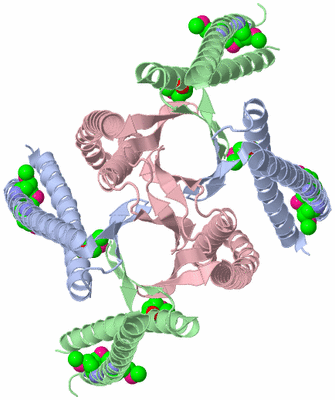

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF ARCHAEAL PREFOLDIN (GIMC).

Authors :  R. Siegert, C. Scheufler, I. Moarefi
Date :  26 Sep 00  (Deposition) - 06 Dec 00  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A,B,C  (2x)
Keywords :  Archaeal Protein, Chaperone (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Siegert, M. R. Leroux, C. Scheufler, F. U. Hartl, I. Moarefi
Structure Of The Molecular Chaperone Prefoldin: Unique Interaction Of Multiple Coiled Coil Tentacles With Unfolded Proteins.
Cell(Cambridge, Mass. ) V. 103 621 2000
PubMed-ID: 11106732  |  Reference-DOI: 10.1016/S0092-8674(00)00165-3

(-) Compounds

Molecule 1 - PREFOLDIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: METHANOTHERMOBACTER THERMAUTOTROPHICUS
    Organism Taxid: 145262

Molecule 2 - PREFOLDIN
    Chains: B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: METHANOTHERMOBACTER THERMAUTOTROPHICUS
    Organism Taxid: 145262

Molecule 3 - PROTEIN (PREFOLDIN)
    Chains: C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: METHANOTHERMOBACTER THERMAUTOTROPHICUS
    Organism Taxid: 145262

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (2x): ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 8)

Asymmetric Unit (1, 8)
No.NameCountTypeFull Name
1MSE8Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 16)
No.NameCountTypeFull Name
1MSE16Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 1FXK)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1FXK)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1FXK)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1FXK)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1FXK)

(-) Exons   (0, 0)

(no "Exon" information available for 1FXK)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:107
 aligned with PFDB_METTH | O26774 from UniProtKB/Swiss-Prot  Length:121

    Alignment length:107
                                    14        24        34        44        54        64        74        84        94       104
           PFDB_METTH     5 QNVQHQLAQFQQLQQQAQAISVQKQTVEMQINETQKALEELSRAADDAEVYKSSGNILIRVAKDELTEELQEKLETLQLREKTIERQEERVMKKLQEMQVNIQEAMK 111
               SCOP domains d1fxka_ A: Prefoldin beta subunit                                                                           SCOP domains
               CATH domains 1fxkA00 A:5-111  [code=1.10.287.370, no name defined]                                                       CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeee..eeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                 1fxk A   5 QNVQHQLAQFQQLQQQAQAISVQKQTVEmQINETQKALEELSRAADDAEVYKSSGNILIRVAKDELTEELQEKLETLQLREKTIERQEERVmKKLQEmQVNIQEAmK 111
                                    14        24        34        44        54        64        74        84        94 |     104     |
                                                       33-MSE                                                         96-MSE |     110-MSE
                                                                                                                           102-MSE


Chain B from PDB  Type:PROTEIN  Length:109
 aligned with PFDB_METTH | O26774 from UniProtKB/Swiss-Prot  Length:121

    Alignment length:109
                                    15        25        35        45        55        65        75        85        95       105
           PFDB_METTH     6 NVQHQLAQFQQLQQQAQAISVQKQTVEMQINETQKALEELSRAADDAEVYKSSGNILIRVAKDELTEELQEKLETLQLREKTIERQEERVMKKLQEMQVNIQEAMKGAG 114
               SCOP domains d1fxkb_ B: Prefoldin beta subunit                                                                             SCOP domains
               CATH domains 1fxkB00 B:6-114  [code=1.10.287.370, no name defined]                                                         CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeee..eeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------- Transcript
                 1fxk B   6 NVQHQLAQFQQLQQQAQAISVQKQTVEmQINETQKALEELSRAADDAEVYKSSGNILIRVAKDELTEELQEKLETLQLREKTIERQEERVmKKLQEmQVNIQEAmKGAG 114
                                    15        25       |35        45        55        65        75        85        95|     |105    |
                                                      33-MSE                                                         96-MSE |     110-MSE
                                                                                                                          102-MSE


Chain C from PDB  Type:PROTEIN  Length:133
 aligned with PFDA_METTH | O27646 from UniProtKB/Swiss-Prot  Length:141

    Alignment length:133
                                    14        24        34        44        54        64        74        84        94       104       114       124       134
           PFDA_METTH     5 QRLEEIVNQLNIYQSQVELIQQQMEAVRATISELEILEKTLSDIQGKDGSETLVPVGAGSFIKAELKDTSEVIMSVGAGVAIKKNFEDAMESIKSQKNELESTLQKMGENLRKITDIMMKLSPQAEELLKKVR 137
               SCOP domains d1fxkc_ C: Prefoldin alpha subunit                                                                                                    SCOP domains
               CATH domains 1fxkC00 C:5-137  [code=1.10.287.370, no name defined]                                                                                 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..eeeeee.....eeeeeee..eeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1fxk C   5 AALAEIVAQLNIYQSQVELIQQQMEAVRATISELEILEKTLSDIQGKDGSETLVPVGAGSFIKAELKDTSEVIMSVGAGVAIKKNFEDAMESIKSQKNELESTLQKMGENLRAITDIMMKLSPQAEELLAAVA 137
                                    14        24        34        44        54        64        74        84        94       104       114       124       134
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 3)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 3)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1FXK)

(-) Gene Ontology  (4, 8)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (PFDB_METTH | O26774)
molecular function
    GO:0051082    unfolded protein binding    Interacting selectively and non-covalently with an unfolded protein.
biological process
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0016272    prefoldin complex    A multisubunit chaperone that is capable of delivering unfolded proteins to cytosolic chaperonin, which it acts as a cofactor for. In humans, the complex is a heterohexamer of two PFD-alpha and four PFD-beta type subunits. In Saccharomyces cerevisiae, it also acts in the nucleus to regulate the rate of elongation by RNA polymerase II via a direct effect on histone dynamics.

Chain C   (PFDA_METTH | O27646)
molecular function
    GO:0051082    unfolded protein binding    Interacting selectively and non-covalently with an unfolded protein.
biological process
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0016272    prefoldin complex    A multisubunit chaperone that is capable of delivering unfolded proteins to cytosolic chaperonin, which it acts as a cofactor for. In humans, the complex is a heterohexamer of two PFD-alpha and four PFD-beta type subunits. In Saccharomyces cerevisiae, it also acts in the nucleus to regulate the rate of elongation by RNA polymerase II via a direct effect on histone dynamics.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 1fxk)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1fxk)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

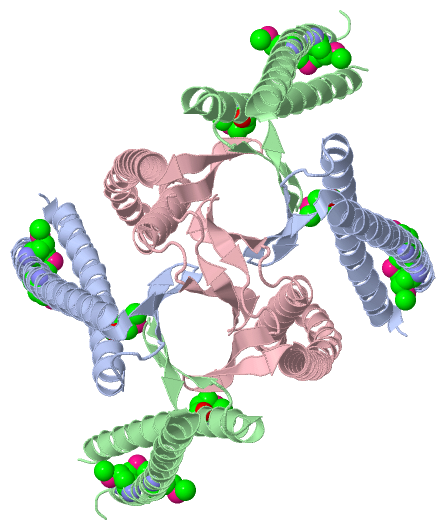

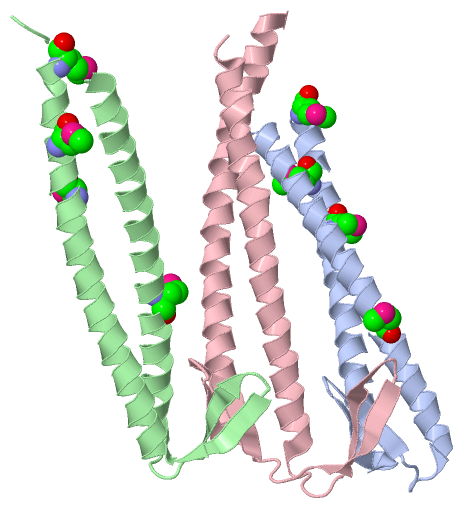

[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
