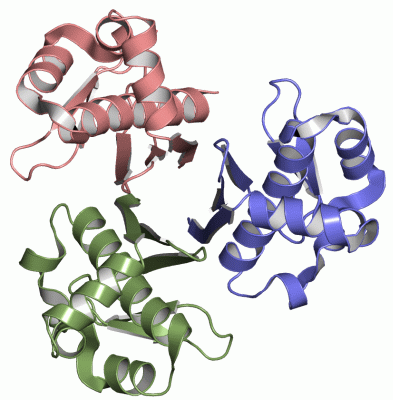

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

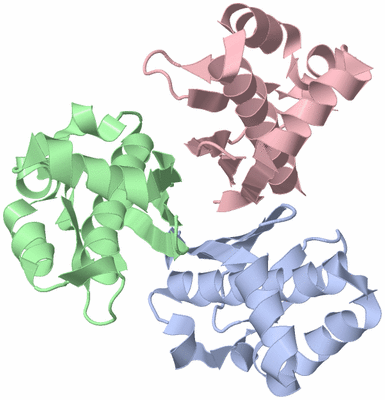

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF STREPTOCOCCUS PNEUMONIAE ACYL CARRIER PROTEIN SYNTHASE (NATIVE 2)

Authors :  N. Chirgadze, S. Briggs, K. Mcallister, A. Fischl, G. Zhao
Date :  12 Sep 00  (Deposition) - 12 Sep 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.05
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Bacterial Fatty Acid Biosynthesis, Acyl Carrier Synthase, Coenzyme A, X-Ray Crystallography, Structure-Based Drug Design, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Y. Chirgadze, S. L. Briggs, K. A. Mcallister, A. S. Fischl, G. Zhao
Crystal Structure Of Streptococcus Pneumoniae Acyl Carrier Protein Synthase: An Essential Enzyme In Bacterial Fatty Acid Biosynthesis.
Embo J. V. 19 5281 2000
PubMed-ID: 11032795  |  Reference-DOI: 10.1093/EMBOJ/19.20.5281
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ACYL CARRIER PROTEIN SYNTHASE
    Chains: A, B, C
    EC Number: 2.7.8.7
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: STREPTOCOCCUS PNEUMONIAE
    Organism Taxid: 1313
    Synonym: ACPS

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1FTF)

(-) Sites  (0, 0)

(no "Site" information available for 1FTF)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1FTF)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1FTF)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1FTF)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1FTF)

(-) Exons   (0, 0)

(no "Exon" information available for 1FTF)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:116
 aligned with ACPS_STRPN | P0A2W6 from UniProtKB/Swiss-Prot  Length:120

    Alignment length:116
                                    10        20        30        40        50        60        70        80        90       100       110
          ACPS_STRPN      1 MIVGHGIDIEELASIESAVTRHEGFAKRVLTAQEMERFTSLKGRRQIEYLAGRWSAKEAFSKAMGTGISKLGFQDLEVLNNERGAPYFSQAPFSGKIWLSISHTDQFVTASVILEE  116
               SCOP domains d1ftfa_ A: Holo-(acyl carrier protein) synthase ACPS                                                                 SCOP domains
               CATH domains 1ftfA00 A:1003-1118 4'-phosphopantetheinyl transferase                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhheeee.....eeeee.....eeeeeeee...eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                1ftf A 1003 MIVGHGIDIEELASIESAVTRHEGFAKRVLTALEMERFTSLKGRRQIEYLAGRWSAKEAFSKAMGTGISKLGFQDLEVLNNERGAPYFSQAPFSGKIWLSISHTDQFVTASVILEE 1118
                                  1012      1022      1032      1042      1052      1062      1072      1082      1092      1102      1112


Chain B from PDB  Type:PROTEIN  Length:116
 aligned with ACPS_STRPN | P0A2W6 from UniProtKB/Swiss-Prot  Length:120

    Alignment length:116
                                    10        20        30        40        50        60        70        80        90       100       110
          ACPS_STRPN      1 MIVGHGIDIEELASIESAVTRHEGFAKRVLTAQEMERFTSLKGRRQIEYLAGRWSAKEAFSKAMGTGISKLGFQDLEVLNNERGAPYFSQAPFSGKIWLSISHTDQFVTASVILEE  116
               SCOP domains d1ftfb_ B: Holo-(acyl carrier protein) synthase ACPS                                                                 SCOP domains
               CATH domains 1ftfB00 B:2003-2118 4'-phosphopantetheinyl transferase                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeeehhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhheeee.....eeeee.....eeeeeeee...eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                1ftf B 2003 MIVGHGIDIEELASIESAVTRHEGFAKRVLTALEMERFTSLKGRRQIEYLAGRWSAKEAFSKAMGTGISKLGFQDLEVLNNERGAPYFSQAPFSGKIWLSISHTDQFVTASVILEE 2118
                                  2012      2022      2032      2042      2052      2062      2072      2082      2092      2102      2112


Chain C from PDB  Type:PROTEIN  Length:110
 aligned with ACPS_STRPN | P0A2W6 from UniProtKB/Swiss-Prot  Length:120

    Alignment length:116
                                    10        20        30        40        50        60        70        80        90       100       110
          ACPS_STRPN      1 MIVGHGIDIEELASIESAVTRHEGFAKRVLTAQEMERFTSLKGRRQIEYLAGRWSAKEAFSKAMGTGISKLGFQDLEVLNNERGAPYFSQAPFSGKIWLSISHTDQFVTASVILEE  116
               SCOP domains d1ftfc_ C: Holo-(acyl carrier protein) synthase ACPS                                                                 SCOP domains
               CATH domains 1ftfC00 C:3003-3118 4'-phosphopantetheinyl transferase                                                               CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeeehhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh------hhhhheeee.....eeeee.....eeeeeeee...eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                1ftf C 3003 MIVGHGIDIEELASIESAVTRHEGFAKRVLTALEMERFTSLKGRRQIEYLAGRWSAKEAFSKAMG------GFQDLEVLNNERGAPYFSQAPFSGKIWLSISHTDQFVTASVILEE 3118
                                  3012      3022      3032      3042      3052      3062    |    - |    3082      3092      3102      3112
                                                                                         3067   3074
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1FTF)

(-) Gene Ontology  (9, 9)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C   (ACPS_STRPN | P0A2W6)
molecular function
    GO:0008897    holo-[acyl-carrier-protein] synthase activity    Catalysis of the reaction: CoA + substrate-serine = adenosine 3',5'-bisphosphate + substrate-serine-4'-phosphopantetheine. The transfer of the 4'-phosphopantetheine (Ppant) co-factor from coenzyme A to the hydroxyl side chain of the serine residue of acyl- or peptidyl-carrier protein (ACP or PCP) to convert them from the apo to the holo form.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006633    fatty acid biosynthetic process    The chemical reactions and pathways resulting in the formation of a fatty acid, any of the aliphatic monocarboxylic acids that can be liberated by hydrolysis from naturally occurring fats and oils. Fatty acids are predominantly straight-chain acids of 4 to 24 carbon atoms, which may be saturated or unsaturated; branched fatty acids and hydroxy fatty acids also occur, and very long chain acids of over 30 carbons are found in waxes.
    GO:0006631    fatty acid metabolic process    The chemical reactions and pathways involving fatty acids, aliphatic monocarboxylic acids liberated from naturally occurring fats and oils by hydrolysis.
    GO:0006629    lipid metabolic process    The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ftf)

  Sites
(no "Sites" information available for 1ftf)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ftf)


(-) Still Images

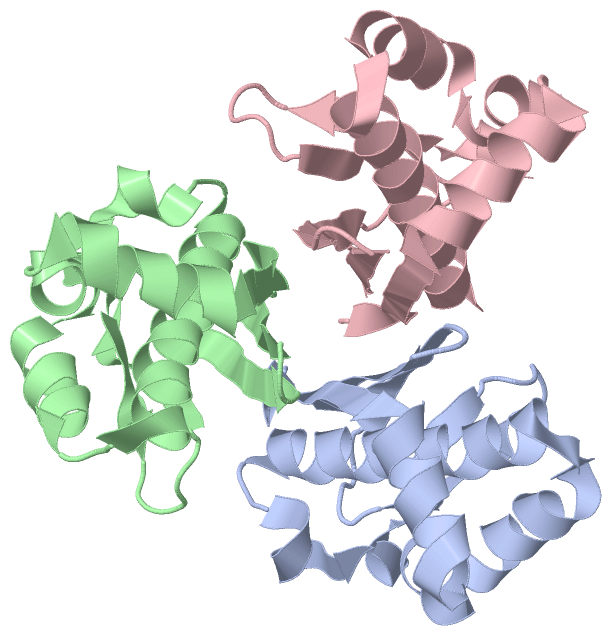

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ftf
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ACPS_STRPN | P0A2W6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.8.7
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ACPS_STRPN | P0A2W6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ACPS_STRPN | P0A2W6: 1fte 1fth

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1FTF)
