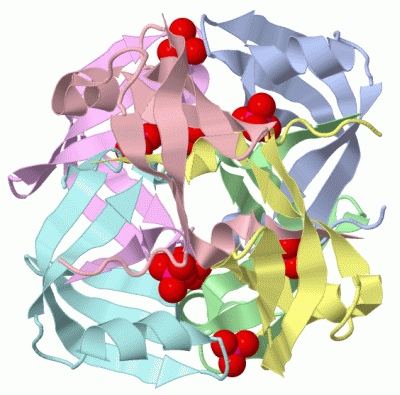

Biol.Unit 1 - manually (Jmol Viewer)

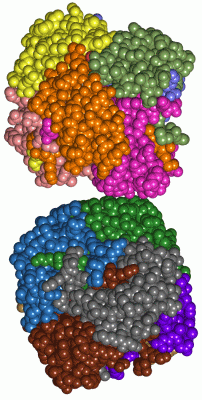

Asym.Unit - manually (Jmol Viewer)

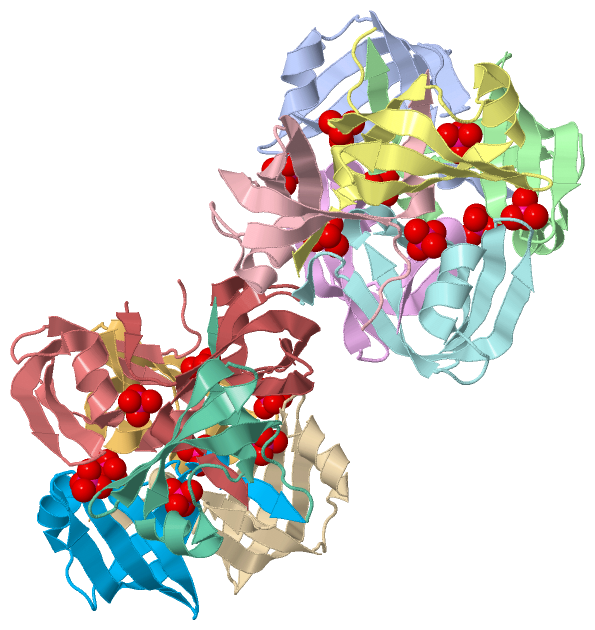

Asymmetric Unit (Jmol Viewer)

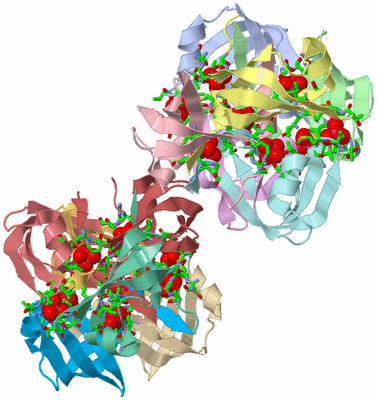

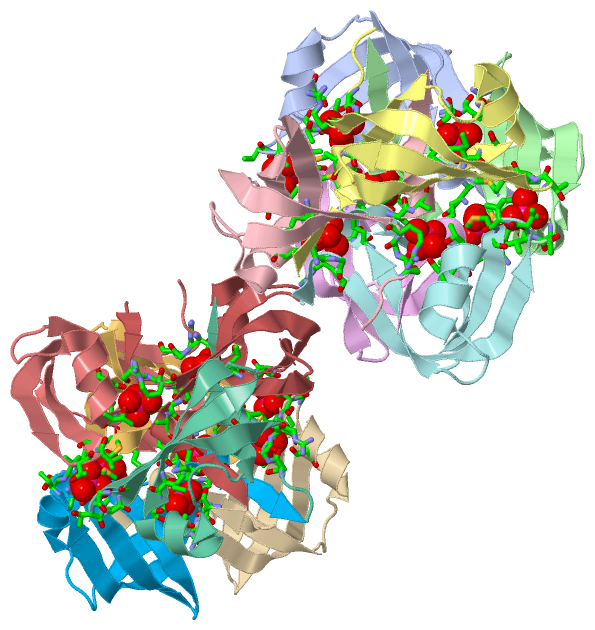

Asym. Unit - sites (Jmol Viewer)

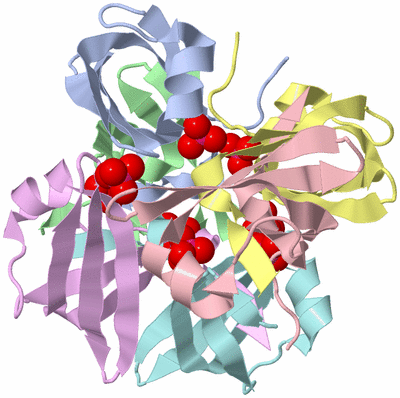

Biological Unit 1 (Jmol Viewer)

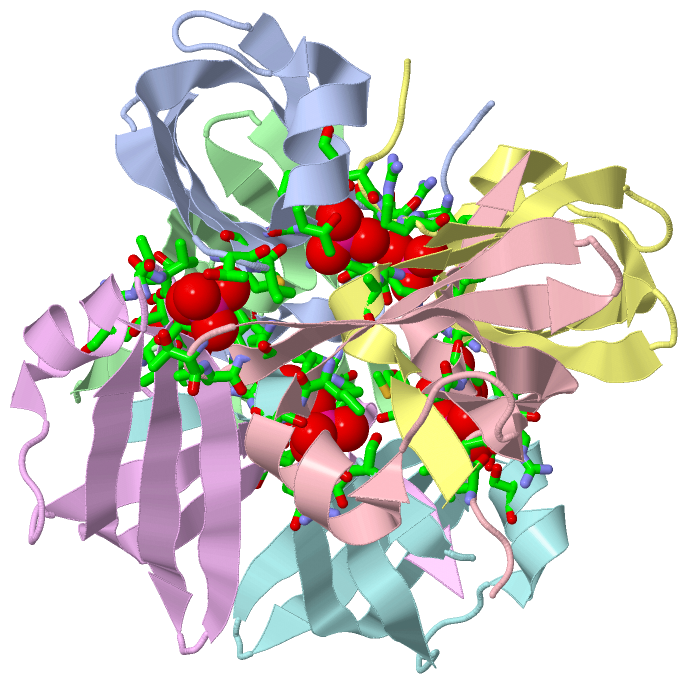

Biol. Unit 1 - sites (Jmol Viewer)

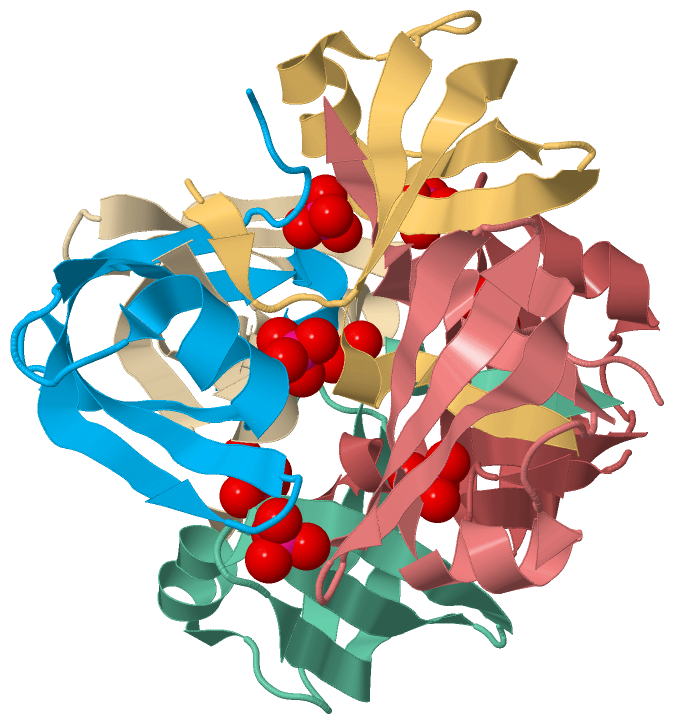

Biological Unit 2 (Jmol Viewer)

Title :   THE HIGH RESOLUTION STRUCTURE OF A MOLYBDATE BINDING PROTEIN FROM SPOROMUSA OVATA

Authors :   U. G. Wagner, E. Stupperich, C. Kratky

Date :   07 Sep 00 (Deposition) - 06 Dec 00 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.50

Chains :   Asym. Unit : A,B,C,D,E,F,G,H,I,J,K,L
Biol. Unit 1: A,B,C,D,E,F  (1x)
Biol. Unit 2: G,H,I,J,K,L  (1x)

Keywords :   Molybdate, Tungstate, Molybdate Homeostasis, Metal Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   U. G. Wagner, E. Stupperich, C. Kratky
Structure Of The Molybdate/Tungstate Binding Protein Mop From Sporomusa Ovata.
Structure Fold. Des. V. 8 1127 2000
PubMed-ID: 11080635 | Reference-DOI: 10.1016/S0969-2126(00)00525-6
(for further references see the PDB file header)

Molecule 1 - MOLYBDATE/TUNGSTATE BINDING PROTEIN
	Chains	:	A, B, C, D, E, F, G, H, I, J, K, L
	Organism Scientific	:	SPOROMUSA OVATA
	Organism Taxid	:	2378
	Synonym	:	MOP

		1	2	3	4	5	6	7	8	9	10	11	12
Asymmetric Unit	:	A	B	C	D	E	F	G	H	I	J	K	L
Biological Unit 1 (1x)	:	A	B	C	D	E	F
Biological Unit 2 (1x)	:							G	H	I	J	K	L

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 16)

No.	Name	Count	Type	Full Name
1	WO4	16	Ligand/Ion	TUNGSTATE(VI)ION

Biological Unit 1 (1, 8)

No.	Name	Count	Type	Full Name
1	WO4	8	Ligand/Ion	TUNGSTATE(VI)ION

Biological Unit 2 (1, 8)

No.	Name	Count	Type	Full Name
1	WO4	8	Ligand/Ion	TUNGSTATE(VI)ION

Asymmetric Unit (16, 16)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	GLU A:64 , ILE B:38 , THR B:39 , SER B:42 , SER E:4 , GLY E:5 , ARG E:6 , LYS E:59 , ALA E:60	BINDING SITE FOR RESIDUE WO4 E 401
02	AC2	SOFTWARE	SER B:4 , GLY B:5 , ARG B:6 , LYS B:59 , ALA B:60 , ILE E:38 , THR E:39 , SER E:42	BINDING SITE FOR RESIDUE WO4 B 402
03	AC3	SOFTWARE	ILE C:38 , THR C:39 , SER C:42 , SER F:4 , GLY F:5 , ARG F:6 , LYS F:59 , ALA F:60	BINDING SITE FOR RESIDUE WO4 F 403
04	AC4	SOFTWARE	SER C:4 , GLY C:5 , ARG C:6 , LYS C:59 , ALA C:60 , ILE F:38 , THR F:39 , SER F:42	BINDING SITE FOR RESIDUE WO4 C 404
05	AC5	SOFTWARE	SER A:4 , GLY A:5 , ARG A:6 , LYS A:59 , ALA A:60 , ILE D:38 , THR D:39 , SER D:42	BINDING SITE FOR RESIDUE WO4 A 405
06	AC6	SOFTWARE	ILE A:38 , THR A:39 , SER A:42 , SER D:4 , GLY D:5 , ARG D:6 , LYS D:59 , ALA D:60	BINDING SITE FOR RESIDUE WO4 D 406
07	AC7	SOFTWARE	ILE H:38 , THR H:39 , SER H:42 , SER K:4 , GLY K:5 , ARG K:6 , LYS K:59 , ALA K:60	BINDING SITE FOR RESIDUE WO4 K 407
08	AC8	SOFTWARE	SER H:4 , GLY H:5 , ARG H:6 , LYS H:59 , ALA H:60 , ILE K:38 , THR K:39 , SER K:42	BINDING SITE FOR RESIDUE WO4 H 408
09	AC9	SOFTWARE	ILE I:38 , THR I:39 , SER I:42 , SER L:4 , GLY L:5 , ARG L:6 , LYS L:59 , ALA L:60	BINDING SITE FOR RESIDUE WO4 L 409
10	BC1	SOFTWARE	SER I:4 , GLY I:5 , ARG I:6 , LYS I:59 , ALA I:60 , ILE L:38 , THR L:39 , SER L:42	BINDING SITE FOR RESIDUE WO4 I 410
11	BC2	SOFTWARE	SER G:4 , GLY G:5 , ARG G:6 , LYS G:59 , ALA G:60 , ILE J:38 , THR J:39 , SER J:42	BINDING SITE FOR RESIDUE WO4 G 411
12	BC3	SOFTWARE	ILE G:38 , THR G:39 , SER G:42 , GLU H:64 , SER J:4 , GLY J:5 , ARG J:6 , LYS J:59 , ALA J:60	BINDING SITE FOR RESIDUE WO4 J 412
13	BC4	SOFTWARE	THR B:20 , VAL B:21 , MET B:22 , THR D:20 , VAL D:21 , MET D:22 , THR F:20 , VAL F:21 , MET F:22	BINDING SITE FOR RESIDUE WO4 B 413
14	BC5	SOFTWARE	THR A:20 , VAL A:21 , MET A:22 , THR C:20 , VAL C:21 , MET C:22 , THR E:20 , VAL E:21 , MET E:22	BINDING SITE FOR RESIDUE WO4 A 414
15	BC6	SOFTWARE	THR H:20 , VAL H:21 , MET H:22 , THR J:20 , VAL J:21 , MET J:22 , GLY L:19 , THR L:20 , VAL L:21 , MET L:22	BINDING SITE FOR RESIDUE WO4 L 415
16	BC7	SOFTWARE	THR G:20 , VAL G:21 , MET G:22 , THR I:20 , VAL I:21 , MET I:22 , THR K:20 , VAL K:21 , MET K:22	BINDING SITE FOR RESIDUE WO4 G 416

(no "SS Bond" information available for 1FR3)

(no "Cis Peptide Bond" information available for 1FR3)

(no "SAP(SNP)/Variant" information available for 1FR3)

(no "PROSITE Motif" information available for 1FR3)

(no "Exon" information available for 1FR3)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:67
 aligned with Q7SIF7_9FIRM | Q7SIF7 from UniProtKB/TrEMBL  Length:67

    Alignment length:67
                                    10        20        30        40        50        60
          Q7SIF7_9FIRM    1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
               SCOP domains d1fr3a_ A: Molybdate/tungstate binding protein MOP                  SCOP domains
               CATH domains 1fr3A00 A:1-67  [code=2.40.50.100, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeeeeeeeeee...eeeeeeee..eeeeeeeehhhhhhhh.....eeeeeehhhhheee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1fr3 A  1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
                                    10        20        30        40        50        60

Chain B from PDB  Type:PROTEIN  Length:67
 aligned with Q7SIF7_9FIRM | Q7SIF7 from UniProtKB/TrEMBL  Length:67

    Alignment length:67
                                    10        20        30        40        50        60
          Q7SIF7_9FIRM    1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
               SCOP domains d1fr3b_ B: Molybdate/tungstate binding protein MOP                  SCOP domains
               CATH domains 1fr3B00 B:1-67  [code=2.40.50.100, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee...eeeeeeeeeeee...eeeeeeee..eeeeeeeehhhhhhhh.....eeeeeehhhhheee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1fr3 B  1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
                                    10        20        30        40        50        60

Chain C from PDB  Type:PROTEIN  Length:67
 aligned with Q7SIF7_9FIRM | Q7SIF7 from UniProtKB/TrEMBL  Length:67

    Alignment length:67
                                    10        20        30        40        50        60
          Q7SIF7_9FIRM    1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
               SCOP domains d1fr3c_ C: Molybdate/tungstate binding protein MOP                  SCOP domains
               CATH domains 1fr3C00 C:1-67  [code=2.40.50.100, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeeeeeeeeee...eeeeeeee..eeeeeeeehhhhhhhh.....eeeeeehhhhheee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1fr3 C  1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
                                    10        20        30        40        50        60

Chain D from PDB  Type:PROTEIN  Length:67
 aligned with Q7SIF7_9FIRM | Q7SIF7 from UniProtKB/TrEMBL  Length:67

    Alignment length:67
                                    10        20        30        40        50        60
          Q7SIF7_9FIRM    1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
               SCOP domains d1fr3d_ D: Molybdate/tungstate binding protein MOP                  SCOP domains
               CATH domains 1fr3D00 D:1-67  [code=2.40.50.100, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeeeeeeeeee...eeeeeeee..eeeeeeeehhhhhhhh.....eeeeeehhhhheeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1fr3 D  1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
                                    10        20        30        40        50        60

Chain E from PDB  Type:PROTEIN  Length:67
 aligned with Q7SIF7_9FIRM | Q7SIF7 from UniProtKB/TrEMBL  Length:67

    Alignment length:67
                                    10        20        30        40        50        60
          Q7SIF7_9FIRM    1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
               SCOP domains d1fr3e_ E: Molybdate/tungstate binding protein MOP                  SCOP domains
               CATH domains 1fr3E00 E:1-67  [code=2.40.50.100, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeeeeeeeeee...eeeeeeee..eeeeeeeehhhhhhhh.....eeeeeehhhhheee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1fr3 E  1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
                                    10        20        30        40        50        60

Chain F from PDB  Type:PROTEIN  Length:67
 aligned with Q7SIF7_9FIRM | Q7SIF7 from UniProtKB/TrEMBL  Length:67

    Alignment length:67
                                    10        20        30        40        50        60
          Q7SIF7_9FIRM    1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
               SCOP domains d1fr3f_ F: Molybdate/tungstate binding protein MOP                  SCOP domains
               CATH domains 1fr3F00 F:1-67  [code=2.40.50.100, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee...eeeeeeeeeeee...eeeeeeee..eeeeeeeehhhhhhhh.....eeeeeehhhhheeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1fr3 F  1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
                                    10        20        30        40        50        60

Chain G from PDB  Type:PROTEIN  Length:67
 aligned with Q7SIF7_9FIRM | Q7SIF7 from UniProtKB/TrEMBL  Length:67

    Alignment length:67
                                    10        20        30        40        50        60
          Q7SIF7_9FIRM    1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
               SCOP domains d1fr3g_ G: Molybdate/tungstate binding protein MOP                  SCOP domains
               CATH domains 1fr3G00 G:1-67  [code=2.40.50.100, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee...eeeeeeeeeeee...eeeeeeee..eeeeeeeehhhhhhhh.....eeeeeehhhhheeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1fr3 G  1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
                                    10        20        30        40        50        60

Chain H from PDB  Type:PROTEIN  Length:67
 aligned with Q7SIF7_9FIRM | Q7SIF7 from UniProtKB/TrEMBL  Length:67

    Alignment length:67
                                    10        20        30        40        50        60
          Q7SIF7_9FIRM    1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
               SCOP domains d1fr3h_ H: Molybdate/tungstate binding protein MOP                  SCOP domains
               CATH domains 1fr3H00 H:1-67  [code=2.40.50.100, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeeeeeeeeee...eeeeeeee..eeeeeeeehhhhhhhh.....eeeeeehhhhheee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1fr3 H  1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
                                    10        20        30        40        50        60

Chain I from PDB  Type:PROTEIN  Length:67
 aligned with Q7SIF7_9FIRM | Q7SIF7 from UniProtKB/TrEMBL  Length:67

    Alignment length:67
                                    10        20        30        40        50        60
          Q7SIF7_9FIRM    1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
               SCOP domains d1fr3i_ I: Molybdate/tungstate binding protein MOP                  SCOP domains
               CATH domains 1fr3I00 I:1-67  [code=2.40.50.100, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee...eeeeeeeeeeee...eeeeeeee..eeeeeeeehhhhhhhh.....eeeeeehhhhheeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1fr3 I  1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
                                    10        20        30        40        50        60

Chain J from PDB  Type:PROTEIN  Length:67
 aligned with Q7SIF7_9FIRM | Q7SIF7 from UniProtKB/TrEMBL  Length:67

    Alignment length:67
                                    10        20        30        40        50        60
          Q7SIF7_9FIRM    1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
               SCOP domains d1fr3j_ J: Molybdate/tungstate binding protein MOP                  SCOP domains
               CATH domains 1fr3J00 J:1-67  [code=2.40.50.100, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeeeeeeeeee...eeeeeeee..eeeeeeeehhhhhhhh.....eeeeeehhhhheee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1fr3 J  1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
                                    10        20        30        40        50        60

Chain K from PDB  Type:PROTEIN  Length:67
 aligned with Q7SIF7_9FIRM | Q7SIF7 from UniProtKB/TrEMBL  Length:67

    Alignment length:67
                                    10        20        30        40        50        60
          Q7SIF7_9FIRM    1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
               SCOP domains d1fr3k_ K: Molybdate/tungstate binding protein MOP                  SCOP domains
               CATH domains 1fr3K00 K:1-67  [code=2.40.50.100, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee...eeeeeeeeeeee...eeeeeeee..eeeeeeeehhhhhhhh.....eeeeeehhhhheeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1fr3 K  1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
                                    10        20        30        40        50        60

Chain L from PDB  Type:PROTEIN  Length:67
 aligned with Q7SIF7_9FIRM | Q7SIF7 from UniProtKB/TrEMBL  Length:67

    Alignment length:67
                                    10        20        30        40        50        60
          Q7SIF7_9FIRM    1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
               SCOP domains d1fr3l_ L: Molybdate/tungstate binding protein MOP                  SCOP domains
               CATH domains 1fr3L00 L:1-67  [code=2.40.50.100, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeeeeeeeeee...eeeeeeee..eeeeeeeehhhhhhhh.....eeeeeehhhhheee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  1fr3 L  1 MKISGRNKLEATVKEIVKGTVMAKIVMDYKGTELVAAITIDSVADLDLVPGDKVTALVKATEMEVLK 67
                                    10        20        30        40        50        60

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: OB-fold (1179)

Superfamily: MOP-like (40)

Family: Molybdate/tungstate binding protein MOP (6)

Protein domain: Molybdate/tungstate binding protein MOP (6)

Sporomusa ovata [TaxId: 2378] (1)

1a	d1fr3a_	A:
1b	d1fr3b_	B:
1c	d1fr3k_	K:
1d	d1fr3l_	L:
1e	d1fr3c_	C:
1f	d1fr3d_	D:
1g	d1fr3e_	E:
1h	d1fr3f_	F:
1i	d1fr3g_	G:
1j	d1fr3h_	H:
1k	d1fr3i_	I:
1l	d1fr3j_	J:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Beta Barrel (4804)

Topology: OB fold (Dihydrolipoamide Acetyltransferase, E2P) (1040)

Homologous Superfamily: [code=2.40.50.100, no name defined] (113)

Sporomusa ovata. Organism_taxid: 2378 (1)

1a	1fr3A00	A:1-67
1b	1fr3B00	B:1-67
1c	1fr3K00	K:1-67
1d	1fr3L00	L:1-67
1e	1fr3C00	C:1-67
1f	1fr3D00	D:1-67
1g	1fr3E00	E:1-67
1h	1fr3F00	F:1-67
1i	1fr3G00	G:1-67
1j	1fr3H00	H:1-67
1k	1fr3I00	I:1-67
1l	1fr3J00	J:1-67

(no "Pfam Domain" information available for 1FR3)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G,H,I,J,K,L (Q7SIF7_9FIRM | Q7SIF7)

molecular function
	GO:0030151	molybdenum ion binding	Interacting selectively and non-covalently with molybdenum (Mo) ions.
biological process
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		WO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1fr3)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1fr3
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	Q7SIF7_9FIRM \| Q7SIF7
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	Q7SIF7_9FIRM \| Q7SIF7
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1FR3)

(no "Related Entries Specified in the PDB File" available for 1FR3)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 16)

Sites (16, 16)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 12)

CATH Domains (1, 12)

Pfam Domains (0, 0)

Gene Ontology (2, 2)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
