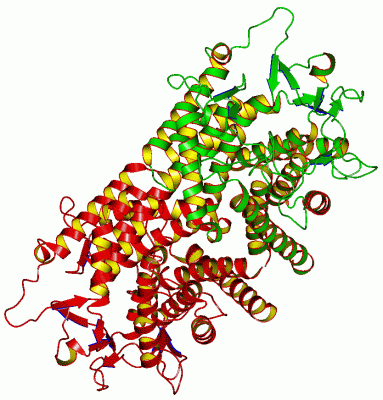

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)
Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF N-ACYL-D-GLUCOSAMINE 2-EPIMERASE FROM PORCINE KIDNEY

Authors :  T. Itoh, B. Mikami, I. Maru, Y. Ohta, W. Hashimoto, K. Murata
Date :  30 Aug 00  (Deposition) - 22 Nov 00  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  A (1x),B (1x)
Keywords :  Alpha/Alpha-Barrel, N-Acyl-D-Glucosamine 2-Epimerase, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Itoh, B. Mikami, I. Maru, Y. Ohta, W. Hashimoto, K. Murata
Crystal Structure Of N-Acyl-D-Glucosamine 2-Epimerase From Porcine Kidney At 2. 0 A Resolution.
J. Mol. Biol. V. 303 733 2000
PubMed-ID: 11061972  |  Reference-DOI: 10.1006/JMBI.2000.4188

(-) Compounds

Molecule 1 - N-ACYL-D-GLUCOSAMINE 2-EPIMERASE
    Chains: A, B
    EC Number: 5.1.3.8
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PEP114
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Common: PIG
    Organism Scientific: SUS SCROFA
    Organism Taxid: 9823
    Tissue: KIDNEY

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): AB
Biological Unit 2 (1x): A (1x)B (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1FP3)

(-) Sites  (0, 0)

(no "Site" information available for 1FP3)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1FP3)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1FP3)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1FP3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1FP3)

(-) Exons   (0, 0)

(no "Exon" information available for 1FP3)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:402
 aligned with RENBP_PIG | P17560 from UniProtKB/Swiss-Prot  Length:402

    Alignment length:402
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400
            RENBP_PIG     1 MEKERETLQAWKERVGQELDRVMAFWLEHSHDREHGGFFTCLGRDGRVYDDLKYVWLQGRQVWMYCRLYRKLERFHRPELLDAAKAGGEFLLRHARVAPPEKKCAFVLTRDGRPVKVQRSIFSECFYTMAMNELWRVTAEARYQSEAVDMMDQIVHWVREDPSGLGRPQLPGAVASESMAVPMMLLCLVEQLGEEDEELAGRYAQLGHWCARRILQHVQRDGQAVLENVSEDGEELSGCLGRHQNPGHALEAGWFLLRHSSRSGDAKLRAHVIDTFLLLPFRSGWDADHGGLFYFQDADGLCPTQLEWAMKLWWPHSEAMIAFLMGYSESGDPALLRLFYQVAEYTFRQFRDPEYGEWFGYLNREGKVALTIKGGPFKGCFHVPRCLAMCEEMLSALLSRLA 402
               SCOP domains d1fp3a_ A: N-acyl-D-glucosamine 2-epimerase                                                                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1fp3A00 A:1-402  [code=1.50.10.10, no name defined]                                                                                                                                                                                                                                                                                                                                                                CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........ee.....eee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........eeehhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.ee....ee..eee......hhhhhheehhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh..........ee.............eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........ee.....eee..........hhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1fp3 A   1 MEKERETLQAWKERVGQELDRVMAFWLEHSHDREHGGFFTCLGRDGRVYDDLKYVWLQGRQVWMYCRLYRKLERFHRPELLDAAKAGGEFLLRHARVAPPEKKCAFVLTRDGRPVKVQRSIFSECFYTMAMNELWRVTAEARYQSEAVDMMDQIVHWVREDPSGLGRPQLPGAVASESMAVPMMLLCLVEQLGEEDEELAGRYAQLGHWCARRILQHVQRDGQAVLENVSEDGEELSGCLGRHQNPGHALEAGWFLLRHSSRSGDAKLRAHVIDTFLLLPFRSGWDADHGGLFYFQDADGLCPTQLEWAMKLWWPHSEAMIAFLMGYSESGDPALLRLFYQVAEYTFRQFRDPEYGEWFGYLNREGKVALTIKGGPFKGCFHVPRCLAMCEEMLSALLSRLA 402
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400


Chain B from PDB  Type:PROTEIN  Length:402
 aligned with RENBP_PIG | P17560 from UniProtKB/Swiss-Prot  Length:402

    Alignment length:402
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400
            RENBP_PIG     1 MEKERETLQAWKERVGQELDRVMAFWLEHSHDREHGGFFTCLGRDGRVYDDLKYVWLQGRQVWMYCRLYRKLERFHRPELLDAAKAGGEFLLRHARVAPPEKKCAFVLTRDGRPVKVQRSIFSECFYTMAMNELWRVTAEARYQSEAVDMMDQIVHWVREDPSGLGRPQLPGAVASESMAVPMMLLCLVEQLGEEDEELAGRYAQLGHWCARRILQHVQRDGQAVLENVSEDGEELSGCLGRHQNPGHALEAGWFLLRHSSRSGDAKLRAHVIDTFLLLPFRSGWDADHGGLFYFQDADGLCPTQLEWAMKLWWPHSEAMIAFLMGYSESGDPALLRLFYQVAEYTFRQFRDPEYGEWFGYLNREGKVALTIKGGPFKGCFHVPRCLAMCEEMLSALLSRLA 402
               SCOP domains d1fp3b_ B: N-acyl-D-glucosamine 2-epimerase                                                                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1fp3B00 B:1-402  [code=1.50.10.10, no name defined]                                                                                                                                                                                                                                                                                                                                                                CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......................eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........ee.....eee....hhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh.........eeehhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.ee....ee..eee......hhhhhheehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........ee.............eehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........ee..................hhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1fp3 B   1 MEKERETLQAWKERVGQELDRVMAFWLEHSHDREHGGFFTCLGRDGRVYDDLKYVWLQGRQVWMYCRLYRKLERFHRPELLDAAKAGGEFLLRHARVAPPEKKCAFVLTRDGRPVKVQRSIFSECFYTMAMNELWRVTAEARYQSEAVDMMDQIVHWVREDPSGLGRPQLPGAVASESMAVPMMLLCLVEQLGEEDEELAGRYAQLGHWCARRILQHVQRDGQAVLENVSEDGEELSGCLGRHQNPGHALEAGWFLLRHSSRSGDAKLRAHVIDTFLLLPFRSGWDADHGGLFYFQDADGLCPTQLEWAMKLWWPHSEAMIAFLMGYSESGDPALLRLFYQVAEYTFRQFRDPEYGEWFGYLNREGKVALTIKGGPFKGCFHVPRCLAMCEEMLSALLSRLA 402
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1FP3)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (RENBP_PIG | P17560)
molecular function
    GO:0050121    N-acylglucosamine 2-epimerase activity    Catalysis of the reaction: N-acyl-D-glucosamine = N-acyl-D-mannosamine.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0004866    endopeptidase inhibitor activity    Stops, prevents or reduces the activity of an endopeptidase, any enzyme that hydrolyzes nonterminal peptide bonds in polypeptides.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
biological process
    GO:0006044    N-acetylglucosamine metabolic process    The chemical reactions and pathways involving N-acetylglucosamine. The D isomer is a common structural unit of glycoproteins in plants, bacteria and animals; it is often the terminal sugar of an oligosaccharide group of a glycoprotein.
    GO:0019262    N-acetylneuraminate catabolic process    The chemical reactions and pathways resulting in the breakdown of N-acetylneuraminate, the anion of 5-(acetylamino)-3,5-dideoxy-D-glycero-D-galacto-non-3-ulosonic acid.
    GO:0010951    negative regulation of endopeptidase activity    Any process that decreases the frequency, rate or extent of endopeptidase activity, the endohydrolysis of peptide bonds within proteins.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1fp3)

  Sites
(no "Sites" information available for 1fp3)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1fp3)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

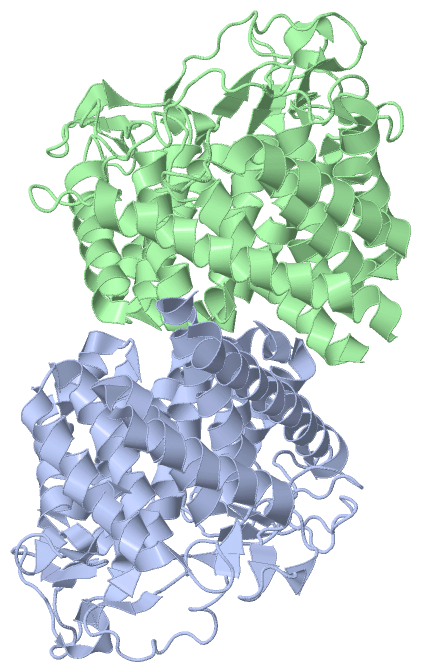

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
Prepi

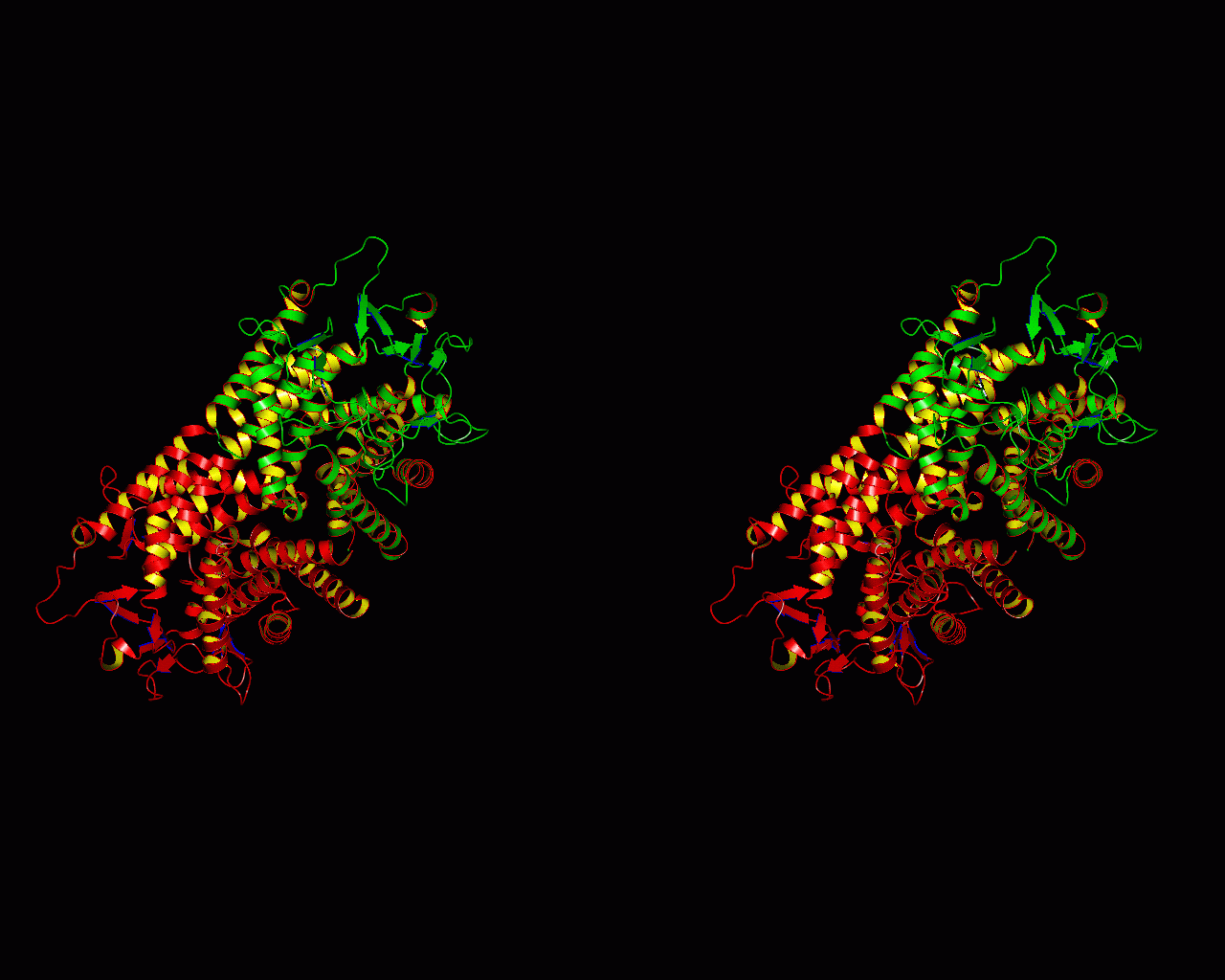

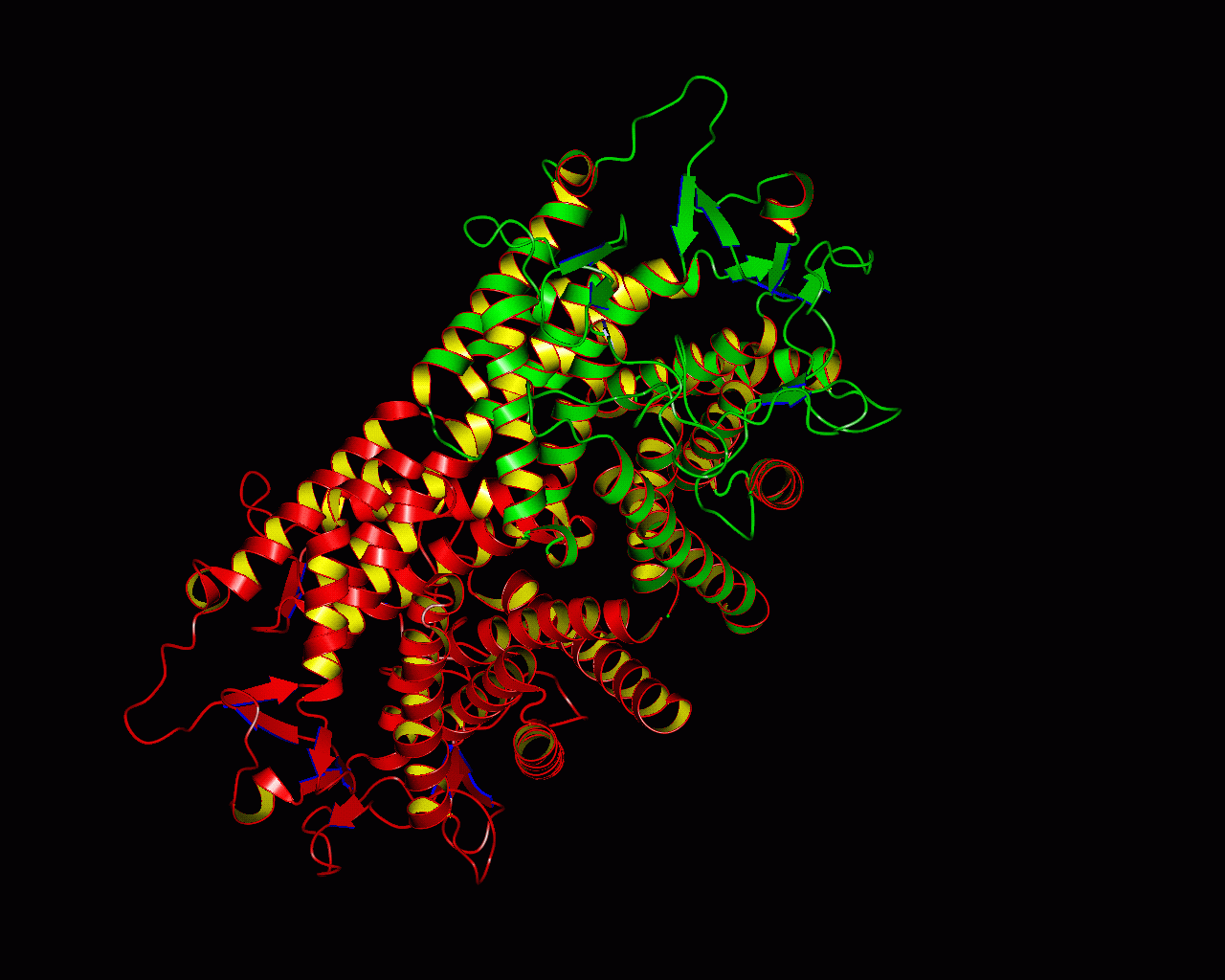

  ribbon, secondary structure, chain-specific coloring
[ mono GIF format | stereo GIF format ]

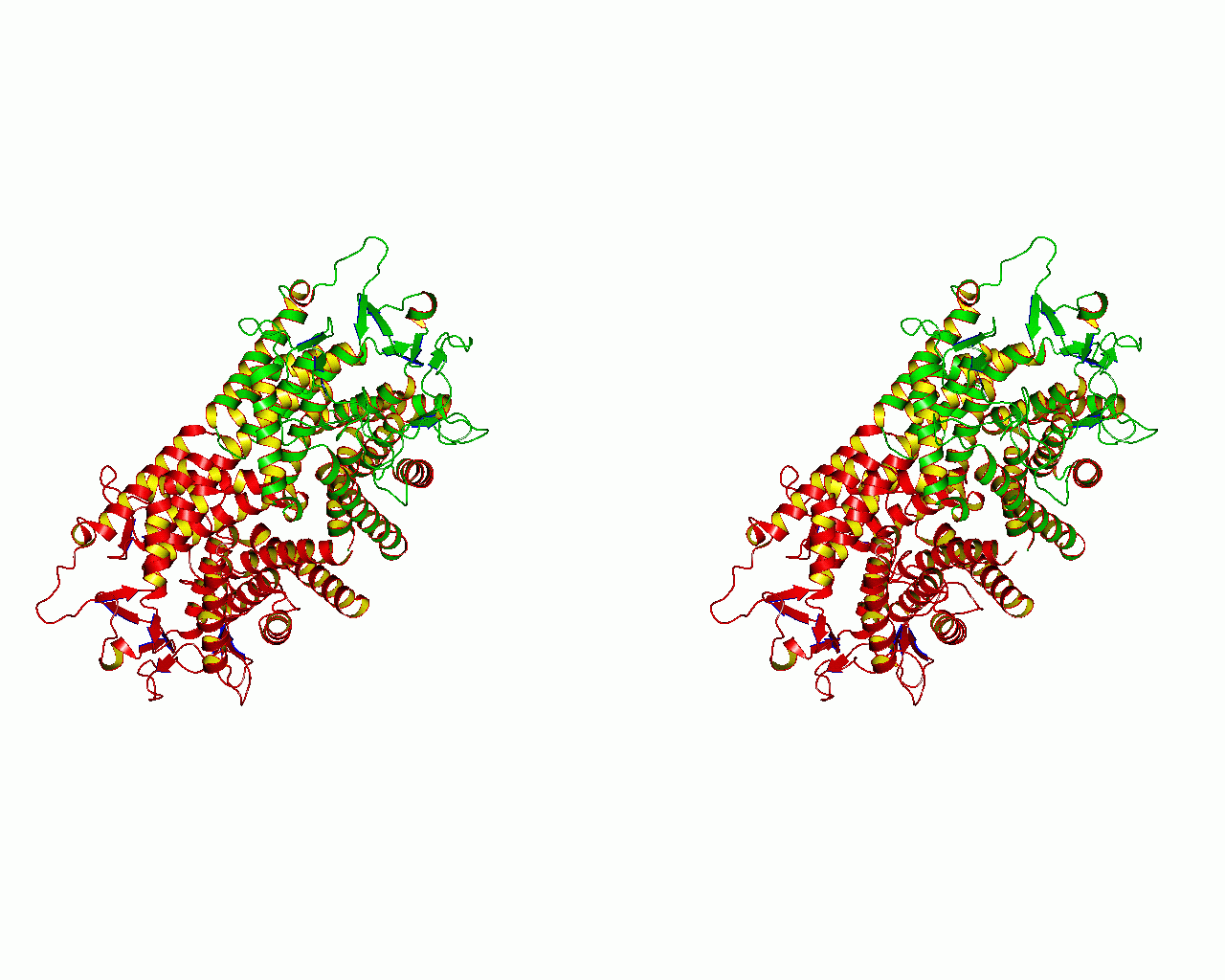

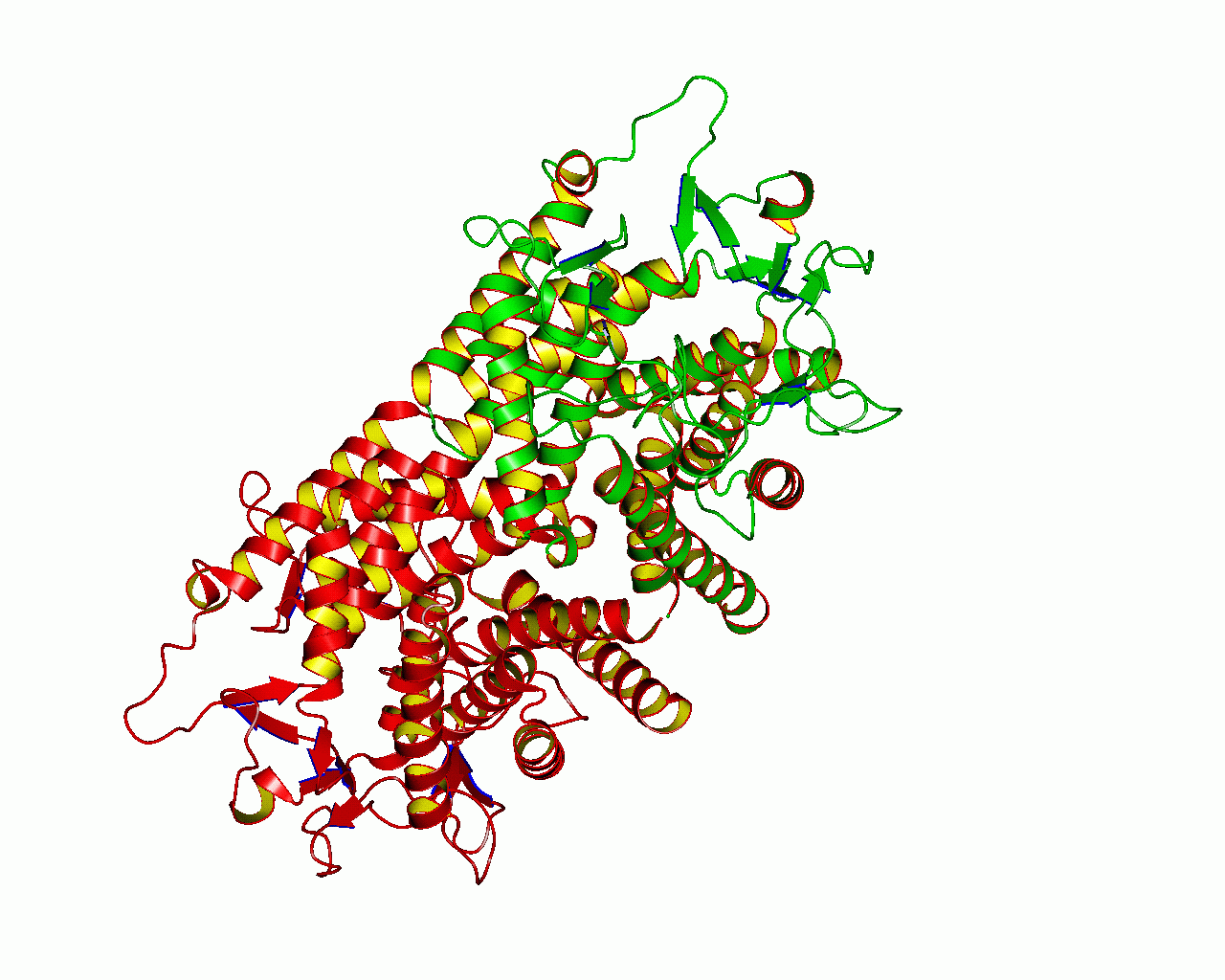

  ribbon, secondary structure, chain-specific coloring, white background
[ mono GIF format | stereo GIF format ]
  C alph atrace, chain-specific coloring
[ mono GIF format | stereo GIF format ]

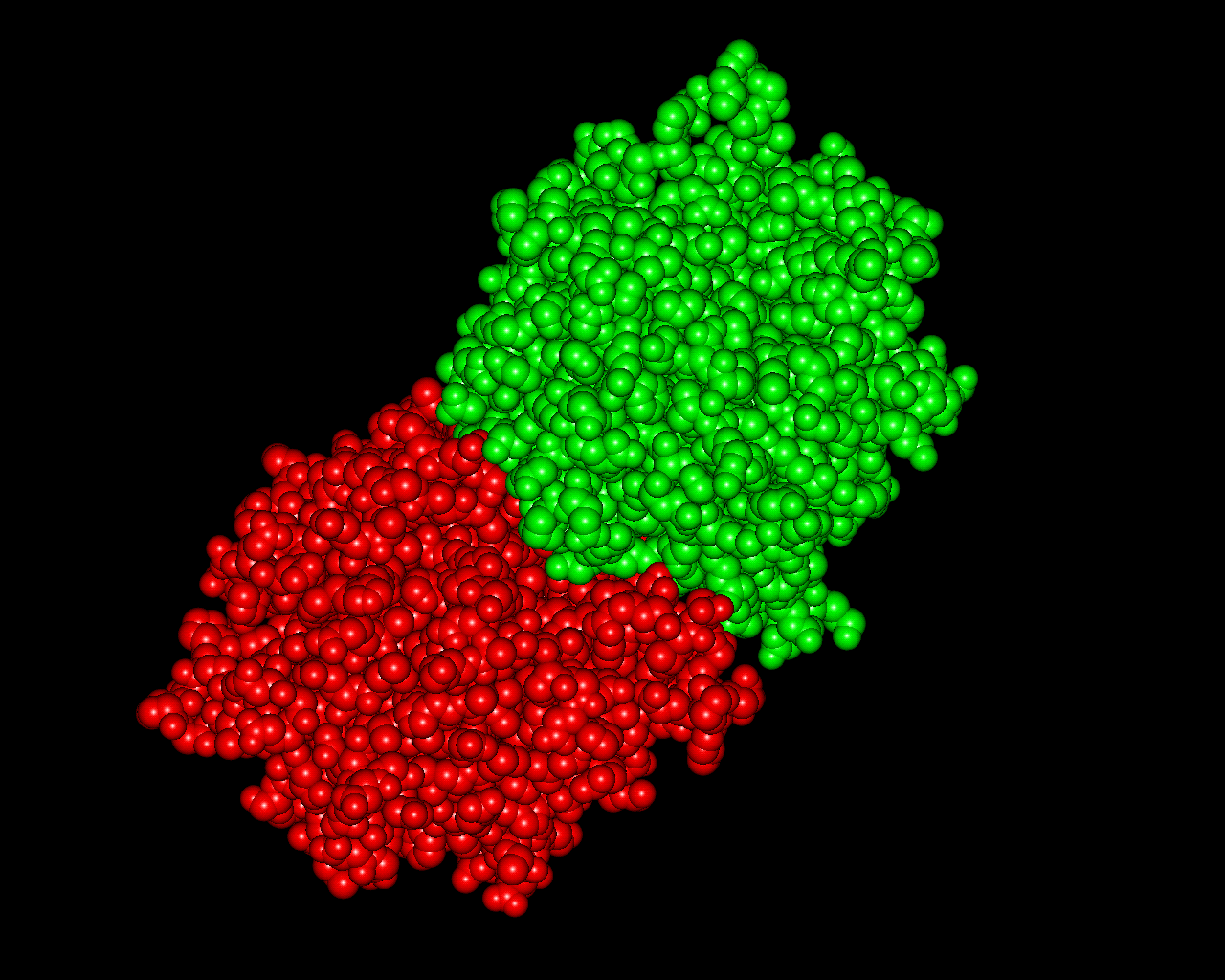

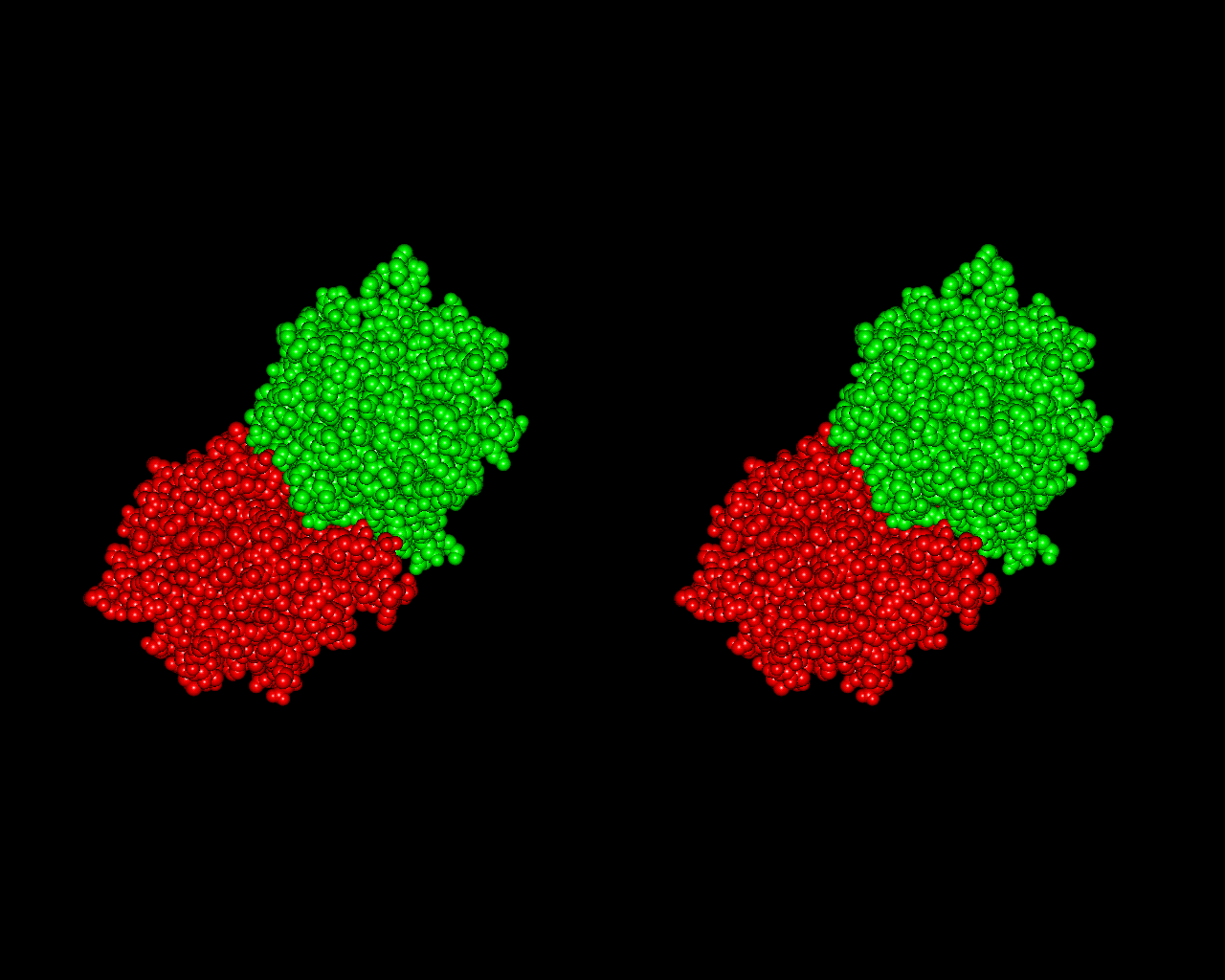

  spacefill, chain-specific coloring
