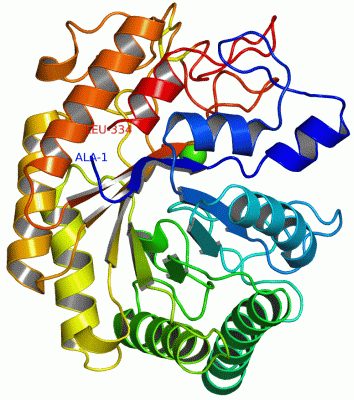

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

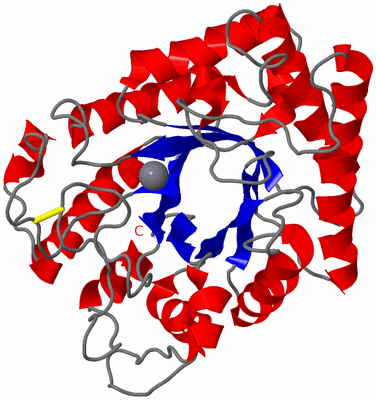

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

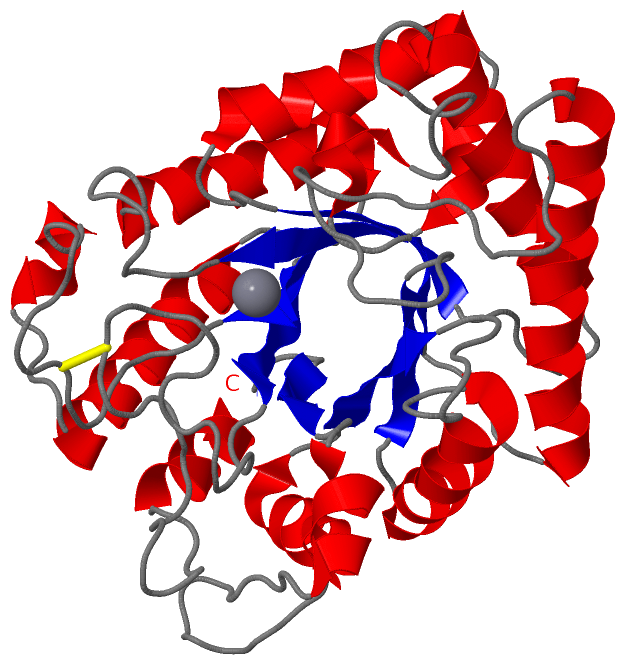

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF BETA-1,4-GALACTANASE FROM ASPERGILLUS ACULEATUS AT 100K

Authors :  C. Ryttersgaard, S. Larsen
Date :  27 Aug 00  (Deposition) - 03 Jun 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  B/A Barrel, Glycosyl Hydrolase, Family 53, Clan Gh-A (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Ryttersgaard, L. L. Leggio, P. M. Coutinho, B. Henrissat, S. Larsen
Aspergillus Aculeatus Beta-1, 4-Galactanase: Substrate Recognition And Relations To Other Glycoside Hydrolases In Clan Gh-A
Biochemistry V. 41 15135 2002
PubMed-ID: 12484750  |  Reference-DOI: 10.1021/BI026238C
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BETA-1,4-GALACTANASE
    Chains: A
    EC Number: 3.2.1.89
    Organism Scientific: ASPERGILLUS ACULEATUS
    Organism Taxid: 5053

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1CA1Ligand/IonCALCIUM ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHOH A:401 , HOH A:402 , HOH A:403 , HOH A:404 , HOH A:405 , HOH A:406 , HOH A:407BINDING SITE FOR RESIDUE CA A 400

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:253 -A:311

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Trp A:143 -Pro A:144

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1FOB)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1FOB)

(-) Exons   (0, 0)

(no "Exon" information available for 1FOB)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:334
 aligned with GANA_ASPAC | P48842 from UniProtKB/Swiss-Prot  Length:350

    Alignment length:334
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346
           GANA_ASPAC    17 ALTYRGADISSLLLLEDEGYSYKNLNGQTQALETILADAGINSIRQRVWVNPSDGSYDLDYNLELAKRVKAAGMSLYLDLHLSDTWADPSDQTTPSGWSTTDLGTLKWQLYNYTLEVCNTFAENDIDIEIISIGNEIRAGLLWPLGETSSYSNIGALLHSGAWGVKDSNLATTPKIMIHLDDGWSWDQQNYFYETVLATGELLSTDFDYFGVSYYPFYSASATLASLKTSLANLQSTYDKPVVVVETNWPVSCPNPAYAFPSDLSSIPFSVAGQQEFLEKLAAVVEATTDGLGVYYWEPAWIGNAGLGSSCADNLMVDYTTDEVYESIETLGEL 350
               SCOP domains d1foba_ A: Beta-1,4-galactanase                                                                                                                                                                                                                                                                                                                SCOP domains
               CATH domains 1fobA00 A:1-334 Glycosidases                                                                                                                                                                                                                                                                                                                   CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeee..hhhhhhhh............hhhhhhhhhh..eeeeee.........hhhhhhhhhhhhhhh..eeeeee.....................hhhhhhhhhhhhhhhhhhhhhhh.....eeee..hhhhh.........hhhhhhhhhhhhhhhhhh.......eeeeee....hhhhhhhhhhhhhhh...hhhhh.eeeee.........hhhhhhhhhhhhhhhhh..eeeee..............hhhhh....hhhhhhhhhhhhhhhhhh...eeeeeee............................hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1fob A   1 ALTYRGADISSLLLLEDEGYSYKNLNGQTQALETILADAGINSIRQRVWVNPSDGSYDLDYNLELAKRVKAAGMSLYLDLHLSDTWADPSDQTTPSGWSTTDLGTLKWQLYNYTLEVCNTFAENDIDIEIISIGNEIRAGLLWPLGETSSYSNIGALLHSGAWGVKDSNLATTPKIMIHLDDGWSWDQQNYFYETVLATGELLSTDFDYFGVSYYPFYSASATLASLKTSLANLQSTYDKPVVVVETNWPVSCPNPAYAFPSDLSSIPFSVAGQQEFLEKLAAVVEATTDGLGVYYWEPAWIGNAGLGSSCADNLMVDYTTDEVYESIETLGEL 334
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1FOB)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (GANA_ASPAC | P48842)
molecular function
    GO:0031218    arabinogalactan endo-1,4-beta-galactosidase activity    Catalysis of the endohydrolysis of (1->4)-beta-D-galactosidic linkages in arabinogalactans.
    GO:0015926    glucosidase activity    Catalysis of the hydrolysis of glucosyl compounds, substances containing a group derived from a cyclic form of glucose or a glucose derivative.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Trp A:143 - Pro A:144   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1fob
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GANA_ASPAC | P48842
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.2.1.89
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GANA_ASPAC | P48842
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GANA_ASPAC | P48842: 1fhl

(-) Related Entries Specified in the PDB File

1fhl SAME STRUCTURE AT 293K, WITHOUT CALCIUM IN THE ACTIVE SITE
