Title :   GLUTATHIONE TRANSFERASE (FH47) FROM FASCIOLA HEPATICA

Authors :   J. Rossjohn, M. W. Parker

Date :   24 Jul 97 (Deposition) - 29 Jul 98 (Release) - 21 Mar 12 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   3.00

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Transferase, Detoxification, Glutathione Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. Rossjohn, S. C. Feil, M. C. Wilce, J. L. Sexton, T. W. Spithill, M. W. Parker
Crystallization, Structural Determination And Analysis Of A Novel Parasite Vaccine Candidate: Fasciola Hepatica Glutathione S-Transferase.
J. Mol. Biol. V. 273 857 1997
PubMed-ID: 9367777 | Reference-DOI: 10.1006/JMBI.1997.1338

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 1)

Sites (1, 1)

SS Bonds (0, 0)

Cis Peptide Bonds (2, 2)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:214
 aligned with GST27_FASHE | P31670 from UniProtKB/Swiss-Prot  Length:218

    Alignment length:214
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211
          GST27_FASHE     2 PAKLGYWKLRGLAQPVRLFLEYLGEEYEEHLYGRDDREKWMSEKFNMGLDLPNLPYYIDDKCKLTQSVAIMRYIADKHGMLGTTPEERARISMIEGAAMDLRIGFGRVCYNPKFEEVKEEYVKELPKTLKMWSDFLGDRHYLTGSSVSHVDFMLYETLDSIRYLAPHCLDEFPKLKEFKSRIEALPKIKAYMESKRFIKWPLNGWAASFGAGDA 215
               SCOP domains d1fhea2 A:1-80 Class alpha GST                                                  d1fhea1 A:81-214 Class alpha GST                                                                                                       SCOP domains
               CATH domains 1fheA01 A:1-80,A:186-212 Glutaredoxin                                           1fheA02 A:81-185  [code=1.20.1050.10, no name defined]                                                   1fheA01 A:1-80,A:186-212   -- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee......hhhhhhhhh.....eeeee.....hhhhhh............eee....eee...hhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhh..hhhh...hhhhhhhhhhhh.hhhhhh....................... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------GST_CTER  PDB: A:84-202 UniProt: 85-203                                                                                ------------ PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1fhe A   1 PAKLGYWKLRGLAQPVRLFLEYLGEEYEEHLYGRDDREKWMSEKFNMGLDLPNLPYYIDDKCKLTQSVAIMRYIADKHGMLGTTPEERARISMIEGAAMDLRIGFGRVCYNPKFEEVKEEYVKELPKTLKMWSDFLGDRHYLTGSSVSHVDFMLYETLDSIRYLAPHCLDEFPKLKEFKSRIEALPKIKAYMESKRFIKWPLNGWAASFGAGDA 214
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (2, 2)

CATH Domains (2, 2)

Pfam Domains (0, 0)

Gene Ontology (3, 3)

Asymmetric Unit(hide GO term definitions)

Chain A (GST27_FASHE | P31670)

molecular function
	GO:0004364	glutathione transferase activity	Catalysis of the reaction: R-X + glutathione = H-X + R-S-glutathione. R may be an aliphatic, aromatic or heterocyclic group; X may be a sulfate, nitrile or halide group.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Visualization

Interactive Views

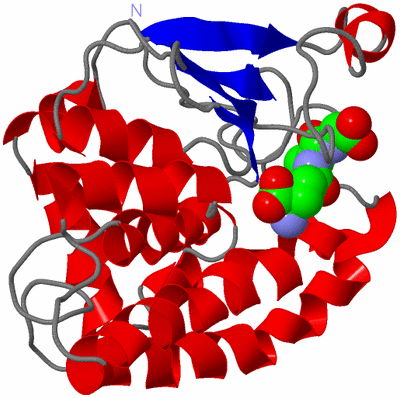

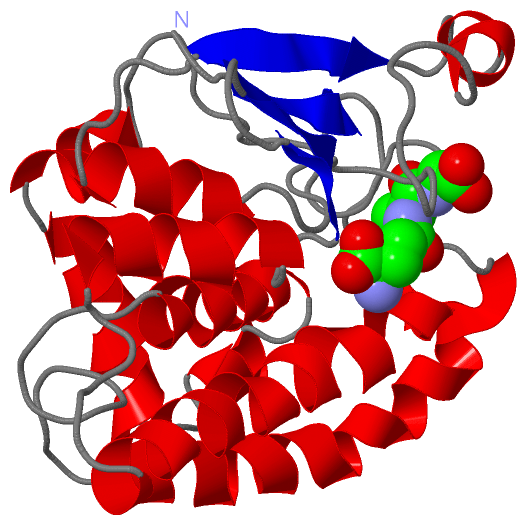

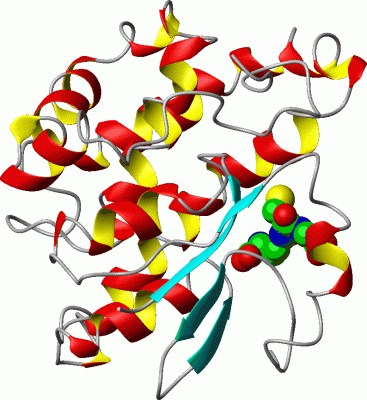

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		GSH	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

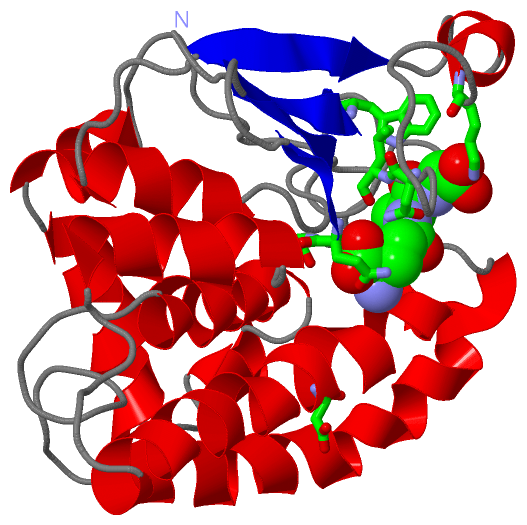

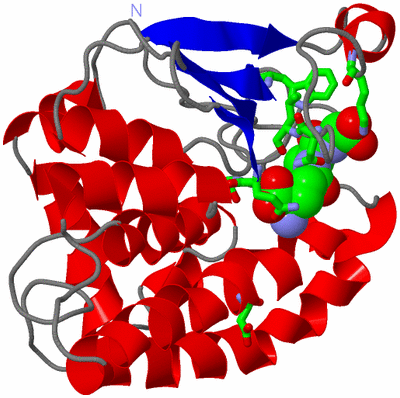

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Leu A:54 - Pro A:55	[ RasMol ]
		Trp A:200 - Pro A:201	[ RasMol ]

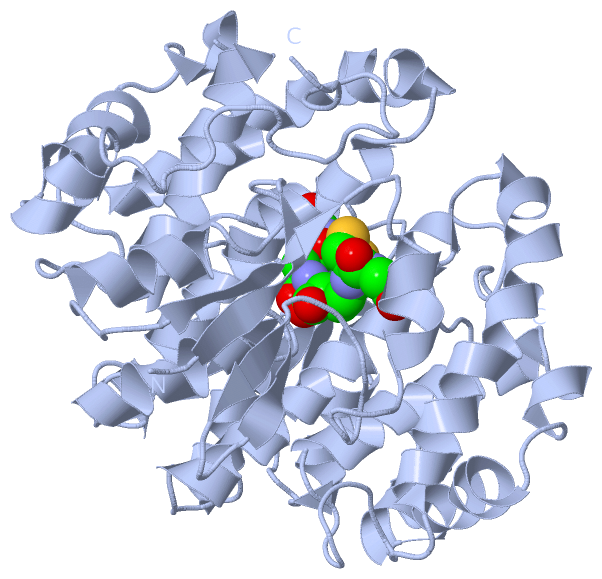

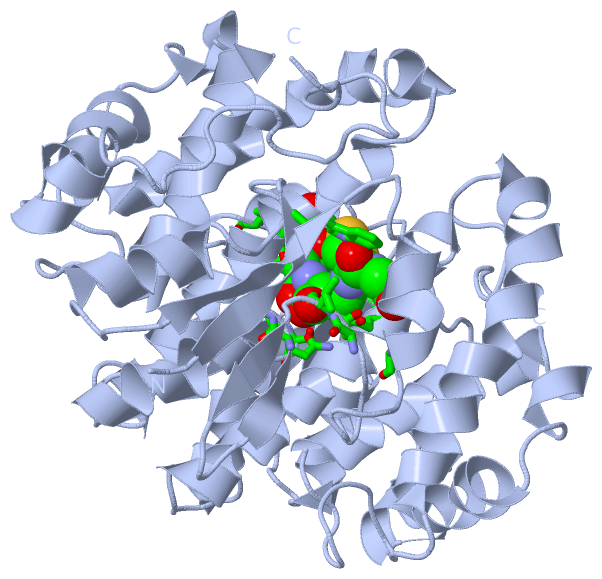

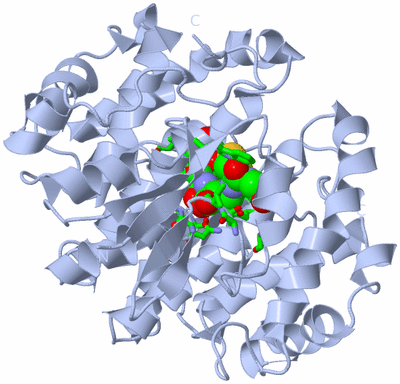

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Still Images

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1fhe
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	GST27_FASHE \| P31670
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.5.1.18
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Analysis Tools

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	GST27_FASHE \| P31670
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

Description
