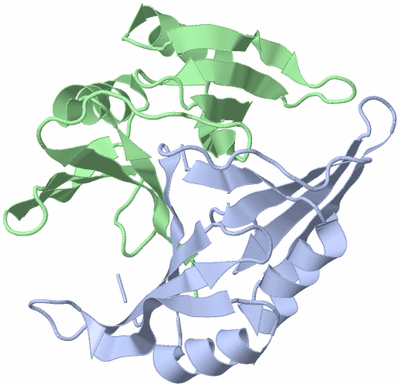

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE APO FORM GLYOXALASE I OF ESCHERICHIA COLI

Authors :  M. M. He, S. L. Clugston, J. F. Honek, B. W. Matthews
Date :  12 Jul 00  (Deposition) - 20 Sep 00  (Release) - 18 Aug 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Beta-Alpha-Beta-Beta-Beta Motif, Homodimer, Apo Enzyme. , Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. M. He, S. L. Clugston, J. F. Honek, B. W. Matthews
Determination Of The Structure Of Escherichia Coli Glyoxalase I Suggests A Structural Basis For Differential Metal Activation.
Biochemistry V. 39 8719 2000
PubMed-ID: 10913283  |  Reference-DOI: 10.1021/BI000856G
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GLYOXALASE I
    Chains: A, B
    EC Number: 4.4.1.5
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: LACTOYLGLUTATHIONE LYASE

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1FA8)

(-) Sites  (0, 0)

(no "Site" information available for 1FA8)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1FA8)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1FA8)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1FA8)

(-) PROSITE Motifs  (3, 6)

Asymmetric/Biological Unit (3, 6)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1VOCPS51819 Vicinal oxygen chelate (VOC) domain profile.LGUL_ECOLI2-126
 		  2A:2-126
B:2-126
2GLYOXALASE_I_1PS00934 Glyoxalase I signature 1.LGUL_ECOLI5-26
 		  2A:5-26
B:5-26
3GLYOXALASE_I_2PS00935 Glyoxalase I signature 2.LGUL_ECOLI69-81
 		  2A:69-81
B:69-81

(-) Exons   (0, 0)

(no "Exon" information available for 1FA8)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:128
 aligned with LGUL_ECOLI | P0AC81 from UniProtKB/Swiss-Prot  Length:135

    Alignment length:135
                                    10        20        30        40        50        60        70        80        90       100       110       120       130
           LGUL_ECOLI     1 MRLLHTMLRVGDLQRSIDFYTKVLGMKLLRTSENPEYKYSLAFVGYGPETEEAVIELTYNWGVDKYELGTAYGHIALSVDNAAEACEKIRQNGGNVTREAGPVKGGTTVIAFVEDPDGYKIELIEEKDAGRGLGN 135
               SCOP domains d1fa8a_ A: Glyoxalase I (lactoylglutathione lyase)                                                                                      SCOP domains
               CATH domains 1fa8A00 A:1-135 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                         CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee..hhhhhhhhhhhh...eeeeeeee....eeeeeee........eeeeeee...........eeeeeee..hhhhhhhhhhh...eeeeeeee......eeeeee.....eeeee..-------.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -VOC  PDB: A:2-126 UniProt: 2-126                                                                                             --------- PROSITE (1)
                PROSITE (2) ----GLYOXALASE_I_1        ------------------------------------------GLYOXALASE_I_------------------------------------------------------ PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1fa8 A   1 MRLLHTMLRVGDLQRSIDFYTKVLGMKLLRTSENPEYKYSLAFVGYGPETEEAVIELTYNWGVDKYELGTAYGHIALSVDNAAEACEKIRQNGGNVTREAGPVKGGTTVIAFVEDPDGYKIELIEE-------GN 135
                                    10        20        30        40        50        60        70        80        90       100       110       120     |   -   |
                                                                                                                                                       126     134


Chain B from PDB  Type:PROTEIN  Length:128
 aligned with LGUL_ECOLI | P0AC81 from UniProtKB/Swiss-Prot  Length:135

    Alignment length:135
                                    10        20        30        40        50        60        70        80        90       100       110       120       130
           LGUL_ECOLI     1 MRLLHTMLRVGDLQRSIDFYTKVLGMKLLRTSENPEYKYSLAFVGYGPETEEAVIELTYNWGVDKYELGTAYGHIALSVDNAAEACEKIRQNGGNVTREAGPVKGGTTVIAFVEDPDGYKIELIEEKDAGRGLGN 135
               SCOP domains d1fa8b_ B: Glyoxalase I (lactoylglutathione lyase)                                                                                      SCOP domains
               CATH domains 1fa8B00 B:1-135 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1                                                                         CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee..hhhhhhhhhhhh...eeeeeeee....eeeeeee........eeeeeee...........eeeeeeee.hhhhhhhhhhh...eeeeeeee......eeeeee.....eeeeee.-------.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -VOC  PDB: B:2-126 UniProt: 2-126                                                                                             --------- PROSITE (1)
                PROSITE (2) ----GLYOXALASE_I_1        ------------------------------------------GLYOXALASE_I_------------------------------------------------------ PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1fa8 B   1 MRLLHTMLRVGDLQRSIDFYTKVLGMKLLRTSENPEYKYSLAFVGYGPETEEAVIELTYNWGVDKYELGTAYGHIALSVDNAAEACEKIRQNGGNVTREAGPVKGGTTVIAFVEDPDGYKIELIEE-------GN 135
                                    10        20        30        40        50        60        70        80        90       100       110       120     |   -   |
                                                                                                                                                       126     134
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1FA8)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (LGUL_ECOLI | P0AC81)
molecular function
    GO:0004462    lactoylglutathione lyase activity    Catalysis of the reaction: (R)-S-lactoylglutathione = glutathione + methylglyoxal.
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016151    nickel cation binding    Interacting selectively and non-covalently with nickel (Ni) cations.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0019243    methylglyoxal catabolic process to D-lactate via S-lactoyl-glutathione    The chemical reactions and pathways resulting in the breakdown of methylglyoxal, CH3-CO-CHO, into D-lactate via the intermediate S-lactoyl-glutathione. Glutathione is used in the first step of the pathway and then regenerated in the second step.
cellular component
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1fa8)

  Sites
(no "Sites" information available for 1fa8)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1fa8)

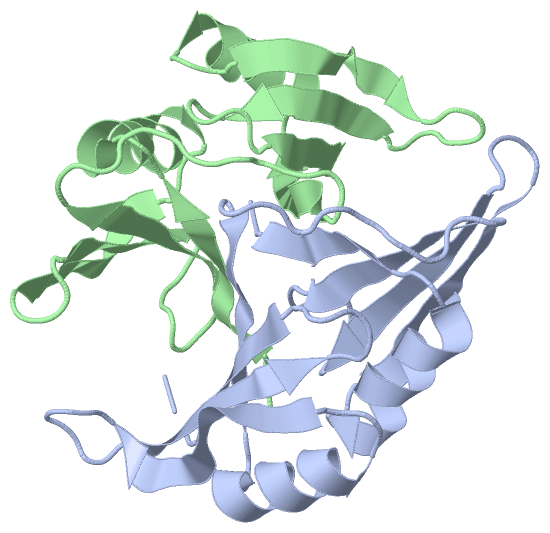

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1fa8
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  LGUL_ECOLI | P0AC81
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  4.4.1.5
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  LGUL_ECOLI | P0AC81
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        LGUL_ECOLI | P0AC81: 1f9z 1fa5 1fa6 1fa7

(-) Related Entries Specified in the PDB File

1f9z NI(II)-BOUND E. COLI GLYOXALASE I
1fa5 ZN(II)-BOUND E. COLI GLYOXALASE I
1fa6 CO(II)-BOUND E. COLI GLYOXALASE I
1fa7 CD(II)-BOUND E. COLI GLYOXALASE I
1fro 1FRO CONTAINS GLYOXALASE I FROM HUMAN
