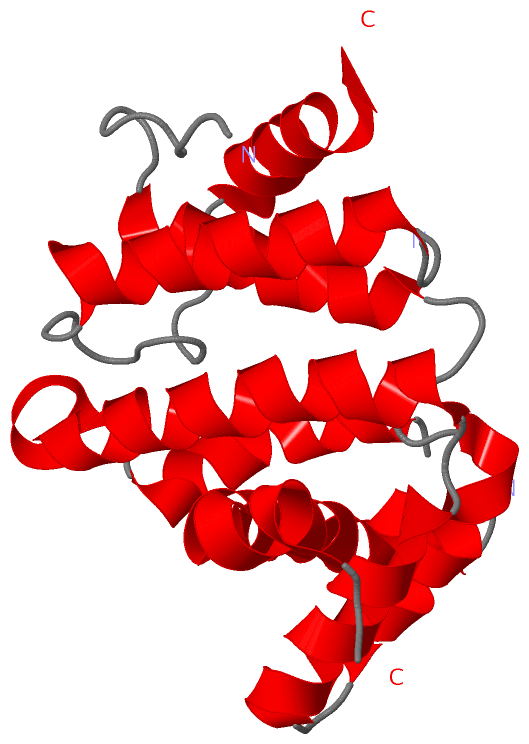

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE BH DOMAIN FROM GRAF, THE GTPASE REGULATOR ASSOCIATED WITH FOCAL ADHESION KINASE

Authors :  K. L. Longenecker, U. Derewenda, P. J. Sheffield, Y. Zheng, Z. S. Derewenda
Date :  26 Jun 00  (Deposition) - 20 Dec 00  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym./Biol. Unit :  A
Keywords :  Gap, Gtpase Activating Protein, Rho Gtpase Regulator, Bh Domain, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  K. L. Longenecker, B. Zhang, U. Derewenda, P. J. Sheffield, Z. Dauter, J. T. Parsons, Y. Zheng, Z. S. Derewenda
Structure Of The Bh Domain From Graf And Its Implications For Rho Gtpase Recognition.
J. Biol. Chem. V. 275 38605 2000
PubMed-ID: 10982819  |  Reference-DOI: 10.1074/JBC.M007574200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RHOGAP PROTEIN
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPGEX4T1
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentGTPASE ACTIVATING PROTEIN (GAP) FOR RHO FAMILY GTPASES
    Organism CommonCHICKEN
    Organism ScientificGALLUS GALLUS
    Organism Taxid9031

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1F7C)

(-) Sites  (0, 0)

(no "Site" information available for 1F7C)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1F7C)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1F7C)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1F7C)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RHOGAPPS50238 Rho GTPase-activating proteins domain profile.RHG26_CHICK383-568  1A:191-376

(-) Exons   (0, 0)

(no "Exon" information available for 1F7C)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:182
 aligned with RHG26_CHICK | Q5ZMW5 from UniProtKB/Swiss-Prot  Length:760

    Alignment length:191
                                   392       402       412       422       432       442       452       462       472       482       492       502       512       522       532       542       552       562       572
          RHG26_CHICK   383 AQLDSIGFSIIKKCIHAVETRGINEQGLYRIVGVNSRVQKLLSILMDPKTATETETEICAEWEIKTITSALKTYLRMLPGPLMMYQFQRSFIKAAKLENQESRVSEIHSLVHRLPEKNRQMLHLLMNHLAKVADNHKQNLMTVANLGVVFGPTLLRPQEETVAAIMDIKFQNIVIEILIENHEKIFNTVPE 573
               SCOP domains d1f7ca_ A: Graf                                                                                                                                                                                 SCOP domains
               CATH domains 1f7cA00 A:191-381 GTPase -GAP domain                                                                                                                                                            CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhh.------........hhhhhhhhhhhhhhh......hhhhhhhhhhhhh..hhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh..---..hhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE RHOGAP  PDB: A:191-376 UniProt: 383-568                                                                                                                                                   ----- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1f7c A 191 AQLDSIGFSIIKKCIHAVETRGINEQGLYRIVGVNSRVQKLLSILMDP------ETEICAEWEIKTITSALKTYLRMLPGPLMMYQFQRSFIKAAKLENQESRVSEIHSLVHRLPEKNRQMLHLLMNHLAKVADNHKQNLMTVANLGVVFGPTLLRP---TVAAIMDIKFQNIVIEILIENHEKIFNTVPE 381
                                   200       210       220       230       | -    |  250       260       270       280       290       300       310       320       330       340      |  -|      360       370       380
                                                                         238    245                                                                                                   347 351

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1F7C)

(-) Gene Ontology  (10, 10)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (RHG26_CHICK | Q5ZMW5)
molecular function
    GO:0005096    GTPase activator activity    Binds to and increases the activity of a GTPase, an enzyme that catalyzes the hydrolysis of GTP.
    GO:0005543    phospholipid binding    Interacting selectively and non-covalently with phospholipids, a class of lipids containing phosphoric acid as a mono- or diester.
biological process
    GO:0030036    actin cytoskeleton organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of cytoskeletal structures comprising actin filaments and their associated proteins.
    GO:0043547    positive regulation of GTPase activity    Any process that activates or increases the activity of a GTPase.
    GO:0051056    regulation of small GTPase mediated signal transduction    Any process that modulates the frequency, rate or extent of small GTPase mediated signal transduction.
    GO:0007165    signal transduction    The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
cellular component
    GO:0030054    cell junction    A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
    GO:0005925    focal adhesion    Small region on the surface of a cell that anchors the cell to the extracellular matrix and that forms a point of termination of actin filaments.
