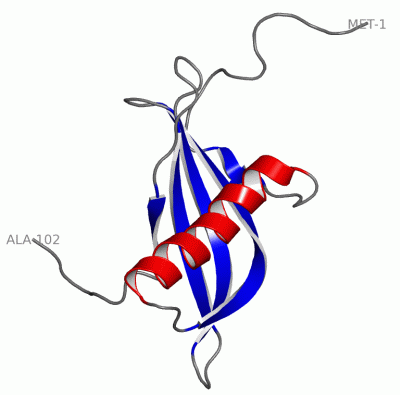

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

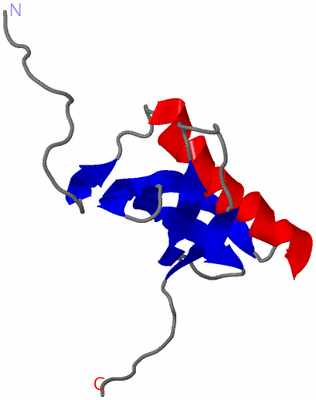

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

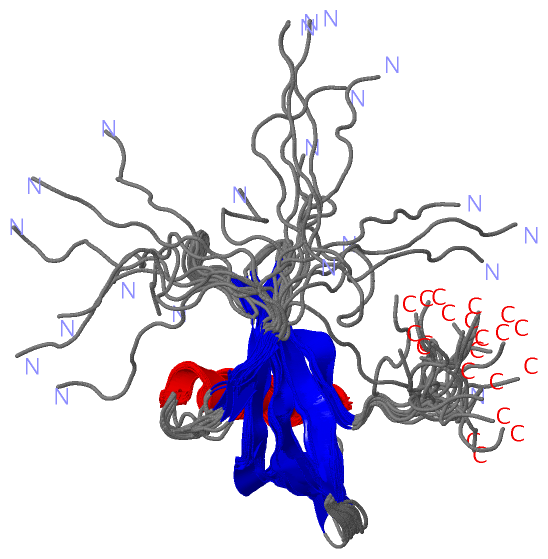

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF ORYZACYSTATIN-I, A CYSTEINE PROTEINASE INHIBITOR OF THE RICE, ORYZA SATIVA L. JAPONICA

Authors :  K. Nagata, N. Kudo, K. Abe, S. Arai, M. Tanokura
Date :  05 Apr 00  (Deposition) - 10 Jan 01  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (21x)
Keywords :  Alpha And Beta Proteins, Cystatin-Like Fold, Cystatin/Monellin Superfamily, Phytocystatin Family, Hydrolase Inhibitor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Nagata, N. Kudo, K. Abe, S. Arai, M. Tanokura
Three-Dimensional Solution Structure Of Oryzacystatin-I, A Cysteine Proteinase Inhibitor Of The Rice, Oryza Sativa L. Japonica.
Biochemistry V. 39 14753 2000
PubMed-ID: 11101290  |  Reference-DOI: 10.1021/BI0006971
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ORYZACYSTATIN-I
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PLASMID PET-26B(+)
    Expression System Taxid: 562
    Organism Scientific: ORYZA SATIVA JAPONICA GROUP
    Organism Taxid: 39947
    Strain: JAPONICA GROUP
    Tissue: SEED

 Structural Features

(-) Chains, Units


NMR Structure (21x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1EQK)

(-) Sites  (0, 0)

(no "Site" information available for 1EQK)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1EQK)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1EQK)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1EQK)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CYSTATINPS00287 Cysteine proteases inhibitors signature.CYT1_ORYSJ90-103  1A:52-65

(-) Exons   (0, 0)

(no "Exon" information available for 1EQK)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:102
 aligned with CYT1_ORYSJ | P09229 from UniProtKB/Swiss-Prot  Length:140

    Alignment length:102
                                    48        58        68        78        88        98       108       118       128       138
           CYT1_ORYSJ    39 MSSDGGPVLGGVEPVGNENDLHLVDLARFAVTEHNKKANSLLEFEKLVSVKQQVVAGTLYYFTIEVKEGDAKKLYEAKVWEKPWMDFKELQEFKPVDASANA 140
               SCOP domains d1eqka_ A: Phytocystatin                                                                               SCOP domains
               CATH domains 1eqkA00 A:1-102  [code=3.10.450.10, no name defined]                                                   CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ............eee....hhhhhhhhhhhhhhhhhhh...eeeeeeeeeeeee...eeeeeeeeeee....eeeeeeeee........eeeee........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------------------------------------------------CYSTATIN      ------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 1eqk A   1 MSSDGGPVLGGVEPVGNENDLHLVDLARFAVTEHNKKANSLLEFEKLVSVKQQVVAGTLYYFTIEVKEGDAKKLYEAKVWEKPWMDFKELQEFKPVDASANA 102
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1EQK)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (CYT1_ORYSJ | P09229)
molecular function
    GO:0004869    cysteine-type endopeptidase inhibitor activity    Stops, prevents or reduces the activity of a cysteine-type endopeptidase, any enzyme that hydrolyzes peptide bonds in polypeptides by a mechanism in which the sulfhydryl group of a cysteine residue at the active center acts as a nucleophile.
    GO:0030414    peptidase inhibitor activity    Stops, prevents or reduces the activity of a peptidase, any enzyme that catalyzes the hydrolysis peptide bonds.
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
    GO:0010951    negative regulation of endopeptidase activity    Any process that decreases the frequency, rate or extent of endopeptidase activity, the endohydrolysis of peptide bonds within proteins.
    GO:0010466    negative regulation of peptidase activity    Any process that stops or reduces the rate of peptidase activity, the hydrolysis of peptide bonds within proteins.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1eqk)

  Sites
(no "Sites" information available for 1eqk)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1eqk)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

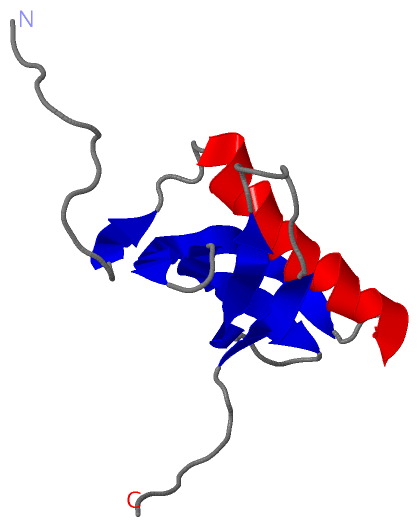

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
