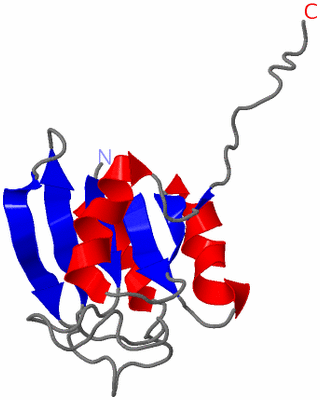

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

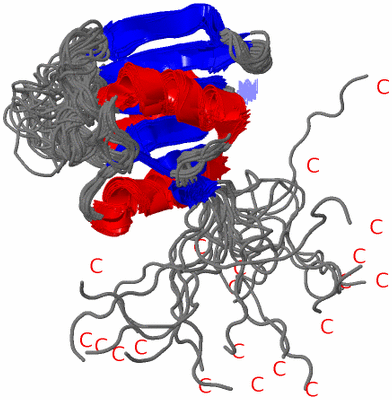

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF HYPOTHETICAL PROTEIN MTH1175 FROM METHANOBACTERIUM THERMOAUTOTROPHICUM

Authors :  J. R. Cort, C. H. Arrowsmith, M. A. Kennedy, Northeast Structural Genomics Consortium (Nesg)
Date :  21 Mar 00  (Deposition) - 20 Dec 00  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Mixed A/B Protein, Mixed Beta Sheet, Strand Order 321456, Strands 2 And 6 Antiparallel To Rest. , Structural Genomics, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. R. Cort, A. Yee, A. M. Edwards, C. H. Arrowsmith, M. A. Kennedy
Nmr Structure Determination And Structure-Based Functional Characterization Of Conserved Hypothetical Protein Mth1175 From Methanobacterium Thermoautotrophicum
J. Struct. Funct. Genom. V. 1 15 2000
PubMed-ID: 12836677  |  Reference-DOI: 10.1023/A:1011348803324
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN MTH1175
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET15B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: METHANOTHERMOBACTER THERMAUTOTROPHICUS
    Organism Taxid: 145262

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1EO1)

(-) Sites  (0, 0)

(no "Site" information available for 1EO1)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1EO1)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1EO1)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1EO1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1EO1)

(-) Exons   (0, 0)

(no "Exon" information available for 1EO1)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:124
 aligned with O27243_METTH | O27243 from UniProtKB/TrEMBL  Length:124

    Alignment length:124
                                    10        20        30        40        50        60        70        80        90       100       110       120
         O27243_METTH     1 MKIAIASSGTDLGSEVSRFFGRAPYFMIVEMKKGNIESSEVIENPSASASGGAGIRTAQIIANNGVKAVIASSPGPNAFEVLNELGIKIYRATGTSVEENLKLFTEGNLEEIRSPGSGRGRRRR 124
               SCOP domains d1eo1a_ A: Hypothetical protein MTH1175                                                                                      SCOP domains
               CATH domains 1eo1A00 A:1-124  [code=3.30.420.130, no name defined]                                                                        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee....................eeeeee....eeeeeee.............hhhhhhhhh...eeee...hhhhhhhhhhhh.eeee....hhhhhhhhhhh....ee............ Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------- Transcript
                 1eo1 A   1 MKIAIASSGTDLGSEVSRFFGRAPYFMIVEMKKGNIESSEVIENPSASASGGAGIRTAQIIANNGVKAVIASSPGPNAFEVLNELGIKIYRATGTSVEENLKLFTEGNLEEIRSPGSGRGRRRR 124
                                    10        20        30        40        50        60        70        80        90       100       110       120
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1EO1)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 1EO1)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1eo1)

  Sites
(no "Sites" information available for 1eo1)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1eo1)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

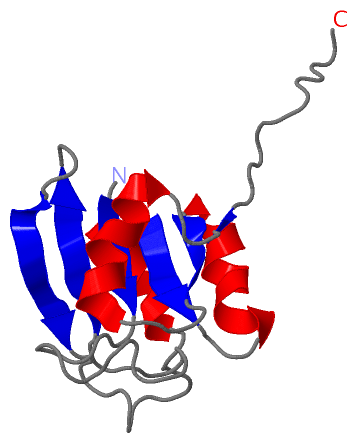

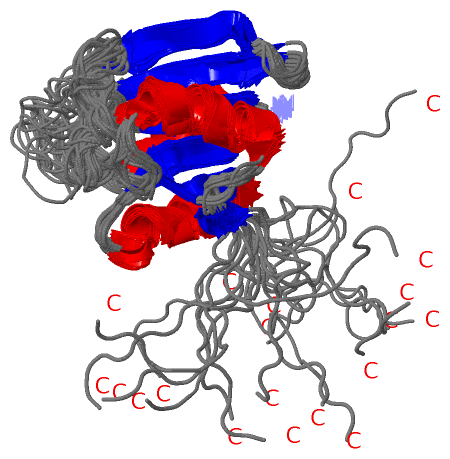

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1eo1
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  O27243_METTH | O27243
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  O27243_METTH | O27243
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1EO1)

(-) Related Entries Specified in the PDB File

1eiw SOLUTION STRUCTURE OF HYPOTHETICAL PROTEIN MTH538 FROM METHANOBACTERIUM THERMOAUTOTROPHICUM RELATED ID: TP2 RELATED DB: TARGETDB
