1EKB - JenaLib

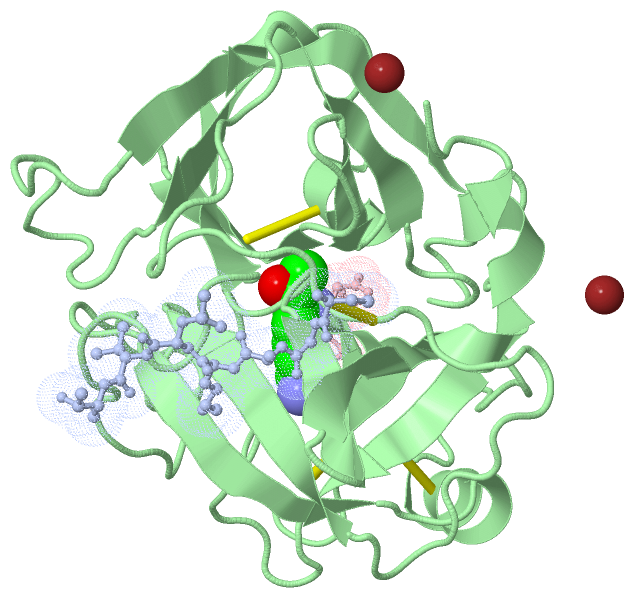

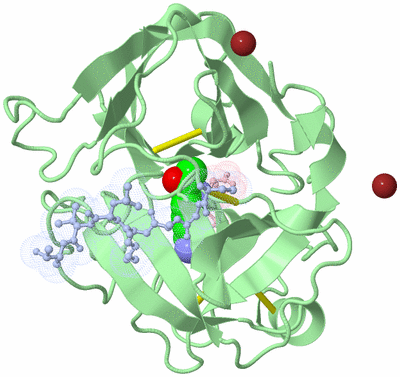

Asym./Biol. Unit (Jmol Viewer)

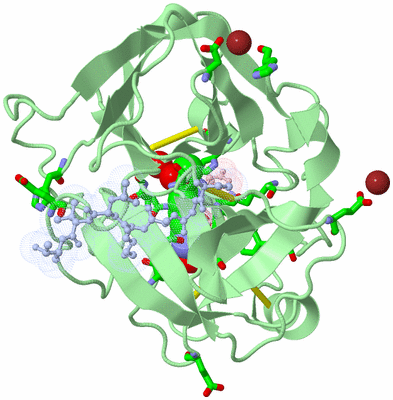

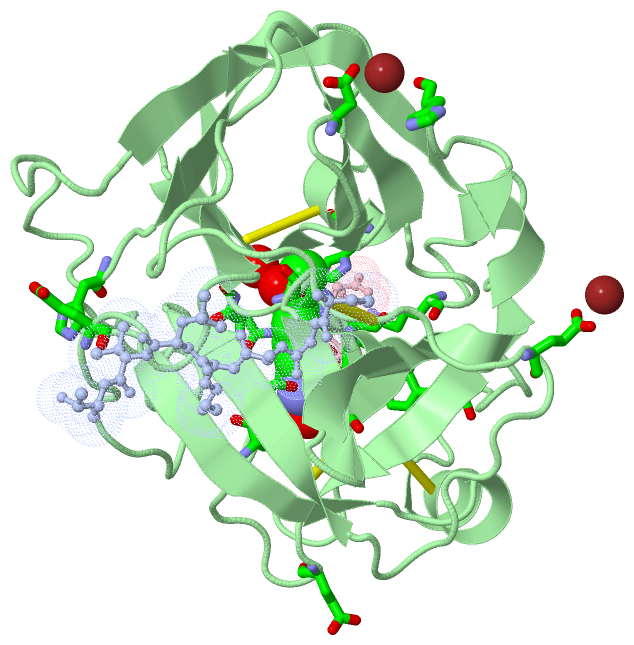

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   THE SERINE PROTEASE DOMAIN OF ENTEROPEPTIDASE BOUND TO INHIBITOR VAL-ASP-ASP-ASP-ASP-LYS-CHLOROMETHANE

Authors :   K. Fuetterer, D. Lu, J. E. Sadler, G. Waksman

Date :   02 May 99 (Deposition) - 14 Oct 99 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.30

Chains :   Asym./Biol. Unit : A,B,C

Keywords :   Enteropeptidase, Trypsinogen Activation, Hydrolase-Hydrolase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   D. Lu, K. Futterer, S. Korolev, X. Zheng, K. Tan, G. Waksman, J. E. Sadle
Crystal Structure Of Enteropeptidase Light Chain Complexed With An Analog Of The Trypsinogen Activation Peptide.
J. Mol. Biol. V. 292 361 1999
PubMed-ID: 10493881 | Reference-DOI: 10.1006/JMBI.1999.3089

Molecule 1 - ENTEROPEPTIDASE
	Chains	:	A
	EC Number	:	3.4.21.9
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PETL
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Fragment	:	13-AMINO ACID REMNANT OF AMINO TERMINAL DOMAIN OF HEAVY CHAIN
	Organism Common	:	CATTLE
	Organism Scientific	:	BOS TAURUS
	Organism Taxid	:	9913
	Synonym	:	ENTEROKINASE, HEAVY CHAIN

Molecule 2 - ENTEROPEPTIDASE
	Chains	:	B
	EC Number	:	3.4.21.9
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PETL
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Fragment	:	SERINE PROTEASE DOMAIN OR LIGHT CHAIN
	Organism Common	:	CATTLE
	Organism Scientific	:	BOS TAURUS
	Organism Taxid	:	9913
	Synonym	:	ENTEROKINASE, LIGHT CHAIN

Molecule 3 - VAL-ASP-ASP-ASP-ASP-LYK PEPTIDE
	Chains	:	C
	Engineered	:	YES
	Synthetic	:	YES

		1	2	3
Asymmetric/Biological Unit	:	A	B	C

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (3, 4)

No.	Name	Count	Type	Full Name
1	0QE	1	Mod. Amino Acid	CHLOROMETHANE
2	LYK	1	Mod. Amino Acid	(2S)-2,6-DIAMINOHEXANE-1,1-DIOL
3	ZN	2	Ligand/Ion	ZINC ION

Asymmetric Unit (3, 3)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	GLU B:24 , HIS B:71 , GLU B:126	BINDING SITE FOR RESIDUE ZN B 310
2	AC2	SOFTWARE	ASP B:50 , GLU B:185 , HIS B:243 , HOH B:479	BINDING SITE FOR RESIDUE ZN B 311
3	AC3	SOFTWARE	HIS B:57 , LYS B:99 , TYR B:174 , ASP B:189 , SER B:190 , GLN B:192 , GLY B:193 , SER B:195 , SER B:214 , PHE B:215 , GLY B:216 , GLY B:226 , HOH B:407 , HOH B:438 , HOH C:436 , HOH C:445 , HOH C:521	BINDING SITE FOR CHAIN C OF VAL-ASP-ASP-ASP-ASP- LYK PEPTIDE

Asymmetric/Biological Unit

No.	Residues
1	A:1	-	B:122
2	B:42	-	B:58
3	B:136	-	B:201
4	B:168	-	B:182
5	B:191	-	B:220

(no "Cis Peptide Bond" information available for 1EKB)

(no "SAP(SNP)/Variant" information available for 1EKB)

Asymmetric/Biological Unit (3, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TRYPSIN_DOM	PS50240	Serine proteases, trypsin domain profile.	ENTK_BOVIN	801-1035	1	B:16-243
2	TRYPSIN_HIS	PS00134	Serine proteases, trypsin family, histidine active site.	ENTK_BOVIN	837-842	1	B:53-58
3	TRYPSIN_SER	PS00135	Serine proteases, trypsin family, serine active site.	ENTK_BOVIN	981-992	1	B:189-200

Asymmetric/Biological Unit (6, 7)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1	ENSBTAT00000000788	1	ENSBTAE00000308451	chr1:18251201-18251457	257	ENTK_BOVIN	1-49	49	0	-	-
1.2	ENSBTAT00000000788	2	ENSBTAE00000005899	chr1:18255039-18255169	131	ENTK_BOVIN	49-92	44	0	-	-
1.3	ENSBTAT00000000788	3	ENSBTAE00000005901	chr1:18255670-18255737	68	ENTK_BOVIN	93-115	23	0	-	-
1.4	ENSBTAT00000000788	4	ENSBTAE00000005905	chr1:18262957-18263108	152	ENTK_BOVIN	115-166	52	0	-	-
1.5	ENSBTAT00000000788	5	ENSBTAE00000308447	chr1:18265524-18265568	45	ENTK_BOVIN	166-181	16	0	-	-
1.6	ENSBTAT00000000788	6	ENSBTAE00000005908	chr1:18266997-18267032	36	ENTK_BOVIN	181-193	13	0	-	-
1.7	ENSBTAT00000000788	7	ENSBTAE00000005910	chr1:18279406-18279537	132	ENTK_BOVIN	193-237	45	0	-	-
1.8	ENSBTAT00000000788	8	ENSBTAE00000005914	chr1:18287388-18287499	112	ENTK_BOVIN	237-274	38	0	-	-
1.9	ENSBTAT00000000788	9	ENSBTAE00000005915	chr1:18299582-18299688	107	ENTK_BOVIN	274-310	37	0	-	-
1.10	ENSBTAT00000000788	10	ENSBTAE00000005917	chr1:18307968-18308111	144	ENTK_BOVIN	310-358	49	0	-	-
1.11	ENSBTAT00000000788	11	ENSBTAE00000005919	chr1:18308809-18308958	150	ENTK_BOVIN	358-408	51	0	-	-
1.12	ENSBTAT00000000788	12	ENSBTAE00000005923	chr1:18316129-18316234	106	ENTK_BOVIN	408-443	36	0	-	-
1.13	ENSBTAT00000000788	13	ENSBTAE00000005925	chr1:18316544-18316694	151	ENTK_BOVIN	443-493	51	0	-	-
1.14	ENSBTAT00000000788	14	ENSBTAE00000005927	chr1:18319106-18319241	136	ENTK_BOVIN	494-539	46	0	-	-
1.15	ENSBTAT00000000788	15	ENSBTAE00000005928	chr1:18326405-18326494	90	ENTK_BOVIN	539-569	31	0	-	-
1.16	ENSBTAT00000000788	16	ENSBTAE00000005930	chr1:18331539-18331664	126	ENTK_BOVIN	569-611	43	0	-	-
1.17	ENSBTAT00000000788	17	ENSBTAE00000005932	chr1:18333884-18334030	147	ENTK_BOVIN	611-660	50	0	-	-
1.18	ENSBTAT00000000788	18	ENSBTAE00000363281	chr1:18343048-18343158	111	ENTK_BOVIN	660-697	38	0	-	-
1.19	ENSBTAT00000000788	19	ENSBTAE00000363279	chr1:18344706-18344838	133	ENTK_BOVIN	697-741	45	0	-	-
1.20	ENSBTAT00000000788	20	ENSBTAE00000363277	chr1:18358631-18358726	96	ENTK_BOVIN	741-773	33	0	-	-
1.21	ENSBTAT00000000788	21	ENSBTAE00000363274	chr1:18363298-18363347	50	ENTK_BOVIN	773-790	18	1	A:1-3 -	3 -
1.22	ENSBTAT00000000788	22	ENSBTAE00000363272	chr1:18363506-18363680	175	ENTK_BOVIN	790-848	59	2	A:3-7 B:16-60H (gaps)	5 49
1.23	ENSBTAT00000000788	23	ENSBTAE00000005944	chr1:18388511-18388692	182	ENTK_BOVIN	848-909	62	1	- B:60H-119	- 62
1.24	ENSBTAT00000000788	24	ENSBTAE00000005945	chr1:18390381-18390476	96	ENTK_BOVIN	909-941	33	1	- B:119-152 (gaps)	- 34
1.25	ENSBTAT00000000788	25	ENSBTAE00000005946	chr1:18396919-18397058	140	ENTK_BOVIN	941-987	47	1	- B:152-195 (gaps)	- 49
1.26	ENSBTAT00000000788	26	ENSBTAE00000005947	chr1:18401586-18402384	799	ENTK_BOVIN	988-1038	51	1	- B:196-243 (gaps)	- 49

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:7
 aligned with ENTK_BOVIN | P98072 from UniProtKB/Swiss-Prot  Length:1035

    Alignment length:7
          ENTK_BOVIN    788 CGKKLVT  794
               SCOP domains ------- SCOP domains
               CATH domains ------- CATH domains
               Pfam domains ------- Pfam domains
         Sec.struct. author ....... Sec.struct. author
                 SAPs(SNPs) ------- SAPs(SNPs)
                PROSITE (1) ------- PROSITE (1)
                PROSITE (2) ------- PROSITE (2)
           Transcript 1 (1) 1.2---- Transcript 1 (1)
           Transcript 1 (2) --1.22  Transcript 1 (2)
                1ekb A    1 CGKKLVT    7

Chain B from PDB  Type:PROTEIN  Length:235
 aligned with ENTK_BOVIN | P98072 from UniProtKB/Swiss-Prot  Length:1035

    Alignment length:235
                                   810       820       830       840       850       860       870       880       890       900       910       920       930       940       950       960       970       980       990      1000      1010      1020      1030
          ENTK_BOVIN    801 IVGGSDSREGAWPWVVALYFDDQQVCGASLVSRDWLVSAAHCVYGRNMEPSKWKAVLGLHMASNLTSPQIETRLIDQIVINPHYNKRRKNNDIAMMHLEMKVNYTDYIQPICLPEENQVFPPGRICSIAGWGALIYQGSTADVLQEADVPLLSNEKCQQQMPEYNITENMVCAGYEAGGVDSCQGDSGGPLMCQENNRWLLAGVTSFGYQCALPNRPGVYARVPRFTEWIQSFLH 1035
               SCOP domains d1ekbb_ B: Enteropeptidase (enterokinase light chain)                                                                                                                                                                                       SCOP domains
               CATH domains 1ekbB01     1ekbB02 B:28-120,B:233-243 Trypsin-like serine proteases                                          1ekbB01 B:16-27,B:121-232 Trypsin-like serine proteases                                                           1ekbB02     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............eeeeee...eeeeee.....eeee.hhhh......hhheeeee.............eeeeeeeeee.............eeeee..........................eeeeee..............eeeeee...hhhhhhh.........eeee................eeeeee..eeeeeeeeee..........eeeeehhh.hhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) TRYPSIN_DOM  PDB: B:16-243 UniProt: 801-1035                                                                                                                                                                                                PROSITE (1)
                PROSITE (2) ------------------------------------TRYPSI------------------------------------------------------------------------------------------------------------------------------------------TRYPSIN_SER ------------------------------------------- PROSITE (2)
           Transcript 1 (1) -----------------------------------------------Exon 1.23  PDB: B:60H-119 UniProt: 848-909                    -------------------------------Exon 1.25  PDB: B:152-195 (gaps)               Exon 1.26  PDB: B:196-243 (gaps) [INCOMPLETE]    Transcript 1 (1)
           Transcript 1 (2) Exon 1.22  PDB: B:16-60H (gaps) UniProt: 790-848------------------------------------------------------------Exon 1.24  PDB: B:119-152 (gaps) ---------------------------------------------------------------------------------------------- Transcript 1 (2)
                1ekb B   16 IVGGSDSREGAWPWVVALYFDDQQVCGASLVSRDWLVSAAHCVYGRNMEPSKWKAVLGLHMASNLTSPQIETRLIDQIVINPHYNKRRKNNDIAMMHLEMKVNYTDYIQPICLPEENQVFPPGRICSIAGWGALIYQGSTADVLQEADVPLLSNEKCQQQMPEYNITENMVCAGYEAGGVDSCQGDSGGPLMCQENNRWLLAGVTSFGYQCALPNRPGVYARVPRFTEWIQSFLH  243
                                    25        35|       46        56    ||||61        71      | 80        90       100       110       120       130       140       151       161       171 |     180    | 186C|      198       208       219  |    228       238
                                              35|                     60A||||               77A                                                                    148|                   172A         184A  ||||                         217|  |
                                               37                      60F|||                                                                                       150                                   186A|||                          219  |
                                                                        60G||                                                                                                                              186B||                            221A
                                                                         60H|                                                                                                                               186C|
                                                                          60I                                                                                                                                 189

Chain C from PDB  Type:PROTEIN  Length:5

               SCOP domains ----- SCOP domains
               CATH domains ----- CATH domains
               Pfam domains ----- Pfam domains
         Sec.struct. author ..... Sec.struct. author
                 SAPs(SNPs) ----- SAPs(SNPs)
                    PROSITE ----- PROSITE
                 Transcript ----- Transcript
                1ekb C  303 DDDxx  307
                               ||
                             306-LYK
                              307-0QE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Trypsin-like serine proteases (1752)

Superfamily: Trypsin-like serine proteases (1752)

Family: Eukaryotic proteases (1343)

Protein domain: Enteropeptidase (enterokinase light chain) (1)

Cow (Bos taurus) [TaxId: 9913] (1)

d1ekbb_

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Beta Barrel (4804)

Topology: Thrombin, subunit H (1535)

Homologous Superfamily: Trypsin-like serine proteases (1488)

Cattle (Bos taurus) (308)

1a	1ekbB01	B:16-27,B:121-232
1b	1ekbB02	B:28-120,B:233-243

(no "Pfam Domain" information available for 1EKB)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (ENTK_BOVIN | P98072)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0008233	peptidase activity	Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
	GO:0005044	scavenger receptor activity	Combining with any modified low-density lipoprotein (LDL) or other polyanionic ligand and delivering the ligand into the cell via endocytosis. Ligands include acetylated and oxidized LDL, Gram-positive and Gram-negative bacteria, apoptotic cells, amyloid-beta fibrils, and advanced glycation end products (AGEs).
	GO:0004252	serine-type endopeptidase activity	Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
	GO:0008236	serine-type peptidase activity	Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
	GO:0006508	proteolysis	The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
	GO:0006898	receptor-mediated endocytosis	An endocytosis process in which cell surface receptors ensure specificity of transport. A specific receptor on the cell surface binds tightly to the extracellular macromolecule (the ligand) that it recognizes; the plasma-membrane region containing the receptor-ligand complex then undergoes endocytosis, forming a transport vesicle containing the receptor-ligand complex and excluding most other plasma-membrane proteins. Receptor-mediated endocytosis generally occurs via clathrin-coated pits and vesicles.
cellular component
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		0QE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		LYK	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ekb)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1ekb
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	ENTK_BOVIN \| P98072
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.4.21.9
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	ENTK_BOVIN \| P98072
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1EKB)

(no "Related Entries Specified in the PDB File" available for 1EKB)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 4)

Sites (3, 3)

SS Bonds (5, 5)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (3, 3)

Exons (6, 7)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 2)

Pfam Domains (0, 0)

Gene Ontology (9, 9)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
