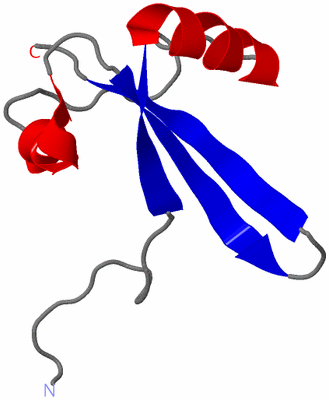

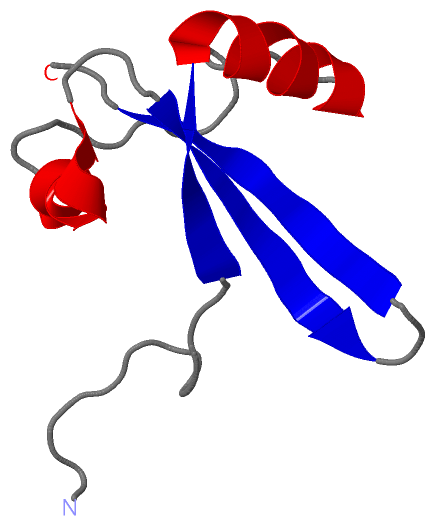

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

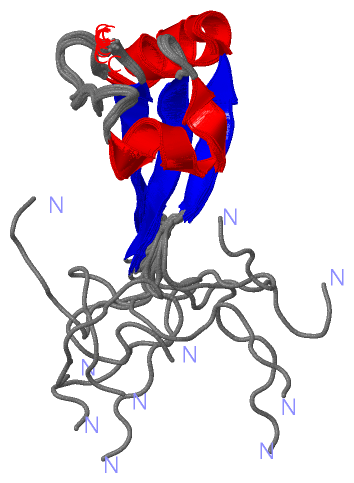

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF RNA POLYMERASE SUBUNIT RPB5 FROM METHANOBACTERIUM THERMOAUTOTROPHICUM

Authors :  A. Yee, V. Booth, A. Dharamsi, A. Engel, A. M. Edwards, C. H. Arrowsmith, Northeast Structural Genomics Consortium (Nesg)
Date :  25 Feb 00  (Deposition) - 21 Jun 00  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Rpb5, Rpbh, Rna Polymerase Subunit, Ocsp, Nesg, Protein Structure Initiative, Structural Genomics, Psi, Northeast Structural Genomics Consortium, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Yee, V. Booth, A. Dharamsi, A. Engel, A. M. Edwards, C. H. Arrowsmith
Solution Structure Of The Rna Polymerase Subunit Rpb5 From Methanobacterium Thermoautotrophicum.
Proc. Natl. Acad. Sci. Usa V. 97 6311 2000
PubMed-ID: 10841538  |  Reference-DOI: 10.1073/PNAS.97.12.6311
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RNA POLYMERASE SUBUNIT RPB5
    Chains: A
    EC Number: 2.7.7.6
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET15B
    Expression System Taxid: 562
    Organism Scientific: METHANOTHERMOBACTER THERMAUTOTROPHICUS
    Organism Taxid: 145262

 Structural Features

(-) Chains, Units


NMR Structure (10x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1EIK)

(-) Sites  (0, 0)

(no "Site" information available for 1EIK)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1EIK)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1EIK)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1EIK)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RNA_POL_H_23KDPS01110 RNA polymerases H / 23 Kd subunits signature.RPOH_METTH8-21  1A:8-21

(-) Exons   (0, 0)

(no "Exon" information available for 1EIK)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:77
 aligned with RPOH_METTH | O27122 from UniProtKB/Swiss-Prot  Length:77

    Alignment length:77
                                    10        20        30        40        50        60        70
            RPOH_METTH    1 MKREILKHQLVPEHVILNESEAKRVLKELDAHPEQLPKIKTTDPVAKAIGAKRGDIVKIIRKSPTAEEFVTYRLVQD 77
               SCOP domains d1eika_ A: RNA polymerase subunit RBP5 (RNA polymerase subunit H)             SCOP domains
               CATH domains 1eikA00 A:1-77  [code=3.90.940.20, no name defined]                           CATH domains
               Pfam domains ----------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............eeeeehhhhhhhhhhhh.............hhhhhhhhh....eeeeeeee...eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------RNA_POL_H_23KD-------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------- Transcript
                  1eik A  1 MKREILKHQLVPEHVILNESEAKRVLKELDAHPEQLPKIKTTDPVAKAIGAKRGDIVKIIRKSPTAEEFVTYRLVQD 77
                                    10        20        30        40        50        60        70
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1EIK)

(-) Gene Ontology  (5, 5)

NMR Structure(hide GO term definitions)
Chain A   (RPOH_METTH | O27122)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003899    DNA-directed 5'-3' RNA polymerase activity    Catalysis of the reaction: nucleoside triphosphate + RNA(n) = diphosphate + RNA(n+1). Utilizes a DNA template, i.e. the catalysis of DNA-template-directed extension of the 3'-end of an RNA strand by one nucleotide at a time. Can initiate a chain 'de novo'.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
