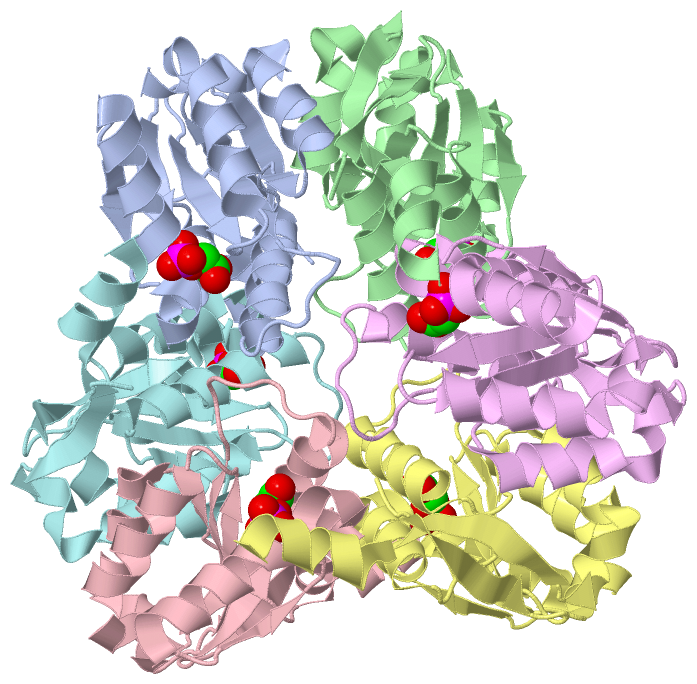

Asym./Biol. Unit (Jmol Viewer)

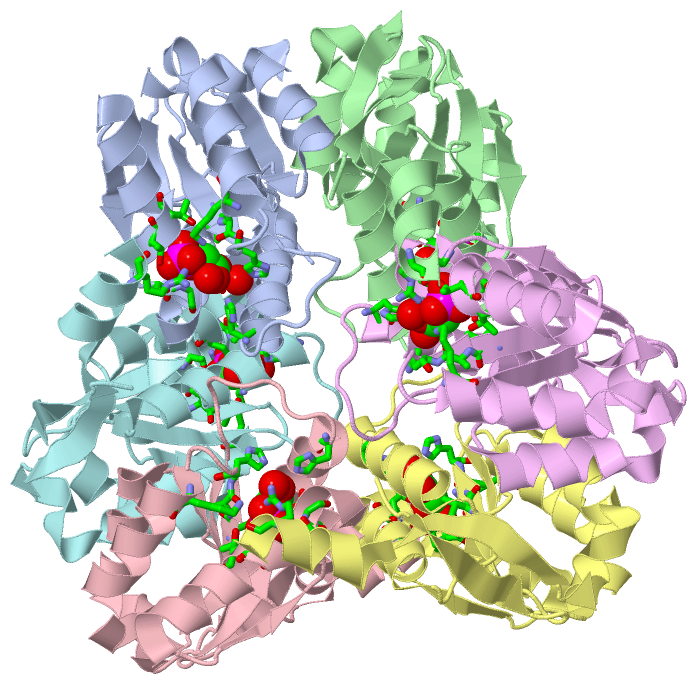

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   STRUCTURE OF METHYLGLYOXAL SYNTHASE COMPLEXED WITH THE COMPETITIVE INHIBITOR 2-PHOSPHOGLYCOLATE

Authors :   D. Saadat, D. H. T. Harrison

Date :   15 Feb 00 (Deposition) - 01 Mar 00 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym./Biol. Unit : A,B,C,D,E,F

Keywords :   Beta/Alpha Protein, Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   D. Saadat, D. H. Harrison
Mirroring Perfection: The Structure Of Methylglyoxal Synthase Complexed With The Competitive Inhibitor 2-Phosphoglycolate.
Biochemistry V. 39 2950 2000
PubMed-ID: 10715115 | Reference-DOI: 10.1021/BI992666F
(for further references see the PDB file header)

Molecule 1 - METHYLGLYOXAL SYNTHASE
	Chains	:	A, B, C, D, E, F
	EC Number	:	4.2.3.3
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET16B
	Expression System Taxid	:	562
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562

		1	2	3	4	5	6
Asymmetric/Biological Unit	:	A	B	C	D	E	F

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (1, 6)

No.	Name	Count	Type	Full Name
1	PGA	6	Ligand/Ion	2-PHOSPHOGLYCOLIC ACID

Asymmetric Unit (6, 6)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	VAL A:17 , ALA A:18 , HIS A:19 , LYS A:23 , THR A:45 , THR A:47 , THR A:48 , SER A:65 , GLY A:66 , ASP A:71 , HIS A:98 , HOH A:381 , HOH A:482 , ARG F:150	BINDING SITE FOR RESIDUE PGA A 201
2	AC2	SOFTWARE	VAL B:17 , ALA B:18 , LYS B:23 , THR B:45 , THR B:47 , THR B:48 , SER B:65 , GLY B:66 , PRO B:67 , ASP B:71 , HIS B:98 , HOH B:367 , HOH B:527 , ARG E:150	BINDING SITE FOR RESIDUE PGA B 211
3	AC3	SOFTWARE	VAL C:17 , ALA C:18 , HIS C:19 , LYS C:23 , THR C:45 , THR C:47 , THR C:48 , SER C:65 , GLY C:66 , ASP C:71 , HIS C:98 , HOH C:353 , ARG D:150	BINDING SITE FOR RESIDUE PGA C 221
4	AC4	SOFTWARE	ARG C:150 , VAL D:17 , ALA D:18 , HIS D:19 , LYS D:23 , THR D:45 , THR D:47 , THR D:48 , SER D:65 , GLY D:66 , ASP D:71 , HIS D:98 , HOH D:339 , HOH D:533	BINDING SITE FOR RESIDUE PGA D 231
5	AC5	SOFTWARE	ARG B:150 , VAL E:17 , ALA E:18 , HIS E:19 , LYS E:23 , THR E:45 , THR E:47 , THR E:48 , SER E:65 , GLY E:66 , ASP E:71 , HIS E:98 , HOH E:326 , HOH E:529	BINDING SITE FOR RESIDUE PGA E 241
6	AC6	SOFTWARE	ARG A:150 , VAL F:17 , ALA F:18 , LYS F:23 , THR F:45 , THR F:47 , THR F:48 , SER F:65 , GLY F:66 , ASP F:71 , HIS F:98 , HOH F:312	BINDING SITE FOR RESIDUE PGA F 251

(no "SS Bond" information available for 1EGH)

(no "Cis Peptide Bond" information available for 1EGH)

(no "SAP(SNP)/Variant" information available for 1EGH)

Asymmetric/Biological Unit (1, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	METHYLGLYOXAL_SYNTH	PS01335	Methylglyoxal synthase active site.	MGSA_ECOLI	65-73	6	A:65-73 B:65-73 C:65-73 D:65-73 E:65-73 F:65-73

(no "Exon" information available for 1EGH)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:152
 aligned with MGSA_ECOLI | P0A731 from UniProtKB/Swiss-Prot  Length:152

    Alignment length:152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           MGSA_ECOLI     1 MELTTRTLPARKHIALVAHDHCKQMLMSWVERHQPLLEQHVLYATGTTGNLISRATGMNVNAMLSGPMGGDQQVGALISEGKIDVLIFFWDPLNAVPHDPDVKALLRLATVWNIPVATNVATADFIIQSPHFNDAVDILIPDYQRYLADRLK 152
               SCOP domains d1egha_ A: Methylglyoxal synthase, MgsA                                                                                                                  SCOP domains
               CATH domains 1eghA00 A:1-152  [code=3.40.50.1380, no name defined]                                                                                                    CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee....eeeeee...hhhhhhhhhhhhhhhhh..eeeehhhhhhhhhhhhh..eee..hhhhhhhhhhhhhhhh....eeeee........hhhhhhhhhhhhhhh...ee.hhhhhhhhhhhhhhhh.eeeeeehhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------METHYLGLY------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1egh A   1 MELTTRTLPARKHIALVAHDHCKQMLMSWVERHQPLLEQHVLYATGTTGNLISRATGMNVNAMLSGPMGGDQQVGALISEGKIDVLIFFWDPLNAVPHDPDVKALLRLATVWNIPVATNVATADFIIQSPHFNDAVDILIPDYQRYLADRLK 152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain B from PDB  Type:PROTEIN  Length:151
 aligned with MGSA_ECOLI | P0A731 from UniProtKB/Swiss-Prot  Length:152

    Alignment length:151
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           MGSA_ECOLI     1 MELTTRTLPARKHIALVAHDHCKQMLMSWVERHQPLLEQHVLYATGTTGNLISRATGMNVNAMLSGPMGGDQQVGALISEGKIDVLIFFWDPLNAVPHDPDVKALLRLATVWNIPVATNVATADFIIQSPHFNDAVDILIPDYQRYLADRL 151
               SCOP domains d1eghb_ B: Methylglyoxal synthase, MgsA                                                                                                                 SCOP domains
               CATH domains 1eghB00 B:1-151  [code=3.40.50.1380, no name defined]                                                                                                   CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee....eeeeee...hhhhhhhhhhhhhhhhh..eeeehhhhhhhhhhhhh..eee..hhhhhhhhhhhhhhhh....eeeee........hhhhhhhhhhhhhhh...ee.hhhhhhhhhhhhhhhh.eeeeeehhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------METHYLGLY------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1egh B   1 MELTTRTLPARKHIALVAHDHCKQMLMSWVERHQPLLEQHVLYATGTTGNLISRATGMNVNAMLSGPMGGDQQVGALISEGKIDVLIFFWDPLNAVPHDPDVKALLRLATVWNIPVATNVATADFIIQSPHFNDAVDILIPDYQRYLADRL 151
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain C from PDB  Type:PROTEIN  Length:152
 aligned with MGSA_ECOLI | P0A731 from UniProtKB/Swiss-Prot  Length:152

    Alignment length:152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           MGSA_ECOLI     1 MELTTRTLPARKHIALVAHDHCKQMLMSWVERHQPLLEQHVLYATGTTGNLISRATGMNVNAMLSGPMGGDQQVGALISEGKIDVLIFFWDPLNAVPHDPDVKALLRLATVWNIPVATNVATADFIIQSPHFNDAVDILIPDYQRYLADRLK 152
               SCOP domains d1eghc_ C: Methylglyoxal synthase, MgsA                                                                                                                  SCOP domains
               CATH domains 1eghC00 C:1-152  [code=3.40.50.1380, no name defined]                                                                                                    CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee....eeeeee...hhhhhhhhhhhhhhhhh..eeeehhhhhhhhhhhhh..eee..hhhhhhhhhhhhhhhh....eeeee........hhhhhhhhhhhhhhh...ee.hhhhhhhhhhhhhhhh.eeeeeehhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------METHYLGLY------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1egh C   1 MELTTRTLPARKHIALVAHDHCKQMLMSWVERHQPLLEQHVLYATGTTGNLISRATGMNVNAMLSGPMGGDQQVGALISEGKIDVLIFFWDPLNAVPHDPDVKALLRLATVWNIPVATNVATADFIIQSPHFNDAVDILIPDYQRYLADRLK 152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain D from PDB  Type:PROTEIN  Length:152
 aligned with MGSA_ECOLI | P0A731 from UniProtKB/Swiss-Prot  Length:152

    Alignment length:152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           MGSA_ECOLI     1 MELTTRTLPARKHIALVAHDHCKQMLMSWVERHQPLLEQHVLYATGTTGNLISRATGMNVNAMLSGPMGGDQQVGALISEGKIDVLIFFWDPLNAVPHDPDVKALLRLATVWNIPVATNVATADFIIQSPHFNDAVDILIPDYQRYLADRLK 152
               SCOP domains d1eghd_ D: Methylglyoxal synthase, MgsA                                                                                                                  SCOP domains
               CATH domains 1eghD00 D:1-152  [code=3.40.50.1380, no name defined]                                                                                                    CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee....eeeeee...hhhhhhhhhhhhhhhhh..eeeehhhhhhhhhhhhh..eee..hhhhhhhhhhhhhhhh....eeeee........hhhhhhhhhhhhhhh...ee.hhhhhhhhhhhhhhhh.eeeeeehhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------METHYLGLY------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1egh D   1 MELTTRTLPARKHIALVAHDHCKQMLMSWVERHQPLLEQHVLYATGTTGNLISRATGMNVNAMLSGPMGGDQQVGALISEGKIDVLIFFWDPLNAVPHDPDVKALLRLATVWNIPVATNVATADFIIQSPHFNDAVDILIPDYQRYLADRLK 152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain E from PDB  Type:PROTEIN  Length:152
 aligned with MGSA_ECOLI | P0A731 from UniProtKB/Swiss-Prot  Length:152

    Alignment length:152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           MGSA_ECOLI     1 MELTTRTLPARKHIALVAHDHCKQMLMSWVERHQPLLEQHVLYATGTTGNLISRATGMNVNAMLSGPMGGDQQVGALISEGKIDVLIFFWDPLNAVPHDPDVKALLRLATVWNIPVATNVATADFIIQSPHFNDAVDILIPDYQRYLADRLK 152
               SCOP domains d1eghe_ E: Methylglyoxal synthase, MgsA                                                                                                                  SCOP domains
               CATH domains 1eghE00 E:1-152  [code=3.40.50.1380, no name defined]                                                                                                    CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee....eeeeee...hhhhhhhhhhhhhhhhh..eeeehhhhhhhhhhhhh..eee..hhhhhhhhhhhhhhhh....eeeee........hhhhhhhhhhhhhhh...ee.hhhhhhhhhhhhhhh..eeeeeehhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------METHYLGLY------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1egh E   1 MELTTRTLPARKHIALVAHDHCKQMLMSWVERHQPLLEQHVLYATGTTGNLISRATGMNVNAMLSGPMGGDQQVGALISEGKIDVLIFFWDPLNAVPHDPDVKALLRLATVWNIPVATNVATADFIIQSPHFNDAVDILIPDYQRYLADRLK 152
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Chain F from PDB  Type:PROTEIN  Length:151
 aligned with MGSA_ECOLI | P0A731 from UniProtKB/Swiss-Prot  Length:152

    Alignment length:151
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           MGSA_ECOLI     1 MELTTRTLPARKHIALVAHDHCKQMLMSWVERHQPLLEQHVLYATGTTGNLISRATGMNVNAMLSGPMGGDQQVGALISEGKIDVLIFFWDPLNAVPHDPDVKALLRLATVWNIPVATNVATADFIIQSPHFNDAVDILIPDYQRYLADRL 151
               SCOP domains d1eghf_ F: Methylglyoxal synthase, MgsA                                                                                                                 SCOP domains
               CATH domains 1eghF00 F:1-151  [code=3.40.50.1380, no name defined]                                                                                                   CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee....eeeeee...hhhhhhhhhhhhhhhhh..eeeehhhhhhhhhhhhh..eee..hhhhhhhhhhhhhhhh....eeeee........hhhhhhhhhhhhhhh...ee.hhhhhhhhhhhhhhhh.eeeeeehhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------METHYLGLY------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1egh F   1 MELTTRTLPARKHIALVAHDHCKQMLMSWVERHQPLLEQHVLYATGTTGNLISRATGMNVNAMLSGPMGGDQQVGALISEGKIDVLIFFWDPLNAVPHDPDVKALLRLATVWNIPVATNVATADFIIQSPHFNDAVDILIPDYQRYLADRL 151
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Methylglyoxal synthase-like (31)

Superfamily: Methylglyoxal synthase-like (31)

Family: Methylglyoxal synthase, MgsA (9)

Protein domain: Methylglyoxal synthase, MgsA (7)

Escherichia coli [TaxId: 562] (5)

1a	d1egha_	A:
1b	d1eghb_	B:
1c	d1eghc_	C:
1d	d1eghd_	D:
1e	d1eghe_	E:
1f	d1eghf_	F:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.1380, no name defined] (29)

Escherichia coli. Organism_taxid: 562. (7)

1a	1eghB00	B:1-151
1b	1eghF00	F:1-151
1c	1eghA00	A:1-152
1d	1eghC00	C:1-152
1e	1eghD00	D:1-152
1f	1eghE00	E:1-152

(no "Pfam Domain" information available for 1EGH)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D,E,F (MGSA_ECOLI | P0A731)

molecular function
	GO:0016829	lyase activity	Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
	GO:0008929	methylglyoxal synthase activity	Catalysis of the reaction: glycerone phosphate = methylglyoxal + phosphate.
biological process
	GO:0019242	methylglyoxal biosynthetic process	The chemical reactions and pathways resulting in the formation of methylglyoxal, CH3-CO-CHO, the aldehyde of pyruvic acid.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		PGA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1egh)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1egh
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	MGSA_ECOLI \| P0A731
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	4.2.3.3
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	MGSA_ECOLI \| P0A731
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	MGSA_ECOLI \| P0A731	:	1b93 1ik4 1s89 1s8a

1b93	1B93 CONTAINS THE SAME PROTEIN COMPLEXED WITH INORGANIC PHOSPHATE AND FORMATE

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 6)

Sites (6, 6)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 6)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 6)

CATH Domains (1, 6)

Pfam Domains (0, 0)

Gene Ontology (5, 5)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
