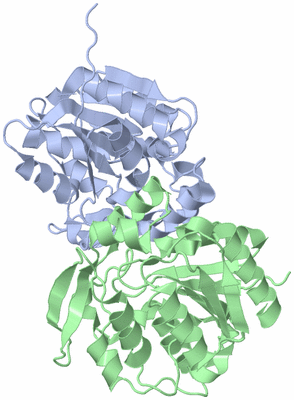

Image Asymmetric Unit

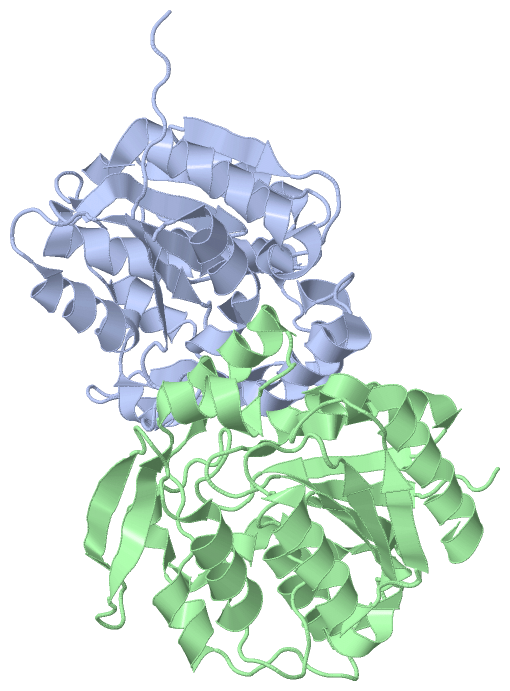

Asymmetric Unit  (Jmol Viewer)

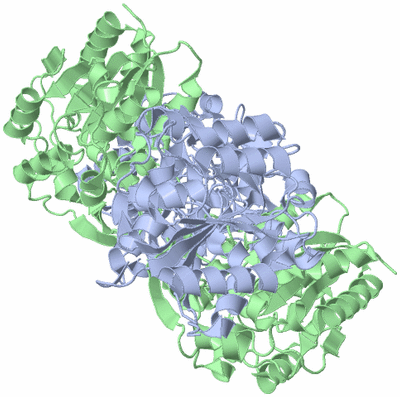

Image Biological Unit 1

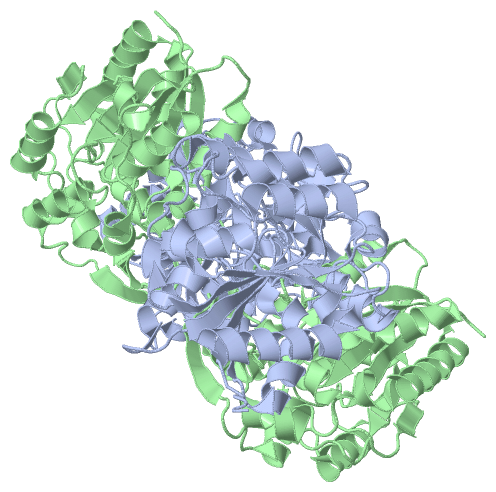

Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  ON THE MECHANISM OF CYANOGENESIS CATALYZED BY HYDROXYNITRILE LYASE FROM MANIHOT ESCULENTA. CRYSTAL STRUCTURE OF ACTIVE SITE MUTANT SER80ALA IN COMPLEX WITH ACETONE CYANOHYDRIN

Authors :  H. Lauble, B. Miehlich, S. Foerster, H. Wajant, F. Effenberger
Date :  18 Sep 00  (Deposition) - 17 Aug 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Keywords :  Lyase, Hydroxynitrile Lyase, Active Site Mutant, Acetone Cyanohydrin Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Lauble, B. Miehlich, S. Foerster, H. Wajant, F. Effenberger
Mechanistic Aspects Of Cyanogenesis From Active-Site Mutant Ser80Ala Of Hydroxynitrile Lyase From Manihot Esculenta In Complex With Acetone Cyanohydrin
Protein Sci. V. 10 1015 2001
PubMed-ID: 11316882  |  Reference-DOI: 10.1110/PS.01301
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYDROXYNITRILE LYASE
    Chains: A, B
    EC Number: 4.2.1.37
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Mutation: YES
    Organism Common: CASSAVA
    Organism Scientific: MANIHOT ESCULENTA
    Organism Taxid: 3983
    Synonym: (S)-ACETONE-CYANOHYDRIN LYASE, (S)-HYDROXYNITRILASE

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1E89)

(-) Sites  (0, 0)

(no "Site" information available for 1E89)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1E89)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1E89)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1E89)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1E89)

(-) Exons   (0, 0)

(no "Exon" information available for 1E89)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:262
 aligned with HNL_MANES | P52705 from UniProtKB/Swiss-Prot  Length:258

    Alignment length:262
                                1
                                |    6        16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256
            HNL_MANES     - ----MVTAHFVLIHTICHGAWIWHKLKPALERAGHKVTALDMAASGIDPRQIEQINSFDEYSEPLLTFLEKLPQGEKVIIVGESCAGLNIAIAADRYVDKIAAGVFHNSLLPDTVHSPSYTVEKLLESFPDWRDTEYFTFTNITGETITTMKLGFVLLRENLFTKCTDGEYELAKMVMRKGSLFQNVLAQRPKFTEKGYGSIKKVYIWTDQDKIFLPDFQRWQIANYKPDKVYQVQGGDHKLQLTKTEEVAHILQEVADAYA 258
               SCOP domains d1e89a_ A: Hydroxynitrile lyase                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1e89A00 A:-4-258  [code=3.40.50.1820, no name defined]                                                                                                                                                                                                                 CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eeeee.....hhhhhhhhhhhhhhh..eeeee..........hhhhh.hhhhhhhhhhhhhhhh.....eeeeee..hhhhhhhhhhhhh..eeeeeee...........hhhhhhhhhhh......eeeeee.....eeeeee.hhhhhhhhh....hhhhhhhhhhhh.....hhhhhhh.......hhhhh.eeeee.......hhhhhhhhhhhh...eeee......hhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1e89 A  -4 PISKMVTAHFVLIHTICHGAWIWHKLKPALERAGHKVTALDMAASGIDPRQIEQINSFDEYSEPLLTFLEKLPQGEKVIIVGEACAGLNIAIAADRYVDKIAAGVFHNSLLPDTVHSPSYTVEKLLESFPDWRDTEYFTFTNITGETITTMKLGFVLLRENLFTKCTDGEYELAKMVMRKGSLFQNVLAQRPKFTEKGYGSIKKVYIWTDQDKIFLPDFQRWQIANYKPDKVYQVQGGDHKLQLTKTEEVAHILQEVADAYA 258
                               ||    6        16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256
                              -1|
                                1


Chain B from PDB  Type:PROTEIN  Length:258
 aligned with HNL_MANES | P52705 from UniProtKB/Swiss-Prot  Length:258

    Alignment length:258
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
            HNL_MANES     1 MVTAHFVLIHTICHGAWIWHKLKPALERAGHKVTALDMAASGIDPRQIEQINSFDEYSEPLLTFLEKLPQGEKVIIVGESCAGLNIAIAADRYVDKIAAGVFHNSLLPDTVHSPSYTVEKLLESFPDWRDTEYFTFTNITGETITTMKLGFVLLRENLFTKCTDGEYELAKMVMRKGSLFQNVLAQRPKFTEKGYGSIKKVYIWTDQDKIFLPDFQRWQIANYKPDKVYQVQGGDHKLQLTKTEEVAHILQEVADAYA 258
               SCOP domains d1e89b_ B: Hydroxynitrile lyase                                                                                                                                                                                                                                    SCOP domains
               CATH domains 1e89B00 B:1-258  [code=3.40.50.1820, no name defined]                                                                                                                                                                                                              CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeee.....hhhhhhhhhhhhhhh..eeeee..........hhhhh.hhhhhhhhhhhhhhhh.....eeeeee..hhhhhhhhhhhhh..eeeeeee...........hhhhhhhhhhh......eeeeee.....eeeeee.hhhhhhhhh....hhhhhhhhhhhh.....hhhhhhh.......hhhhh.eeeee.......hhhhhhhhhhhh...eeee......hhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1e89 B   1 MVTAHFVLIHTICHGAWIWHKLKPALERAGHKVTALDMAASGIDPRQIEQINSFDEYSEPLLTFLEKLPQGEKVIIVGEACAGLNIAIAADRYVDKIAAGVFHNSLLPDTVHSPSYTVEKLLESFPDWRDTEYFTFTNITGETITTMKLGFVLLRENLFTKCTDGEYELAKMVMRKGSLFQNVLAQRPKFTEKGYGSIKKVYIWTDQDKIFLPDFQRWQIANYKPDKVYQVQGGDHKLQLTKTEEVAHILQEVADAYA 258
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1E89)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (HNL_MANES | P52705)
molecular function
    GO:0052891    aliphatic (S)-hydroxynitrile lyase activity    Catalysis of the reaction: an aliphatic (S)-hydroxynitrile = an aliphatic aldehyde or ketone + cyanide.
    GO:0052892    aromatic (S)-hydroxynitrile lyase activity    Catalysis of the reaction: an aromatic (S)-hydroxynitrile = an aromatic aldehyde + cyanide.
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1e89)

  Sites
(no "Sites" information available for 1e89)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1e89)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1e89
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HNL_MANES | P52705
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  4.2.1.37
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HNL_MANES | P52705
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HNL_MANES | P52705: 1dwo 1dwp 1dwq 1e8d 1eb8 1eb9 3rks 3x3h 4yk7

(-) Related Entries Specified in the PDB File

1dwo CRYSTAL STRUCTURE OF HYDROXYNITRILE LYASE FROM MANIHOT ESCULENTA INCOMPLEX WITH SUBSTRATES ACETONE AND CHLOROACETONE:IMPLICATIONS FOR THEMECHANISM OF CYANOGENESIS
1dwp CRYSTAL STRUCTURE OF HYDROXYNITRILE LYASE FROM MANIHOT ESCULENTA AT 2.2 ANGSTROM RESOLUTION
1dwq CRYSTAL STRUCTURE OF HYDROXYNITRILE LYASE FROM MANIHOT ESCULENTA INCOMPLEX WITH SUBSTRATES ACETONE AND CHLOROACETONE:IMPLICATIONS FOR THEMECHANISM OF CYANOGENESIS
