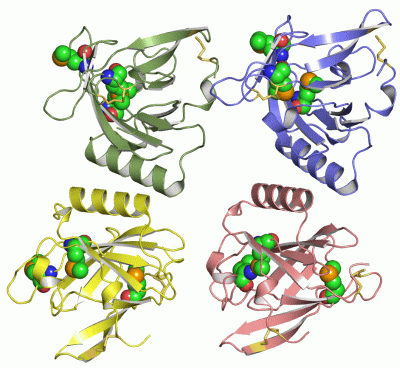

Asym.Unit - manually (Jmol Viewer)

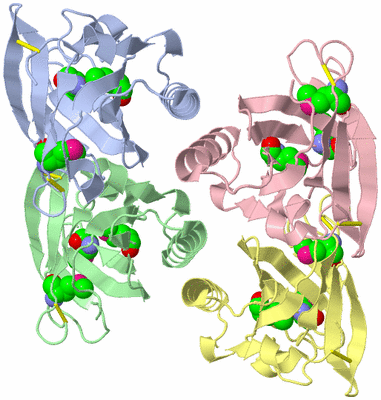

Asymmetric Unit (Jmol Viewer)

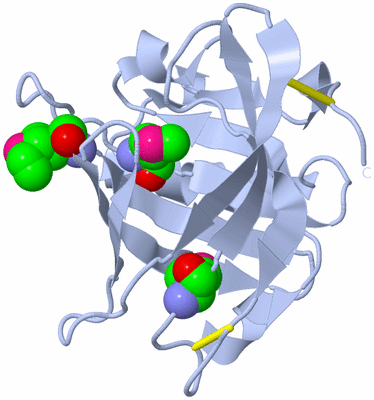

Biological Unit 1 (Jmol Viewer)

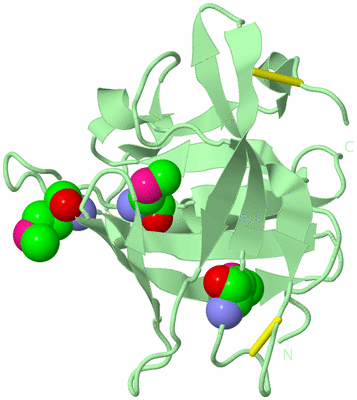

Biological Unit 2 (Jmol Viewer)

Biological Unit 3 (Jmol Viewer)

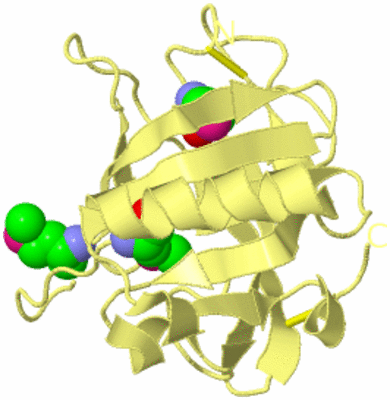

Biological Unit 4 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF APHRODISIN, A SEX PHEROMONE FROM FEMALE HAMSTER

Authors :   F. Vincent, K. Brown, S. Spinelli, C. Cambillau, M. Tegoni

Date :   28 Jul 00 (Deposition) - 26 Jul 01 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.63

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: D  (1x)

Keywords :   Lipocalin, Pheromone, Hamster, Crystal Structure (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   F. Vincent, D. Lobel, K. Brown, S. Spinelli, P. Grote, H. Breer, C. Cambillau, M. Tegoni
Crystal Structure Of Aphrodisin, A Sex Pheromone From Female Hamster
J. Mol. Biol. V. 305 459 2001
PubMed-ID: 11152604 | Reference-DOI: 10.1006/JMBI.2000.4241

Molecule 1 - APHRODISIN
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Cellular Location	:	CYTOPLASM
	Expression System Gene	:	MESOCRICETUS AURATUS APHRODISIN GENE
	Expression System Plasmid	:	PQE31
	Expression System Strain	:	B834DE3
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	MESOCRICETUS AURATUS APHRODISIN GENE
	Organ	:	VAGIN
	Organism Common	:	GOLDEN HAMSTER
	Organism Scientific	:	MESOCRICETUS AURATUS
	Organism Taxid	:	10036
	Secretion	:	VAGINAL DISCHARGE

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (1x)	:				D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 12)

No.	Name	Count	Type	Full Name
1	MSE	12	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 1 (1, 3)

No.	Name	Count	Type	Full Name
1	MSE	3	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 2 (1, 3)

No.	Name	Count	Type	Full Name
1	MSE	3	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 3 (1, 3)

No.	Name	Count	Type	Full Name
1	MSE	3	Mod. Amino Acid	SELENOMETHIONINE

Biological Unit 4 (1, 3)

No.	Name	Count	Type	Full Name
1	MSE	3	Mod. Amino Acid	SELENOMETHIONINE

(no "Site" information available for 1E5P)

Asymmetric Unit

No.	Residues
1	A:38	-	A:42
2	A:57	-	A:149
3	B:38	-	B:42
4	B:57	-	B:149
5	C:38	-	C:42
6	C:57	-	C:149
7	D:38	-	D:42
8	D:57	-	D:149

(no "Cis Peptide Bond" information available for 1E5P)

(no "SAP(SNP)/Variant" information available for 1E5P)

(no "PROSITE Motif" information available for 1E5P)

(no "Exon" information available for 1E5P)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:149
 aligned with APHR_CRICR | P09465 from UniProtKB/Swiss-Prot  Length:167

    Alignment length:149
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158
           APHR_CRICR    19 FAELQGKWYTIVIAADNLEKIEEGGPLRFYFRHIDCYKNCSEMEITFYVITNNQCSKTTVIGYLKGNGTYQTQFEGNNIFQPLYITSDKIFFTNKNMDRAGQETNMIVVAGKGNALTPEENEILVQFAHEKKIPVENILNILATDTCPE 167
               SCOP domains d1e5pa_ A: Aphrodisin, a sex pheromone                                                                                                                SCOP domains
               CATH domains 1e5pA00 A:3-151  [code=2.40.128.20, no name defined]                                                                                                  CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhh...eeeeee..hhhhh........eeeee..........eeeeeee..eeeeeee.........eeee...eeeeeeeee...eeeeeee............eeee.....hhhhhhhhhhhhhhh..hhh.eee.hhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1e5p A   3 FAELQGKWYTIVIAADNLEKIEEGGPLRFYFRHIDCYKNCSEmEITFYVITNNQCSKTTVIGYLKGNGTYETQFEGNNIFQPLYITSDKIFFTNKNmDRAGQETNmIVVAGKGNALTPEENEILVQFAHEKKIPVENILNILATDTCPE 151
                                    12        22        32        42  |     52        62        72        82        92      |102     | 112       122       132       142
                                                                     45-MSE                                                99-MSE  108-MSE

Chain B from PDB  Type:PROTEIN  Length:148
 aligned with APHR_CRICR | P09465 from UniProtKB/Swiss-Prot  Length:167

    Alignment length:148
                                    29        39        49        59        69        79        89        99       109       119       129       139       149       159
           APHR_CRICR    20 AELQGKWYTIVIAADNLEKIEEGGPLRFYFRHIDCYKNCSEMEITFYVITNNQCSKTTVIGYLKGNGTYQTQFEGNNIFQPLYITSDKIFFTNKNMDRAGQETNMIVVAGKGNALTPEENEILVQFAHEKKIPVENILNILATDTCPE 167
               SCOP domains d1e5pb_ B: Aphrodisin, a sex pheromone                                                                                                               SCOP domains
               CATH domains 1e5pB00 B:4-151  [code=2.40.128.20, no name defined]                                                                                                 CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeee..hhhhh........eeeee..........eeeeeee..eeeeeee.........eeee...eeeeeeeee...eeeeeee............eeee.....hhhhhhhhhhhhhhh..hhh.eee.hhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1e5p B   4 AELQGKWYTIVIAADNLEKIEEGGPLRFYFRHIDCYKNCSEmEITFYVITNNQCSKTTVIGYLKGNGTYETQFEGNNIFQPLYITSDKIFFTNKNmDRAGQETNmIVVAGKGNALTPEENEILVQFAHEKKIPVENILNILATDTCPE 151
                                    13        23        33        43 |      53        63        73        83        93     | 103    |  113       123       133       143
                                                                    45-MSE                                                99-MSE  108-MSE

Chain C from PDB  Type:PROTEIN  Length:147
 aligned with APHR_CRICR | P09465 from UniProtKB/Swiss-Prot  Length:167

    Alignment length:147
                                    30        40        50        60        70        80        90       100       110       120       130       140       150       160
           APHR_CRICR    21 ELQGKWYTIVIAADNLEKIEEGGPLRFYFRHIDCYKNCSEMEITFYVITNNQCSKTTVIGYLKGNGTYQTQFEGNNIFQPLYITSDKIFFTNKNMDRAGQETNMIVVAGKGNALTPEENEILVQFAHEKKIPVENILNILATDTCPE 167
               SCOP domains d1e5pc_ C: Aphrodisin, a sex pheromone                                                                                                              SCOP domains
               CATH domains 1e5pC00 C:5-151  [code=2.40.128.20, no name defined]                                                                                                CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeeee..hhhhh........eeeee..........eeeeeee..eeeeeee.........eeee...eeeeeeeee...eeeeeee............eeee.....hhhhhhhhhhhhhhh..hhh.eee.hhhh.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1e5p C   5 ELQGKWYTIVIAADNLEKIEEGGPLRFYFRHIDCYKNCSEmEITFYVITNNQCSKTTVIGYLKGNGTYETQFEGNNIFQPLYITSDKIFFTNKNmDRAGQETNmIVVAGKGNALTPEENEILVQFAHEKKIPVENILNILATDTCPE 151
                                    14        24        34        44|       54        64        74        84        94    |  104   |   114       124       134       144
                                                                   45-MSE                                                99-MSE  108-MSE

Chain D from PDB  Type:PROTEIN  Length:149
 aligned with APHR_CRICR | P09465 from UniProtKB/Swiss-Prot  Length:167

    Alignment length:149
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158
           APHR_CRICR    19 FAELQGKWYTIVIAADNLEKIEEGGPLRFYFRHIDCYKNCSEMEITFYVITNNQCSKTTVIGYLKGNGTYQTQFEGNNIFQPLYITSDKIFFTNKNMDRAGQETNMIVVAGKGNALTPEENEILVQFAHEKKIPVENILNILATDTCPE 167
               SCOP domains d1e5pd_ D: Aphrodisin, a sex pheromone                                                                                                                SCOP domains
               CATH domains 1e5pD00 D:3-151  [code=2.40.128.20, no name defined]                                                                                                  CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eeeeee..hhhhh........eeeee..........eeeeeee..eeeeeee.........eeee...eeeeeeeee...eeeeeee............eeee.....hhhhhhhhhhhhhhh..hhh.eee.hhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1e5p D   3 FAELQGKWYTIVIAADNLEKIEEGGPLRFYFRHIDCYKNCSEmEITFYVITNNQCSKTTVIGYLKGNGTYETQFEGNNIFQPLYITSDKIFFTNKNmDRAGQETNmIVVAGKGNALTPEENEILVQFAHEKKIPVENILNILATDTCPE 151
                                    12        22        32        42  |     52        62        72        82        92      |102     | 112       122       132       142
                                                                     45-MSE                                                99-MSE  108-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Lipocalins (514)

Superfamily: Lipocalins (514)

Family: Retinol binding protein-like (261)

Protein domain: Aphrodisin, a sex pheromone (1)

Golden hamster (Mesocricetus auratus) [TaxId: 10036] (1)

1a	d1e5pa_	A:
1b	d1e5pb_	B:
1c	d1e5pc_	C:
1d	d1e5pd_	D:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Beta Barrel (4804)

Topology: Lipocalin (526)

Homologous Superfamily: [code=2.40.128.20, no name defined] (352)

Golden hamster (Mesocricetus auratus) (1)

1a	1e5pA00	A:3-151
1b	1e5pD00	D:3-151
1c	1e5pB00	B:4-151
1d	1e5pC00	C:5-151

(no "Pfam Domain" information available for 1E5P)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (APHR_CRICR | P09465)

molecular function
	GO:0005549	odorant binding	Interacting selectively and non-covalently with an odorant, any substance capable of stimulating the sense of smell.
	GO:0005215	transporter activity	Enables the directed movement of substances (such as macromolecules, small molecules, ions) into, out of or within a cell, or between cells.
biological process
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
(no "Sites" information available for 1e5p)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1e5p)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1e5p
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	APHR_CRICR \| P09465
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP

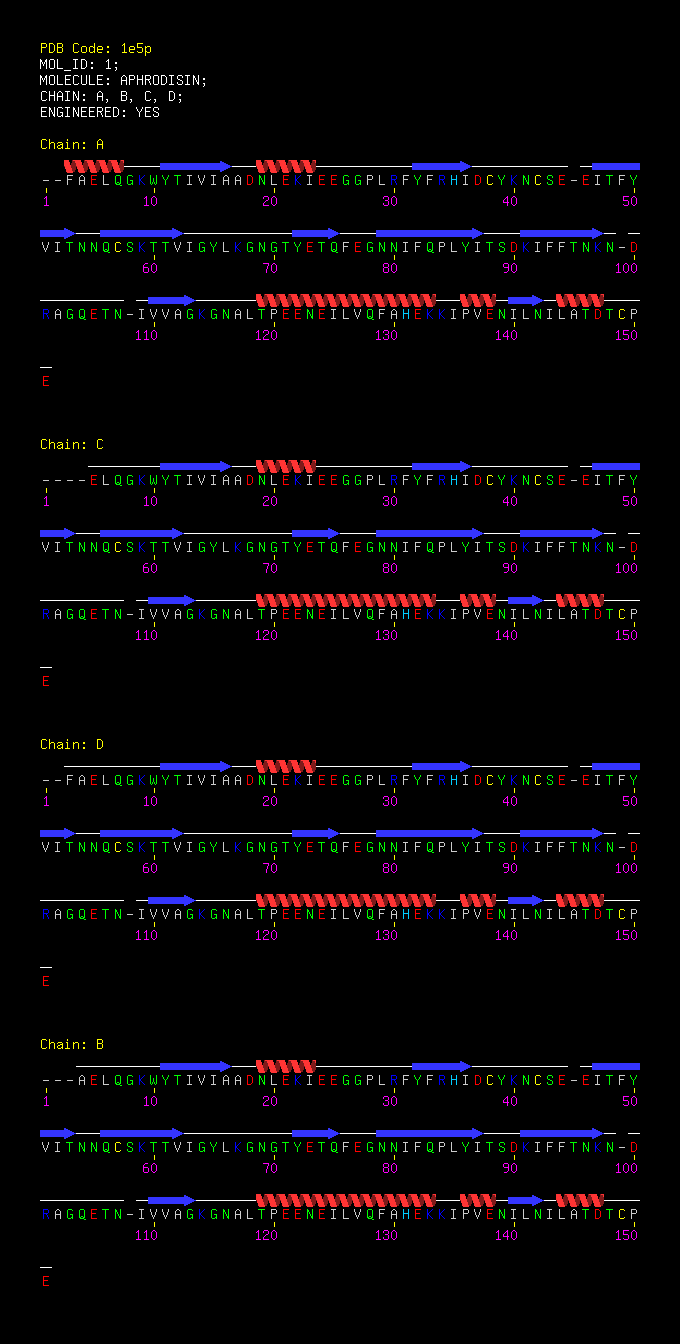

		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	APHR_CRICR \| P09465
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 1E5P)

(no "Related Entries Specified in the PDB File" available for 1E5P)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 12)

Sites (0, 0)

SS Bonds (8, 8)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (1, 4)

Pfam Domains (0, 0)

Gene Ontology (4, 4)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
