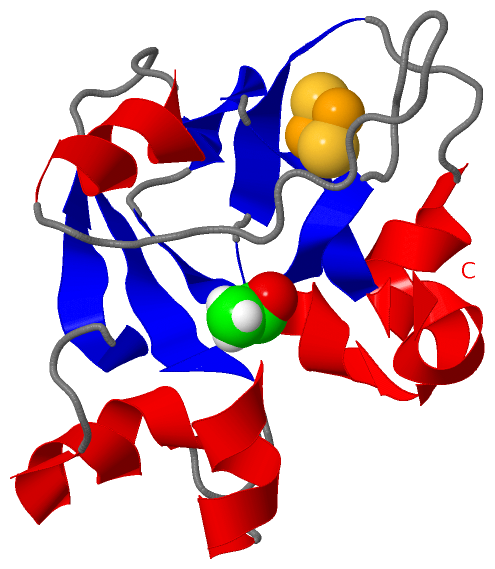

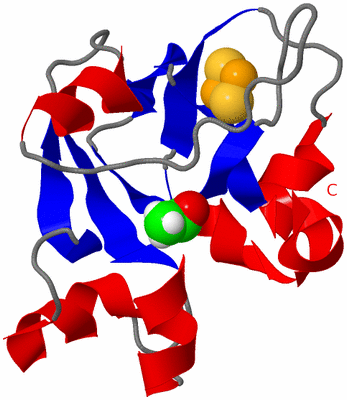

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

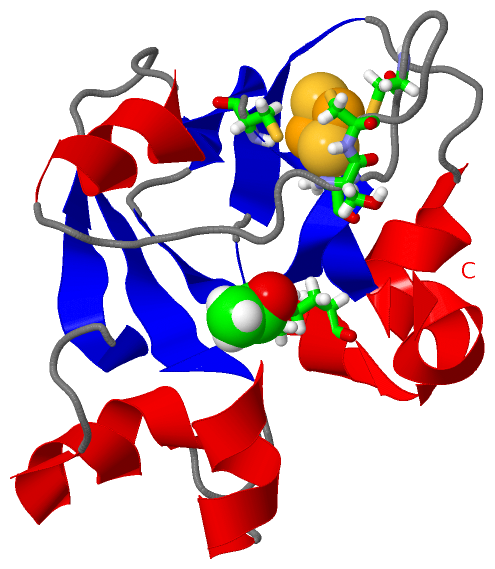

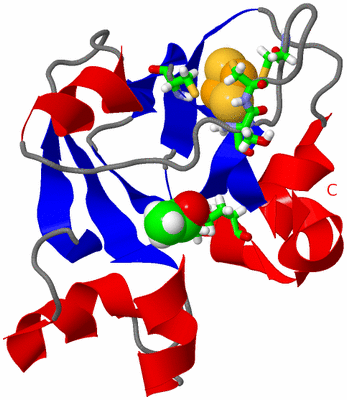

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

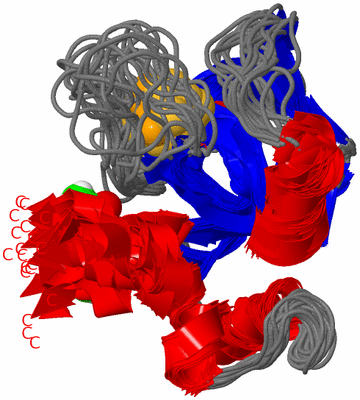

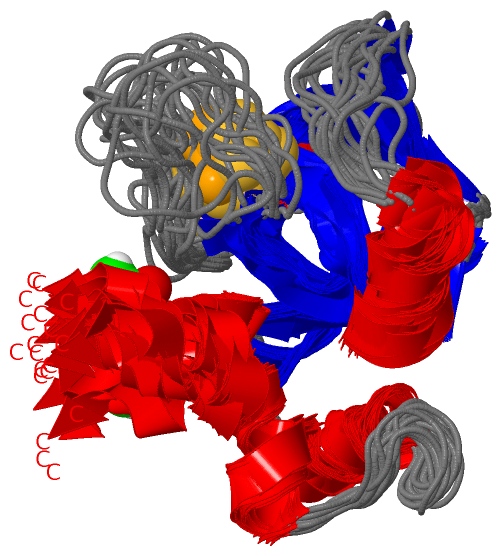

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  [2FE-2S]-FERREDOXIN FROM HALOBACTERIUM SALINARUM

Authors :  B. -L. Marg, K. Schweimer, D. Oesterhelt, P. Roesch, H. Sticht
Date :  12 Apr 00  (Deposition) - 09 Apr 01  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Iron-Sulfur Protein, Nmr, Ferredoxin, Halobacterium Salinarum, Halophilic (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  B. Marg, K. Schweimer, H. Sticht, D. Oesterhelt
A Two-Alpha-Helix Extra Domain Mediates The Halophilic Character Of A Plant-Type Ferredoxin From Halophilic Archaea.
Biochemistry V. 44 29 2005
PubMed-ID: 15628843  |  Reference-DOI: 10.1021/BI0485169
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - FERREDOXIN
    Chains: A
    Organism Scientific: HALOBACTERIUM HALOBIUM
    Organism Taxid: 2242

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

NMR Structure (2, 2)
No.NameCountTypeFull Name
1ACE1Mod. Amino AcidACETYL GROUP
2FES1Ligand/IonFE2/S2 (INORGANIC) CLUSTER

(-) Sites  (2, 2)

NMR Structure (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:118BINDING SITE FOR RESIDUE ACE A 129
2AC2SOFTWARESER A:62 , CYS A:63 , CYS A:68 , CYS A:71 , CYS A:102BINDING SITE FOR RESIDUE FES A 130

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1E10)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1E10)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1E10)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
12FE2S_FER_2PS51085 2Fe-2S ferredoxin-type iron-sulfur binding domain profile.FER_HALSA29-120  1A:28-119
22FE2S_FER_1PS00197 2Fe-2S ferredoxin-type iron-sulfur binding region signature.FER_HALSA64-72  1A:63-71

(-) Exons   (0, 0)

(no "Exon" information available for 1E10)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:129
 aligned with FER_HALSA | P00216 from UniProtKB/Swiss-Prot  Length:129

    Alignment length:129
                                                                                                                                                         129
                                    11        21        31        41        51        61        71        81        91       101       111       121       |
            FER_HALSA     2 PTVEYLNYETLDDQGWDMDDDDLFEKAADAGLDGEDYGTMEVAEGEYILEAAEAQGYDWPFSCRAGACANCASIVKEGEIDMDMQQILSDEEVEEKDVRLTCIGSPAADEVKIVYNAKHLDYLQNRVI-   -
               SCOP domains d1e10a_ A: 2Fe-2S ferredoxin                                                                                                      SCOP domains
               CATH domains 1e10A00 A:1-128  [code=3.10.20.30, no name defined]                                                                             - CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeehhhhhhh.......hhhhhhhhhh....eeeeee.....hhhhhhhh................eeeeeee.eeeee.....hhhhhhhheeeee.eeeee..eeeeeehhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---------------------------2FE2S_FER_2  PDB: A:28-119 UniProt: 29-120                                                  ---------- PROSITE (1)
                PROSITE (2) --------------------------------------------------------------2FE2S_FER---------------------------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1e10 A   1 PTVEYLNYETLDDQGWDMDDDDLFEKAADAGLDGEDYGTMEVAEGEYILEAAEAQGYDWPFSCRAGACANCASIVKEGEIDMDMQQILSDEEVEEKDVRLTCIGSPAADEVKIVYNAKHLDYLQNRVIx 129
                                    10        20        30        40        50        60        70        80        90       100       110       120        |
                                                                                                                                                          129-ACE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1E10)

(-) Gene Ontology  (5, 5)

NMR Structure(hide GO term definitions)
Chain A   (FER_HALSA | P00216)
molecular function
    GO:0051537    2 iron, 2 sulfur cluster binding    Interacting selectively and non-covalently with a 2 iron, 2 sulfur (2Fe-2S) cluster; this cluster consists of two iron atoms, with two inorganic sulfur atoms found between the irons and acting as bridging ligands.
    GO:0009055    electron carrier activity    Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
    GO:0051536    iron-sulfur cluster binding    Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
