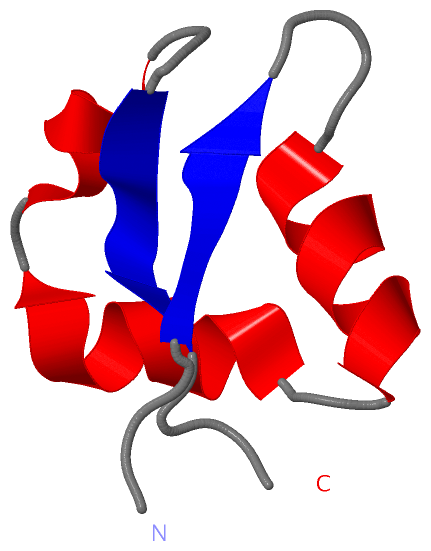

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

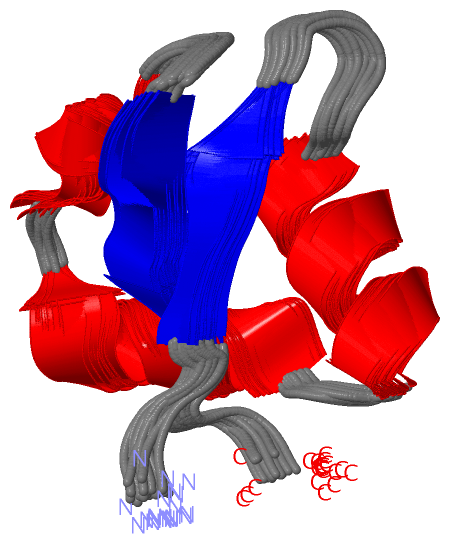

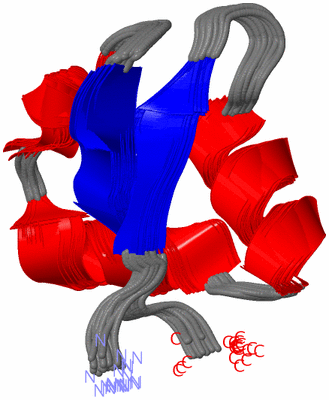

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  LYSM DOMAIN FROM E.COLI MLTD

Authors :  A. Bateman, M. Bycroft
Date :  27 Mar 00  (Deposition) - 21 Jun 00  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Cell Wall, Hydrolase, Glycosidase, Lipoprotein, Outer Membrane, Multigene Family (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Bateman, M. Bycroft
The Structure Of A Lysm Domain From E. Coli Membrane Bound Lytic Murein Transglycosylase D (Mltd)
J. Mol. Biol. V. 299 1113 2000
PubMed-ID: 10843862  |  Reference-DOI: 10.1006/JMBI.2000.3778
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - MEMBRANE-BOUND LYTIC MUREIN TRANSGLYCOSYLASE D
    Chains: A
    Fragment: LYSM DOMAIN
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: MLTD, MUREIN HYDROLASE D, REGULATORY PROTEIN DNIR
    Synthetic: YES

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1E0G)

(-) Sites  (0, 0)

(no "Site" information available for 1E0G)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1E0G)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1E0G)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1E0G)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1LYSMPS51782 LysM domain profile.MLTD_ECOL6341-384
400-448		  1-
A:3-48
MLTD_ECOLI341-384
400-448		  1-
A:3-48

(-) Exons   (0, 0)

(no "Exon" information available for 1E0G)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:48
 aligned with MLTD_ECOL6 | P0AEZ8 from UniProtKB/Swiss-Prot  Length:452

    Alignment length:48
                                   407       417       427       437
           MLTD_ECOL6   398 DSITYRVRKGDSLSSIAKRHGVNIKDVMRWNSDTANLQPGDKLTLFVK 445
               SCOP domains d1e0ga_ A:                                       SCOP domains
               CATH domains 1e0gA00 A:1-48                                   CATH domains
               Pfam domains ------------------------------------------------ Pfam domains
         Sec.struct. author ...eeee....hhhhhhhhh..hhhhhhhhh.hhhhh...eeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------ SAPs(SNPs)
                PROSITE (2) --LYSM  PDB: A:3-48 UniProt: 400-448             PROSITE (2)
                 Transcript ------------------------------------------------ Transcript
                 1e0g A   1 DSITYRVRKGDSLSSIAKRHGVNIKDVMRWNSDTANLQPGDKLTLFVK  48
                                    10        20        30        40


Chain A from PDB  Type:PROTEIN  Length:48
 aligned with MLTD_ECOLI | P0AEZ7 from UniProtKB/Swiss-Prot  Length:452

    Alignment length:48
                                   407       417       427       437
           MLTD_ECOLI   398 DSITYRVRKGDSLSSIAKRHGVNIKDVMRWNSDTANLQPGDKLTLFVK 445
               SCOP domains d1e0ga_ A:                                       SCOP domains
               CATH domains 1e0gA00 A:1-48                                   CATH domains
               Pfam domains ------------------------------------------------ Pfam domains
         Sec.struct. author ...eeee....hhhhhhhhh..hhhhhhhhh.hhhhh...eeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------ SAPs(SNPs)
                    PROSITE --LYSM  PDB: A:3-48 UniProt: 400-448             PROSITE
                 Transcript ------------------------------------------------ Transcript
                 1e0g A   1 DSITYRVRKGDSLSSIAKRHGVNIKDVMRWNSDTANLQPGDKLTLFVK  48
                                    10        20        30        40
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1E0G)

(-) Gene Ontology  (9, 16)

NMR Structure(hide GO term definitions)
Chain A   (MLTD_ECOL6 | P0AEZ8)
molecular function
    GO:0016837    carbon-oxygen lyase activity, acting on polysaccharides    Catalysis of the cleavage of a carbon-oxygen bond by the elimination of an alcohol from a polysaccharide.
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
    GO:0008933    lytic transglycosylase activity    Catalysis of the specific cleavage of the beta-(1->4) glycosidic linkage between N-acetylmuramyl and N-acetylglucosaminyl residues in peptidoglycan, with the concomitant formation of 1,6-anhydro-N-acetylmuramyl residues.
biological process
    GO:0071555    cell wall organization    A process that results in the assembly, arrangement of constituent parts, or disassembly of the cell wall, the rigid or semi-rigid envelope lying outside the cell membrane of plant, fungal and most prokaryotic cells, maintaining their shape and protecting them from osmotic lysis.
    GO:0000270    peptidoglycan metabolic process    The chemical reactions and pathways involving peptidoglycans, any of a class of glycoconjugates found only in bacterial cell walls and consisting of strands of glycosaminoglycan cross-linked by oligopeptides to form a huge and rigid network.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Chain A   (MLTD_ECOLI | P0AEZ7)
molecular function
    GO:0016837    carbon-oxygen lyase activity, acting on polysaccharides    Catalysis of the cleavage of a carbon-oxygen bond by the elimination of an alcohol from a polysaccharide.
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
    GO:0008933    lytic transglycosylase activity    Catalysis of the specific cleavage of the beta-(1->4) glycosidic linkage between N-acetylmuramyl and N-acetylglucosaminyl residues in peptidoglycan, with the concomitant formation of 1,6-anhydro-N-acetylmuramyl residues.
biological process
    GO:0071555    cell wall organization    A process that results in the assembly, arrangement of constituent parts, or disassembly of the cell wall, the rigid or semi-rigid envelope lying outside the cell membrane of plant, fungal and most prokaryotic cells, maintaining their shape and protecting them from osmotic lysis.
    GO:0000270    peptidoglycan metabolic process    The chemical reactions and pathways involving peptidoglycans, any of a class of glycoconjugates found only in bacterial cell walls and consisting of strands of glycosaminoglycan cross-linked by oligopeptides to form a huge and rigid network.
    GO:0051353    positive regulation of oxidoreductase activity    Any process that activates or increases the frequency, rate or extent of oxidoreductase activity, the catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered.
cellular component
    GO:0009279    cell outer membrane    A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
