1DZA - JenaLib

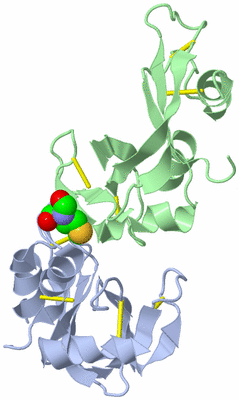

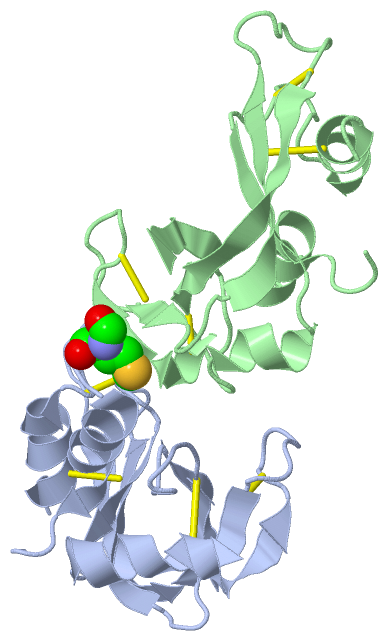

Asymmetric Unit (Jmol Viewer)

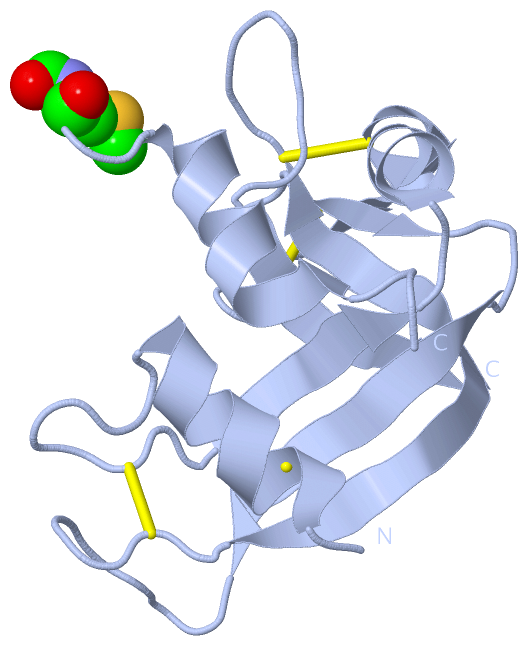

Biological Unit 1 (Jmol Viewer)

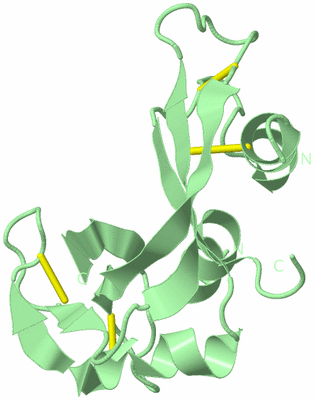

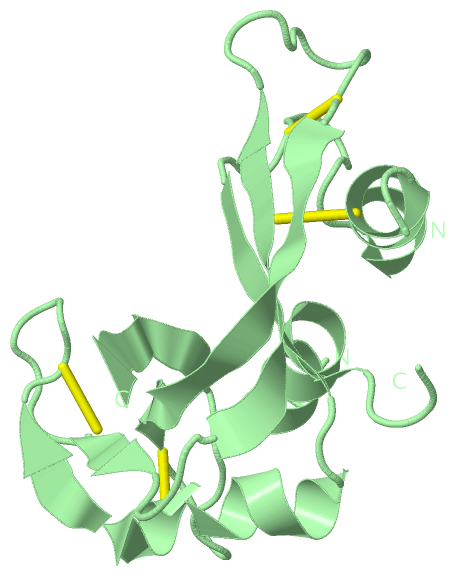

Biological Unit 2 (Jmol Viewer)

Title :   3-D STRUCTURE OF A HP-RNASE

Authors :   J. Pous, A. Canals, S. S. Terzyan, A. Guasch, A. Benito, M. Ribo, M. Vilanova, M. Coll

Date :   21 Feb 00 (Deposition) - 16 Feb 01 (Release) - 07 Nov 12 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.65

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Hydrolase, Ribonuclease, Rnase, Human Pancreatic Ribonuclease, (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. Pous, A. Canals, S. S. Terzyan, A. Guasch, A. Benito, M. Ribo, M. Vilanova, M. Coll
Three-Dimensional Structure Of A Human Pancreatic Ribonuclease Variant, A Step Forward In The Design Of Cytotoxic Ribonucleases
J. Mol. Biol. V. 303 49 2000
PubMed-ID: 11021969 | Reference-DOI: 10.1006/JMBI.2000.4506

Molecule 1 - RIBONUCLEASE 1
	Chains	:	A, B
	EC Number	:	3.1.27.5
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Gene	:	PM7
	Expression System Plasmid	:	PM7
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Gene	:	PM7
	Mutation	:	YES
	Organ	:	PANCREAS
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606
	Other Details	:	100A FORMILMETHIONINE (FME)
	Other Details - Source	:	SYNTHETIC GENE
	Synonym	:	RNASE 1, HP-RNASE

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 1)

No.	Name	Count	Type	Full Name
1	FME	1	Mod. Amino Acid	N-FORMYLMETHIONINE

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	FME	1	Mod. Amino Acid	N-FORMYLMETHIONINE

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	FME	-1	Mod. Amino Acid	N-FORMYLMETHIONINE

(no "Site" information available for 1DZA)

Asymmetric Unit

No.	Residues
1	A:126	-	A:184
2	A:140	-	A:195
3	A:158	-	A:210
4	A:165	-	A:172
5	B:126	-	B:184
6	B:140	-	B:195
7	B:158	-	B:210
8	B:165	-	B:172

Asymmetric Unit

No.	Residues
1	Tyr A:192	-	Pro A:193
2	Ser A:213	-	Pro A:214
3	Tyr B:192	-	Pro B:193
4	Ser B:213	-	Pro B:214

(no "SAP(SNP)/Variant" information available for 1DZA)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RNASE_PANCREATIC	PS00127	Pancreatic ribonuclease family signature.	RNAS1_HUMAN	68-74	2	A:140-146 B:140-146

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RNASE_PANCREATIC	PS00127	Pancreatic ribonuclease family signature.	RNAS1_HUMAN	68-74	1	A:140-146 -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RNASE_PANCREATIC	PS00127	Pancreatic ribonuclease family signature.	RNAS1_HUMAN	68-74	1	- B:140-146

Asymmetric Unit (1, 2)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1c	ENST00000397970	1c	ENSE00001915577	chr14:21271007-21270956	52	RNAS1_HUMAN	-	0	0	-	-
1.2c	ENST00000397970	2c	ENSE00001530999	chr14:21270478-21270408	71	RNAS1_HUMAN	-	0	0	-	-
1.3a	ENST00000397970	3a	ENSE00001837426	chr14:21270252-21269542	711	RNAS1_HUMAN	1-165	165	2	A:100-225 (gaps) B:102-226 (gaps)	126 125

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:121
 aligned with RNAS1_HUMAN | P07998 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:126
                                    37        47        57        67        77        87        97       107       117       127       137       147
          RNAS1_HUMAN    28 GKESRAKKFQRQHMDSDSSPSSSSTYCNQMMRRRNMTQGRCKPVNTFVHEPLVDVQNVCFQEKVTCKNGQGNCYKSNSSMHITDCRLTNGSRYPNCAYRTSPKERHIIVACEGSPYVPVHFDASVE 153
               SCOP domains d1dzaa_ A: Ribonuc     lease A (also ribonuclease B, S)                                                                        SCOP domains
               CATH domains -1dzaA00 A:101-225      P-30 Protein                                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhh....-----.hhhhhhhhhh.........eeeee..hhhhhhhhhhheee........eee....eeeeeeee..........eeeeeeeeeeeee.........eeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ----------------------------------------RNASE_P------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.3a  PDB: A:100-225 (gaps) UniProt: 1-165 [INCOMPLETE]                                                                   Transcript 1
                 1dza A 100 mKESAAAKFERQHMDSGN-----STYCNQMMRRRNMTQGRCKPVNTFVHESLVDVQNVCFQEKVTCKNGQGNCYKSNSSMHITDCRLTNGSRYPNCAYRTSPKERHIIVACEGSPYVPVHFDASVE 225
                            |      109       | -   |   129       139       149       159       169       179       189       199       209       219
                            |              117   123
                          100-FME

Chain B from PDB  Type:PROTEIN  Length:121
 aligned with RNAS1_HUMAN | P07998 from UniProtKB/Swiss-Prot  Length:156

    Alignment length:125
                                    39        49        59        69        79        89        99       109       119       129       139       149
          RNAS1_HUMAN    30 ESRAKKFQRQHMDSDSSPSSSSTYCNQMMRRRNMTQGRCKPVNTFVHEPLVDVQNVCFQEKVTCKNGQGNCYKSNSSMHITDCRLTNGSRYPNCAYRTSPKERHIIVACEGSPYVPVHFDASVED 154
               SCOP domains d1dzab_ B: Ribon    uclease A (also ribonuclease B, S)                                                                        SCOP domains
               CATH domains 1dzaB00 B:102-22    6 P-30 Protein                                                                                            CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhh....----..hhhhhhhhhh.........eeeee..hhhhhhhhhhheee........eee....eeeeeeee..........eeeeeeeeeeeee.........eeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------RNASE_P-------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.3a  PDB: B:102-226 (gaps) UniProt: 1-165 [INCOMPLETE]                                                                  Transcript 1
                 1dza B 102 ESAAAKFERQHMDSGN----SSTYCNQMMRRRNMTQGRCKPVNTFVHESLVDVQNVCFQEKVTCKNGQGNCYKSNSSMHITDCRLTNGSRYPNCAYRTSPKERHIIVACEGSPYVPVHFDASVED 226
                                   111     |   -|      131       141       151       161       171       181       191       201       211       221
                                         117  122

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: RNase A-like (356)

Superfamily: RNase A-like (356)

Family: Ribonuclease A-like (347)

Protein domain: Ribonuclease A (also ribonuclease B, S) (173)

Human (Homo sapiens), des1-7 [TaxId: 9606] (8)

1a	d1dzaa_	A:
1b	d1dzab_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: P-30 Protein (299)

Homologous Superfamily: P-30 Protein (299)

Human (Homo sapiens) (46)

1a	1dzaB00	B:102-226
1b	1dzaA00	A:101-225

(no "Pfam Domain" information available for 1DZA)

Asymmetric Unit(hide GO term definitions)

Chain A,B (RNAS1_HUMAN | P07998)

molecular function
	GO:0004519	endonuclease activity	Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0004518	nuclease activity	Catalysis of the hydrolysis of ester linkages within nucleic acids.
	GO:0003676	nucleic acid binding	Interacting selectively and non-covalently with any nucleic acid.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0004522	ribonuclease A activity	Catalysis of the endonucleolytic cleavage of RNA to 3'-phosphomononucleotides and 3'-phosphooligonucleotides ending in C-P or U-P with 2',3'-cyclic phosphate intermediates.
biological process
	GO:0090502	RNA phosphodiester bond hydrolysis, endonucleolytic	The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
	GO:0090305	nucleic acid phosphodiester bond hydrolysis	The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FME	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
(no "Sites" information available for 1dza)

	Cis Peptide Bonds
		Ser A:213 - Pro A:214	[ RasMol ]
		Ser B:213 - Pro B:214	[ RasMol ]
		Tyr A:192 - Pro A:193	[ RasMol ]
		Tyr B:192 - Pro B:193	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1dza
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	RNAS1_HUMAN \| P07998
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.1.27.5
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	RNAS1_HUMAN \| P07998
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	RNAS1_HUMAN \| P07998	:	1e21 1h8x 1z7x 2e0j 2e0l 2e0m 2e0o 2k11 2q4g 3f8g 4kxh
