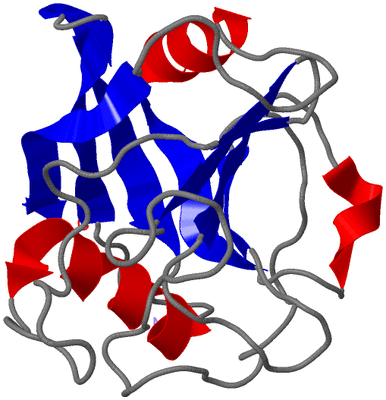

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  BIOCHEMICAL AND STRUCTURAL CHARACTERIZATION OF A DIVERGENT LOOP CYCLOPHILIN FROM CAENORHABDITIS ELEGANS

Authors :  J. Dornan, A. P. Page, P. Taylor, S. Y. Wu, A. D. Winter, H. Husi, M. D. Walk
Date :  10 Feb 00  (Deposition) - 22 Jun 00  (Release) - 05 Jul 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A
Keywords :  Isomerase(Peptidyl-Prolyl Cis-Trans), Isomerase, Rotamase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Dornan, A. P. Page, P. Taylor, S. Y. Wu, A. D. Winter, H. Husi, M. D. Walkinshaw
Biochemical And Structural Characterization Of A Divergent Loop Cyclophilin From Caenorhabditis Elegans
J. Biol. Chem. V. 274 34877 1999
PubMed-ID: 10574961  |  Reference-DOI: 10.1074/JBC.274.49.34877
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CYCLOPHILIN 3
    Chains: A
    EC Number: 5.2.1.8
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: CAENORHABDITIS ELEGANS
    Organism Taxid: 6239
    Synonym: PEPTIDYL-PROLYL CIS-TRANS ISOMERASE 3, PPIASE, ROTAMASE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1DYW)

(-) Sites  (0, 0)

(no "Site" information available for 1DYW)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1DYW)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1DYW)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1DYW)

(-) PROSITE Motifs  (2, 2)

Asymmetric/Biological Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CSA_PPIASE_2PS50072 Cyclophilin-type peptidyl-prolyl cis-trans isomerase domain profile.CYP3_CAEEL7-170  1A:7-170
2CSA_PPIASE_1PS00170 Cyclophilin-type peptidyl-prolyl cis-trans isomerase signature.CYP3_CAEEL55-72  1A:55-72

(-) Exons   (0, 0)

(no "Exon" information available for 1DYW)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:172
 aligned with CYP3_CAEEL | P52011 from UniProtKB/Swiss-Prot  Length:173

    Alignment length:172
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
           CYP3_CAEEL     1 MSRSKVFFDITIGGKASGRIVMELYDDVVPKTAGNFRALCTGENGIGKSGKPLHFKGSKFHRIIPNFMIQGGDFTRGNGTGGESIYGEKFPDENFKEKHTGPGVLSMANAGPNTNGSQFFLCTVKTEWLDGKHVVFGRVVEGLDVVKAVESNGSQSGKPVKDCMIADCGQLK 172
               SCOP domains d1dywa_ A: Cyclophilin (eukaryotic)                                                                                                                                          SCOP domains
               CATH domains 1dywA00 A:1-172 Cyclophilin                                                                                                                                                  CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeee..eeeeeeeeee....hhhhhhhhhhhhhh...................eee...eeee................................eeee...........eeee...hhhhh....eeeeeeehhhhhhhhhh...........eeeeeeeeee Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ------CSA_PPIASE_2  PDB: A:7-170 UniProt: 7-170                                                                                                                           -- PROSITE (1)
                PROSITE (2) ------------------------------------------------------CSA_PPIASE_1      ---------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dyw A   1 MSRSKVFFDITIGGKASGRIVMELYDDVVPKTAGNFRALCTGENGIGKSGKPLHFKGSKFHRIIPNFMIQGGDFTRGNGTGGESIYGEKFPDENFKEKHTGPGVLSMANAGPNTNGSQFFLCTVKTEWLDGKHVVFGRVVEGLDVVKAVESNGSQSGKPVKDCMIADCGQLK 172
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1DYW)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (CYP3_CAEEL | P52011)
molecular function
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0003755    peptidyl-prolyl cis-trans isomerase activity    Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0006457    protein folding    The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
    GO:0000413    protein peptidyl-prolyl isomerization    The modification of a protein by cis-trans isomerization of a proline residue.
cellular component
    GO:0005623    cell    The basic structural and functional unit of all organisms. Includes the plasma membrane and any external encapsulating structures such as the cell wall and cell envelope.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1dyw)

  Sites
(no "Sites" information available for 1dyw)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1dyw)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1dyw
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CYP3_CAEEL | P52011
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  5.2.1.8
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CYP3_CAEEL | P52011
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CYP3_CAEEL | P52011: 1e3b 1e8k 2igv 2igw
