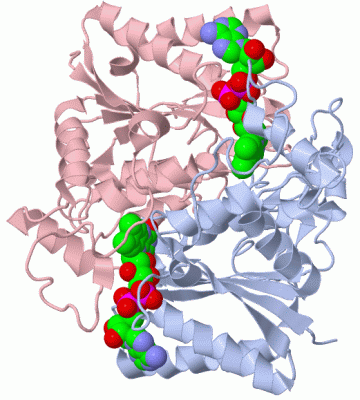

Biol.Unit 1 - manually (Jmol Viewer)

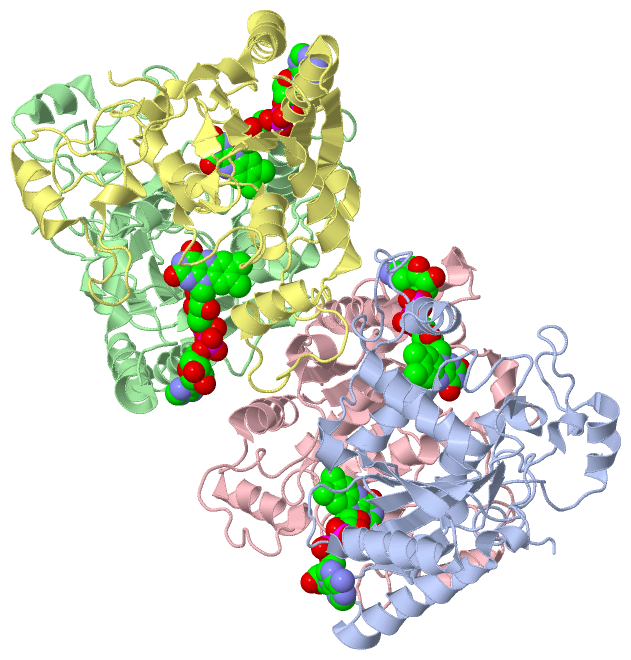

Asymmetric Unit (Jmol Viewer)

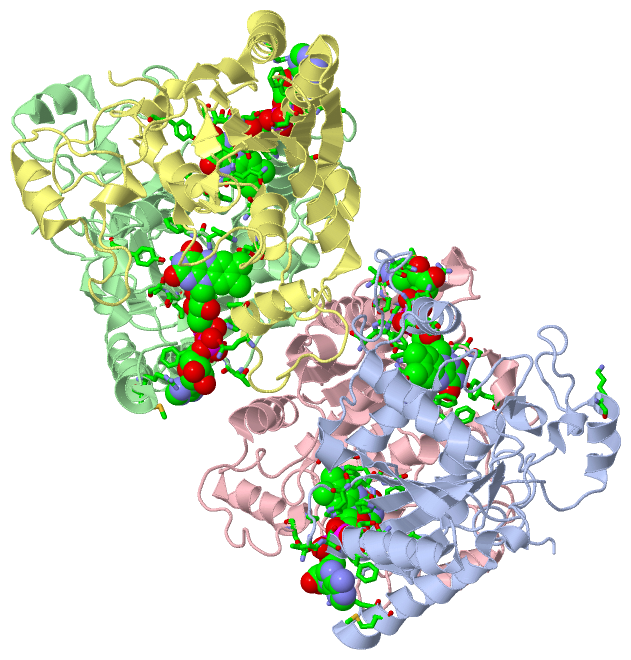

Asym. Unit - sites (Jmol Viewer)

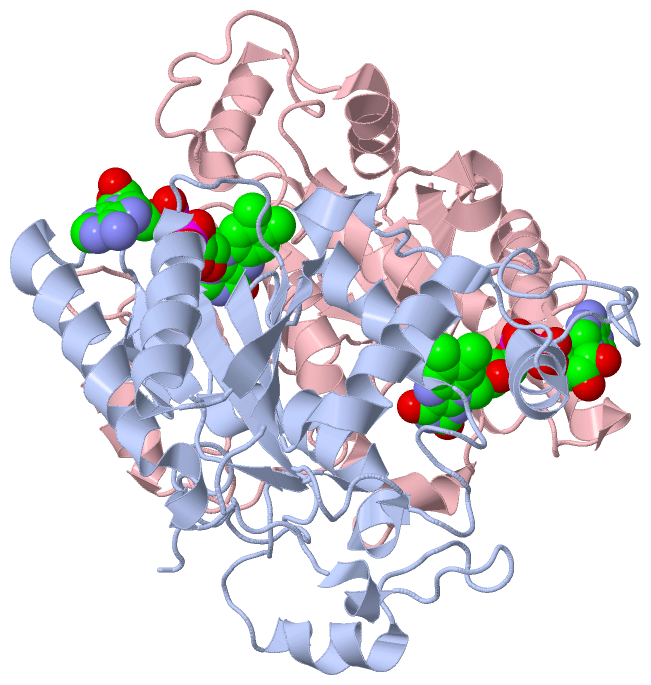

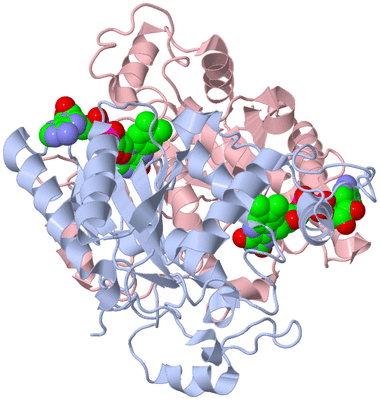

Biological Unit 1 (Jmol Viewer)

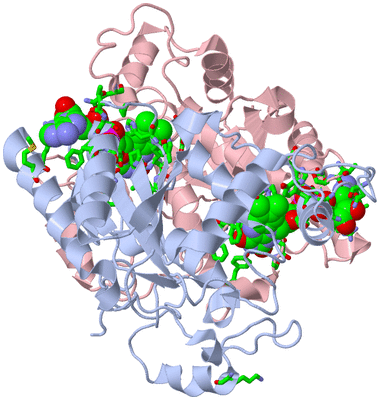

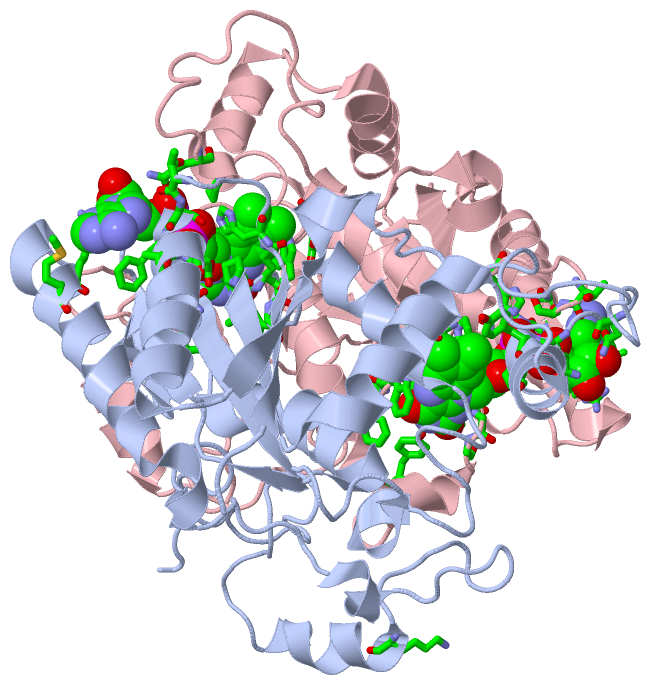

Biol. Unit 1 - sites (Jmol Viewer)

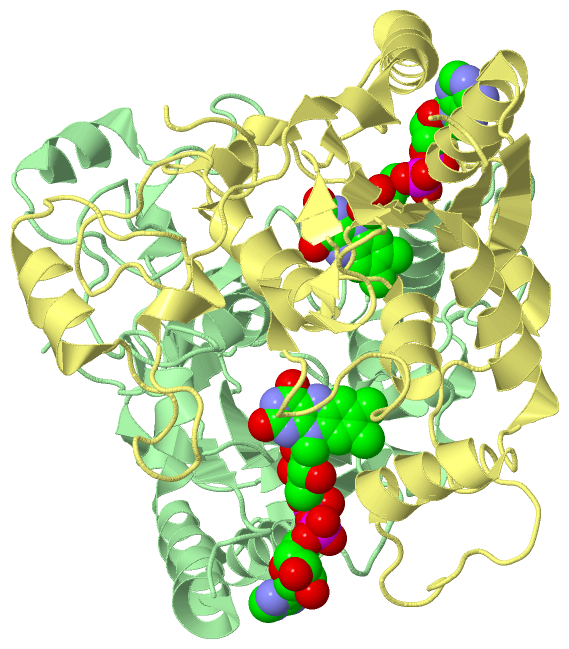

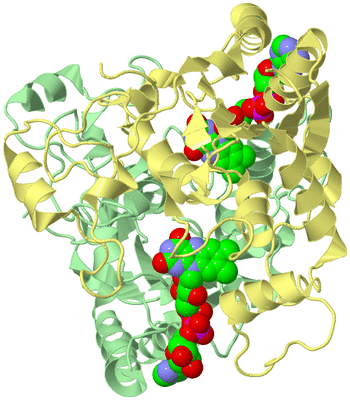

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF MOUSE NAD[P]H-QUINONE OXIDOREDUCTASE

Authors :   M. Faig, M. A. Bianchet, S. Chen, S. Winski, D. Ross, L. M. Amzel

Date :   14 Jan 00 (Deposition) - 17 Apr 00 (Release) - 05 Jul 17 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.80

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,C  (1x)
Biol. Unit 2: B,D  (1x)

Keywords :   Flavoprotein, Dt-Diaphorase, Cancer, Chemoprotection, Chemotherapy, Dehydrogenaserossman Fold, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Faig, M. A. Bianchet, S. Chen, S. Winski, D. Ross, P. Talalay, L. M. Amzel
Structures Of Recombinant Mouse And Human Nad(P)H:Quinone Oxidoreductases:Species Comparison And Structural Changes With Substrate Binding And Release
Proc. Natl. Acad. Sci. Usa V. 97 3177 2000
PubMed-ID: 10706635 | Reference-DOI: 10.1073/PNAS.050585797
(for further references see the PDB file header)

Molecule 1 - QUINONE REDUCTASE
	Chains	:	A, B, C, D
	EC Number	:	1.6.99.2
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Organism Common	:	MOUSE
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090
	Synonym	:	DT-DIAPHORASE, NAD(P)H DEHYDROGENASE [QUINONE] 1, DTD, AZOREDUCTASE, PHYLLOQUINONE REDUCTASE, MENADIONE REDUCTASE

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A		C
Biological Unit 2 (1x)	:		B		D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 4)

No.	Name	Count	Type	Full Name
1	FAD	4	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE

Biological Unit 1 (1, 2)

No.	Name	Count	Type	Full Name
1	FAD	2	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE

Biological Unit 2 (1, 2)

No.	Name	Count	Type	Full Name
1	FAD	2	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	HIS A:11 , THR A:15 , SER A:16 , PHE A:17 , ASN A:18 , ALA A:20 , PRO A:102 , LEU A:103 , GLN A:104 , TRP A:105 , PHE A:106 , THR A:147 , THR A:148 , GLY A:149 , GLY A:150 , TYR A:155 , ARG A:200 , MET A:201 , GLN C:66 , PRO C:68 , GLU C:117	BINDING SITE FOR RESIDUE FAD A 300
2	AC2	SOFTWARE	LYS A:240 , HIS B:11 , THR B:15 , SER B:16 , PHE B:17 , ASN B:18 , ALA B:20 , PRO B:102 , LEU B:103 , GLN B:104 , TRP B:105 , PHE B:106 , THR B:147 , THR B:148 , GLY B:149 , GLY B:150 , TYR B:155 , ARG B:200 , MET B:201 , GLN D:66 , PRO D:68 , GLU D:117	BINDING SITE FOR RESIDUE FAD B 300
3	AC3	SOFTWARE	ASN A:64 , GLN A:66 , TYR A:67 , PRO A:68 , GLU A:117 , HIS C:11 , THR C:15 , SER C:16 , PHE C:17 , ASN C:18 , ALA C:20 , PRO C:102 , LEU C:103 , GLN C:104 , TRP C:105 , PHE C:106 , THR C:147 , THR C:148 , GLY C:149 , GLY C:150 , TYR C:155 , ARG C:200 , MET C:201	BINDING SITE FOR RESIDUE FAD C 300
4	AC4	SOFTWARE	GLN B:66 , PRO B:68 , GLU B:117 , HIS D:11 , THR D:15 , SER D:16 , PHE D:17 , ASN D:18 , ALA D:20 , PRO D:102 , LEU D:103 , GLN D:104 , TRP D:105 , PHE D:106 , THR D:147 , THR D:148 , GLY D:149 , GLY D:150 , TYR D:155 , ARG D:200	BINDING SITE FOR RESIDUE FAD D 300

(no "SS Bond" information available for 1DXQ)

(no "Cis Peptide Bond" information available for 1DXQ)

(no "SAP(SNP)/Variant" information available for 1DXQ)

(no "PROSITE Motif" information available for 1DXQ)

(no "Exon" information available for 1DXQ)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:273
 aligned with NQO1_MOUSE | Q64669 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:273
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271
           NQO1_MOUSE     2 AARRALIVLAHSEKTSFNYAMKEAAVEALKKRGWEVLESDLYAMNFNPIISRNDITGELKDSKNFQYPSESSLAYKEGRLSPDIVAEHKKLEAADLVIFQFPLQWFGVPAILKGWFERVLVAGFAYTYAAMYDNGPFQNKKTLLSITTGGSGSMYSLQGVHGDMNVILWPIQSGILRFCGFQVLEPQLVYSIGHTPPDARMQILEGWKKRLETVWEETPLYFAPSSLFDLNFQAGFLMKKEVQEEQKKNKFGLSVGHHLGKSIPADNQIKARK 274
               SCOP domains d1dxqa_ A: NAD(P)H:quinone reductase                                                                                                                                                                                                                                              SCOP domains
               CATH domains 1dxqA00 A:1-273  [code=3.40.50.360, no name defined]                                                                                                                                                                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeee......hhhhhhhhhhhhhhhhh..eeeeeehhhhh....................hhhhhhhhhhhh...hhhhhhhhhhhhhh.eeeeeee......hhhhhhhhhhhh..........hhhhh.....eeeeeeee..hhhhhh......hhhhhhhhhhh.hhhhhh.ee...eeee.....hhhhhhhhhhhhhhhhhhhhhh......hhhh...........hhhhhhhhh.......................... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dxq A   1 AARRALIVLAHSEKTSFNYAMKEAAVEALKKRGWEVLESDLYAMNFNPIISRNDITGELKDSKNFQYPSESSLAYKEGRLSPDIVAEHKKLEAADLVIFQFPLQWFGVPAILKGWFERVLVAGFAYTYAAMYDNGPFQNKKTLLSITTGGSGSMYSLQGVHGDMNVILWPIQSGILRFCGFQVLEPQLVYSIGHTPPDARMQILEGWKKRLETVWEETPLYFAPSSLFDLNFQAGFLLMKEVQEEQKKNKFGLSVGHHLGKSIPADNQIKARK 273
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270

Chain B from PDB  Type:PROTEIN  Length:273
 aligned with NQO1_MOUSE | Q64669 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:273
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271
           NQO1_MOUSE     2 AARRALIVLAHSEKTSFNYAMKEAAVEALKKRGWEVLESDLYAMNFNPIISRNDITGELKDSKNFQYPSESSLAYKEGRLSPDIVAEHKKLEAADLVIFQFPLQWFGVPAILKGWFERVLVAGFAYTYAAMYDNGPFQNKKTLLSITTGGSGSMYSLQGVHGDMNVILWPIQSGILRFCGFQVLEPQLVYSIGHTPPDARMQILEGWKKRLETVWEETPLYFAPSSLFDLNFQAGFLMKKEVQEEQKKNKFGLSVGHHLGKSIPADNQIKARK 274
               SCOP domains d1dxqb_ B: NAD(P)H:quinone reductase                                                                                                                                                                                                                                              SCOP domains
               CATH domains 1dxqB00 B:1-273  [code=3.40.50.360, no name defined]                                                                                                                                                                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeee......hhhhhhhhhhhhhhhhh..eeeeeehhhhh....................hhhhhhhhhhhh...hhhhhhhhhhhhhh.eeeeeee......hhhhhhhhhhhh..........hhhhh.....eeeeeeee..hhhhhh......hhhhhhhhhhh.hhhhhh.ee...eeee.....hhhhhhhhhhhhhhhhhhhhhh......hhhh...........hhhhhhhhh.......................... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dxq B   1 AARRALIVLAHSEKTSFNYAMKEAAVEALKKRGWEVLESDLYAMNFNPIISRNDITGELKDSKNFQYPSESSLAYKEGRLSPDIVAEHKKLEAADLVIFQFPLQWFGVPAILKGWFERVLVAGFAYTYAAMYDNGPFQNKKTLLSITTGGSGSMYSLQGVHGDMNVILWPIQSGILRFCGFQVLEPQLVYSIGHTPPDARMQILEGWKKRLETVWEETPLYFAPSSLFDLNFQAGFLLMKEVQEEQKKNKFGLSVGHHLGKSIPADNQIKARK 273
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270

Chain C from PDB  Type:PROTEIN  Length:273
 aligned with NQO1_MOUSE | Q64669 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:273
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271
           NQO1_MOUSE     2 AARRALIVLAHSEKTSFNYAMKEAAVEALKKRGWEVLESDLYAMNFNPIISRNDITGELKDSKNFQYPSESSLAYKEGRLSPDIVAEHKKLEAADLVIFQFPLQWFGVPAILKGWFERVLVAGFAYTYAAMYDNGPFQNKKTLLSITTGGSGSMYSLQGVHGDMNVILWPIQSGILRFCGFQVLEPQLVYSIGHTPPDARMQILEGWKKRLETVWEETPLYFAPSSLFDLNFQAGFLMKKEVQEEQKKNKFGLSVGHHLGKSIPADNQIKARK 274
               SCOP domains d1dxqc_ C: NAD(P)H:quinone reductase                                                                                                                                                                                                                                              SCOP domains
               CATH domains 1dxqC00 C:1-273  [code=3.40.50.360, no name defined]                                                                                                                                                                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeee......hhhhhhhhhhhhhhhhh..eeeeeehhhhh....................hhhhhhhhhhhh...hhhhhhhhhhhhhh.eeeeeee......hhhhhhhhhhhh..........hhhhh.....eeeeeeee..hhhhhh......hhhhhhhhhhh.hhhhhh.ee...eeee.....hhhhhhhhhhhhhhhhhhhhhh......hhhh...........hhhhhhhhh.......................... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dxq C   1 AARRALIVLAHSEKTSFNYAMKEAAVEALKKRGWEVLESDLYAMNFNPIISRNDITGELKDSKNFQYPSESSLAYKEGRLSPDIVAEHKKLEAADLVIFQFPLQWFGVPAILKGWFERVLVAGFAYTYAAMYDNGPFQNKKTLLSITTGGSGSMYSLQGVHGDMNVILWPIQSGILRFCGFQVLEPQLVYSIGHTPPDARMQILEGWKKRLETVWEETPLYFAPSSLFDLNFQAGFLLMKEVQEEQKKNKFGLSVGHHLGKSIPADNQIKARK 273
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270

Chain D from PDB  Type:PROTEIN  Length:273
 aligned with NQO1_MOUSE | Q64669 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:273
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271
           NQO1_MOUSE     2 AARRALIVLAHSEKTSFNYAMKEAAVEALKKRGWEVLESDLYAMNFNPIISRNDITGELKDSKNFQYPSESSLAYKEGRLSPDIVAEHKKLEAADLVIFQFPLQWFGVPAILKGWFERVLVAGFAYTYAAMYDNGPFQNKKTLLSITTGGSGSMYSLQGVHGDMNVILWPIQSGILRFCGFQVLEPQLVYSIGHTPPDARMQILEGWKKRLETVWEETPLYFAPSSLFDLNFQAGFLMKKEVQEEQKKNKFGLSVGHHLGKSIPADNQIKARK 274
               SCOP domains d1dxqd_ D: NAD(P)H:quinone reductase                                                                                                                                                                                                                                              SCOP domains
               CATH domains 1dxqD00 D:1-273  [code=3.40.50.360, no name defined]                                                                                                                                                                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeee......hhhhhhhhhhhhhhhhh..eeeeeehhhhh....................hhhhhhhhhhhh...hhhhhhhhhhhhhh.eeeeeee......hhhhhhhhhhhh..........hhhhh.....eeeeeeee..hhhhhh......hhhhhhhhhhh.hhhhhh.ee...eeee.....hhhhhhhhhhhhhhhhhhhhhh......hhhh...........hhhhhhhhh.......................... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dxq D   1 AARRALIVLAHSEKTSFNYAMKEAAVEALKKRGWEVLESDLYAMNFNPIISRNDITGELKDSKNFQYPSESSLAYKEGRLSPDIVAEHKKLEAADLVIFQFPLQWFGVPAILKGWFERVLVAGFAYTYAAMYDNGPFQNKKTLLSITTGGSGSMYSLQGVHGDMNVILWPIQSGILRFCGFQVLEPQLVYSIGHTPPDARMQILEGWKKRLETVWEETPLYFAPSSLFDLNFQAGFLLMKEVQEEQKKNKFGLSVGHHLGKSIPADNQIKARK 273
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Flavodoxin-like (1057)

Superfamily: Flavoproteins (208)

Family: Quinone reductase (65)

Protein domain: NAD(P)H:quinone reductase (10)

Mouse (Mus musculus) [TaxId: 10090] (1)

1a	d1dxqa_	A:
1b	d1dxqb_	B:
1c	d1dxqc_	C:
1d	d1dxqd_	D:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.360, no name defined] (150)

Mouse (Mus musculus) (1)

1a	1dxqA00	A:1-273
1b	1dxqB00	B:1-273
1c	1dxqC00	C:1-273
1d	1dxqD00	D:1-273

(no "Pfam Domain" information available for 1DXQ)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (NQO1_MOUSE | Q64669)

molecular function
	GO:0003955	NAD(P)H dehydrogenase (quinone) activity	Catalysis of the reaction: NAD(P)H + H+ + a quinone = NAD(P)+ + a hydroquinone.
	GO:0042802	identical protein binding	Interacting selectively and non-covalently with an identical protein or proteins.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
	GO:0004784	superoxide dismutase activity	Catalysis of the reaction: 2 superoxide + 2 H+ = O2 + hydrogen peroxide.
biological process
	GO:0007568	aging	A developmental process that is a deterioration and loss of function over time. Aging includes loss of functions such as resistance to disease, homeostasis, and fertility, as well as wear and tear. Aging includes cellular senescence, but is more inclusive. May precede death and may succeed developmental maturation (GO:0021700).
	GO:0043086	negative regulation of catalytic activity	Any process that stops or reduces the activity of an enzyme.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
	GO:0043525	positive regulation of neuron apoptotic process	Any process that activates or increases the frequency, rate or extent of cell death of neurons by apoptotic process.
	GO:0019430	removal of superoxide radicals	Any process, acting at the cellular level, involved in removing superoxide radicals (O2-) from a cell or organism, e.g. by conversion to dioxygen (O2) and hydrogen peroxide (H2O2).
	GO:0032355	response to estradiol	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of stimulus by estradiol, a C18 steroid hormone hydroxylated at C3 and C17 that acts as a potent estrogen.
	GO:0045471	response to ethanol	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an ethanol stimulus.
	GO:0007584	response to nutrient	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a nutrient stimulus.
	GO:0014070	response to organic cyclic compound	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an organic cyclic compound stimulus.
	GO:0006979	response to oxidative stress	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of oxidative stress, a state often resulting from exposure to high levels of reactive oxygen species, e.g. superoxide anions, hydrogen peroxide (H2O2), and hydroxyl radicals.
	GO:0006801	superoxide metabolic process	The chemical reactions and pathways involving superoxide, the superoxide anion O2- (superoxide free radical), or any compound containing this species.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0043025	neuronal cell body	The portion of a neuron that includes the nucleus, but excludes cell projections such as axons and dendrites.
