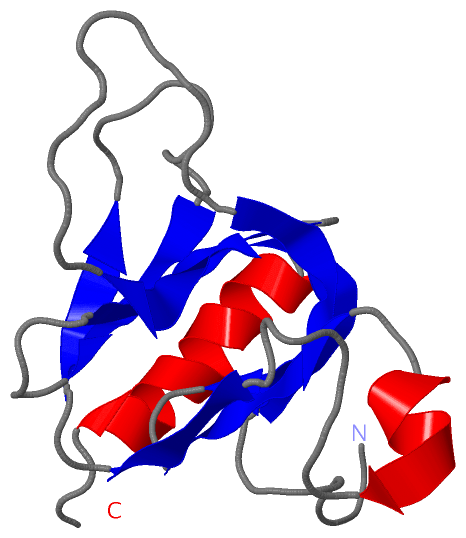

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

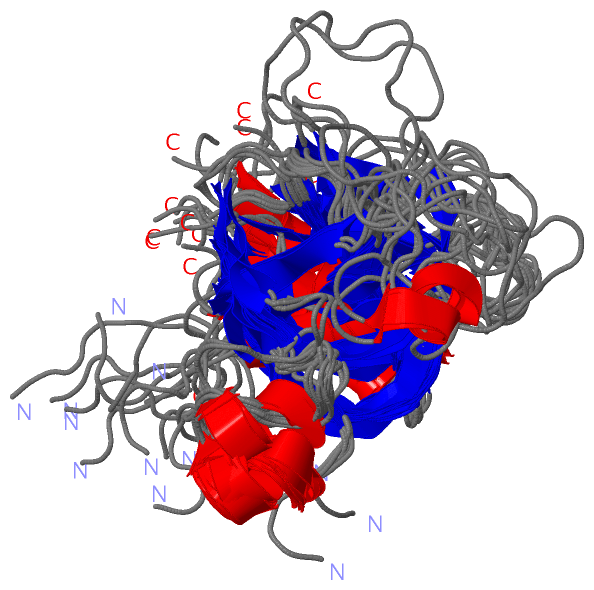

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF THE CYTOSKELETON/SIGNAL TRANSDUCTION PROTEIN

Authors :  P. Zhang, S. Talluri, H. Deng, D. Branton, G. Wagner
Date :  29 Sep 95  (Deposition) - 03 Apr 96  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (15x)
Keywords :  Cytoskeleton (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  P. Zhang, S. Talluri, H. Deng, D. Branton, G. Wagner
Solution Structure Of The Pleckstrin Homology Domain Of Drosophila Beta-Spectrin.
Structure V. 3 1185 1995
PubMed-ID: 8591029  |  Reference-DOI: 10.1016/S0969-2126(01)00254-4
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BETA-SPECTRIN
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    FragmentPLECKSTRIN HOMOLOGY DOMAIN
    OrganFRUIT
    Organism CommonFRUIT FLY
    Organism ScientificDROSOPHILA MELANOGASTER
    Organism Taxid7227
    Other DetailsEXPRESSION VECTOR USED WAS PGEX-2T

 Structural Features

(-) Chains, Units


NMR Structure (15x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1DRO)

(-) Sites  (0, 0)

(no "Site" information available for 1DRO)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1DRO)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1DRO)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1DRO)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PH_DOMAINPS50003 PH domain profile.SPTCB_DROME2147-2259  1A:7-119

(-) Exons   (0, 0)

(no "Exon" information available for 1DRO)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:122
 aligned with SPTCB_DROME | Q00963 from UniProtKB/Swiss-Prot  Length:2291

    Alignment length:122
                                  2150      2160      2170      2180      2190      2200      2210      2220      2230      2240      2250      2260
         SPTCB_DROME   2141 GGTPGAGEGHEGYVTRKHEWDSTTKKASNRSWDKVYMAAKAGRISFYKDQKGYKSNPELTFRGEPSYDLQNAAIEIASDYTKKKHVLRVKLANGALFLLQAHDDTEMSQWVTSLKAQSDSTA 2262
               SCOP domains d1droa_ A: beta-spectrin                                                                                                   SCOP domains
               CATH domains 1droA00 A:1-122 Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)                                CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeeeeee.............eeeeeee...eeeee..hhhhhhh........eeeee...eeee.........eeeee.....eeeeee...hhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------PH_DOMAIN  PDB: A:7-119 UniProt: 2147-2259                                                                       --- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------- Transcript
                1dro A    1 GSGTGAGEGHEGYVTRKHEWDSTTKKASNRSWDKVYMAAKAGRISFYKDQKGYKSNPELTFRGEPSYDLQNAAIEIASDYTKKKHVLRVKLANGALFLLQAHDDTEMSQWVTSLKAQSDSTA  122
                                    10        20        30        40        50        60        70        80        90       100       110       120

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1DRO)

(-) Gene Ontology  (34, 34)

NMR Structure(hide GO term definitions)
Chain A   (SPTCB_DROME | Q00963)
molecular function
    GO:0003779    actin binding    Interacting selectively and non-covalently with monomeric or multimeric forms of actin, including actin filaments.
    GO:0030506    ankyrin binding    Interacting selectively and non-covalently with ankyrin, a 200 kDa cytoskeletal protein that attaches other cytoskeletal proteins to integral membrane proteins.
    GO:0005516    calmodulin binding    Interacting selectively and non-covalently with calmodulin, a calcium-binding protein with many roles, both in the calcium-bound and calcium-free states.
    GO:0008092    cytoskeletal protein binding    Interacting selectively and non-covalently with any protein component of any cytoskeleton (actin, microtubule, or intermediate filament cytoskeleton).
    GO:0008017    microtubule binding    Interacting selectively and non-covalently with microtubules, filaments composed of tubulin monomers.
    GO:0005546    phosphatidylinositol-4,5-bisphosphate binding    Interacting selectively and non-covalently with phosphatidylinositol-4,5-bisphosphate, a derivative of phosphatidylinositol in which the inositol ring is phosphorylated at the 4' and 5' positions.
    GO:0005543    phospholipid binding    Interacting selectively and non-covalently with phospholipids, a class of lipids containing phosphoric acid as a mono- or diester.
    GO:0005200    structural constituent of cytoskeleton    The action of a molecule that contributes to the structural integrity of a cytoskeletal structure.
biological process
    GO:0051693    actin filament capping    The binding of a protein or protein complex to the end of an actin filament, thus preventing the addition, exchange or removal of further actin subunits.
    GO:0007411    axon guidance    The chemotaxis process that directs the migration of an axon growth cone to a specific target site in response to a combination of attractive and repulsive cues.
    GO:0016199    axon midline choice point recognition    The recognition of molecules at the central nervous system midline choice point by an axon growth cone; this choice point determines whether the growth cone will cross the midline.
    GO:0007409    axonogenesis    De novo generation of a long process of a neuron, that carries efferent (outgoing) action potentials from the cell body towards target cells. Refers to the morphogenesis or creation of shape or form of the developing axon.
    GO:0045478    fusome organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of the fusome, a large intracellular spectrin-rich structure found in insect germline cells and mammalian hematopoietic cells.
    GO:0042062    long-term strengthening of neuromuscular junction    Any process that results in an increase in the efficacy of transmission at a neuromuscular synapse.
    GO:0048790    maintenance of presynaptic active zone structure    A process which maintains the organization and the arrangement of proteins at the active zone to ensure the fusion and docking of vesicles and the release of neurotransmitters.
    GO:0007026    negative regulation of microtubule depolymerization    Any process that stops, prevents, or reduces the frequency, rate or extent of microtubule depolymerization; prevention of depolymerization of a microtubule can result from binding by 'capping' at the plus end (e.g. by interaction with another cellular protein of structure) or by exposing microtubules to a stabilizing drug such as taxol.
    GO:0007399    nervous system development    The process whose specific outcome is the progression of nervous tissue over time, from its formation to its mature state.
    GO:0007274    neuromuscular synaptic transmission    The process of synaptic transmission from a neuron to a muscle, across a synapse.
    GO:0072499    photoreceptor cell axon guidance    The chemotaxis process that directs the migration of a photoreceptor cell axon growth cone to its target in the optic lobe in response to a combination of attractive and repulsive cues.
    GO:0007009    plasma membrane organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of the plasma membrane.
    GO:0050807    regulation of synapse organization    Any process that modulates the physical form of a synapse, the junction between a neuron and a target (neuron, muscle, or secretory cell).
    GO:0030721    spectrosome organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of the spectrosome, a germline specific spherical organelle that is the precursor to the fusome.
cellular component
    GO:0016327    apicolateral plasma membrane    The apical end of the lateral plasma membrane of epithelial cells.
    GO:0030424    axon    The long process of a neuron that conducts nerve impulses, usually away from the cell body to the terminals and varicosities, which are sites of storage and release of neurotransmitter.
    GO:0005938    cell cortex    The region of a cell that lies just beneath the plasma membrane and often, but not always, contains a network of actin filaments and associated proteins.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
    GO:0045169    fusome    A large intracellular spectrin-rich structure that has been found in insect germline cells and mammalian hematopoietic cells. The fusome is an elongated, branched structure, formed from the spherical spectrosome organelle.
    GO:0016328    lateral plasma membrane    The portion of the plasma membrane at the lateral side of the cell. In epithelial cells, lateral plasma membranes are on the sides of cells which lie at the interface of adjacent cells.
    GO:0005811    lipid droplet    An intracellular non-membrane-bounded organelle comprising a matrix of coalesced lipids surrounded by a phospholipid monolayer. May include associated proteins.
    GO:0031594    neuromuscular junction    The junction between the axon of a motor neuron and a muscle fiber. In response to the arrival of action potentials, the presynaptic button releases molecules of neurotransmitters into the synaptic cleft. These diffuse across the cleft and transmit the signal to the postsynaptic membrane of the muscle fiber, leading to a change in post-synaptic potential.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0008091    spectrin    Membrane associated dimeric protein (240 and 220 kDa) of erythrocytes. Forms a complex with ankyrin, actin and probably other components of the membrane cytoskeleton, so that there is a mesh of proteins underlying the plasma membrane, potentially restricting the lateral mobility of integral proteins.
    GO:0045170    spectrosome    A germline specific spherical organelle, rich in membrane skeletal proteins. Precursor to the fusome.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1dro)

  Sites
(no "Sites" information available for 1dro)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1dro)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1dro
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SPTCB_DROME | Q00963
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  SPTCB_DROME | Q00963
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1DRO)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1DRO)
