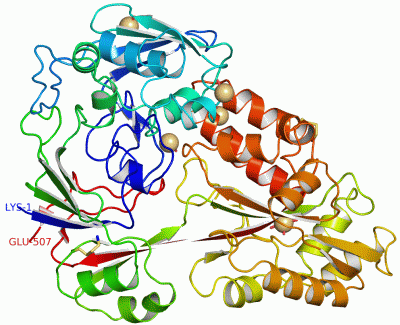

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  DIPEPTIDE-BINDING PROTEIN

Authors :  A. V. Nickitenko, S. Trakhanov, F. A. Quiocho
Date :  25 Jul 95  (Deposition) - 17 Aug 96  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Peptide Transport, Periplasmic, Chemotaxis Binding Proteins For Active Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  A. V. Nickitenko, S. Trakhanov, F. A. Quiocho
2 A Resolution Structure Of Dppa, A Periplasmic Dipeptide Transport/Chemosensory Receptor.
Biochemistry V. 34 16585 1995
PubMed-ID: 8527431  |  Reference-DOI: 10.1021/BI00051A006
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DIPEPTIDE-BINDING PROTEIN
    ChainsA
    Organism ScientificESCHERICHIA COLI K12
    Organism Taxid83333
    StrainK-12
    SynonymDIPEPTIDE PERMEASE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 5)

Asymmetric/Biological Unit (1, 5)
No.NameCountTypeFull Name
1CD5Ligand/IonCADMIUM ION

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:55 , HIS A:66 , ASP A:395 , HOH A:697 , HOH A:698BINDING SITE FOR RESIDUE CD A 508
2AC2SOFTWAREHIS A:105 , GLU A:457 , HOH A:699 , HOH A:984BINDING SITE FOR RESIDUE CD A 509
3AC3SOFTWAREHIS A:467 , HOH A:690 , HOH A:691 , HOH A:692 , HOH A:693 , HOH A:694BINDING SITE FOR RESIDUE CD A 510
4AC4SOFTWAREGLU A:45 , GLU A:122 , HIS A:452 , HOH A:667BINDING SITE FOR RESIDUE CD A 511
5AC5SOFTWAREGLU A:116 , ASP A:451 , HOH A:707 , HOH A:708BINDING SITE FOR RESIDUE CD A 512

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:6 -A:234
2A:422 -A:435

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Lys A:274 -Pro A:275

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1DPE)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SBP_BACTERIAL_5PS01040 Bacterial extracellular solute-binding proteins, family 5 signature.DPPA_ECOLI79-101  1A:51-73

(-) Exons   (0, 0)

(no "Exon" information available for 1DPE)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:507
 aligned with DPPA_ECOLI | P23847 from UniProtKB/Swiss-Prot  Length:535

    Alignment length:507
                                    38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448       458       468       478       488       498       508       518       528
           DPPA_ECOLI    29 KTLVYCSEGSPEGFNPQLFTSGTTYDASSVPLYNRLVEFKIGTTEVIPGLAEKWEVSEDGKTYTFHLRKGVKWHDNKEFKPTRELNADDVVFSFDRQKNAQNPYHKVSGGSYEYFEGMGLPELISEVKKVDDNTVQFVLTRPEAPFLADLAMDFASILSKEYADAMMKAGTPEKLDLNPIGTGPFQLQQYQKDSRIRYKAFDGYWGTKPQIDTLVFSITPDASVRYAKLQKNECQVMPYPNPADIARMKQDKSINLMEMPGLNVGYLSYNVQKKPLDDVKVRQALTYAVNKDAIIKAVYQGAGVSAKNLIPPTMWGYNDDVQDYTYDPEKAKALLKEAGLEKGFSIDLWAMPVQRPYNPNARRMAEMIQADWAKVGVQAKIVTYEWGEYLKRAKDGEHQTVMMGWTGDNGDPDNFFATLFSCAASEQGSNYSKWCYKPFEDLIQPARATDDHNKRVELYKQAQVVMHDQAPALIIAHSTVFEPVRKEVKGYVVDPLGKHHFENVSIE 535
               SCOP domains d1dpea_ A: Dipeptide-binding protein                                                                                                                                                                                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1dpeA02  1dpeA01 A:10-178 Dipeptide-binding Protein; Domain 1                                                                                                                     1dpeA02 A:1-9,A:179-259,A:479-507 Periplasmic binding protein-like II            1dpeA03 A:260-478 Dipeptide-binding Protein; Domain 3                                                                                                                                                                      1dpeA02                       CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee..............hhhhhh.........eee......eee..eeeeee.....eeeeee...................hhhhhhhhhhhh..............hhhhh......eeeeee....eeeeee....hhhhhhhh........hhhhhhhhh...hhhhhh.......eeeeeee...eeeeee............eeeeee...hhhhhhhhh.....ee....hhhhhhhhh...eeeeeee..eeeeeee.........hhhhhhhhh...hhhhhhhhh...eee......................hhhhhhhhhh......eeeeee...........hhhhhhhhhhhhhhh.eeeeee...hhhhhhhhhh....eeeeeee.....hhhhhhhhh.hhhhhh.........hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh..eeeeeeeeeeeeee..ee...............ee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------SBP_BACTERIAL_5        -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dpe A   1 KTLVYCSEGSPEGFNPQLFISGTTYDASSVPLYNRLVEFKIGTTEVIPGLAEKWEVSEDGKTYTFHLRKGVKWHDNKEFKPTRELNADDVVFSFDRQKNAQNPYHKVSGGSYEYFEGMGLPELISEVKKVDDNTVQFVLTRPEAPFLADLAMDFASILSKEYADAMMKAGTPEKLDLNPIGTGPFQLQQYQKDSRIRYKAFDGYWGTKPQIDTLVFSITPDASVRYAKLQKNECQVMPYPNPADIARMKQDKSINLMEMPGLNVGYLSYNVQKKPLDDVKVRQALTYAVNKDAIIKAVYQGAGVSAKNLIPPTMWGYNDDVQDYTYDPEKAKALLKEAGLEKGFSIDLWAMPVQRPYNPNARRMAEMIQADWAKVGVQAKIVTYEWGEYLKRAKDGEHQTVMMGWTGDNGDPDNFFATEFSCAASEQGSNYSKWCYKPFEDLIQPARATDDHNKRVELYKQAQVVMHDQAPALIIAHSTVFEPVRKEVKGYVVDPLGKHHFENVSIE 507
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (3, 3)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1DPE)

(-) Gene Ontology  (9, 9)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (DPPA_ECOLI | P23847)
molecular function
    GO:0042277    peptide binding    Interacting selectively and non-covalently with peptides, any of a group of organic compounds comprising two or more amino acids linked by peptide bonds.
biological process
    GO:0006935    chemotaxis    The directed movement of a motile cell or organism, or the directed growth of a cell guided by a specific chemical concentration gradient. Movement may be towards a higher concentration (positive chemotaxis) or towards a lower concentration (negative chemotaxis).
    GO:0015833    peptide transport    The directed movement of peptides, compounds of two or more amino acids where the alpha carboxyl group of one is bound to the alpha amino group of another, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0015031    protein transport    The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0055085    transmembrane transport    The process in which a solute is transported across a lipid bilayer, from one side of a membrane to the other
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0043190    ATP-binding cassette (ABC) transporter complex    A complex for the transport of metabolites into and out of the cell, typically comprised of four domains; two membrane-associated domains and two ATP-binding domains at the intracellular face of the membrane, that form a central pore through the plasma membrane. Each of the four core domains may be encoded as a separate polypeptide or the domains can be fused in any one of a number of ways into multidomain polypeptides. In Bacteria and Archaebacteria, ABC transporters also include substrate binding proteins to bind substrate external to the cytoplasm and deliver it to the transporter.
    GO:0030288    outer membrane-bounded periplasmic space    The region between the inner (cytoplasmic or plasma) membrane and outer membrane of organisms with two membranes such as Gram negative bacteria. These periplasmic spaces are relatively thick and contain a thin peptidoglycan layer (PGL), also referred to as a thin cell wall.
    GO:0042597    periplasmic space    The region between the inner (cytoplasmic) and outer membrane (Gram-negative Bacteria) or cytoplasmic membrane and cell wall (Fungi and Gram-positive Bacteria).

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

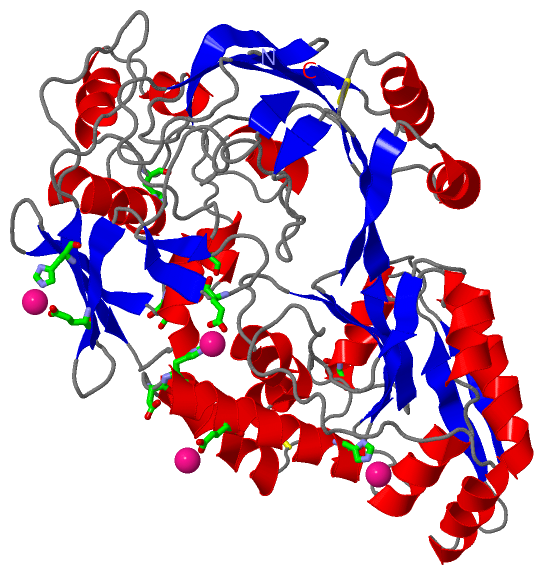

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Lys A:274 - Pro A:275   [ RasMol ]

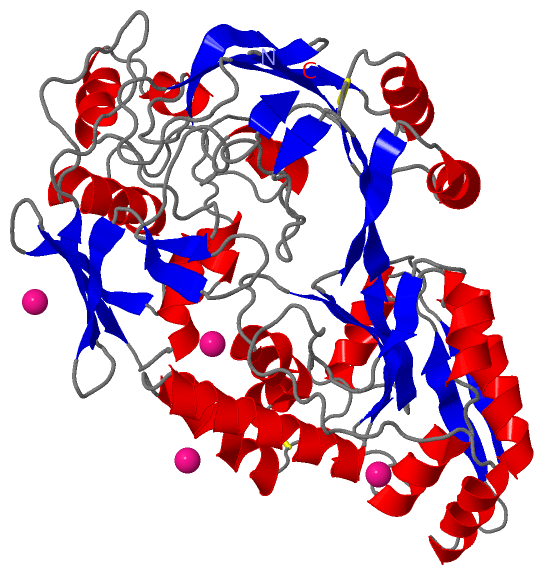

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1dpe
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DPPA_ECOLI | P23847
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  DPPA_ECOLI | P23847
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DPPA_ECOLI | P238471dpp

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1DPE)
