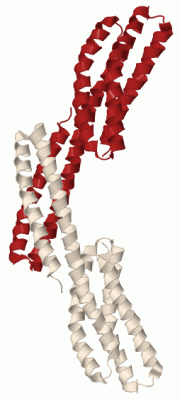

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

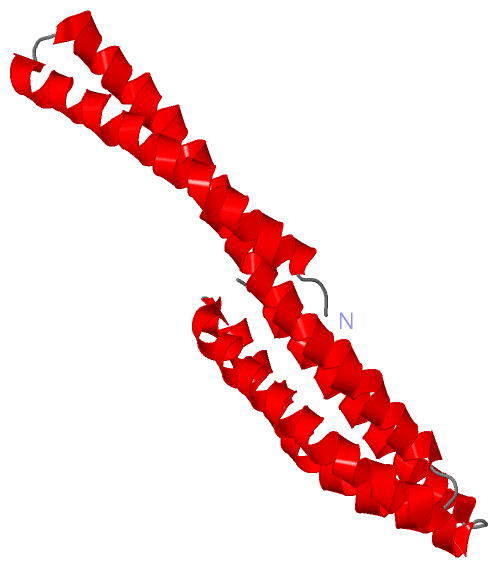

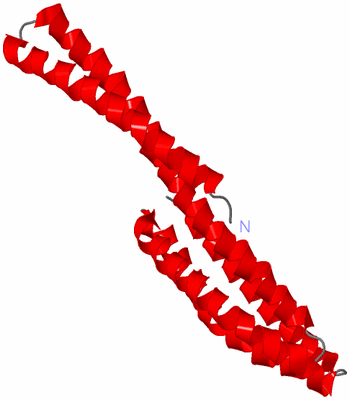

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

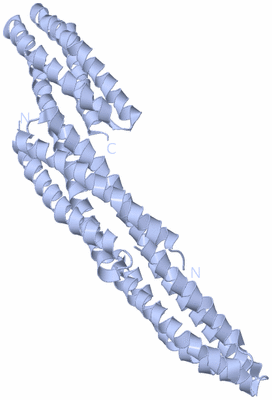

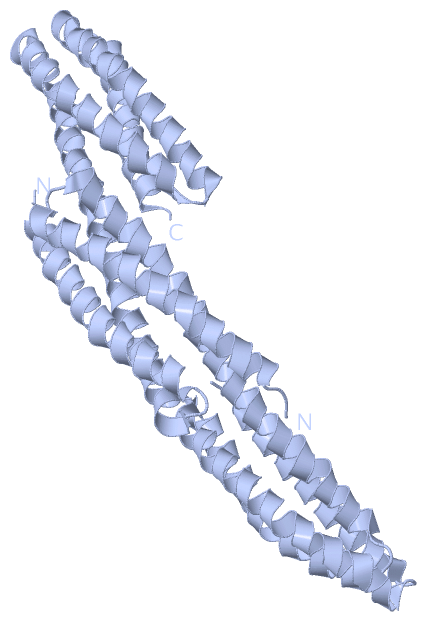

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

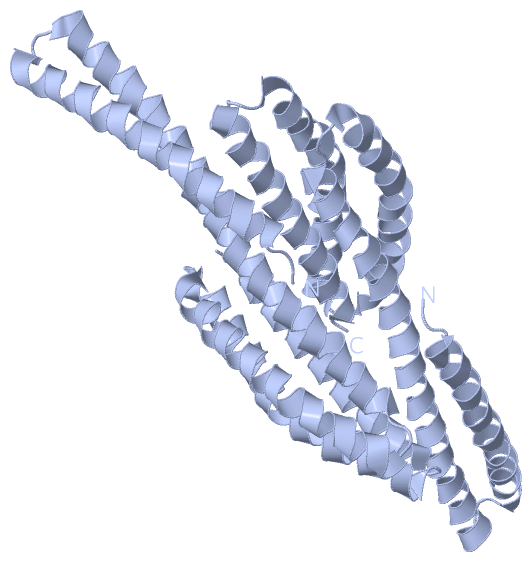

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE ALPHA-CATENIN DIMERIZATION DOMAIN

Authors :  S. Pokutta, W. I. Weis
Date :  21 Dec 99  (Deposition) - 12 Jul 00  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.00
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Biol. Unit 2:  A  (2x)
Keywords :  Four-Helix Bundle, Cell Adhesion (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  S. Pokutta, W. I. Weis
Structure Of The Dimerization And Beta-Catenin-Binding Region Of Alpha-Catenin.
Mol. Cell V. 5 533 2000
PubMed-ID: 10882138  |  Reference-DOI: 10.1016/S1097-2765(00)80447-5

(-) Compounds

Molecule 1 - ALPHA-CATENIN
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    FragmentDIMERIZATION DOMAIN
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit A
Biological Unit 1 (2x)A
Biological Unit 2 (2x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1DOV)

(-) Sites  (0, 0)

(no "Site" information available for 1DOV)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1DOV)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1DOV)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1DOV)

(-) PROSITE Motifs  (1, 1)

Asymmetric Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1VINCULIN_1PS00663 Vinculin family talin-binding region signature.CTNA1_MOUSE178-198  1A:178-198
Biological Unit 1 (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1VINCULIN_1PS00663 Vinculin family talin-binding region signature.CTNA1_MOUSE178-198  2A:178-198
Biological Unit 2 (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1VINCULIN_1PS00663 Vinculin family talin-binding region signature.CTNA1_MOUSE178-198  2A:178-198

(-) Exons   (0, 0)

(no "Exon" information available for 1DOV)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:181
 aligned with CTNA1_MOUSE | P26231 from UniProtKB/Swiss-Prot  Length:906

    Alignment length:181
                                    91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261
          CTNA1_MOUSE    82 ESQFLKEELVVAVEDVRKQGDLMKSAAGEFADDPCSSVKRGNMVRAARALLSAVTRLLILADMADVYKLLVQLKVVEDGILKLRNAGNEQDLGIQYKALKPEVDKLNIMAAKRQQELKDVGNRDQMAAARGILQKNVPILYTASQACLQHPDVAAYKANRDLIYKQLQQAVTGISNAAQAT 262
               SCOP domains d1dova_ A: alpha-catenin                                                                                                                                                              SCOP domains
               CATH domains 1dovA00 A:82-262  [code=1.20.120.230, no name defined]                                                                                                                                CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------VINCULIN_1           ---------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dov A  82 ESQFLKEELVVAVEDVRKQGDLMKSAAGEFADDPCSSVKRGNMVRAARALLSAVTRLLILADMADVYKLLVQLKVVEDGILKLRNAGNEQDLGIQYKALKPEVDKLNIMAAKRQQELKDVGNRDQMAAARGILQKNVPILYTASQACLQHPDVAAYKANRDLIYKQLQQAVTGISNAAQAT 262
                                    91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit

(-) CATH Domains  (1, 1)

Asymmetric Unit

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1DOV)

(-) Gene Ontology  (50, 50)

Asymmetric Unit(hide GO term definitions)
Chain A   (CTNA1_MOUSE | P26231)
molecular function
    GO:0051015    actin filament binding    Interacting selectively and non-covalently with an actin filament, also known as F-actin, a helical filamentous polymer of globular G-actin subunits.
    GO:0008013    beta-catenin binding    Interacting selectively and non-covalently with the beta subunit of the catenin complex.
    GO:0045296    cadherin binding    Interacting selectively and non-covalently with cadherin, a type I membrane protein involved in cell adhesion.
    GO:0045295    gamma-catenin binding    Interacting selectively and non-covalently with the gamma subunit of the catenin complex.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0005198    structural molecule activity    The action of a molecule that contributes to the structural integrity of a complex or its assembly within or outside a cell.
    GO:0017166    vinculin binding    Interacting selectively and non-covalently with vinculin, a protein found in muscle, fibroblasts, and epithelial cells that binds actin and appears to mediate attachment of actin filaments to integral proteins of the plasma membrane.
biological process
    GO:0007015    actin filament organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of cytoskeletal structures comprising actin filaments. Includes processes that control the spatial distribution of actin filaments, such as organizing filaments into meshworks, bundles, or other structures, as by cross-linking.
    GO:0007568    aging    A developmental process that is a deterioration and loss of function over time. Aging includes loss of functions such as resistance to disease, homeostasis, and fertility, as well as wear and tear. Aging includes cellular senescence, but is more inclusive. May precede death and may succeed developmental maturation (GO:0021700).
    GO:0043297    apical junction assembly    The formation of an apical junction, a functional unit located near the cell apex at the points of contact between epithelial cells composed of the tight junction, the zonula adherens junction and the desmosomes, by the aggregation, arrangement and bonding together of its constituents.
    GO:0031103    axon regeneration    The regrowth of axons following their loss or damage.
    GO:0007155    cell adhesion    The attachment of a cell, either to another cell or to an underlying substrate such as the extracellular matrix, via cell adhesion molecules.
    GO:0034613    cellular protein localization    Any process in which a protein is transported to, and/or maintained in, a specific location at the level of a cell. Localization at the cellular level encompasses movement within the cell, from within the cell to the cell surface, or from one location to another at the surface of a cell.
    GO:0071681    cellular response to indole-3-methanol    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an indole-3-methanol stimulus.
    GO:0090136    epithelial cell-cell adhesion    The attachment of an epithelial cell to another epithelial cell via adhesion molecules.
    GO:0007163    establishment or maintenance of cell polarity    Any cellular process that results in the specification, formation or maintenance of anisotropic intracellular organization or cell growth patterns.
    GO:0016264    gap junction assembly    Assembly of gap junctions, which are found in most animal tissues, and serve as direct connections between the cytoplasms of adjacent cells. They provide open channels through the plasma membrane, allowing ions and small molecules (less than approximately a thousand daltons) to diffuse freely between neighboring cells, but preventing the passage of proteins and nucleic acids.
    GO:0008584    male gonad development    The process whose specific outcome is the progression of the male gonad over time, from its formation to the mature structure.
    GO:0043066    negative regulation of apoptotic process    Any process that stops, prevents, or reduces the frequency, rate or extent of cell death by apoptotic process.
    GO:2000146    negative regulation of cell motility    Any process that stops, prevents, or reduces the frequency, rate or extent of cell motility.
    GO:2001240    negative regulation of extrinsic apoptotic signaling pathway in absence of ligand    Any process that stops, prevents or reduces the frequency, rate or extent of extrinsic apoptotic signaling pathway in absence of ligand.
    GO:2001045    negative regulation of integrin-mediated signaling pathway    Any process that stops, prevents or reduces the frequency, rate or extent of integrin-mediated signaling pathway.
    GO:0007406    negative regulation of neuroblast proliferation    Any process that stops, prevents, or reduces the frequency, rate or extent of the proliferation of neuroblasts.
    GO:0042475    odontogenesis of dentin-containing tooth    The process whose specific outcome is the progression of a dentin-containing tooth over time, from its formation to the mature structure. A dentin-containing tooth is a hard, bony organ borne on the jaw or other bone of a vertebrate, and is composed mainly of dentin, a dense calcified substance, covered by a layer of enamel.
    GO:0001541    ovarian follicle development    The process whose specific outcome is the progression of the ovarian follicle over time, from its formation to the mature structure.
    GO:2001241    positive regulation of extrinsic apoptotic signaling pathway in absence of ligand    Any process that activates or increases the frequency, rate or extent of extrinsic apoptotic signaling pathway in absence of ligand.
    GO:0045880    positive regulation of smoothened signaling pathway    Any process that activates or increases the frequency, rate or extent of smoothened signaling.
    GO:0051291    protein heterooligomerization    The process of creating protein oligomers, compounds composed of a small number, usually between three and ten, of component monomers that are not all identical. Oligomers may be formed by the polymerization of a number of monomers or the depolymerization of a large protein polymer.
    GO:0042127    regulation of cell proliferation    Any process that modulates the frequency, rate or extent of cell proliferation.
    GO:0043627    response to estrogen    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of stimulus by an estrogen, C18 steroid hormones that can stimulate the development of female sexual characteristics.
    GO:0014070    response to organic cyclic compound    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an organic cyclic compound stimulus.
cellular component
    GO:0005794    Golgi apparatus    A compound membranous cytoplasmic organelle of eukaryotic cells, consisting of flattened, ribosome-free vesicles arranged in a more or less regular stack. The Golgi apparatus differs from the endoplasmic reticulum in often having slightly thicker membranes, appearing in sections as a characteristic shallow semicircle so that the convex side (cis or entry face) abuts the endoplasmic reticulum, secretory vesicles emerging from the concave side (trans or exit face). In vertebrate cells there is usually one such organelle, while in invertebrates and plants, where they are known usually as dictyosomes, there may be several scattered in the cytoplasm. The Golgi apparatus processes proteins produced on the ribosomes of the rough endoplasmic reticulum; such processing includes modification of the core oligosaccharides of glycoproteins, and the sorting and packaging of proteins for transport to a variety of cellular locations. Three different regions of the Golgi are now recognized both in terms of structure and function: cis, in the vicinity of the cis face, trans, in the vicinity of the trans face, and medial, lying between the cis and trans regions.
    GO:0001669    acrosomal vesicle    A structure in the head of a spermatozoon that contains acid hydrolases, and is concerned with the breakdown of the outer membrane of the ovum during fertilization. It lies just beneath the plasma membrane and is derived from the lysosome.
    GO:0015629    actin cytoskeleton    The part of the cytoskeleton (the internal framework of a cell) composed of actin and associated proteins. Includes actin cytoskeleton-associated complexes.
    GO:0005912    adherens junction    A cell junction at which anchoring proteins (cadherins or integrins) extend through the plasma membrane and are attached to actin filaments.
    GO:0016342    catenin complex    Complex of peripheral cytoplasmic proteins (alpha-, beta- and gamma-catenin) that interact with the cytoplasmic region of uvomorulin/E-cadherin to connect it to the actin cytoskeleton.
    GO:0030054    cell junction    A cellular component that forms a specialized region of connection between two or more cells or between a cell and the extracellular matrix. At a cell junction, anchoring proteins extend through the plasma membrane to link cytoskeletal proteins in one cell to cytoskeletal proteins in neighboring cells or to proteins in the extracellular matrix.
    GO:0005913    cell-cell adherens junction    An adherens junction which connects a cell to another cell.
    GO:0005911    cell-cell junction    A cell junction that forms a connection between two or more cells in a multicellular organism; excludes direct cytoplasmic junctions such as ring canals.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0016600    flotillin complex    A protein complex that contains flotillin-1 and flotillin-2, and may contain associated proteins. Flotillins associate into membrane microdomains resembling caveolae.
    GO:0005925    focal adhesion    Small region on the surface of a cell that anchors the cell to the extracellular matrix and that forms a point of termination of actin filaments.
    GO:0014704    intercalated disc    A complex cell-cell junction at which myofibrils terminate in cardiomyocytes; mediates mechanical and electrochemical integration between individual cardiomyocytes. The intercalated disc contains regions of tight mechanical attachment (fasciae adherentes and desmosomes) and electrical coupling (gap junctions) between adjacent cells.
    GO:0043231    intracellular membrane-bounded organelle    Organized structure of distinctive morphology and function, bounded by a single or double lipid bilayer membrane and occurring within the cell. Includes the nucleus, mitochondria, plastids, vacuoles, and vesicles. Excludes the plasma membrane.
    GO:0030027    lamellipodium    A thin sheetlike process extended by the leading edge of a migrating cell or extending cell process; contains a dense meshwork of actin filaments.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0005915    zonula adherens    A cell-cell adherens junction which forms a continuous belt near the apex of epithelial cells.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1dov)

  Sites
(no "Sites" information available for 1dov)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1dov)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1dov
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CTNA1_MOUSE | P26231
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  CTNA1_MOUSE | P26231
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CTNA1_MOUSE | P262311dow 1l7c 4e17 4e18 4k1n
